Model #SC8900EXQ1 Whirlpool gas range

Here are the repair parts and diagrams for your Whirlpool SC8900EXQ1 gas range.

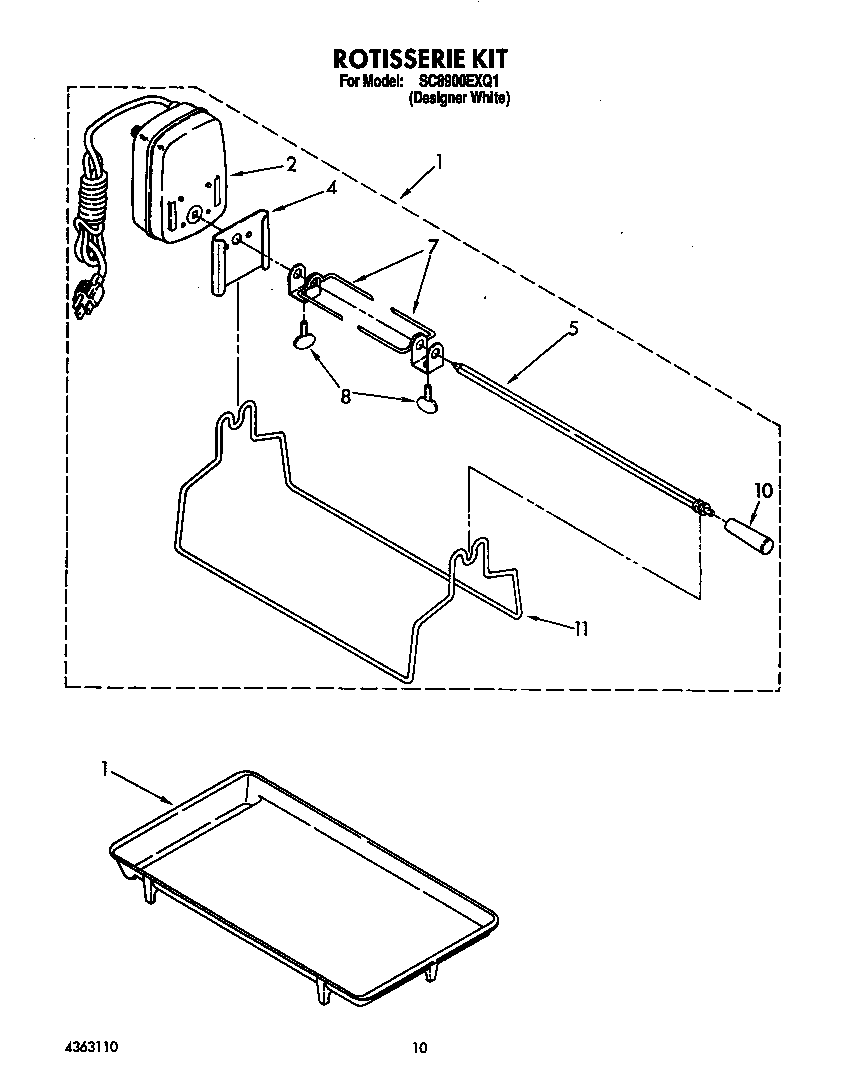

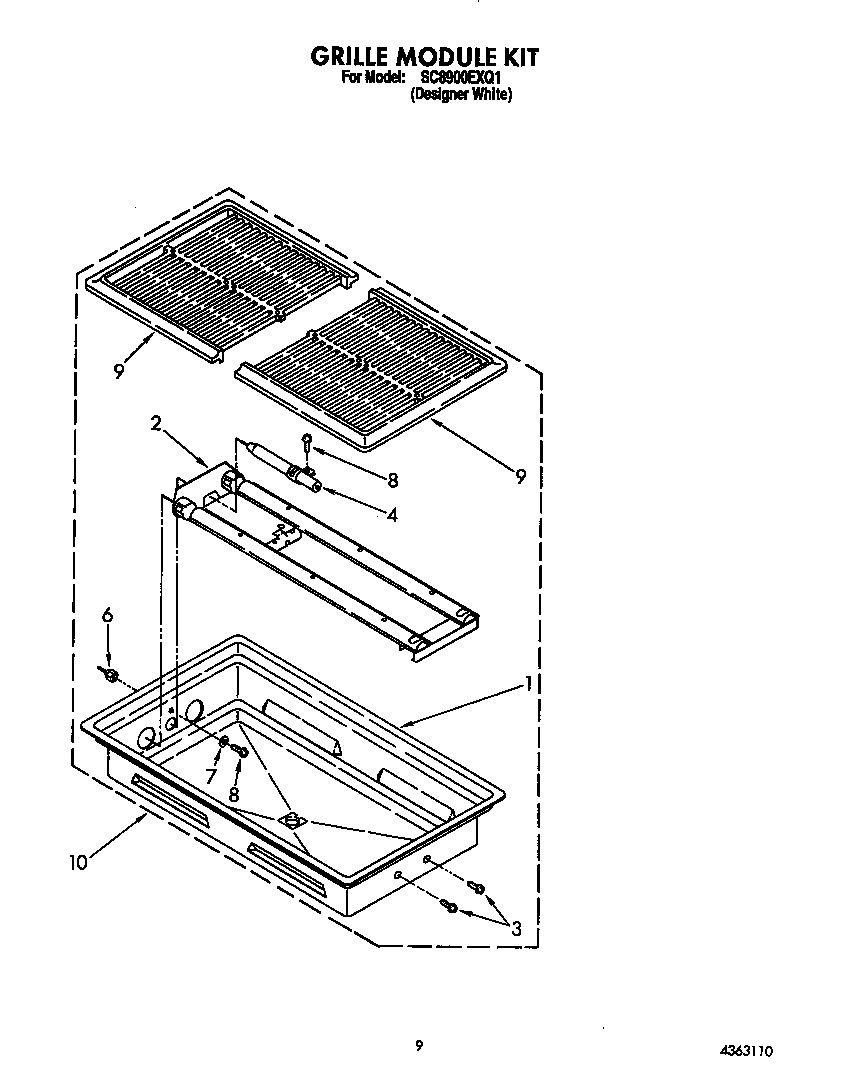

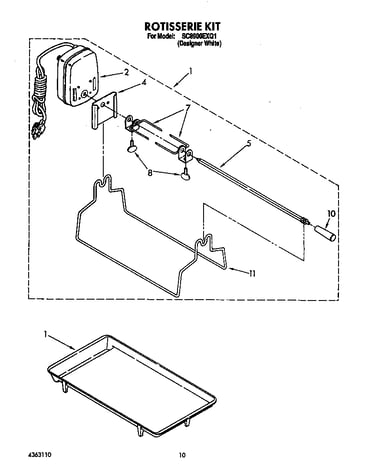

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 134 parts

Appliance Splicing Wire, 25-ft, 14-gauge (Yellow)

#38M

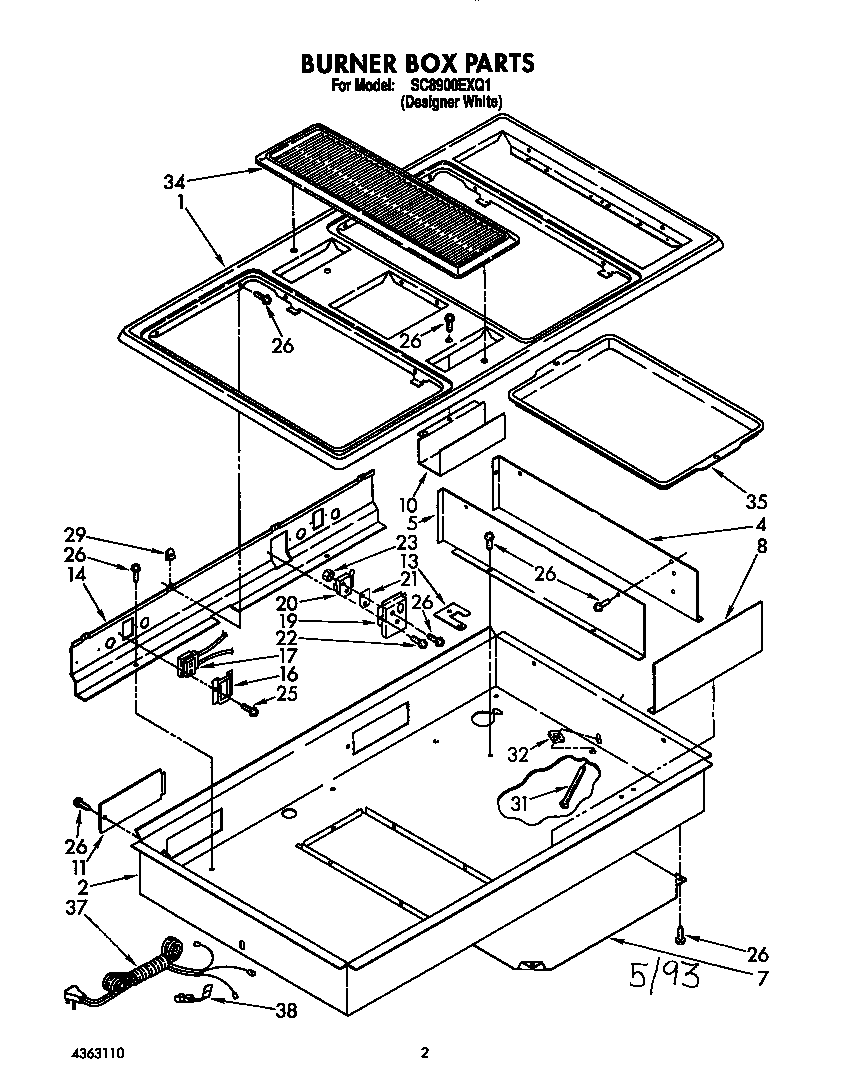

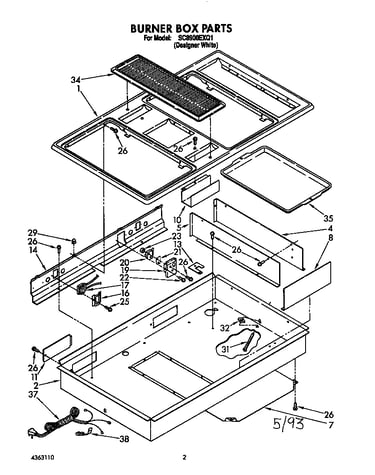

Burner box Diagram

$16.20
62% OFFMSRP:$42.43

In Stock

Wire (Red)

#38K

Burner box Diagram

Wire (red)

Part #242831
$214.42
31% OFFMSRP:$311.99

In Stock

Range Screw

#25

Burner box Diagram

Range screw

Part #WP3177991
?
Manufacturer substitution
This part replaces 786261. Substitute parts can look different from the original.
This part replaces 786261
This item is not returnable
$3.21

In Stock

Screw

#19

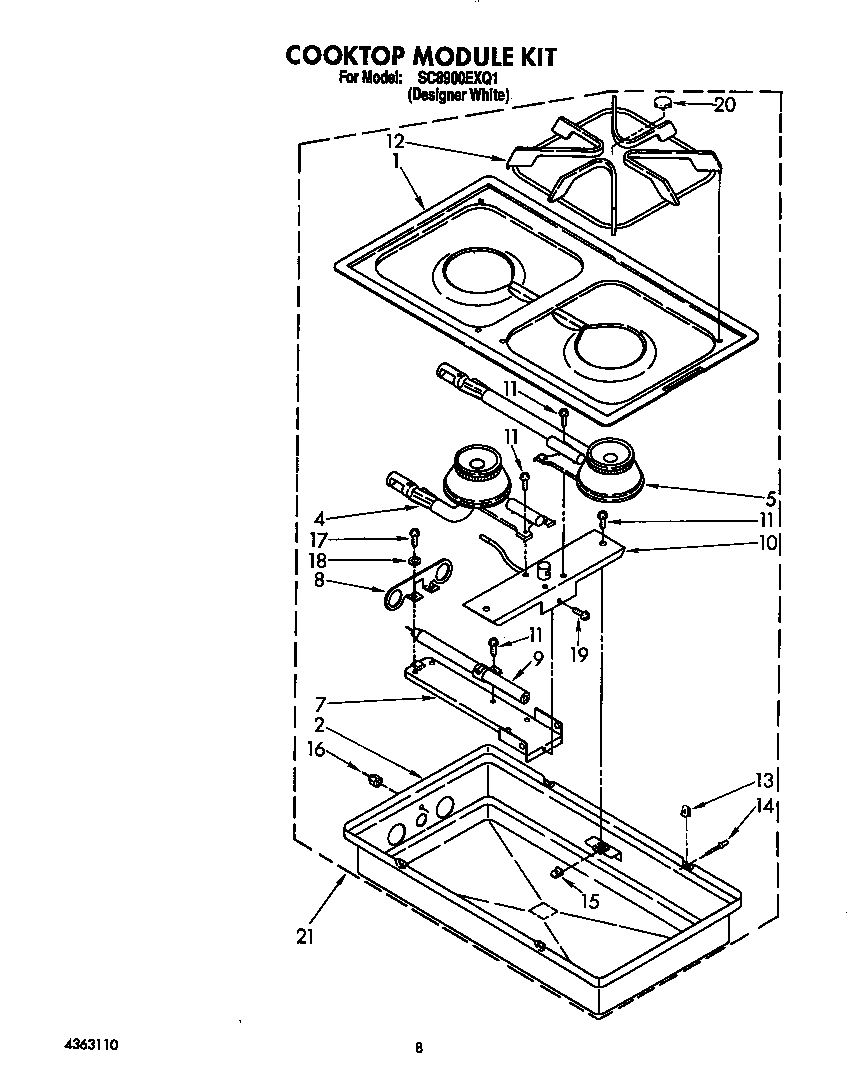

Cooktop Diagram

Screw

Part #4159431
?
Manufacturer substitution
This part replaces 786284. Substitute parts can look different from the original.
This part replaces 786284
This item is not returnable
$2.16

In Stock

Appliance Screw

#15

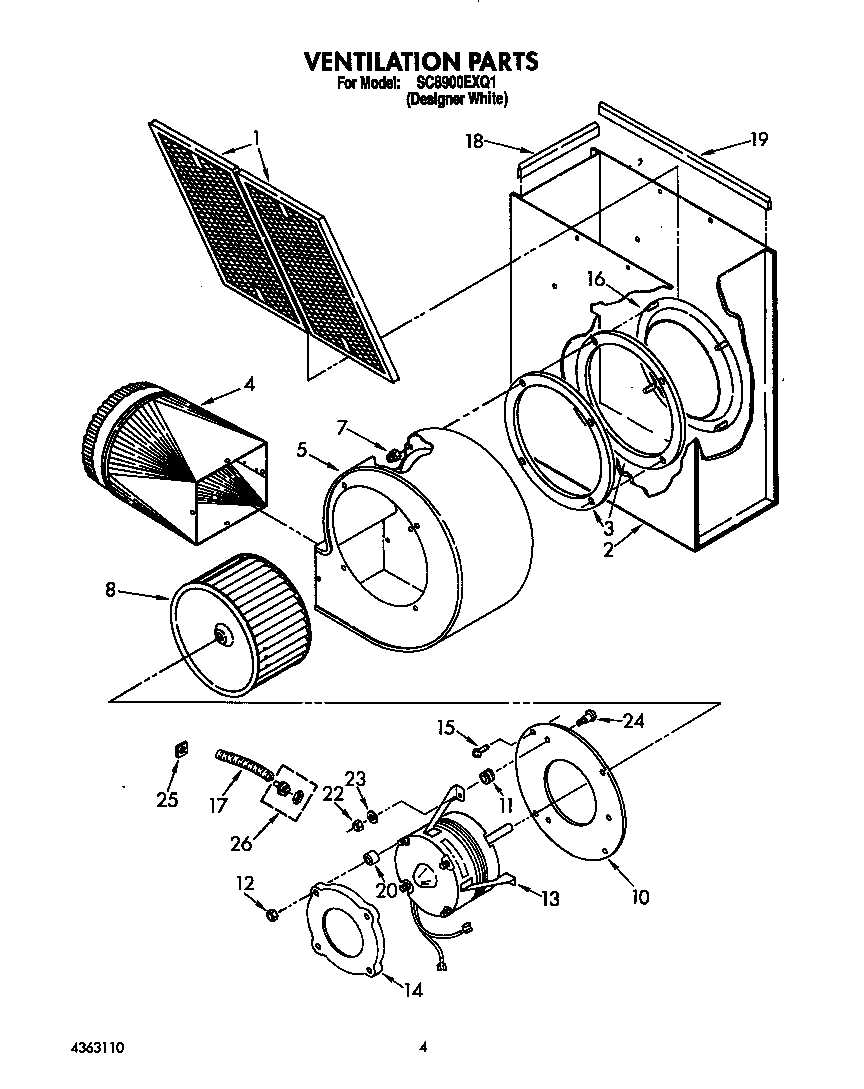

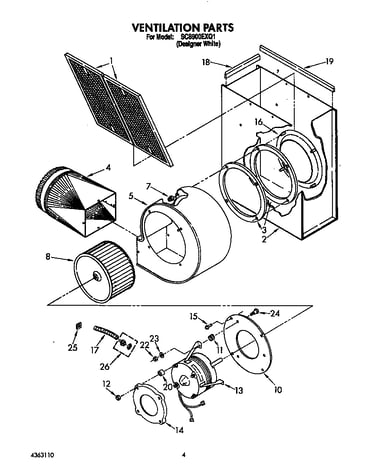

Ventilation Diagram

Appliance screw

Part #WP488729
?
Manufacturer substitution
This part replaces 786263. Substitute parts can look different from the original.
This part replaces 786263
This item is not returnable
$3.18

In Stock

Refrigerator Capacitor Screw

#17

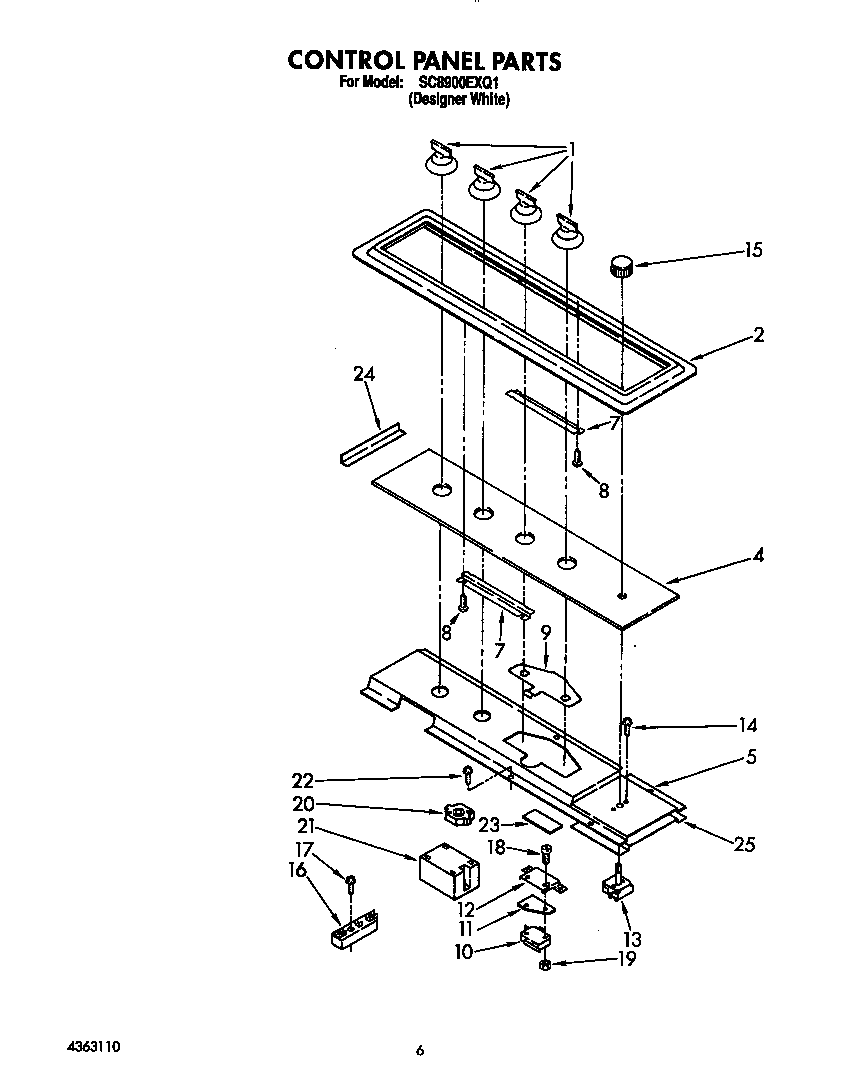

Control panel Diagram

Refrigerator capacitor screw

Part #WP487240
?
Manufacturer substitution
This part replaces 786274. Substitute parts can look different from the original.
This part replaces 786274
This item is not returnable
$4.56

Back Order

Refrigerator Screw

#11

Cooktop Diagram

Refrigerator screw

Part #WP489128
?
Manufacturer substitution
This part replaces 786262. Substitute parts can look different from the original.
This part replaces 786262
This item is not returnable
$6.56

In Stock

Dishwasher Screw

#26

Burner box Diagram

Dishwasher screw

Part #WP965173
?
Manufacturer substitution
This part replaces 786223. Substitute parts can look different from the original.
This part replaces 786223
This item is not returnable
$5.48

In Stock

Screw

#1A

Manifold and tubing Diagram

Screw

Part #W10491986
?
Manufacturer substitution
This part replaces 4179116. Substitute parts can look different from the original.
This part replaces 4179116
This item is not returnable
$2.19
33% OFFMSRP:$3.29

In Stock

Nut

#12

Ventilation Diagram

Nut

Part #786267

The manufacturer no longer makes this part, and there's no substitute part
