Kenmore
Mechanical Sewing Machine

Model #1581561280 Official Kenmore sewing machine

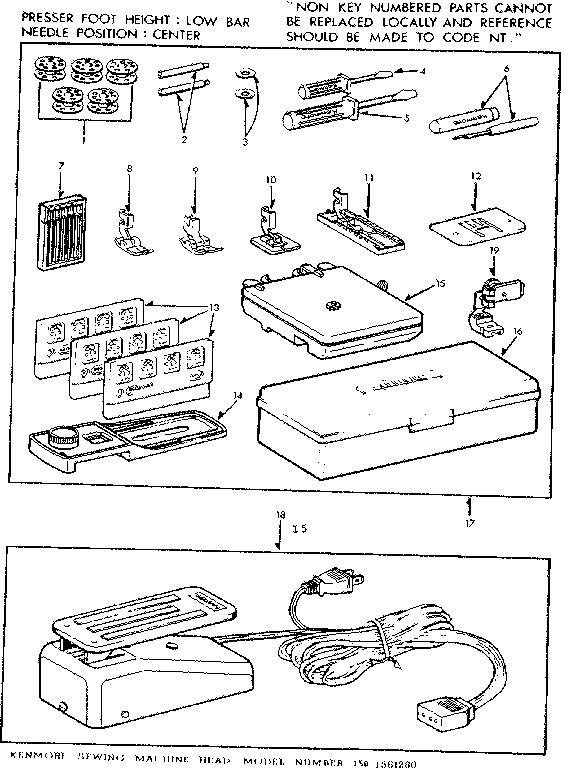

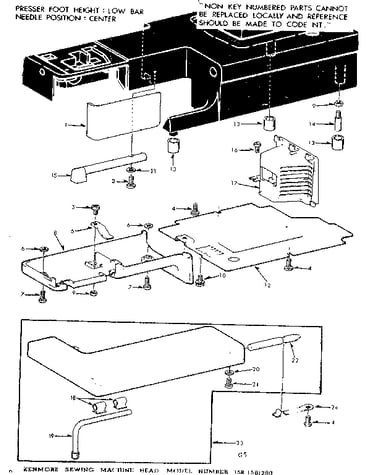

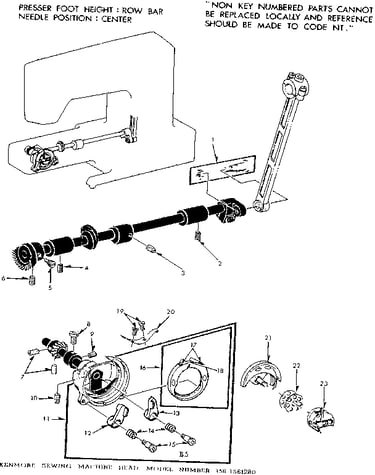

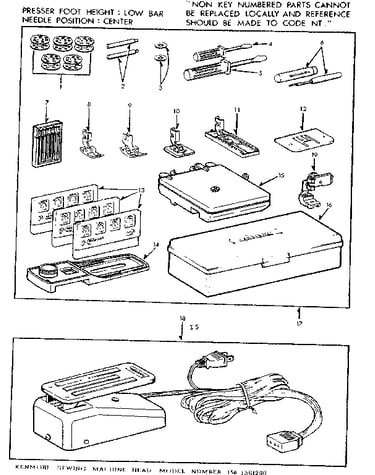

Here are the diagrams and repair parts for Kenmore 1581561280 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 222 parts

Bracket#4

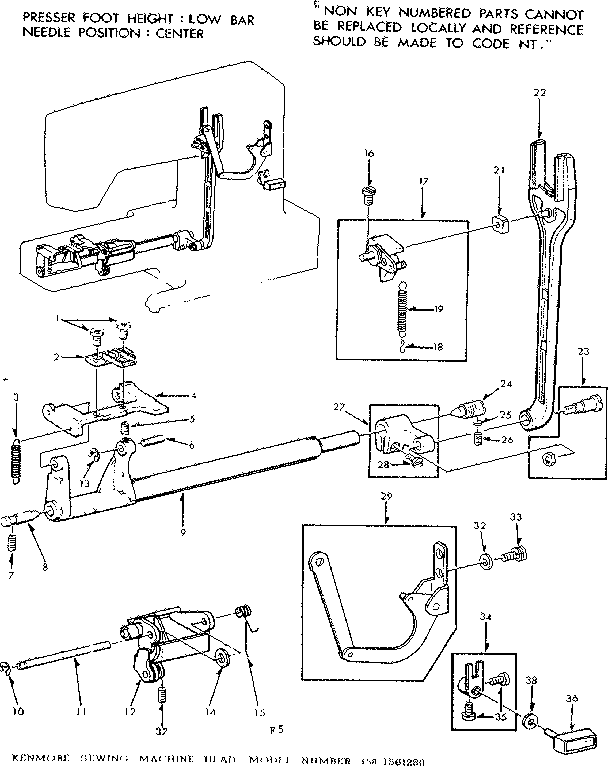

Zigzag guide assembly Diagram

Bracket

Part #57912

The manufacturer no longer makes this part, and there's no substitute part

Bracket#34

Zigzag guide assembly Diagram

Bracket

Part #57914

The manufacturer no longer makes this part, and there's no substitute part

Slide Assembly#8

Zigzag guide assembly Diagram

Slide assembly

Part #49776

The manufacturer no longer makes this part, and there's no substitute part

Pivot Stud#2

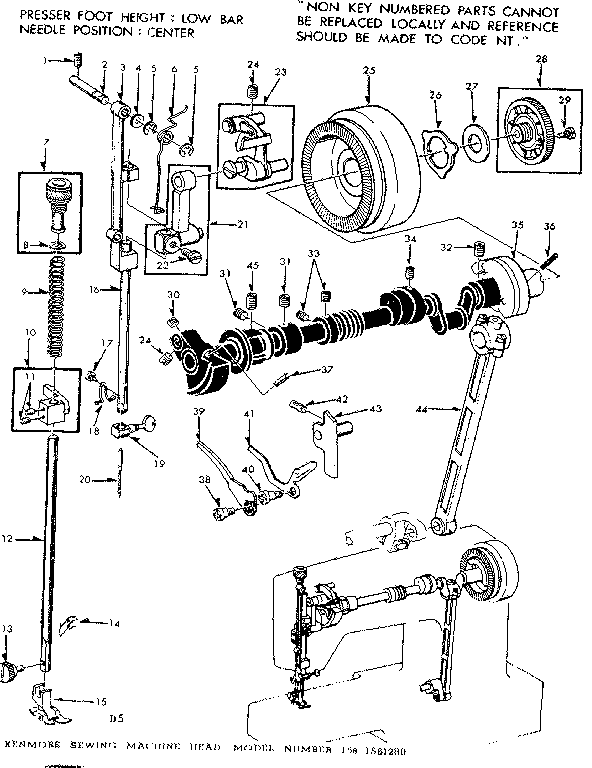

Presser bar assembly Diagram

Pivot stud

Part #32881

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Needle Plate#12

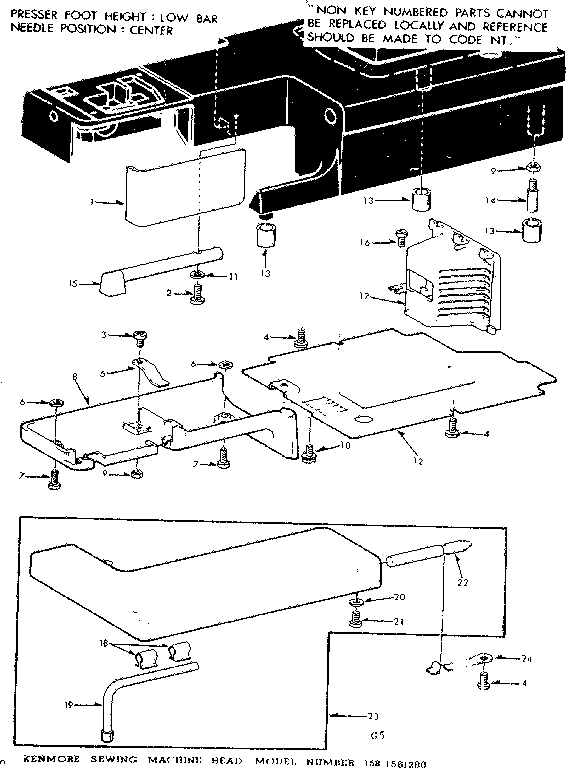

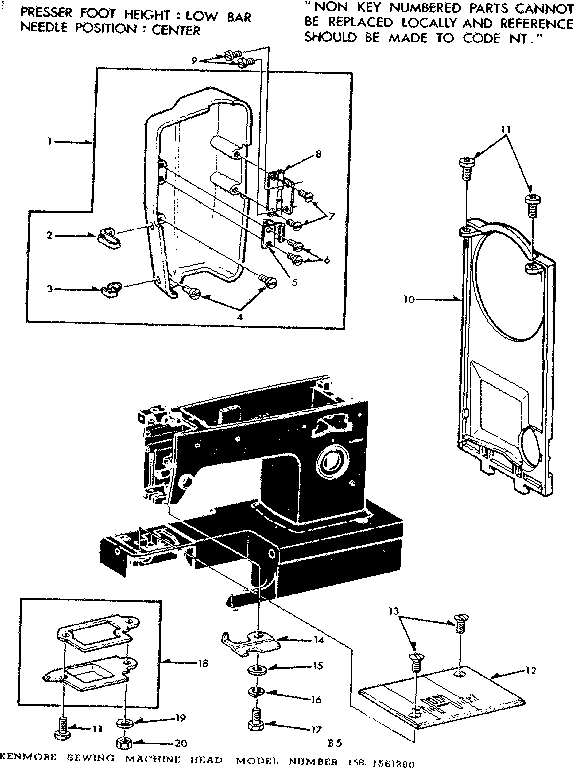

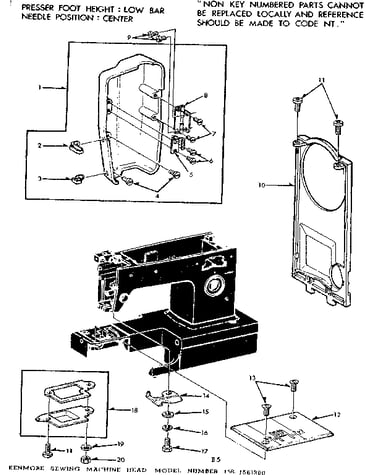

Needle plate Diagram

Sewing machine needle plate

Part #45614

The manufacturer no longer makes this part, and there's no substitute part

Control Panel#17

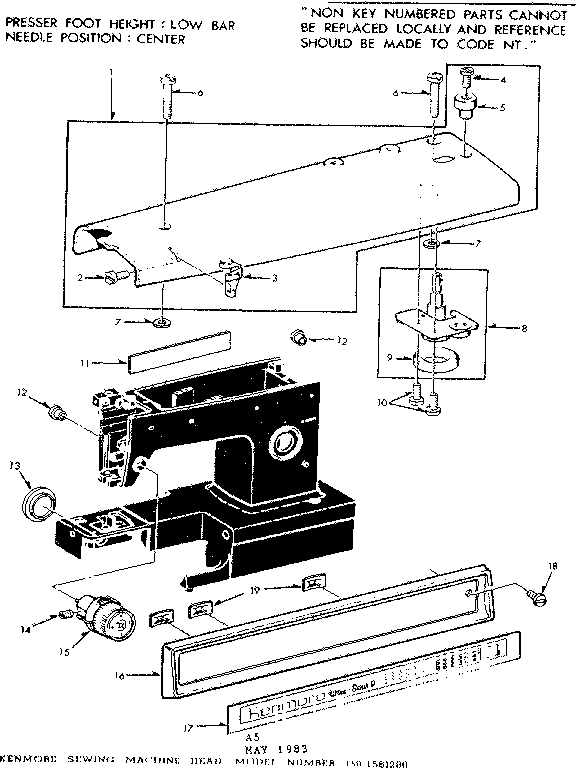

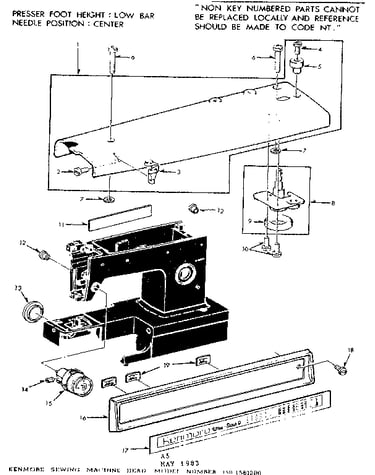

Unit parts Diagram

Control panel

Part #58903

The manufacturer no longer makes this part, and there's no substitute part

Pin#8

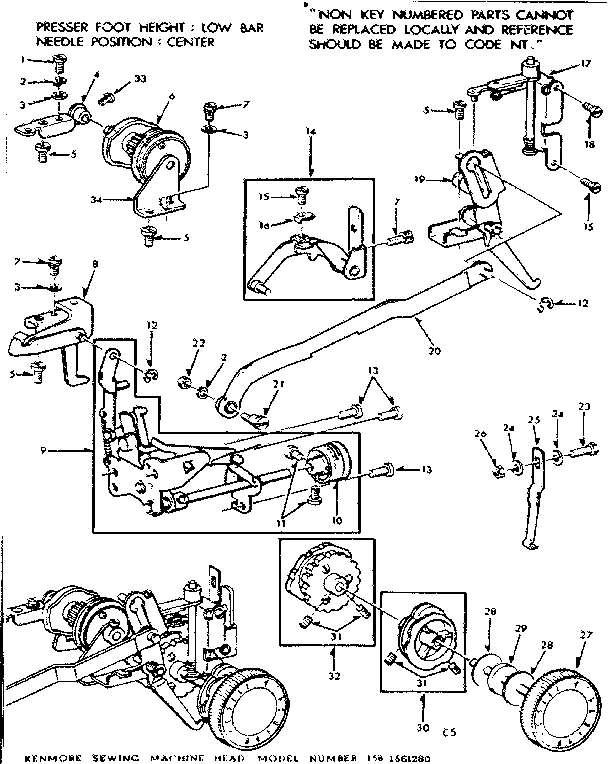

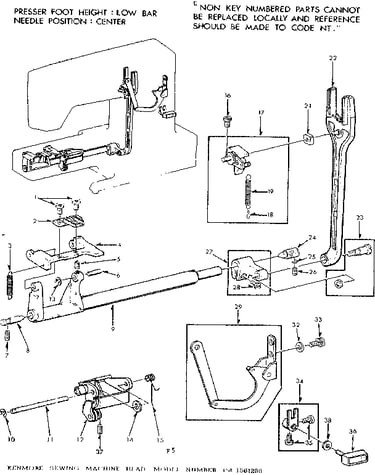

Feed regulator assembly Diagram

Pin

Part #45551

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate#25

Zigzag guide assembly Diagram

Spring plate

Part #53276

The manufacturer no longer makes this part, and there's no substitute part

Washer#8

Presser bar assembly Diagram

Washer

Part #33060

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Belt#14

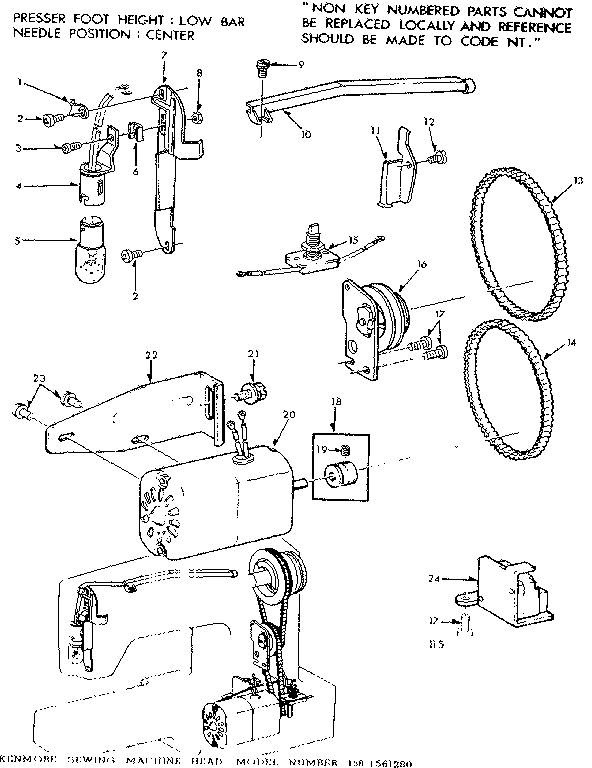

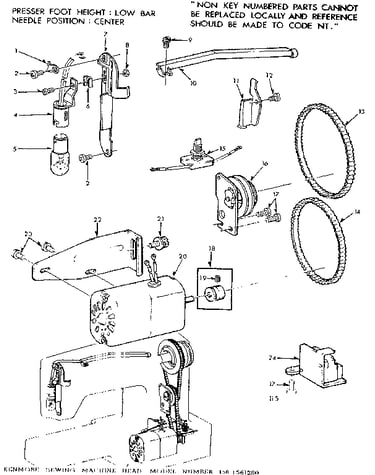

Motor assembly Diagram

Sewing machine belt

Part #56973

The manufacturer no longer makes this part, and there's no substitute part
