View engineWhat are the parts of a lawn mower engine?
Most gas walk-behind mower engines (including the Yard-Man 12A-568Q755) are built around fuel delivery, air intake, ignition, and rotating internal parts that create power. Your exact engine layout depends on the engine brand installed, so we recommend matching components and service steps to the owner's manual.
These are the engine components we see most often on walk-behind mowers:
- Fuel tank and fuel cap/vent: stores fuel; the cap vent lets air in so fuel can flow

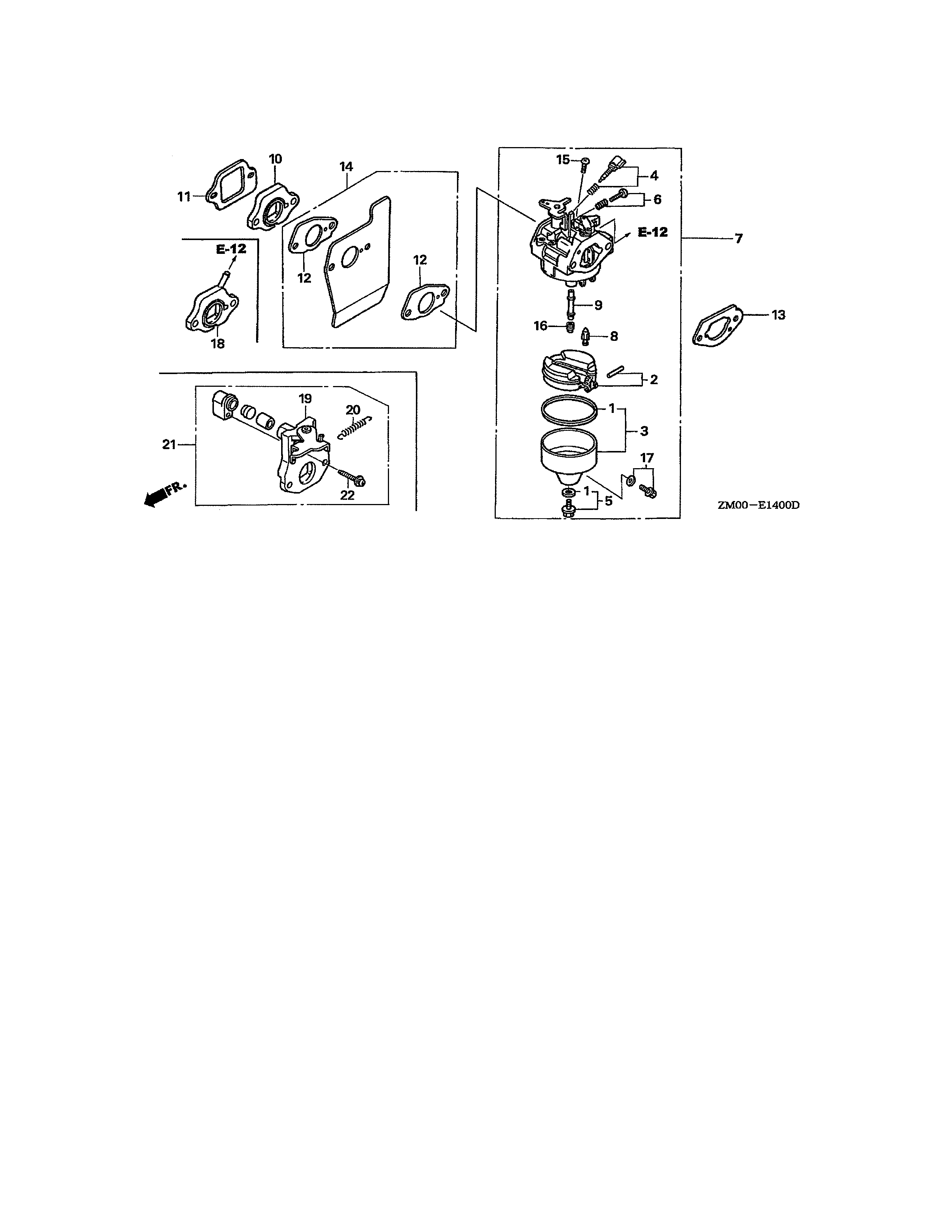

- Carburetor: mixes fuel and air for combustion

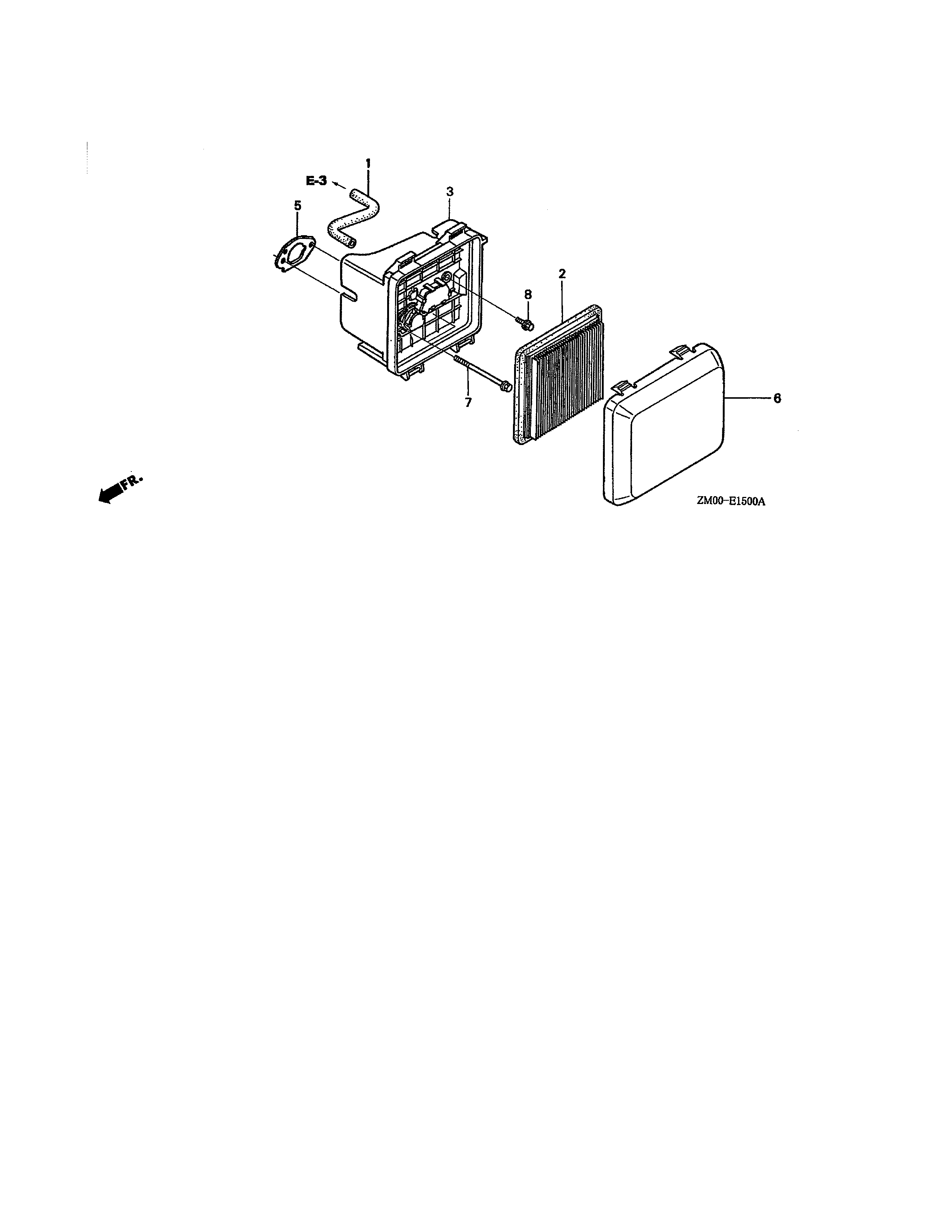

- Air filter (air cleaner): keeps dirt out of the engine intake
- Primer bulb or choke system: enriches fuel mixture for easier cold starts
- Spark plug and ignition coil: creates the spark that ignites the fuel-air mixture

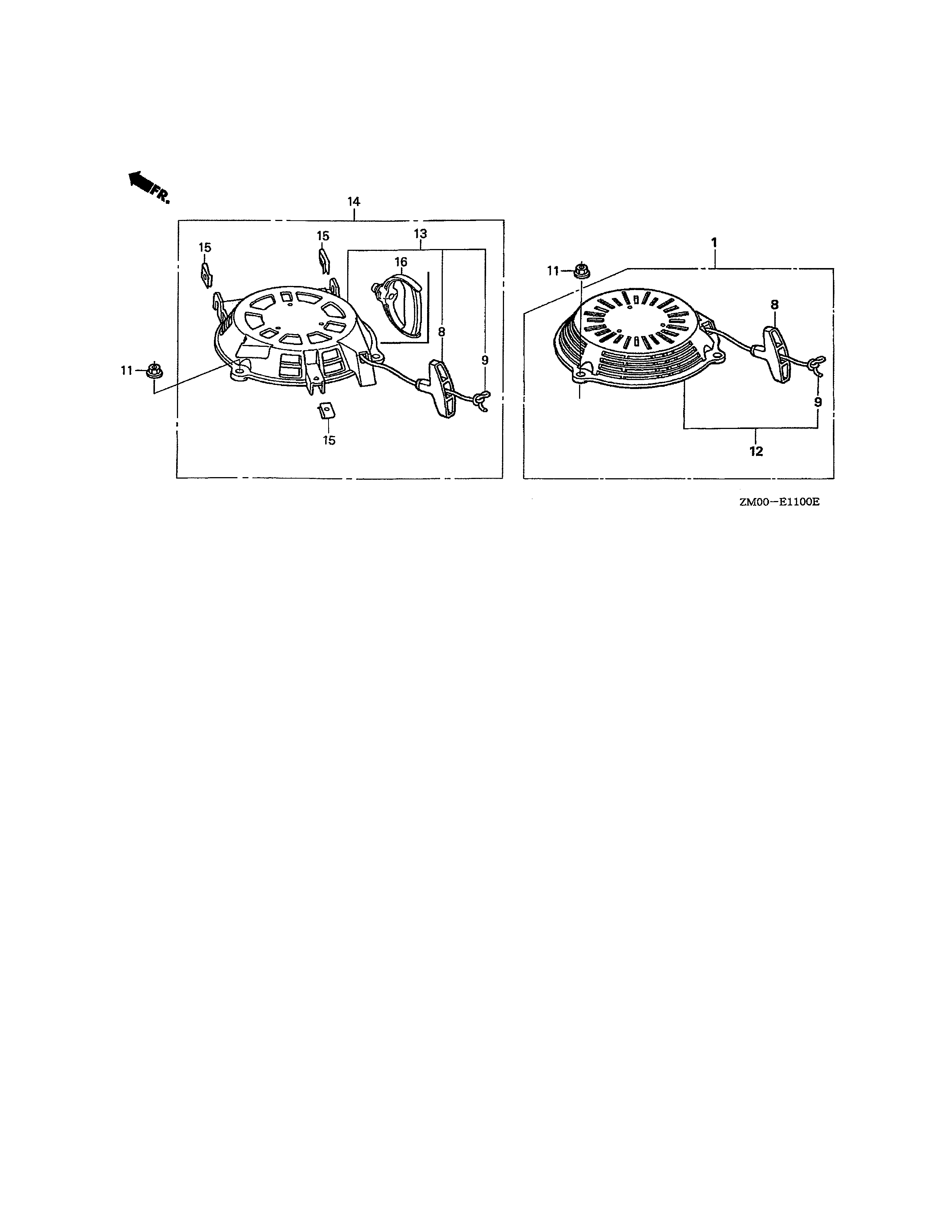

- Recoil starter (pull rope): spins the engine fast enough to start

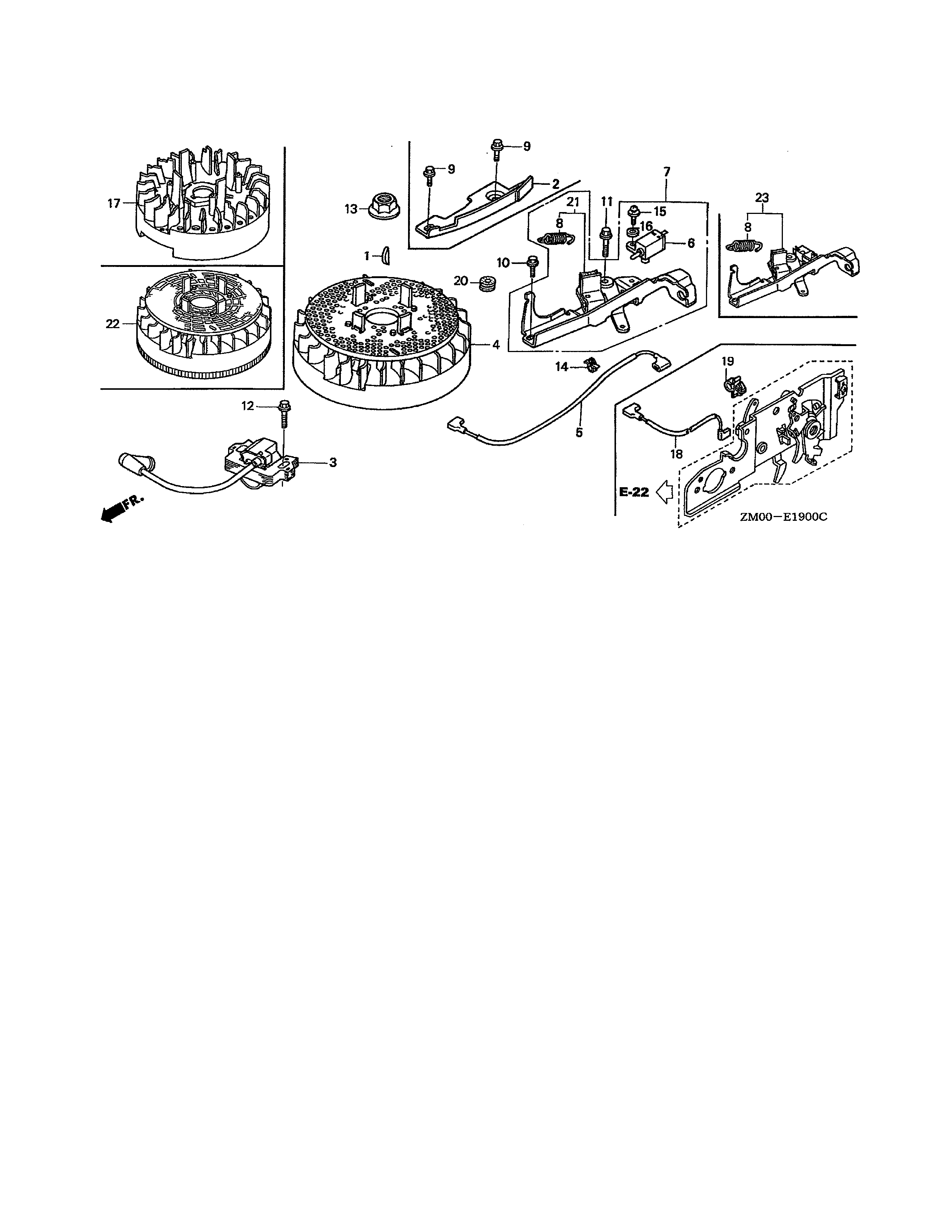

- Flywheel: helps keep engine speed steady; works with ignition timing

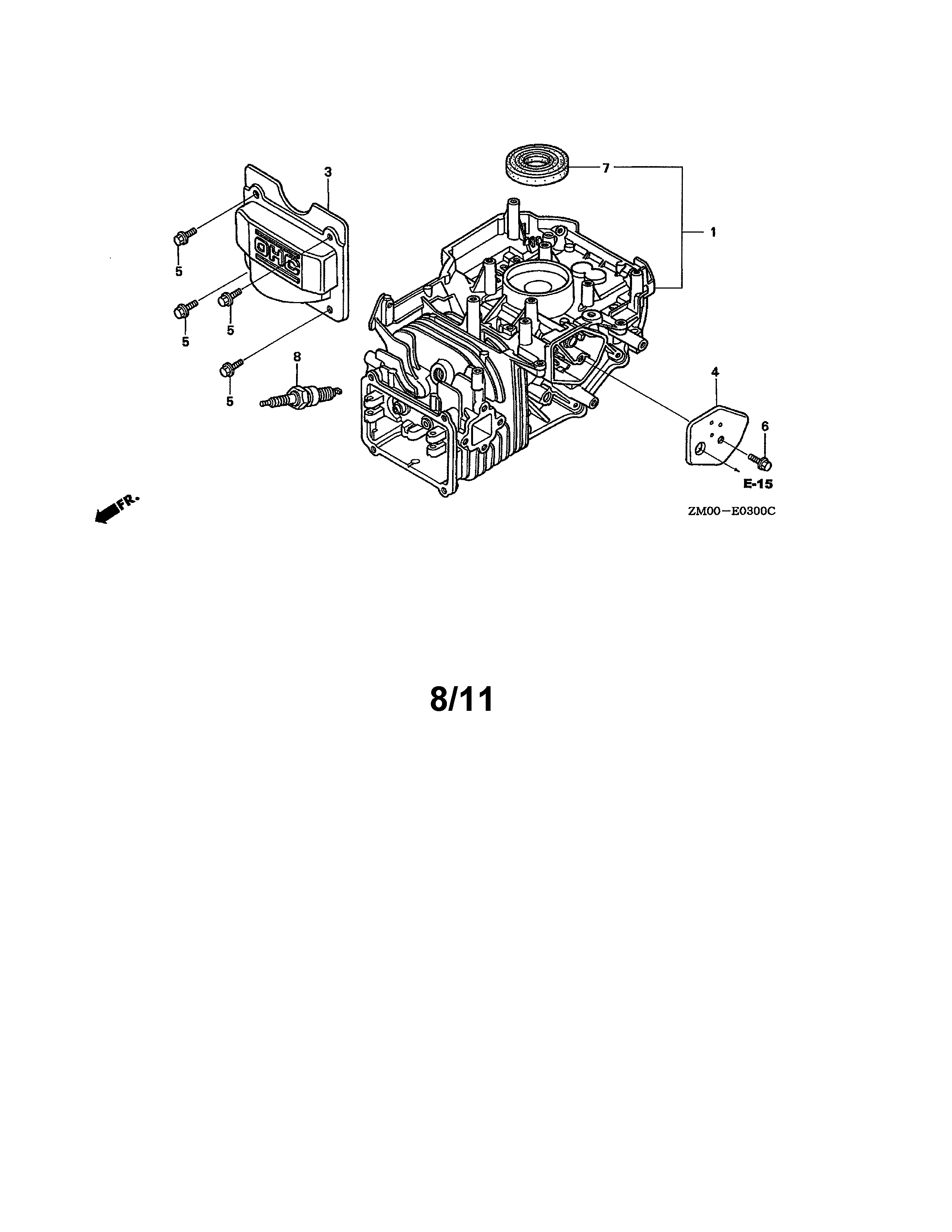

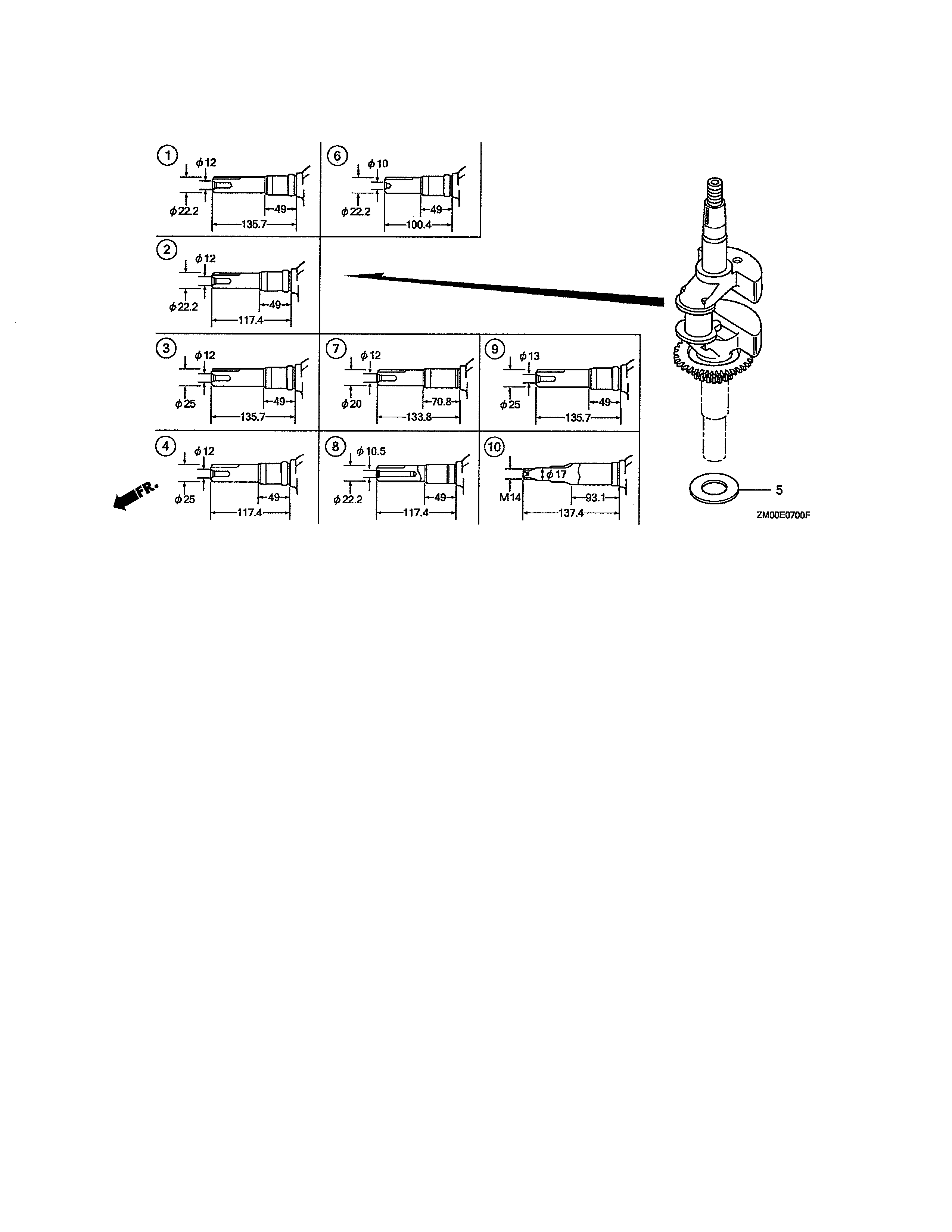

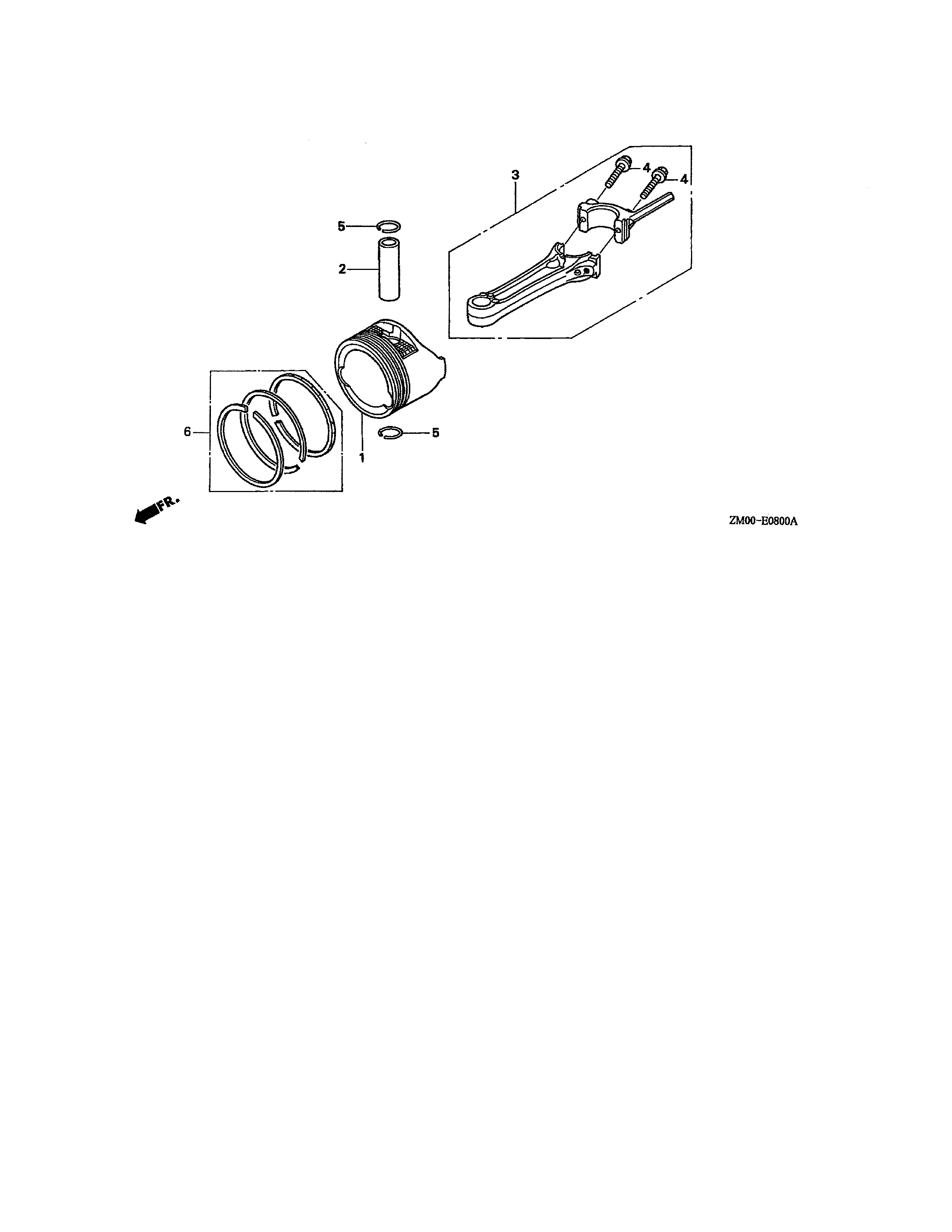

- Crankcase, crankshaft, piston, and connecting rod: internal parts that convert combustion into rotation

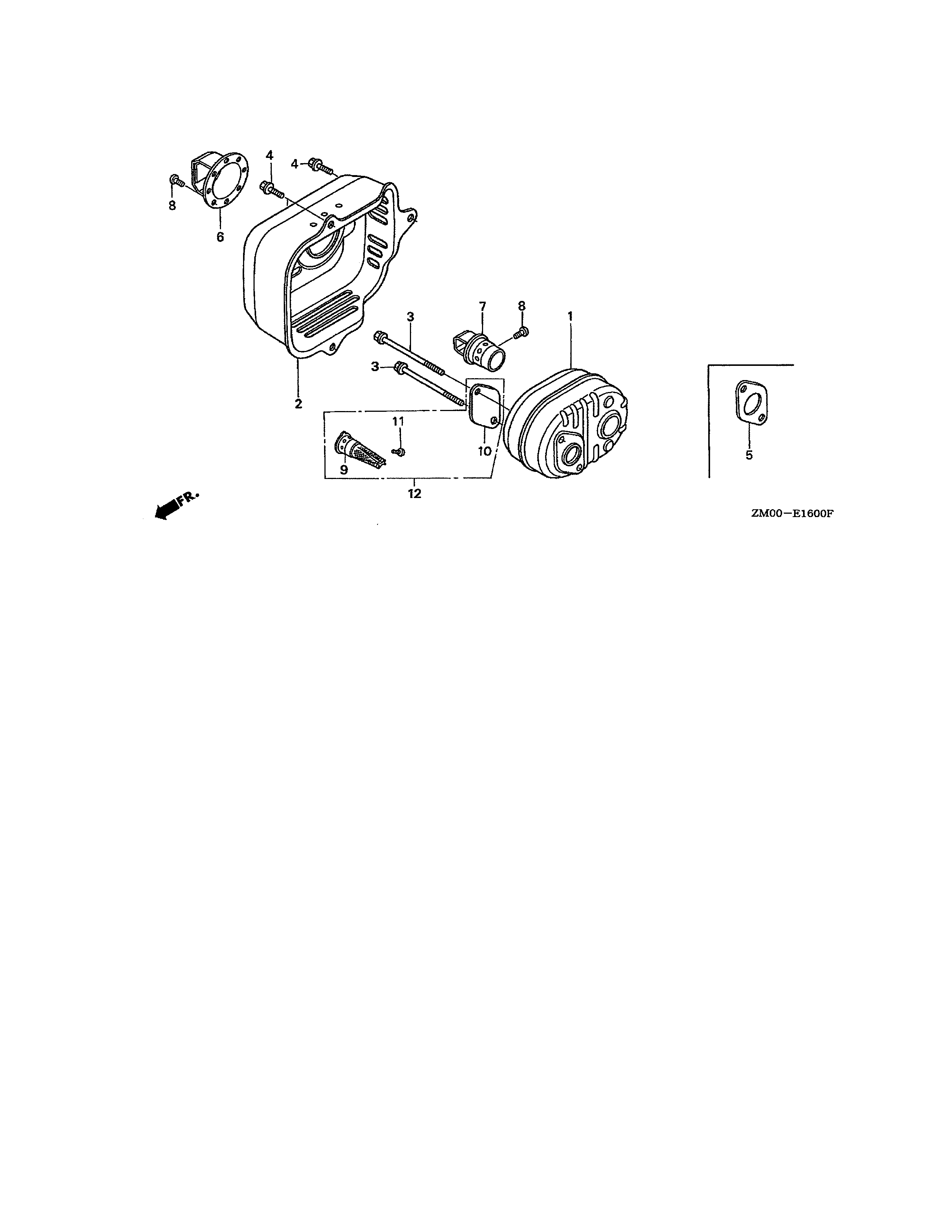

- Muffler: reduces exhaust noise
If the mower will not start or runs poorly, these checks help you narrow down which engine part is involved:
- Confirm the blade control is held against the handle while starting
- Make sure the spark plug wire is firmly attached to the spark plug
- Use fresh gasoline; drain and refill if fuel is old or contaminated
- Check the gas cap vent; a plugged vent can restrict fuel flow
- Inspect and clean the air filter if the engine idles rough or lacks power
| Engine system | Main parts | Common symptom when there’s a problem |
|---|---|---|
| Fuel delivery | Fuel tank, fuel cap vent, carburetor | Hard starting, surging, stalls |
| Air intake | Air filter, intake path | Runs rich, smokes, low power |
| Ignition | Spark plug, ignition coil, flywheel | No start, misfire |
| Starting | Recoil starter, starter rope | Rope issues, won’t crank fast enough |
Knowing which system (fuel, air, ignition, or starting) is involved helps you troubleshoot faster and avoid replacing the wrong parts. For example, a clogged gas cap vent or dirty air cleaner can mimic carburetor problems.
If you need replacement hardware while servicing the engine area (covers, brackets, or controls), we stock common fasteners for this model such as the mtd lawn and garden equipment nut 712-04064. You can also search by model number on Sears PartsDirect to find additional parts.
Last updated: February 2026
What model is my lawn mower?
Your mower’s model number is printed on the model plate (ID tag) attached to the mower deck. For Yard-Man model 12A-568Q755, you typically find that plate by standing at the operator position and looking down at the rear of the deck; confirm the exact location in the owner's manual.
Check these common spots first (clean off grass and dirt so the tag is readable):
- Rear of the mower deck (most common); stand behind the handle and look down
- Top of the deck near the rear discharge opening or grass bag mount
- Side of the deck near the wheel height adjuster area
- Handle bracket area (where the upper and lower handles bolt together)
- Engine shroud area (less common for the mower model; often shows engine model info)
Record the full ID information exactly as shown on the tag.
- Model number (example: 12A-568Q755)
- Serial number (if listed)
- Model series (some manuals reference a series, such as “Model Series 560”)
- Any suffix letters or revision numbers
| ID item | What it’s used for | Why it matters |
|---|---|---|
| Model number | Main identifier for the mower | Ensures parts diagrams match your exact deck and drive setup |
| Serial number | Production run identifier | Helps narrow down design changes within the same model |
| Model series | Manual family grouping | Confirms you are using the correct operating and maintenance instructions |
Using the exact model number helps us match the correct drive system, deck hardware, and controls for your mower. That prevents ordering the wrong items like a drive cable, blade adapter, or transmission-related parts.
After you confirm the model number on the tag, you can order replacement parts from the parts list for 12A-568Q755, or search by model number on Sears PartsDirect.
Last updated: February 2026
What is the average lifespan of 12A-568Q755?
A gas walk-behind mower like the Yard-Man 12A-568Q755 typically lasts 8 to 10 years with normal residential use and routine maintenance. Lifespan depends most on engine care, blade and drive-system wear, and proper off-season storage (see the 12A-568Q755 owner's manual).
- Oil changes and clean oil level; running low on oil shortens engine life fast
- Air filter and spark plug upkeep; poor ignition and restricted airflow increase wear
- Blade condition and balance; a bent or unbalanced blade stresses the crankshaft
- Drive system wear (belt, cable, transmission); slipping or dragging accelerates failure
- Storage practices; stale fuel and corrosion cause hard-start and carb issues
| Usage pattern | Typical lifespan | What usually wears first |
|---|---|---|
| Light (small yard, weekly in season) | 10+ years | Blade, wheels, cables |
| Average (most homes) | 8 to 10 years | Drive cable, transmission wear items |
| Heavy (large yard, rough terrain) | 5 to 8 years | Transmission, wheels, deck components |
Replacing worn wear items on time keeps the mower cutting cleanly and reduces strain on the engine and drive.
- Blade adapter 748-04015A (wobble, vibration, stripped mounting)
- Drive cable 746-04112A (self-propel stops pulling or will not disengage)
- Transmission assembly 618-0657 (loss of drive even with correct cable adjustment)
A mower that is maintained to spec runs cooler, vibrates less, and puts less load on the crankshaft and transmission. That directly increases service life and reduces the chance of sudden no-start or no-drive problems mid-season.
