Thermador
Electric Cooktop

Model # E12M Official Thermador 12" cooktop module

Here are the diagrams and repair parts for Official Thermador E12M 12" cooktop module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

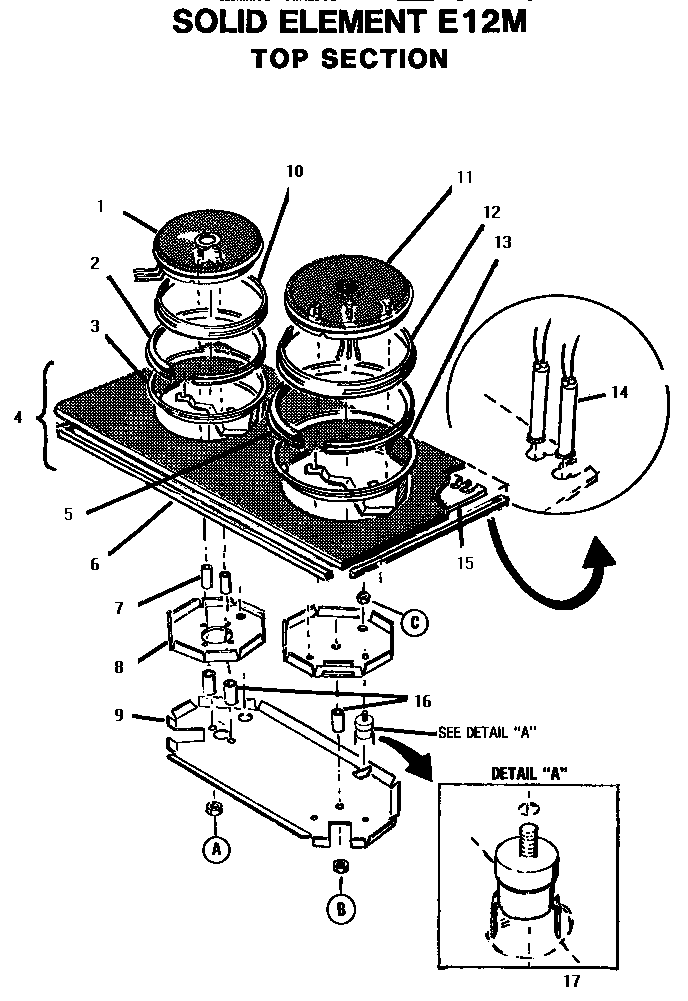

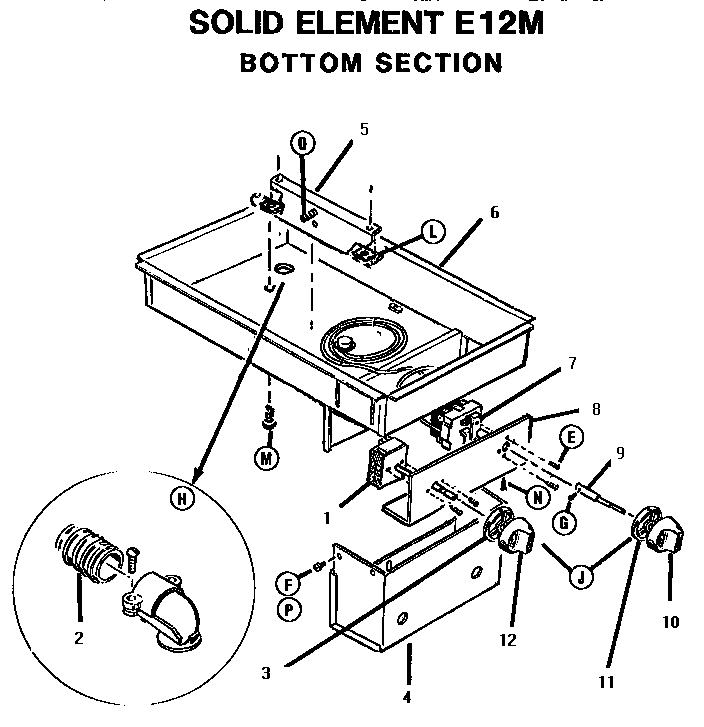

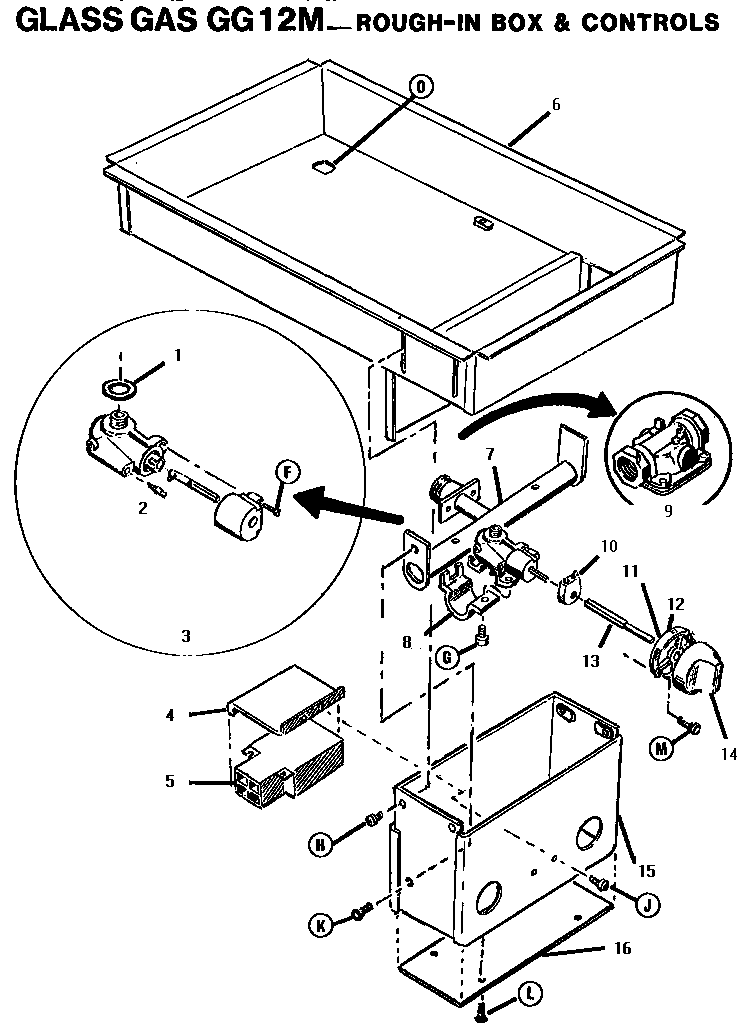

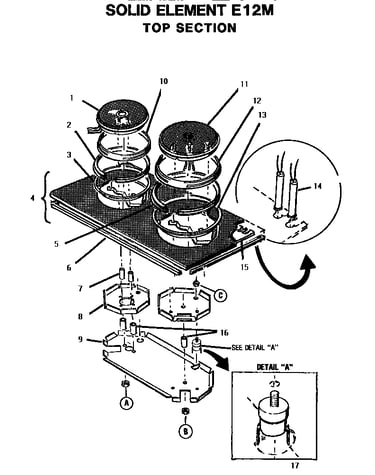

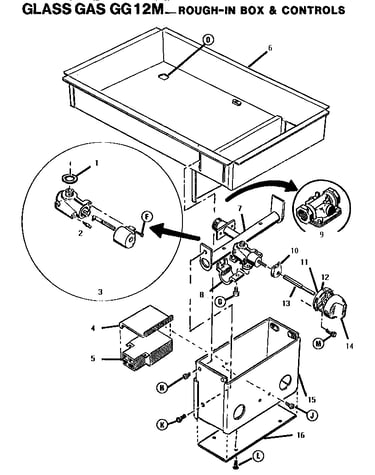

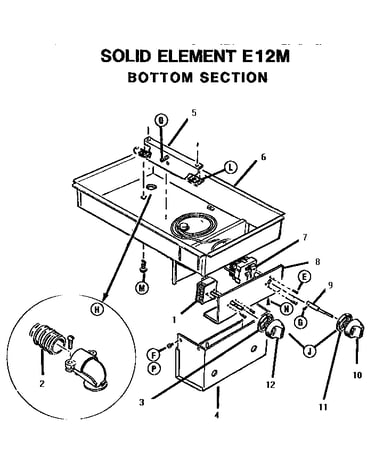

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

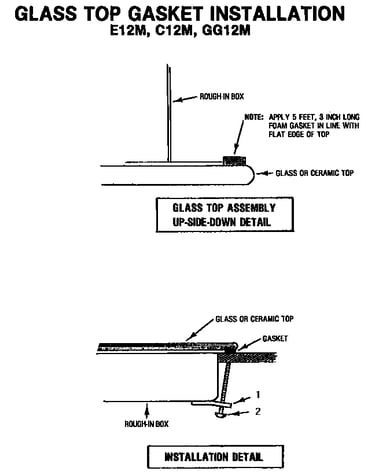

Gasket Kit 14-41-575
Gasket kit

Part #14-41-575

$9.49
In Stock
Switch Knob 14-41-483-02
Switch knob

Part #14-41-483-02

$15.49
In Stock
Selector Switch 14-41-486
#3

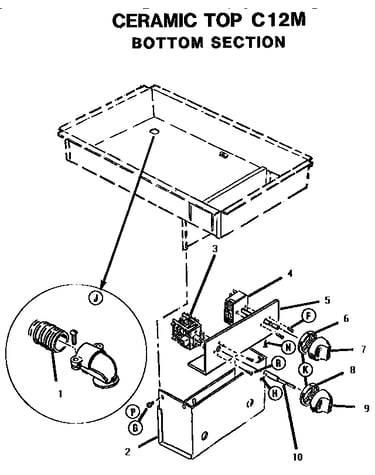

Ceramic top, bottom section (c12m) diagram

Selector switch

Part #14-41-486

$141.49
In Stock
Switch Knob 14-41-483-03
#9

Ceramic top, bottom section (c12m) diagram

Switch knob

Part #14-41-483-03

$25.99
In Stock
Injection Sleeve 20-09-170
#2

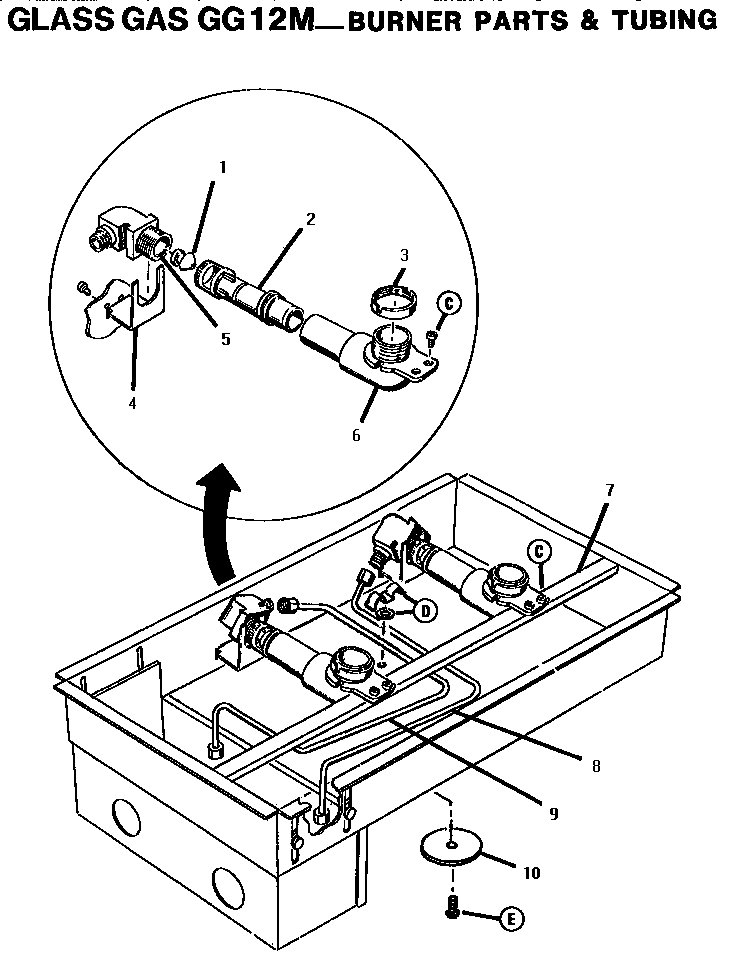

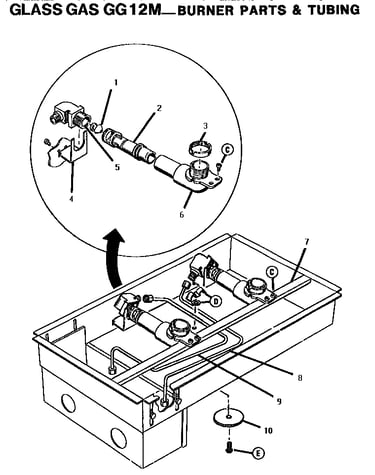

Burner parts and tubing (gg12m) diagram

Injection sleeve

Part #20-09-170

$18.99
In Stock
Head 20-09-176
#10

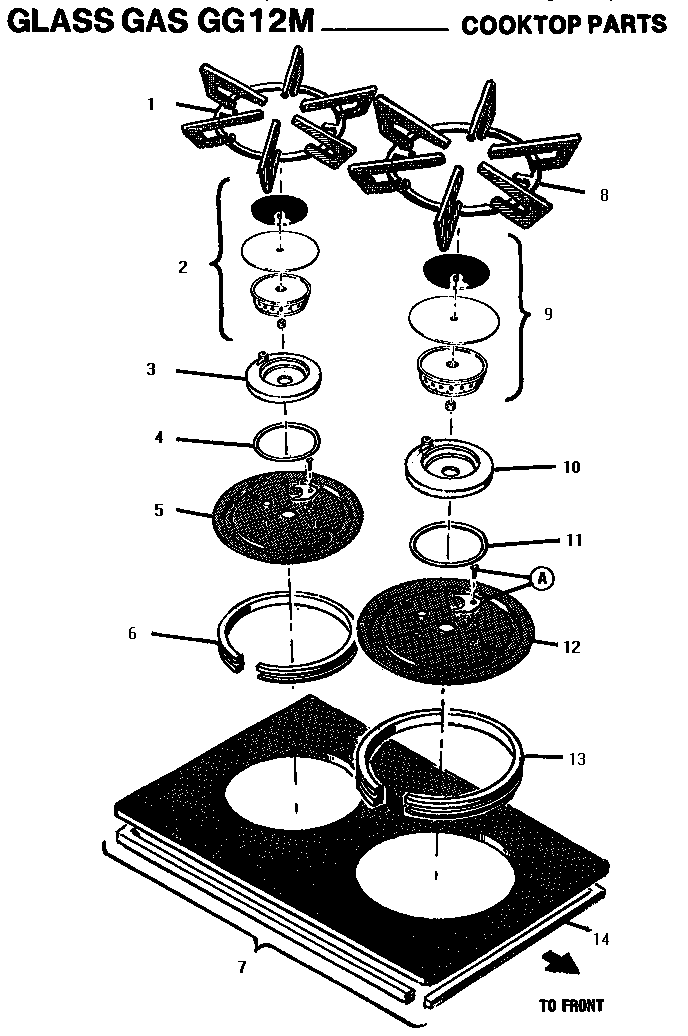

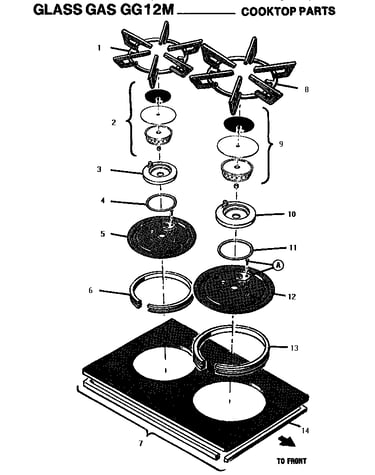

Cooktop (gg12m) diagram

Head

Part #20-09-176

Replaced by #00189780

?
Manufacturer substitution
This part replaces 20-09-176. Substitute parts can look different from the original.
$106.22
In Stock
Heater Support Channel Assembly 14-41-569
#9

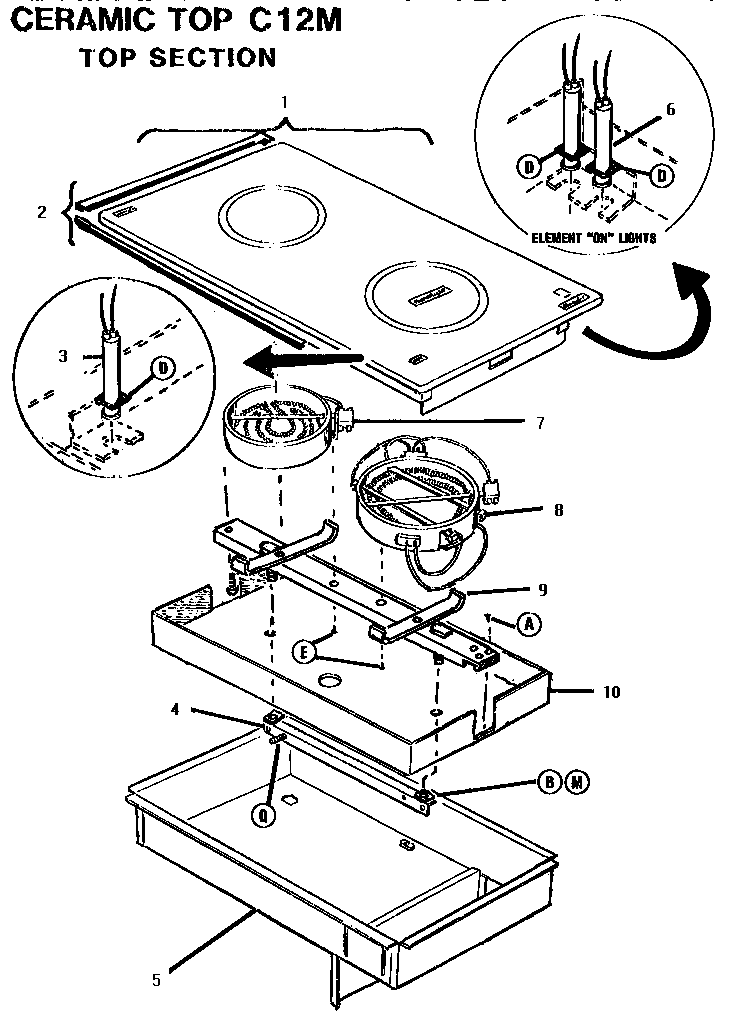

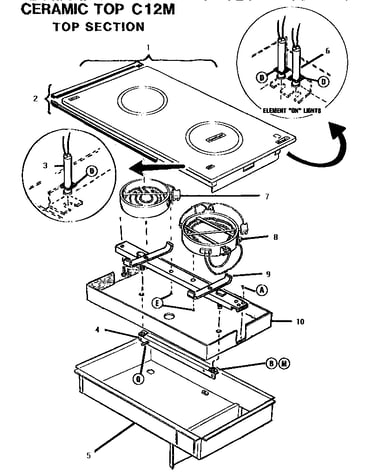

Ceramic top, top section (c12m) diagram

Heater support channel assembly

Part #14-41-569

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 14-41-517

#NI

All parts diagram

Wire assembly

Part #14-41-517

The manufacturer no longer makes this part, and there's no substitute part

Scraper 14-39-902

#NI

All parts diagram

Scraper

Part #14-39-902

The manufacturer no longer makes this part, and there's no substitute part

Injector Sleeve (natural Gas)(4) Lt. Front 20-09-169
#2A

Burner parts and tubing (gg12m) diagram

Injector sleeve (natural gas)(4) lt. front

Part #20-09-169

The manufacturer no longer makes this part, and there's no substitute part
