Model #6AWTW5700XW1 Official Whirlpool washer
Here are the diagrams and repair parts for Whirlpool 6AWTW5700XW1 washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

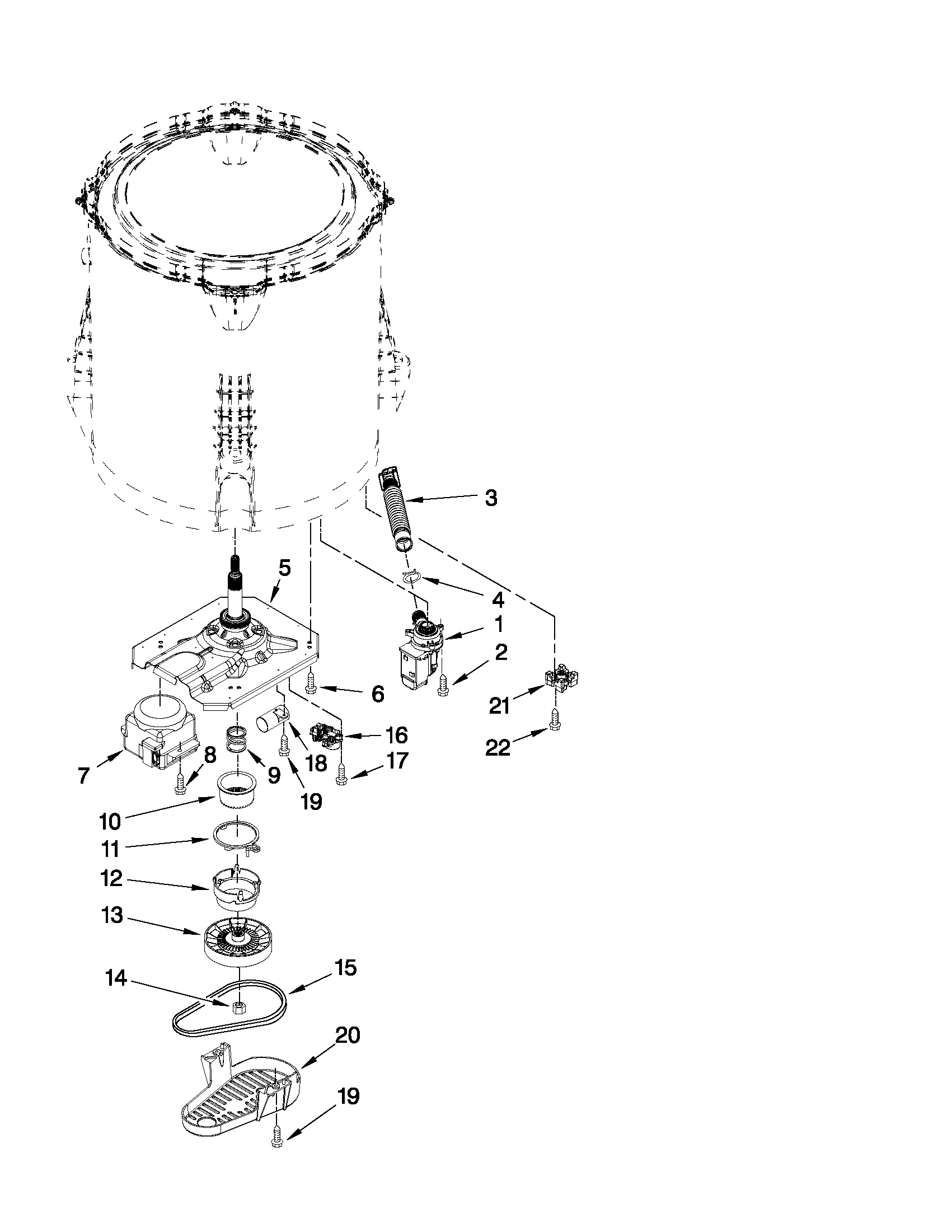

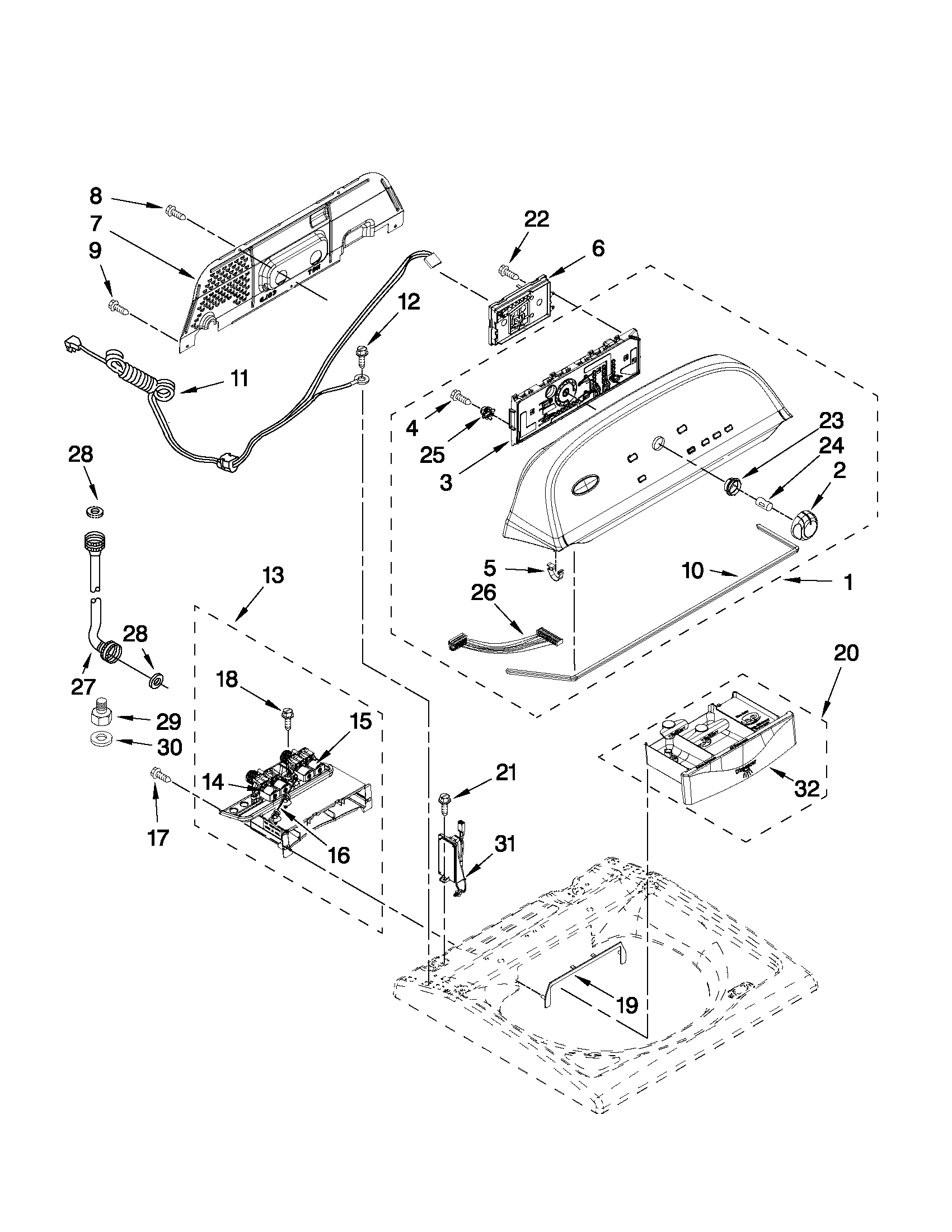

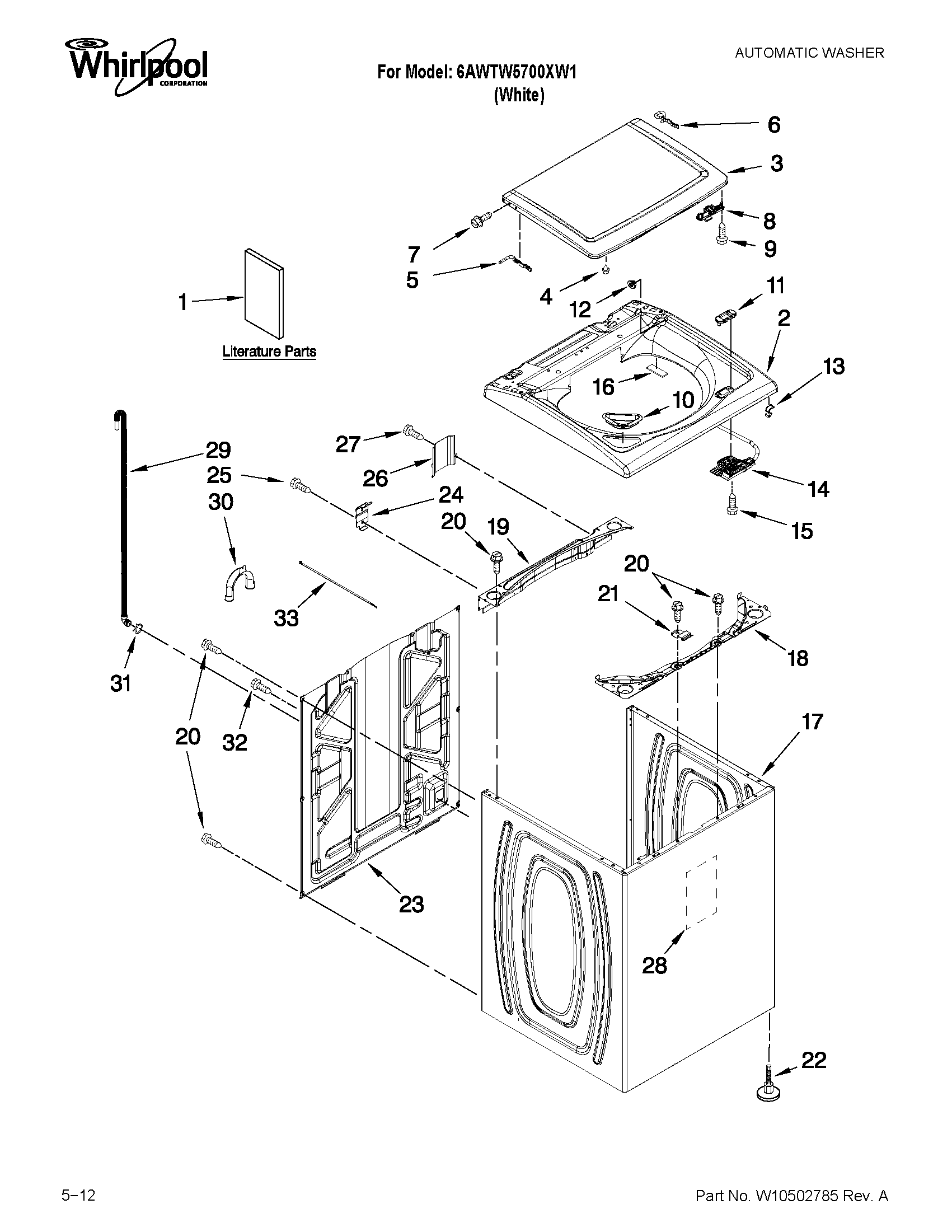

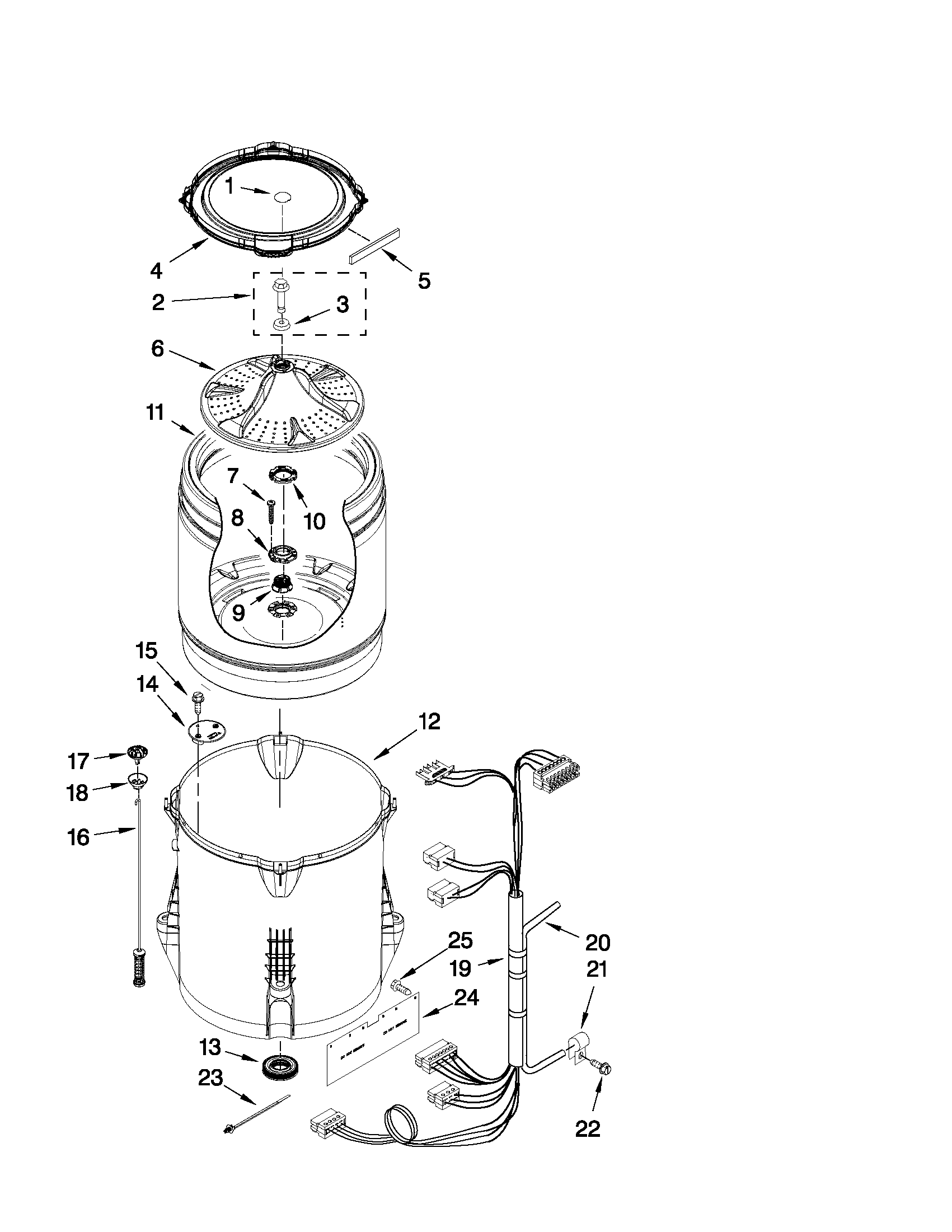

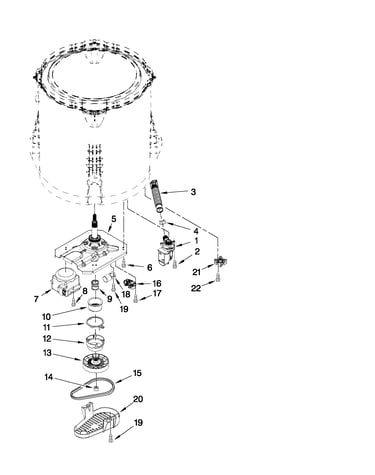

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 133 parts
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)
Part #W10135699
Get free shipping with Automatic Reorder
In Stock
$10.71 |
33% OFF
MSRP: $16.00
Washer drive pulley and splutch assembly
Part #W10006352
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
In Stock
$58.72 |
8% OFF
Phone Price: $63.72
Spanner nut
Part #W10291417
Replaced by #W10324651
?
Manufacturer substitution
This part replaces W10291417. Substitute parts can look different from the original.
In Stock
$41.62 |
11% OFF
Phone Price: $46.62
Washer drain hose
Part #W10221546
Replaced by #W11244231
?
Manufacturer substitution
This part replaces W10221546. Substitute parts can look different from the original.
In Stock
$19.43 |
9% OFF
Phone Price: $21.43
Washer screw
Part #W10003790
Replaced by #W10772621
?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.89 |
17% OFF
Phone Price: $5.89
Recommended maintenance parts and accessories
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
In Stock
$31.19 |
14% OFF
Phone Price: $36.19
Symptoms common to all washers
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
