Maytag ALR1420BDQ gas freestanding range Parts
Here are the diagrams and repair parts for Maytag ALR1420BDQ gas freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

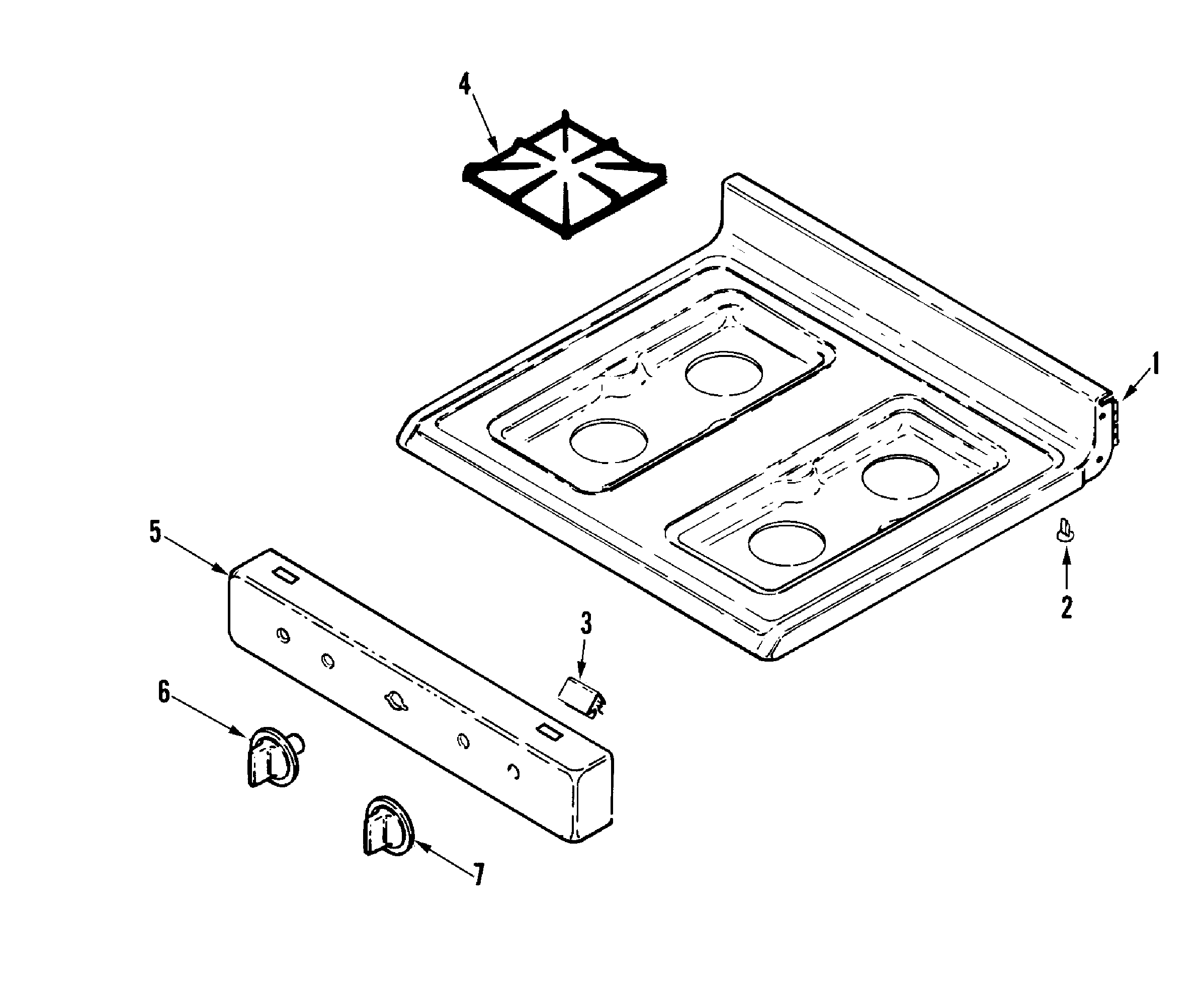

SELECT DIAGRAM
Browse Parts for ALR1420BDQ Ranges
Supplimental information diagram
Wire, C @ 13
Part #74006298
The manufacturer no longer makes this part, and there's no substitute part

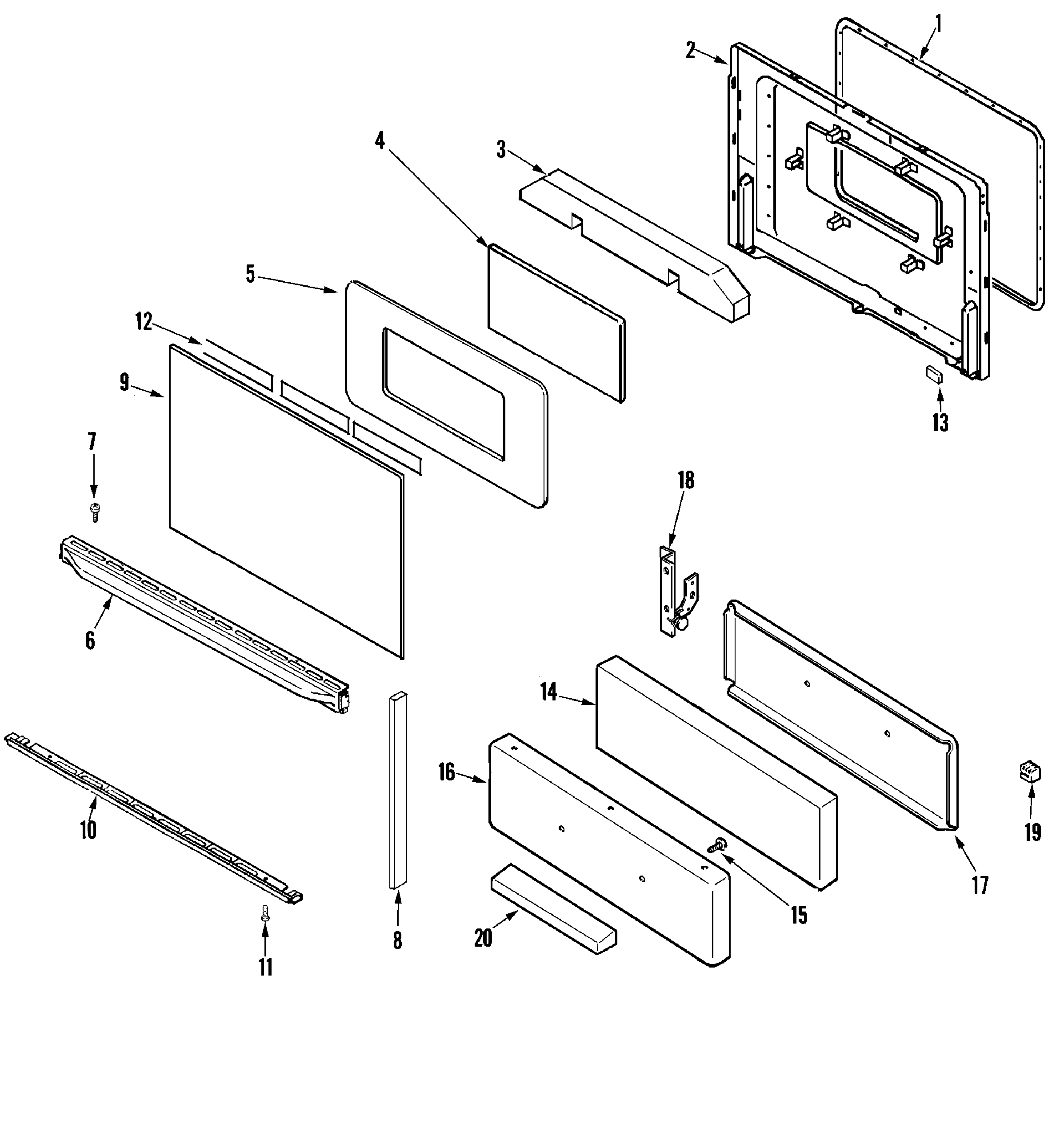

Door/drawer diagram
Door Glass
Part #74003431
The manufacturer no longer makes this part, and there's no substitute part
Door/drawer diagram
Oven Insulation
Part #74002458
The manufacturer no longer makes this part, and there's no substitute part

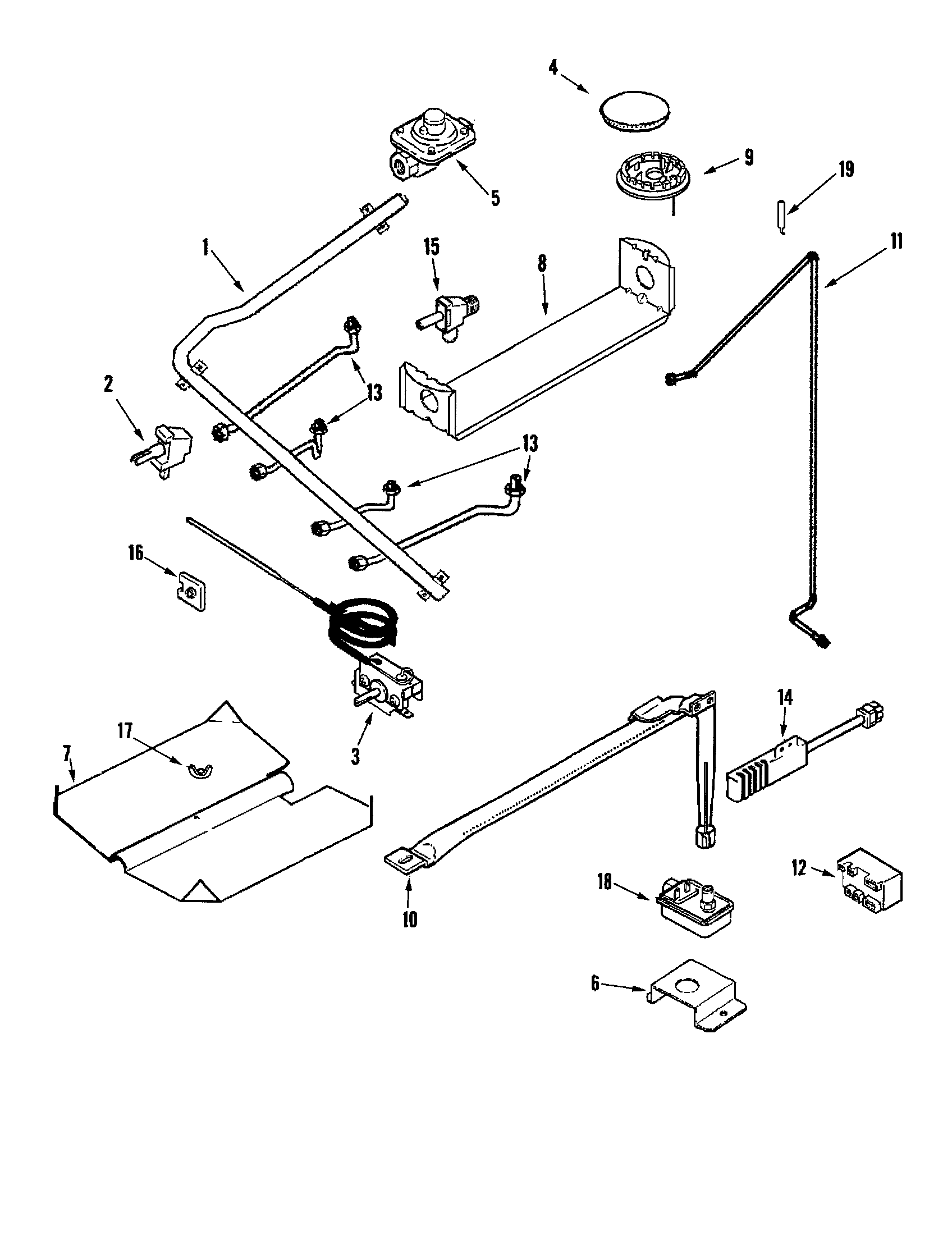

Gas controls diagram
Range Oven Gas Valve Tubing
Part #74006417
The manufacturer no longer makes this part, and there's no substitute part

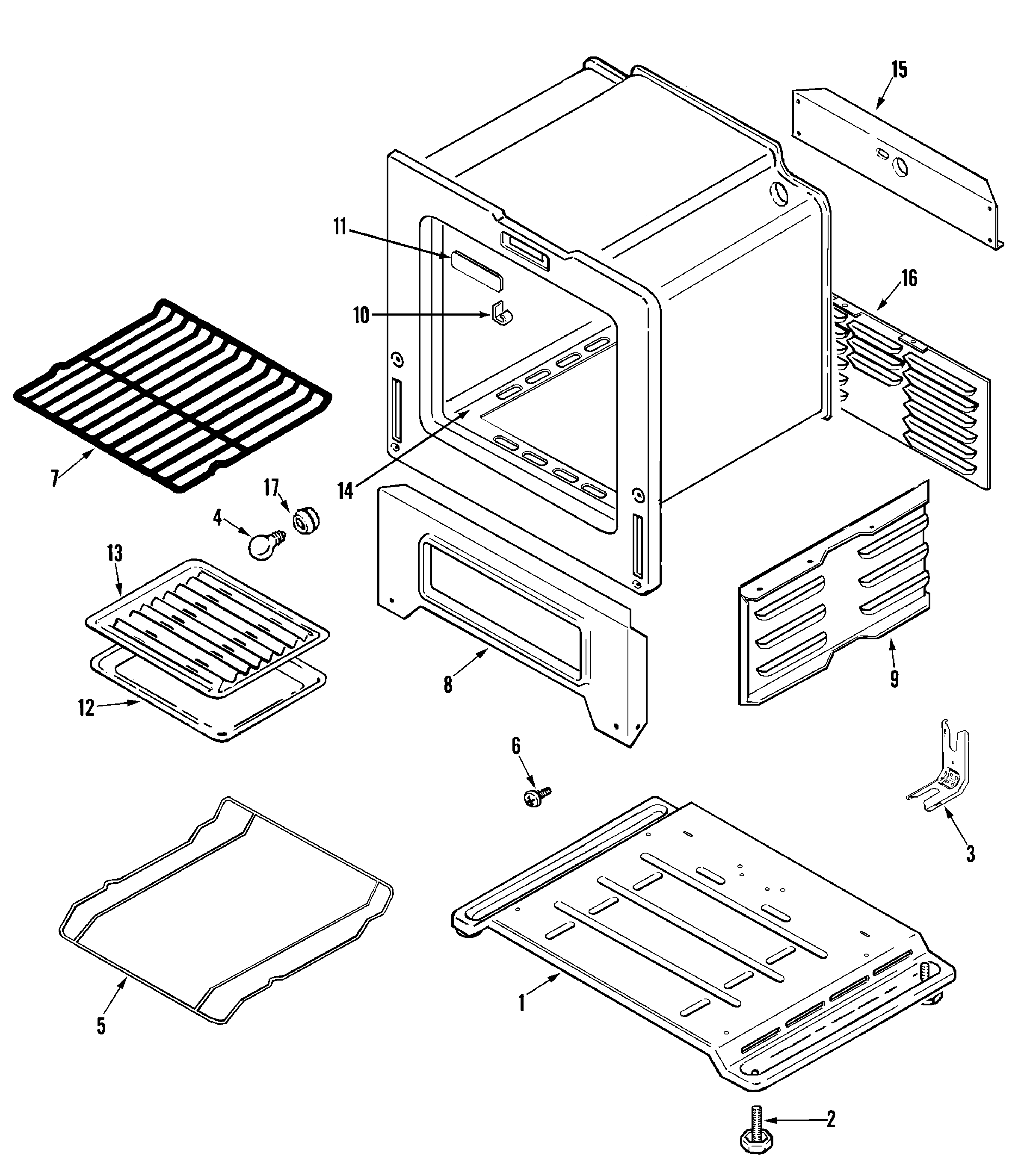

Oven/base diagram
Receptacle
Part #74003387
The manufacturer no longer makes this part, and there's no substitute part

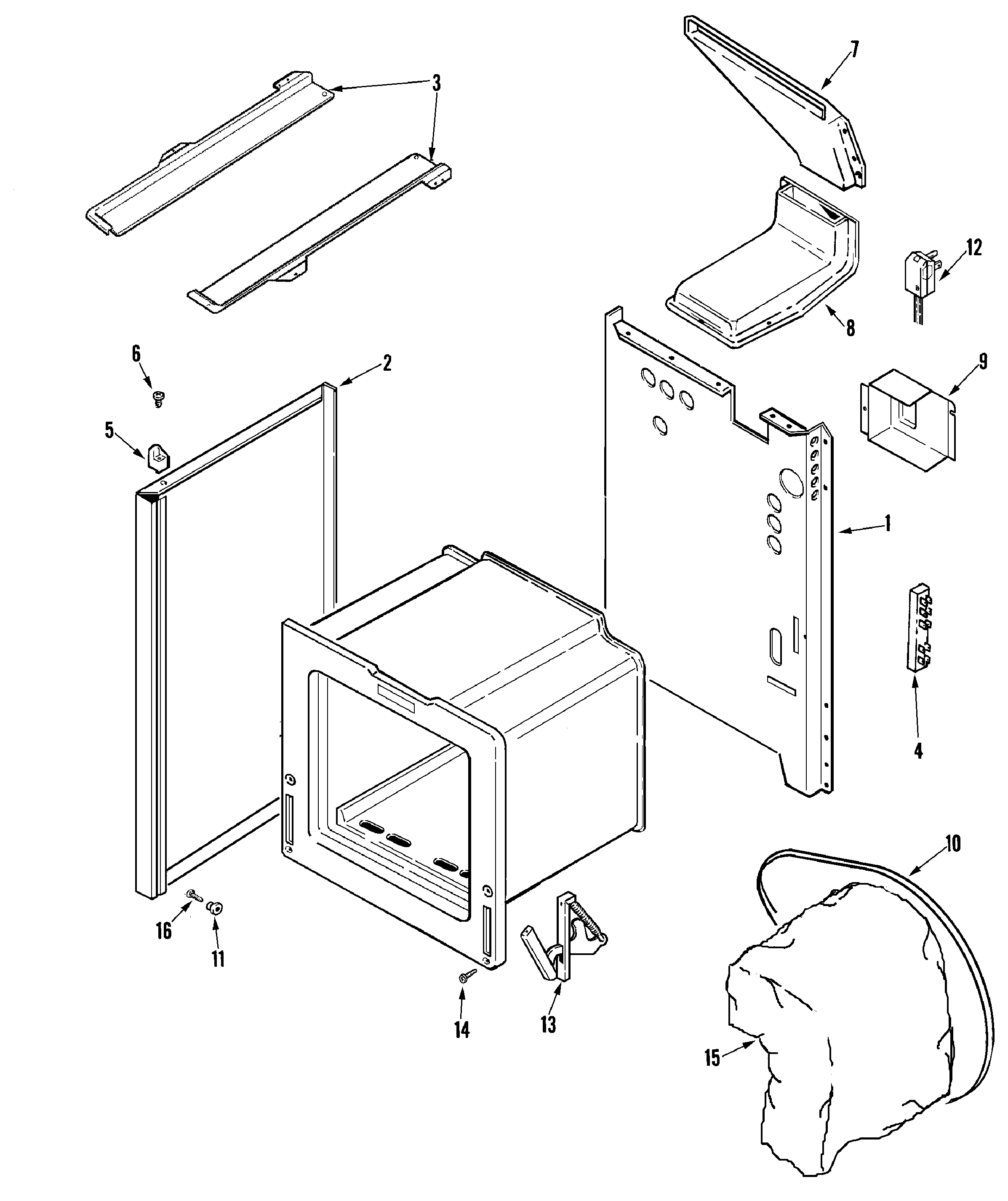

Body diagram
Access Cover
Part #74004591
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Side Panel Spacer
Part #8004P024-60
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Burner Box
Part #74002633
The manufacturer no longer makes this part, and there's no substitute part

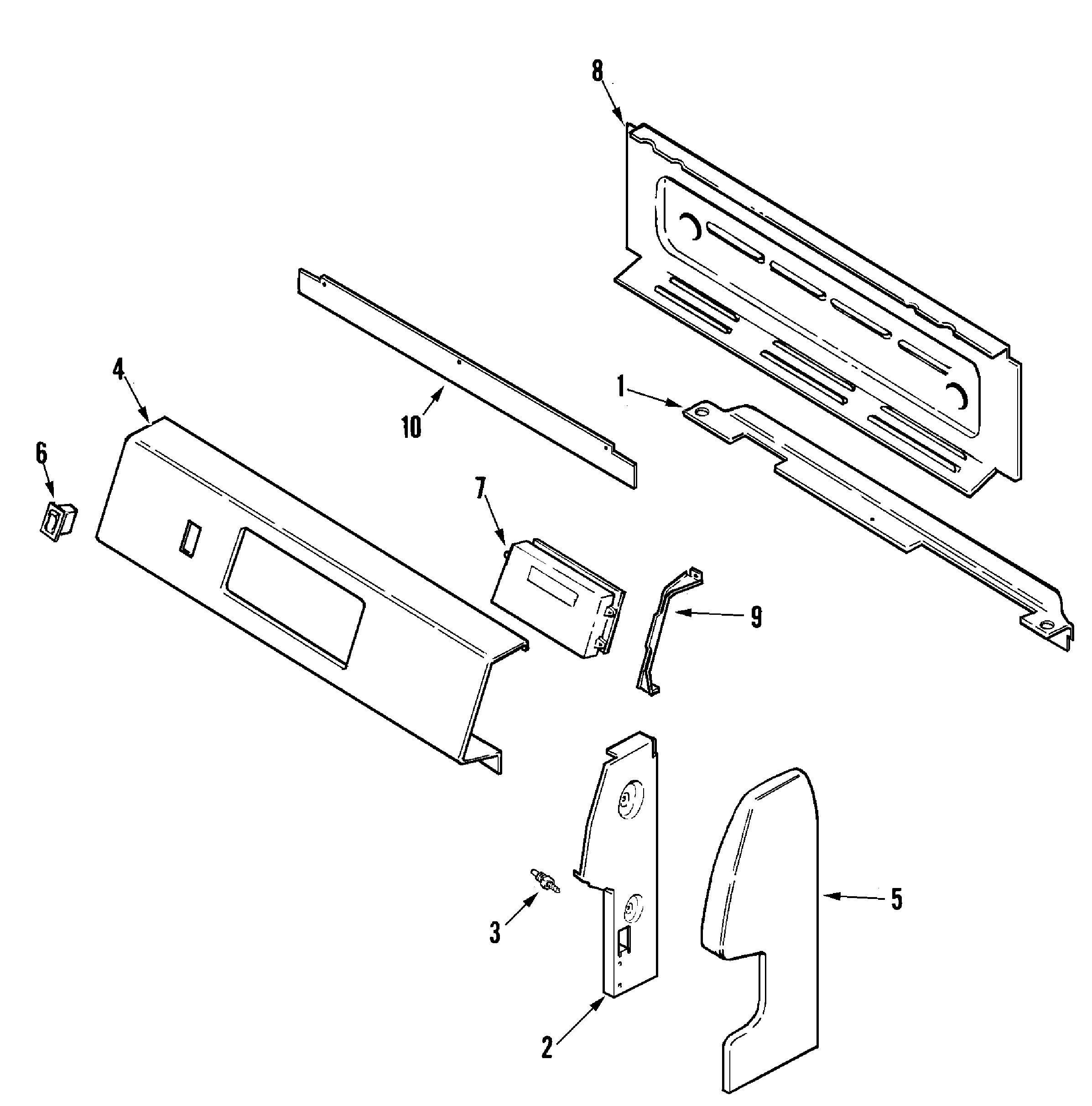

Control panel diagram
Control Housing
Part #74005320
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Vent Assembly
Part #74006420
The manufacturer no longer makes this part, and there's no substitute part
