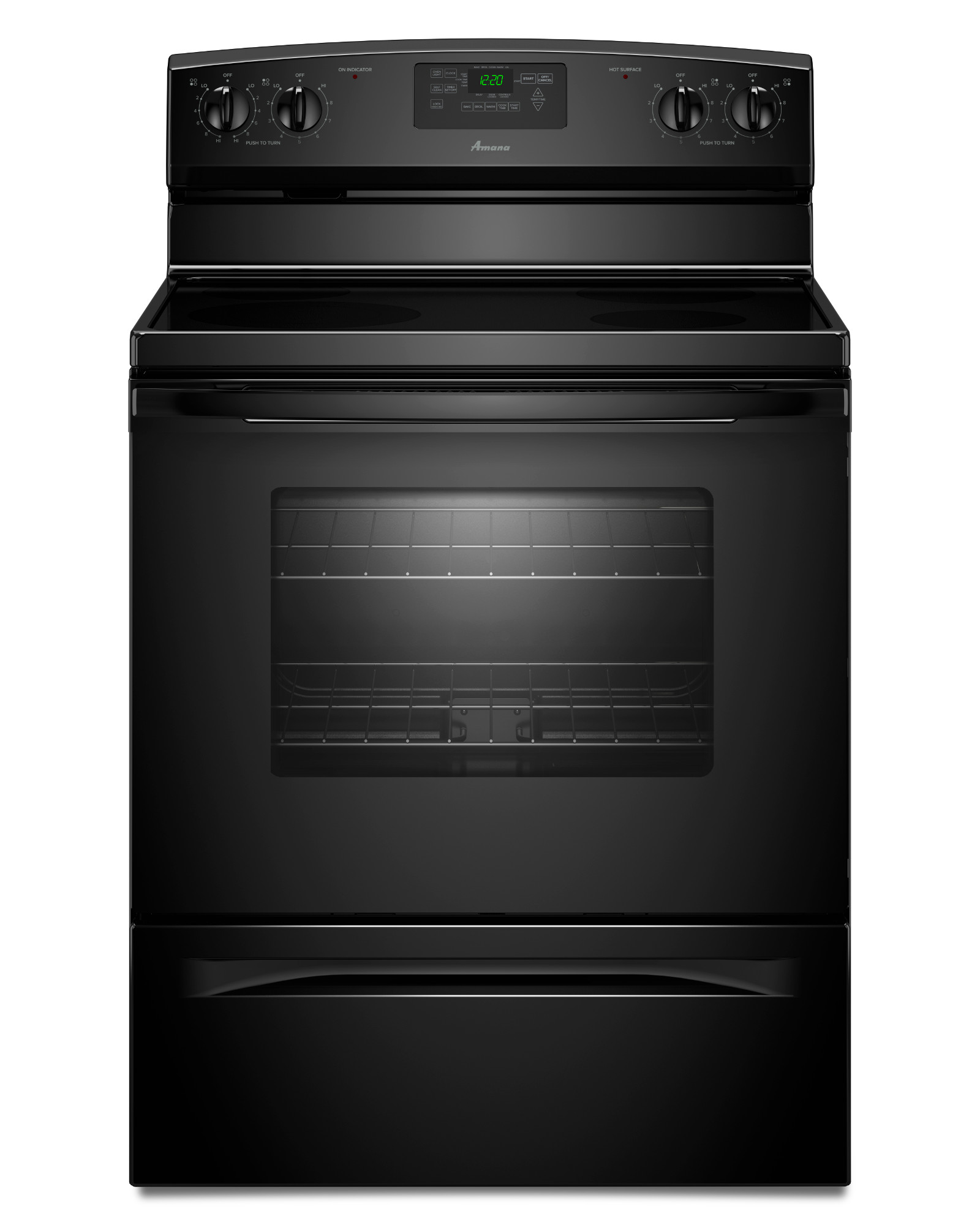

Amana AER5630BAB0 electric range Parts

If your Amana AER5630BAB0 electric range oven is not working, the most common causes are a power supply problem (tripped breaker, blown fuse, miswired outlet, or unplugged cord) or a failed heating component such as the bake element or oven temperature sensor. Start with the quick power and control checks in the AER5630BAB0 owner's manual.

Quick checks first (no tools)

• Make sure the range is fully plugged into a grounded outlet.
• Reset the circuit breaker (or replace the household fuse) and try Bake again.
• Check the control display for an F9 or F9, E0 code; that points to a home wiring or supply issue.
• Confirm the oven is not in a locked-out state (control lock can prevent operation).
• If the oven light works but the oven will not heat, focus on heating parts next.

Most likely part failures when the oven has power

When the display works but the oven will not heat or heats poorly, these parts are common suspects:

• Bake element: can blister, crack, or burn open and stop heating.
• Oven temperature sensor: can send incorrect temperature feedback and prevent proper heating.
• Oven control board: can fail to send voltage to the bake circuit.

Helpful model-matched parts to consider:

• Range bake element WPW10308477
• Range oven temperature sensor WPW10181986

Troubleshooting path (fastest to slowest)

What you observe	Most likely cause	What to do next
Nothing works (no display, no lights)	No power to range	Check plug, breaker/fuse, and outlet wiring (F9/F9,E0)
Display works, oven will not heat	Failed bake element or control issue	Inspect bake element; test/replace if damaged
Oven heats but temperature is off	Sensor out of range	Test/replace oven temperature sensor

Why it matters

An electric range needs a correct household power supply to run the oven circuits. Once power is confirmed, the bake element and temperature sensor are the most common reasons an oven will not heat correctly, and replacing the failed part restores normal baking performance.

Last updated: February 2026

Your Amana electric range model number is printed on a rating label on the appliance. On model AER5630BAB0, the label is typically found around the oven door frame area; check the frame when you open the oven door, then match the full model number exactly when ordering parts.

Where to look on the range

Check these common label locations for Amana freestanding electric ranges:

• Oven door frame (left or right side) when the door is open
• Front frame near the storage drawer opening (remove the drawer if needed)
• Behind the control panel area (less common)
• Back panel of the range (you may need a flashlight)

What to write down (so parts match)

Record the information exactly as it appears on the label:

• Model number: AER5630BAB0
• Serial number (helps confirm production run)
• Electrical rating (useful for wiring and terminal block questions)

Quick check: model number vs. serial number

Item	What it does	Used for
Model number	Identifies the exact range design	Choosing correct parts and diagrams
Serial number	Identifies your specific unit	Verifying version, age, and service history

Why it matters

A single character difference can change the correct bake element, surface element, or control board for an Amana range. Using the exact model number helps ensure parts like the range bake element WPW10308477 fit and wire up correctly.

For diagrams and label-location details specific to this range, use the AER5630BAB0 owner's manual.

Last updated: March 2026

The average lifespan of an Amana electric range like model AER5630BAB0 is 13 to 15 years with normal household use and basic maintenance. Heating components and door parts often wear first, but many issues are repairable with the correct replacement parts.

What typically wears out first

These are the most common wear items on an electric range over time:

• Bake element and broil element (slow heating, no heat)
• Surface elements and element switches (burner not heating or stuck on)
• Oven temperature sensor (inaccurate temperatures)
• Door hinges and door seal (door not closing tightly, heat loss)
• Terminal block and power cord connection (burning smell, intermittent power)

Lifespan by component (typical)

Component	Typical service life	Common symptom
Bake/broil element	5 to 10 years	No heat or uneven baking
Oven temperature sensor	8 to 12 years	Oven temp off by 25°F or more
Door hinges/seal	8 to 15 years	Door drops, heat leaks

Maintenance that extends range life

• Keep the oven cavity and door seal clean to prevent heat loss
• Avoid slamming the oven door; it stresses hinges and glass
• Use cookware that matches the burner size to reduce element cycling
• If a burner stays on high or will not regulate, replace the switch promptly

Why it matters

Knowing the expected lifespan helps you decide whether to repair or refresh key parts. For example, restoring accurate baking often starts with the range oven temperature sensor WPW10181986 and a basic temperature check.

For care, cleaning, and operating tips specific to AER5630BAB0, follow the AER5630BAB0 owner's manual.

Last updated: March 2026
