Model # U5215-930 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5215-930 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Speed Nut 21362006
#55

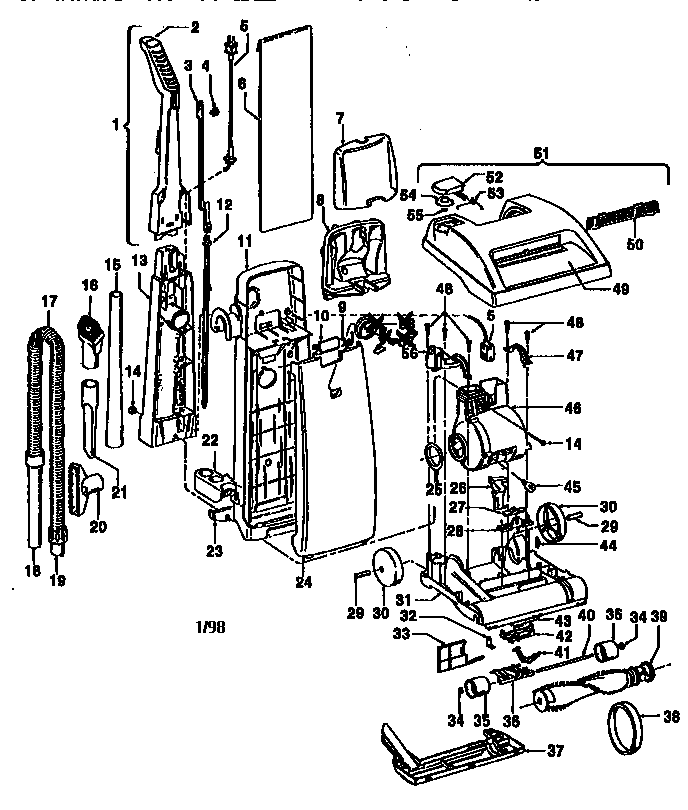

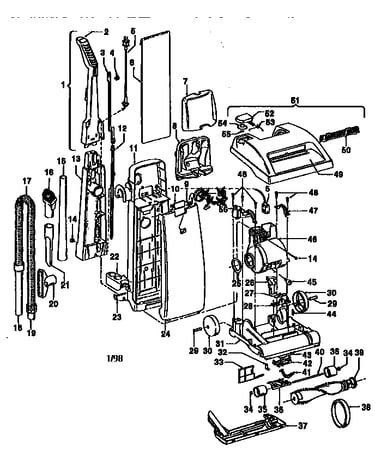

Unit parts diagram

Speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#30

Unit parts diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Spring 38351012
#43

Unit parts diagram

Spring

Part #38351012

The manufacturer no longer makes this part, and there's no substitute part

Valve Gate 38718005
#33

Unit parts diagram

Valve gate

Part #38718005

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#25

Unit parts diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Nozzle 38614036
#20

Unit parts diagram

Vacuum furniture nozzle

Part #38614036

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 214793DA
#1

Motor diagram

Vacuum screw

Part #214793DA

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 37911078
#2

Unit parts diagram

Handle cap

Part #37911078

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Indicator Knob 38567014
#27

Unit parts diagram

Vacuum height adjuster indicator knob

Part #38567014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313101
#45

Unit parts diagram

Vacuum light bulb

Part #27313101

The manufacturer no longer makes this part, and there's no substitute part
