Model # S661D Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka S661D vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Vacuum Screw, 10-pack 53238-13
Vacuum screw, 10-pack

Part #53238-13

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53142
#21

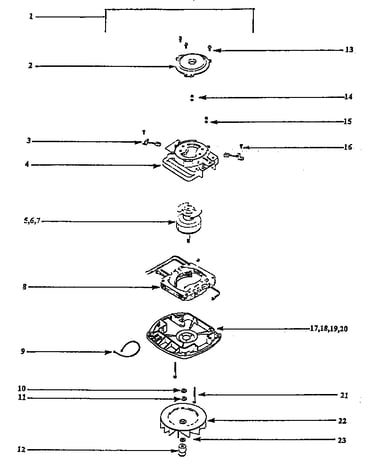

Field assembly diagram

Vacuum screw, 10-pack

Part #53142

The manufacturer no longer makes this part, and there's no substitute part

Spring 47722
#3

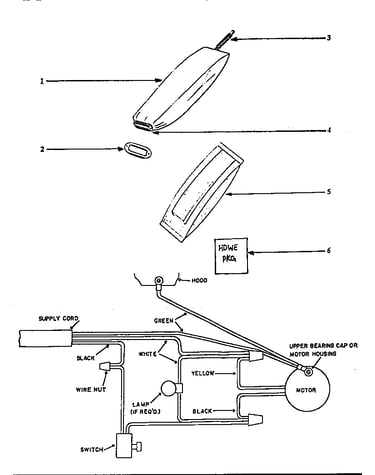

Handle and bag housing diagram

Spring

Part #47722

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#5

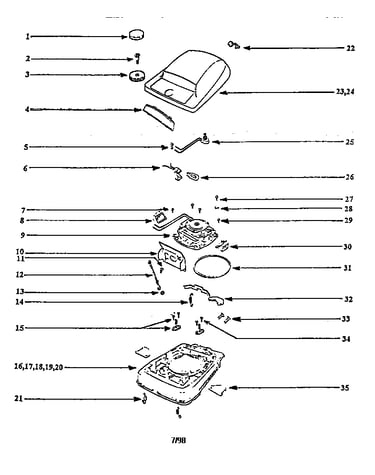

Base assembly diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Griddle Handle 25103A-4
#8

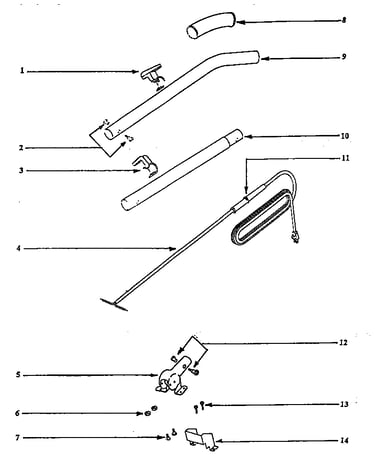

Hose assembly diagram

Griddle handle

Part #25103A-4

The manufacturer no longer makes this part, and there's no substitute part

Steel Washrs 53188-1
#10

Field assembly diagram

Steel washrs

Part #53188-1

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate 25922-1
#22

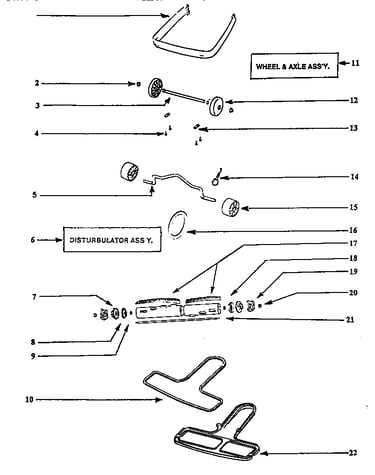

Agitator diagram

Bottom plate

Part #25922-1

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 38532
#24

Base assembly diagram

Nameplate

Part #38532

The manufacturer no longer makes this part, and there's no substitute part

Spring Axle 53076-2
#14

Agitator diagram

Spring axle

Part #53076-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Fan 12988
#22

Field assembly diagram

Vacuum fan

Part #12988

The manufacturer no longer makes this part, and there's no substitute part
