Whirlpool 4KWFC120MAW1 electric freestanding range Parts
Here are the diagrams and repair parts for Whirlpool 4KWFC120MAW1 electric freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

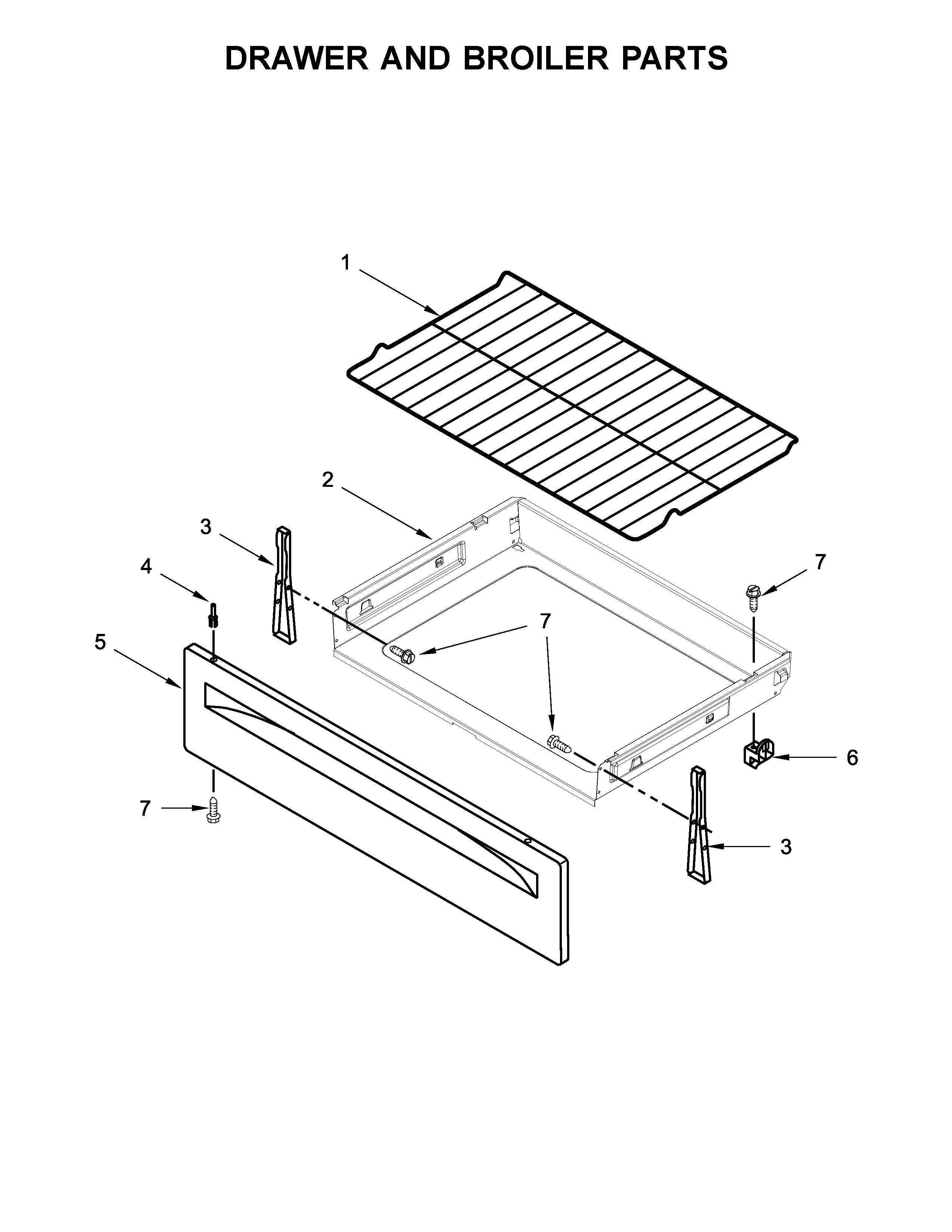

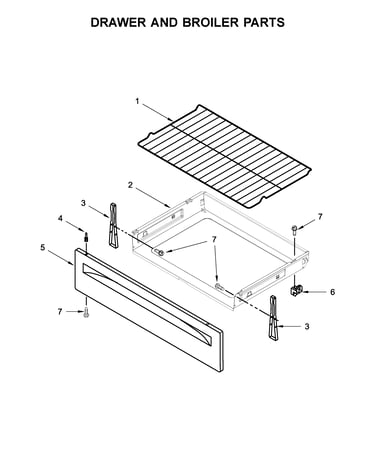

Browse Parts for 4KWFC120MAW1 Ranges

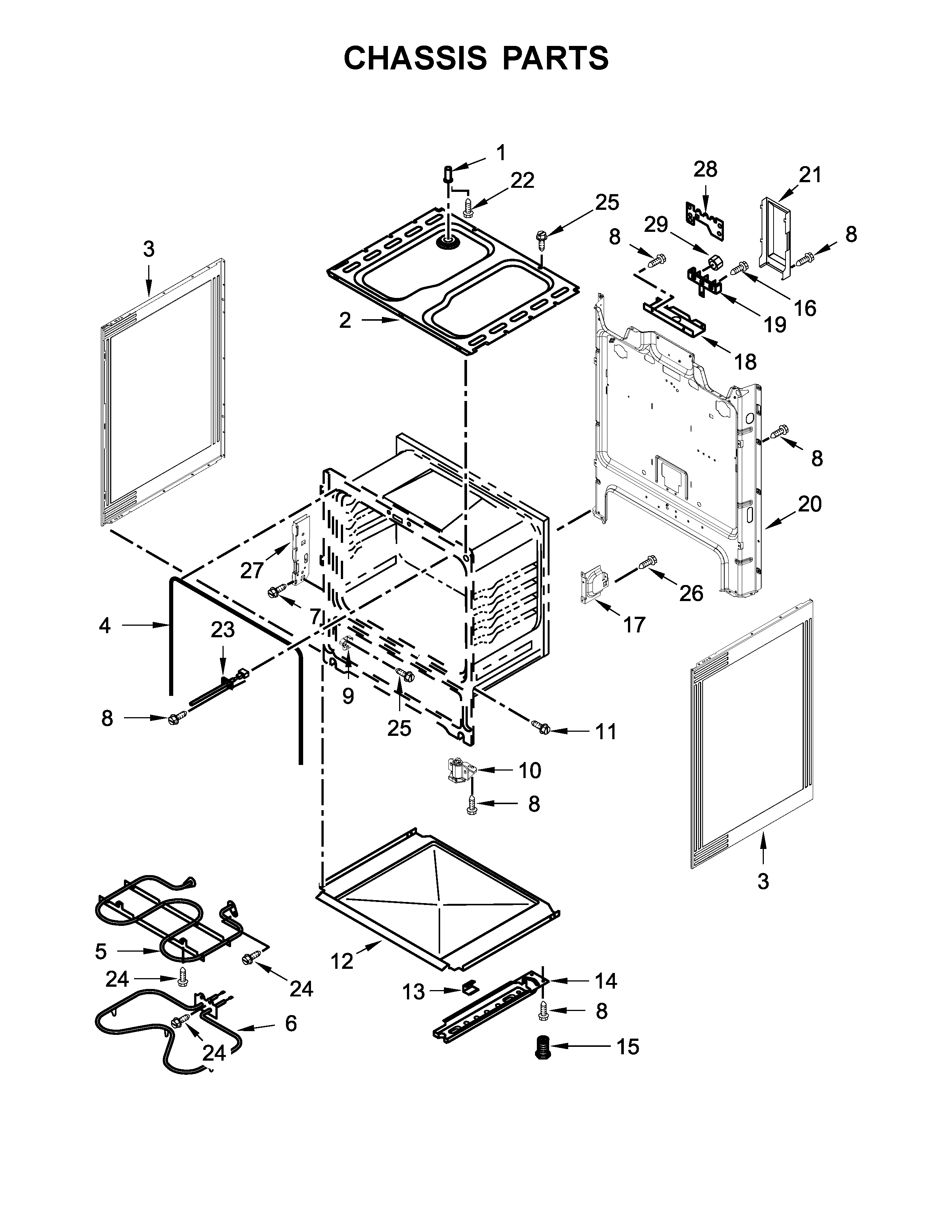

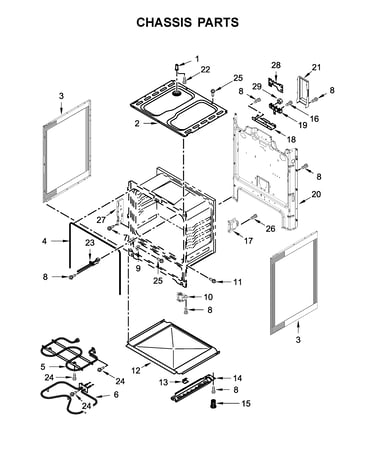

Chassis parts diagram
Range Oven Temperature Sensor
Part #W10181986Replaced by #WPW10181986
Manufacturer substitutionThis part replaces W10181986. Substitute parts can look different from the original.In Stock$72.568% OFF Phone Price : $78.56
Qty

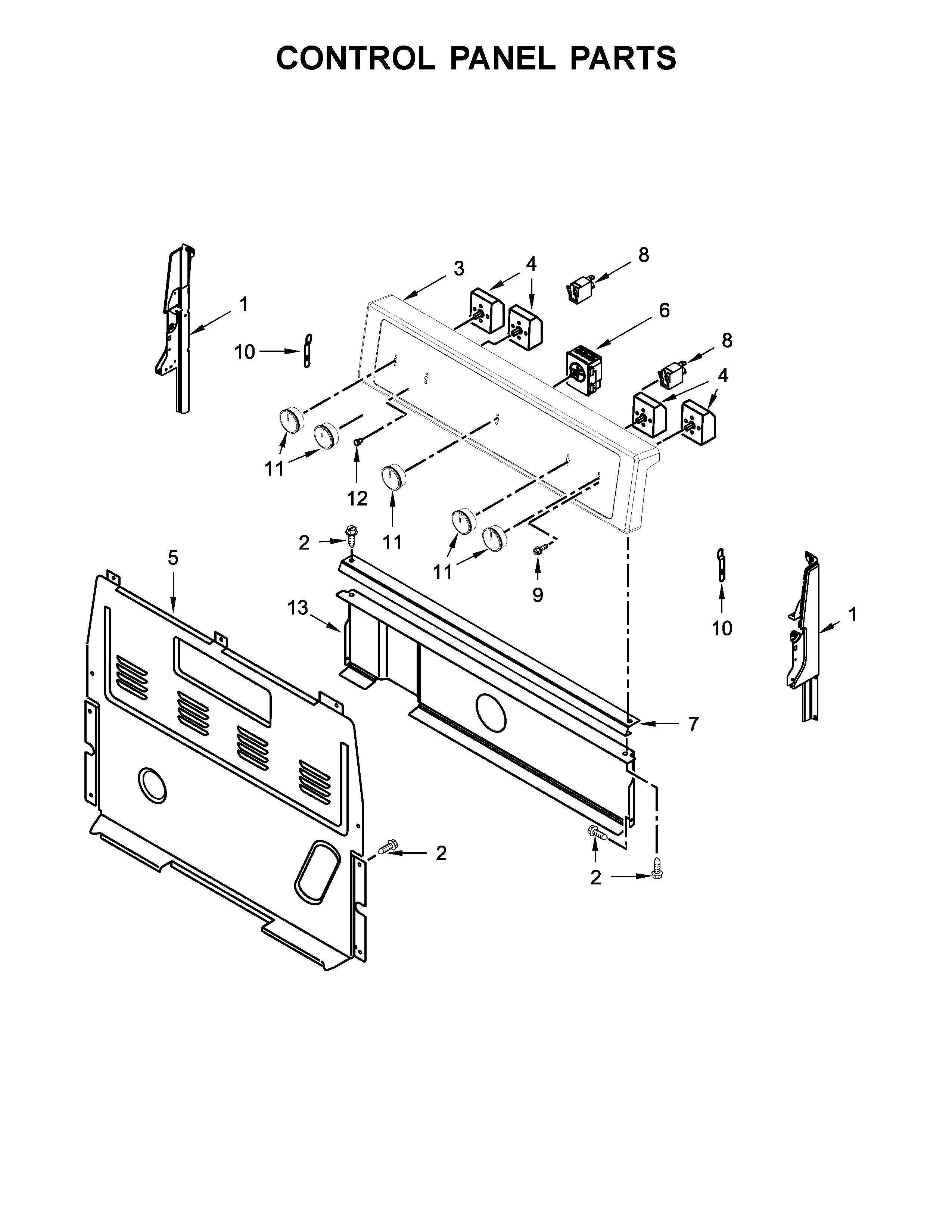

Control panel parts diagram
Infinite Switch (silver)
Part #3148951Replaced by #WP3149404
Manufacturer substitutionThis part replaces 3148951. Substitute parts can look different from the original.In Stock$30.7623% OFF Was : $39.94QtyOptional parts diagram
Spray W
Part #350930Replaced by #350930

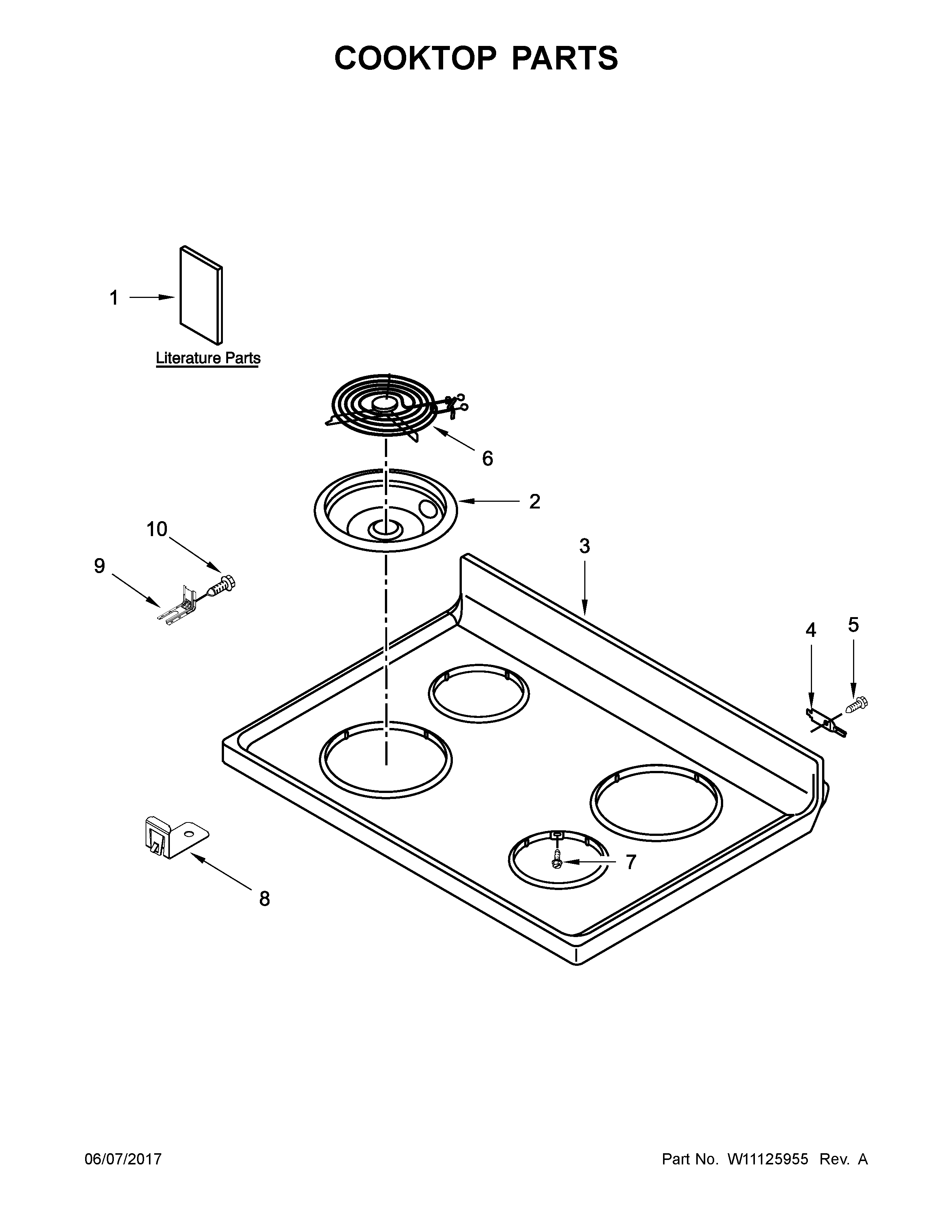

Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyCooktop parts diagram
Range Drip Pan
Part #W10196406Replaced by #WPW10196406

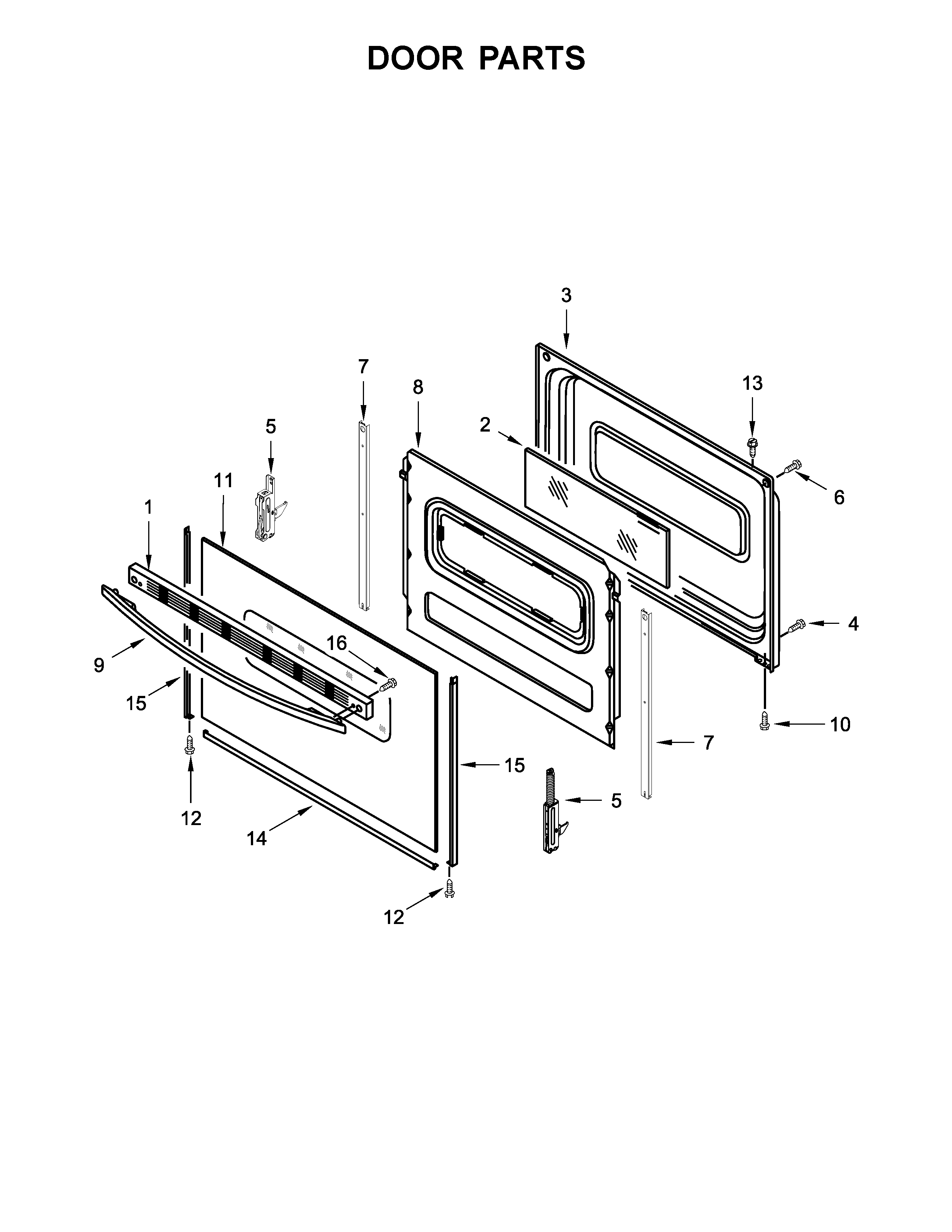

Manufacturer substitutionThis part replaces W10196406. Substitute parts can look different from the original.This item is not returnableIn Stock$6.3114% OFF Phone Price : $7.31QtyDoor parts diagram
Range Oven Door Hinge
Part #W10299227Replaced by #WPW10299227
Manufacturer substitutionThis part replaces W10299227. Substitute parts can look different from the original.In Stock$47.1111% OFF Phone Price : $53.11QtyControl panel parts diagram
Range Screw
Part #3400882Replaced by #WP3400882
Manufacturer substitutionThis part replaces 3400882. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0816% OFF Phone Price : $6.08QtyDoor parts diagram
Range Screw
Part #W10200660Replaced by #WPW10200660
Manufacturer substitutionThis part replaces W10200660. Substitute parts can look different from the original.This item is not returnableIn Stock$5.3716% OFF Phone Price : $6.37QtyChassis parts diagram
Range Oven Door Seal
Part #W10129032Replaced by #W11542153
Manufacturer substitutionThis part replaces W10129032. Substitute parts can look different from the original.In Stock$67.58QtyRange Screw
Part #W10031780Replaced by #W10777162
Manufacturer substitutionThis part replaces W10031780. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyDoor parts diagram

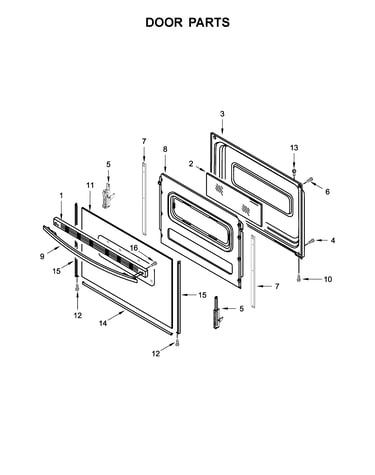

Range Oven Door Side Trim, Left
Part #8523172Replaced by #WP8523172
Manufacturer substitutionThis part replaces 8523172. Substitute parts can look different from the original.In Stock$37.4331% OFF Was : $54.49Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint
Part #72017
This item is not returnable
In Stock
$31.61
Qty
Appliance Spray Paint (biscuit)
Part #4392901
This item is not returnable
In Stock
$32.75
15% OFF Phone Price : $38.75
Qty
Appliance Spray Paint (black)
Part #285006
This item is not returnable
In Stock
$45.09
12% OFF Phone Price : $51.09
Qty
