Craftsman
Gas Walk-Behind Mower

Model # 917250129 Official Craftsman 38" rotary mower conversion kit

Here are the diagrams and repair parts for Official Craftsman 917250129 38" rotary mower conversion kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

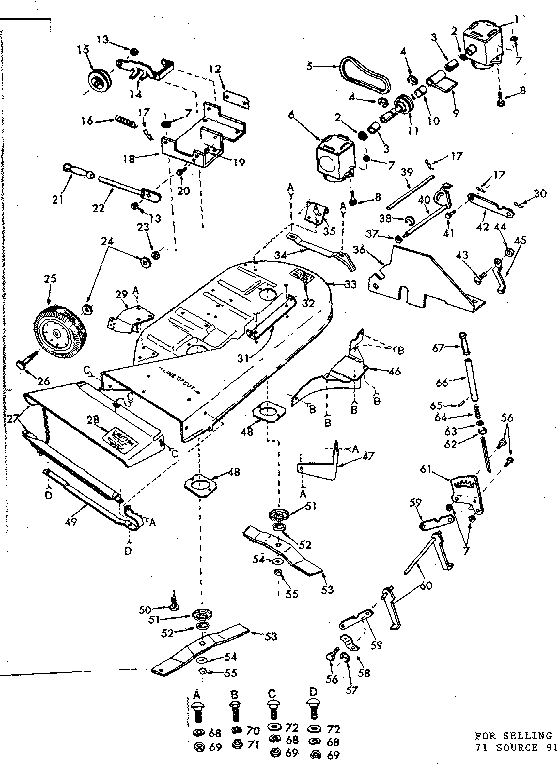

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
E-ring 5000P
E-ring

Part #5000P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5000P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Nut 5394H
#7

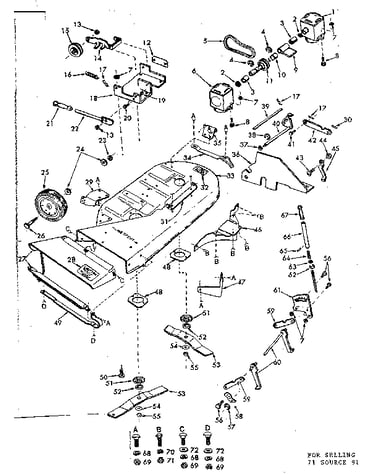

Replacement parts diagram

Nut

Part #5394H

Replaced by #73930600

?
Manufacturer substitution
This part replaces 5394H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Keps Nut 532P
#19

Replacement parts diagram

Keps nut

Part #532P

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 1003P
#68

Replacement parts diagram

Lock washer

Part #1003P

The manufacturer no longer makes this part, and there's no substitute part

Disc 788039
#2

Replacement parts diagram

Disc

Part #788039

Replaced by #788039

?
Manufacturer substitution
This part replaces 788039. Substitute parts can look different from the original.
This item is not returnable
$4.40
In Stock
Hitch Pin, 2-pack 4939M
#17

Replacement parts diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Bolt 16P
Bolt

Part #16P

The manufacturer no longer makes this part, and there's no substitute part

Coupling 786028
#3

Replacement parts diagram

Coupling

Part #786028

Replaced by #786028

?
Manufacturer substitution
This part replaces 786028. Substitute parts can look different from the original.
This item is not returnable
$21.89 |
19% OFF Phone Price : $26.89
In Stock
Shaft 776044
#10A

Replacement parts diagram

Shaft

Part #776044

Replaced by #776044

?
Manufacturer substitution
This part replaces 776044. Substitute parts can look different from the original.
$70.89 |
7% OFF Phone Price : $75.89
In Stock
Washer 1537P
#72

Replacement parts diagram

Washer

Part #1537P

The manufacturer no longer makes this part, and there's no substitute part
