GE GHDSR209H3WW washer

GE GHDSR209H3WW washer Parts

Here are the diagrams and repair parts for GE GHDSR209H3WW washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GHDSR209H3WW Washer

  • Washer Agitator for GE GHDSR209H3WW - Part WH43X10034

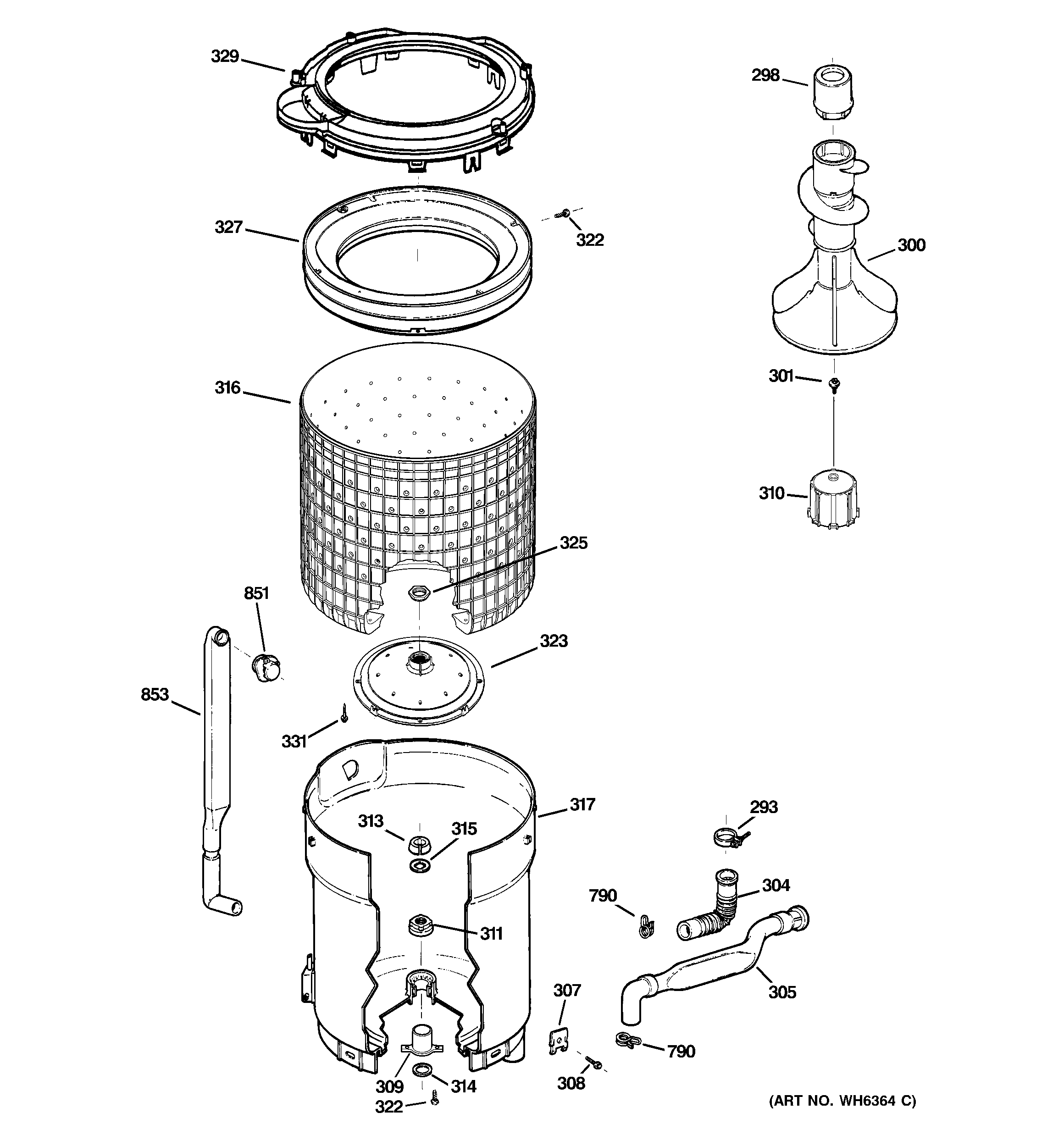

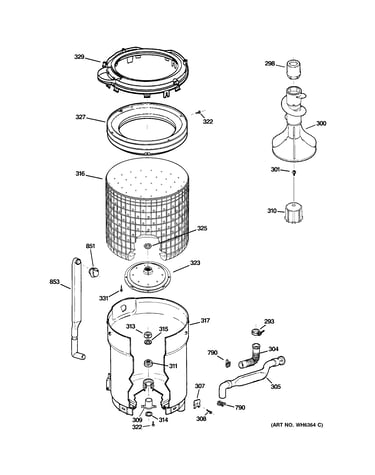

    Tub, basket & agitator diagram

    Washer Agitator

    Part #WH43X10034
    In Stock
    $60.68
    9% OFF Phone Price : $66.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Bearing for GE GHDSR209H3WW - Part WH2X1198

    Tub, basket & agitator diagram

    Tub Bearing

    Part #WH02X1198

    Replaced by #WH2X1198

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1198. Substitute parts can look different from the original.
    In Stock
    $35.73
    14% OFF Phone Price : $41.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drain Pump for GE GHDSR209H3WW - Part WH23X10030

    Suspension, pump & drive components diagram

    Washer Drain Pump Assembly

    Part #WH23X10013

    Replaced by #WH23X10030

    Info Icon
    Manufacturer substitution
    This part replaces WH23X10013. Substitute parts can look different from the original.
    In Stock
    $59.40
    9% OFF Phone Price : $65.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Control Knob for GE GHDSR209H3WW - Part WE01X20378

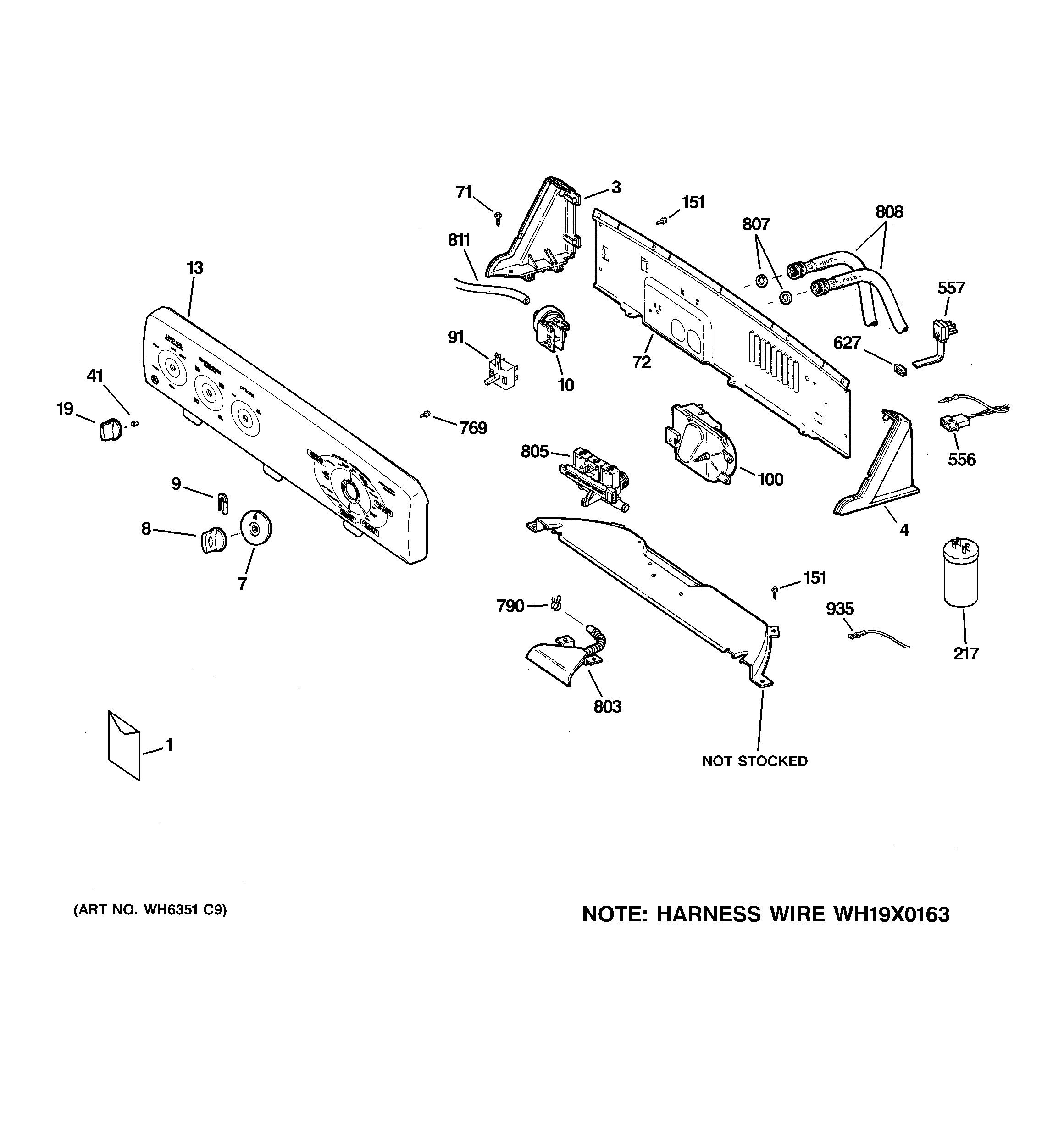

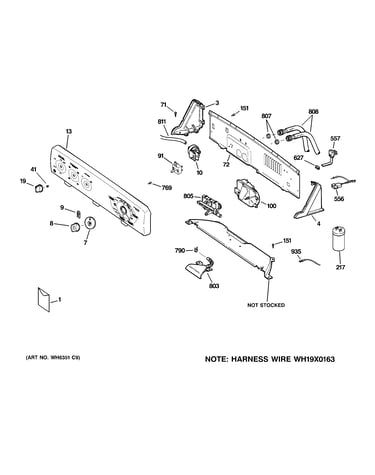

    Controls & backsplash diagram

    Knob And Cli

    Part #WH01X10307

    Replaced by #WE01X20378

    Info Icon
    Manufacturer substitution
    This part replaces WH01X10307. Substitute parts can look different from the original.
    In Stock
    $27.98
    18% OFF Phone Price : $33.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Timer Knob for GE GHDSR209H3WW - Part WH01X10310

    Controls & backsplash diagram

    Washer Timer Knob

    Part #WH01X10310
    In Stock
    $8.79
    10% OFF Phone Price : $9.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Mounting Hub Washer for GE GHDSR209H3WW - Part WH2X1199

    Tub, basket & agitator diagram

    Hub Washer

    Part #WH02X1199

    Replaced by #WH2X1199

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1199. Substitute parts can look different from the original.
    In Stock
    $8.92
    10% OFF Phone Price : $9.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Agitator Coupler for GE GHDSR209H3WW - Part WH43X10032

    Tub, basket & agitator diagram

    Washer Agitator Coupler

    Part #WH43X10032
    In Stock
    $28.58
    17% OFF Phone Price : $34.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Timer Knob Clip for GE GHDSR209H3WW - Part WH1X2117

    Controls & backsplash diagram

    Spring Clip

    Part #WH01X2117

    Replaced by #WH1X2117

    Info Icon
    Manufacturer substitution
    This part replaces WH01X2117. Substitute parts can look different from the original.
    In Stock
    $8.93
    10% OFF Phone Price : $9.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Water-level Pressure Switch Hose for GE GHDSR209H3WW - Part WH41X365

    Controls & backsplash diagram

    Hose Pressure Switch

    Part #WH41X0365

    Replaced by #WH41X365

    Info Icon
    Manufacturer substitution
    This part replaces WH41X0365. Substitute parts can look different from the original.
    In Stock
    $14.87
    12% OFF Phone Price : $16.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drain Hose for GE GHDSR209H3WW - Part WH41X22935

    Tub, basket & agitator diagram

    Drain Hose

    Part #WH41X0371

    Replaced by #WH41X22935

    Info Icon
    Manufacturer substitution
    This part replaces WH41X0371. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.50
    11% OFF Phone Price : $18.50Info Icon
    Minus Item
    Qty
    Plus Item
