Gibson
Top-Mount Refrigerator

Model # RD19F9WU3E Official Gibson top-mount refrigerator - lg30588240

Here are the diagrams and repair parts for Official Gibson RD19F9WU3E top-mount refrigerator - lg30588240, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |

Fan Blade G174705
#34

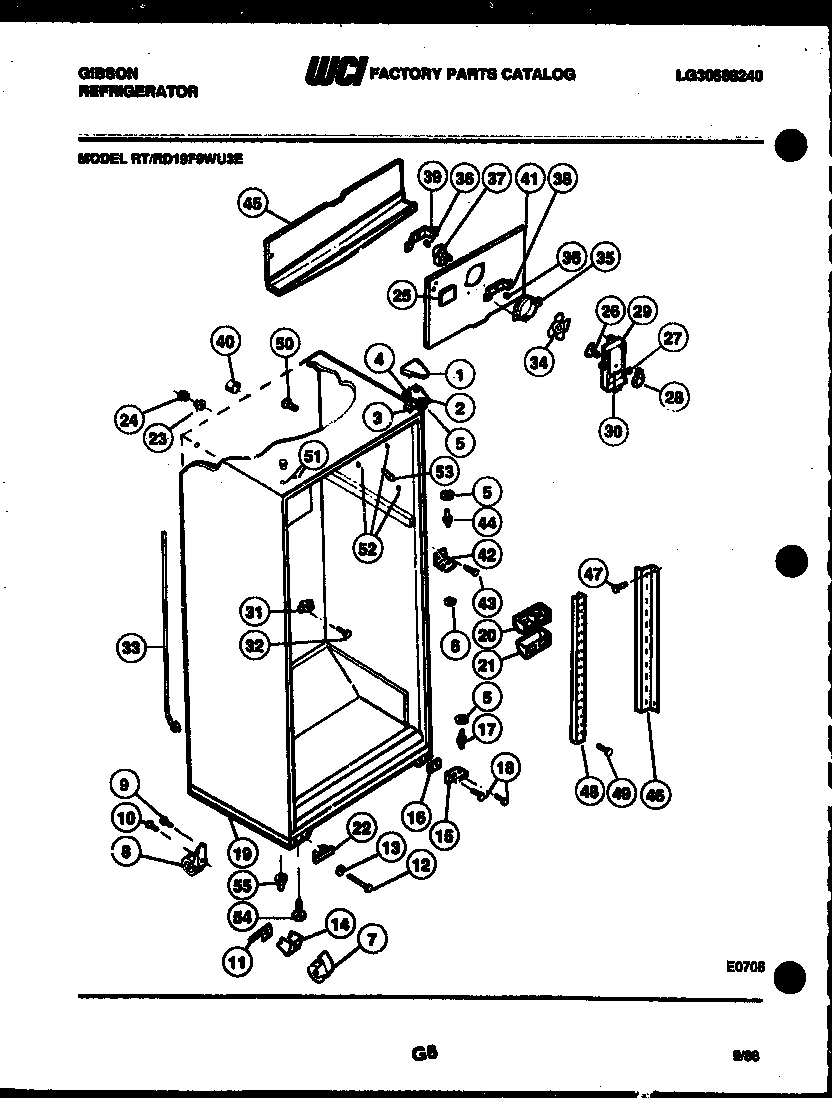

Cabinet parts diagram

Fan blade

Part #G174705

Replaced by #5308000010

?
Manufacturer substitution
This part replaces G174705. Substitute parts can look different from the original.
BEST SELLER
$39.39
11% OFF Phone Price : $44.39
In Stock
Defrost Timer G187484
#21

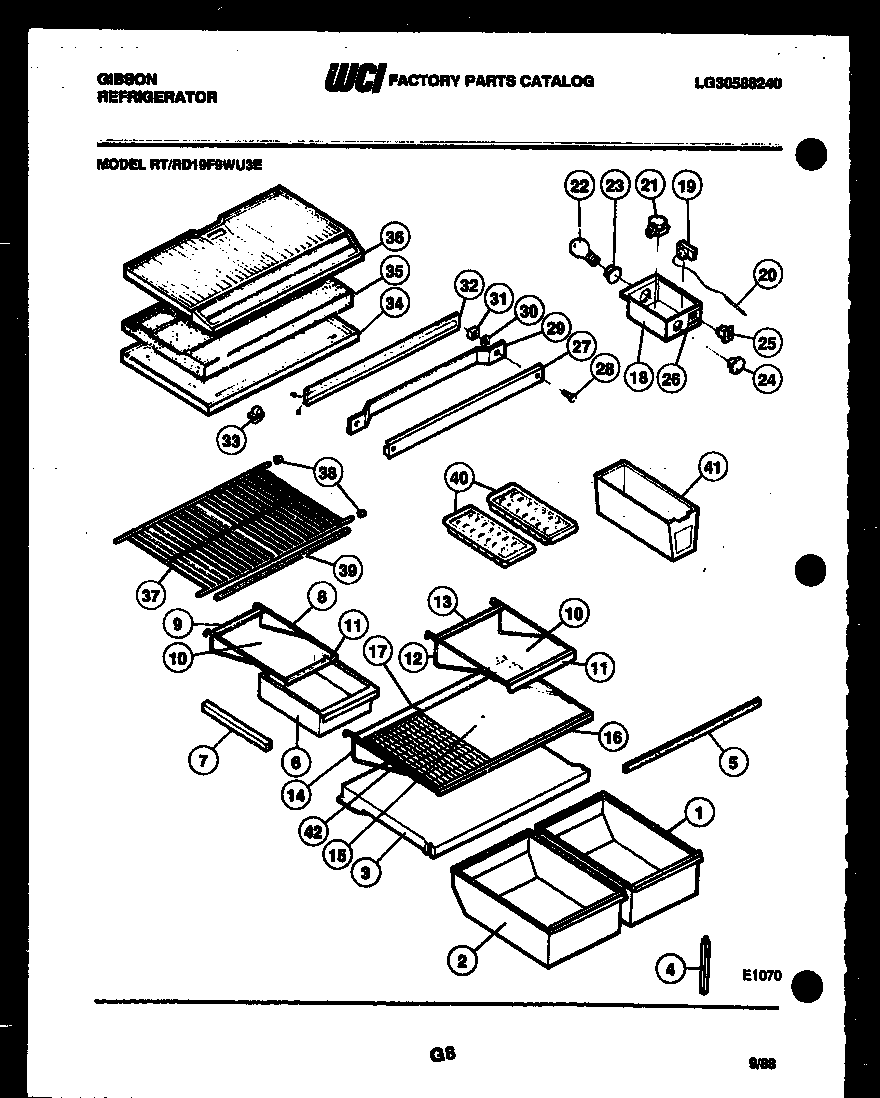

Shelves and supports diagram

Defrost timer

Part #G187484

Replaced by #215846602

?
Manufacturer substitution
This part replaces G187484. Substitute parts can look different from the original.
BEST SELLER
$30.31
14% OFF Phone Price : $35.31
In Stock
Filter Drier G186717
#1

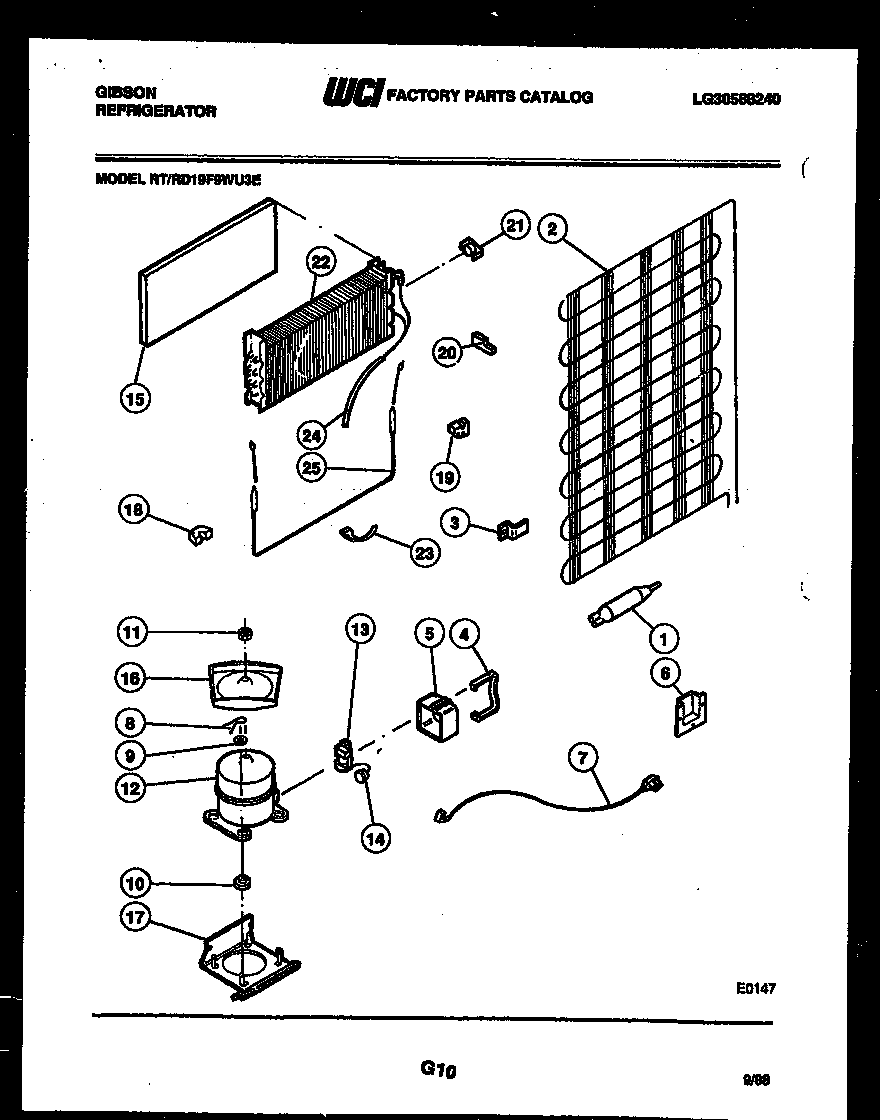

System and automatic defrost parts diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$10.30
37% OFF MSRP : $16.34
In Stock
Defrost Thermostat G162690-01
#21

System and automatic defrost parts diagram

Defrost thermostat

Part #G162690-01

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G162690-01. Substitute parts can look different from the original.
BEST SELLER
$23.79
17% OFF Phone Price : $28.79
In Stock
Evaporator Motor G158289
#37

Cabinet parts diagram

Evaporator motor

Part #G158289

Replaced by #5300158289

?
Manufacturer substitution
This part replaces G158289. Substitute parts can look different from the original.
$88.69
5% OFF Phone Price : $93.69
In Stock
Ice Tray G156376-01
#40

Shelves and supports diagram

Ice tray

Part #G156376-01

Replaced by #215667501

?
Manufacturer substitution
This part replaces G156376-01. Substitute parts can look different from the original.
This item is not returnable
$4.30
19% OFF Phone Price : $5.30
In Stock
Refrigerator Gasket G186932-13
#17

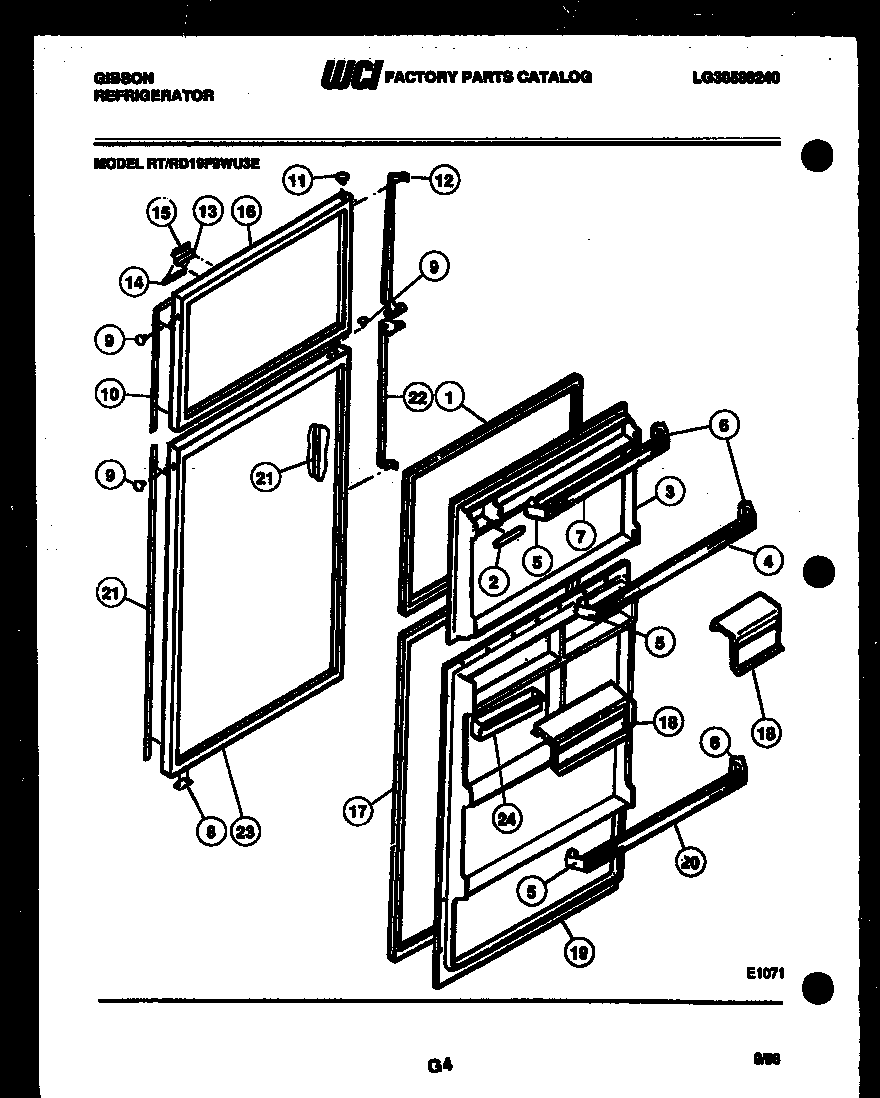

Door parts diagram

Refrigerator gasket

Part #G186932-13

Replaced by #218730609

?
Manufacturer substitution
This part replaces G186932-13. Substitute parts can look different from the original.
$107.82
8% OFF Phone Price : $117.82
In Stock
Lower Hinge Pin G166505
#17

Cabinet parts diagram

Lower hinge pin

Part #G166505

Replaced by #5303001321

?
Manufacturer substitution
This part replaces G166505. Substitute parts can look different from the original.
This item is not returnable
$8.59
10% OFF Phone Price : $9.59
In Stock
Refrigerator Screw G181104
#47

Cabinet parts diagram

Refrigerator screw

Part #G181104

Replaced by #5304455852

?
Manufacturer substitution
This part replaces G181104. Substitute parts can look different from the original.
In Stock
Hinge Screw G181020
#18

Cabinet parts diagram

Hinge screw

Part #G181020

Replaced by #241710601

?
Manufacturer substitution
This part replaces G181020. Substitute parts can look different from the original.
This item is not returnable
$14.19
12% OFF Phone Price : $16.19
In Stock
