Model # MGC8636WS00 Official Maytag 36" gas cooktop

Here are the diagrams and repair parts for Official Maytag MGC8636WS00 36" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Spark Module 8190929
#4

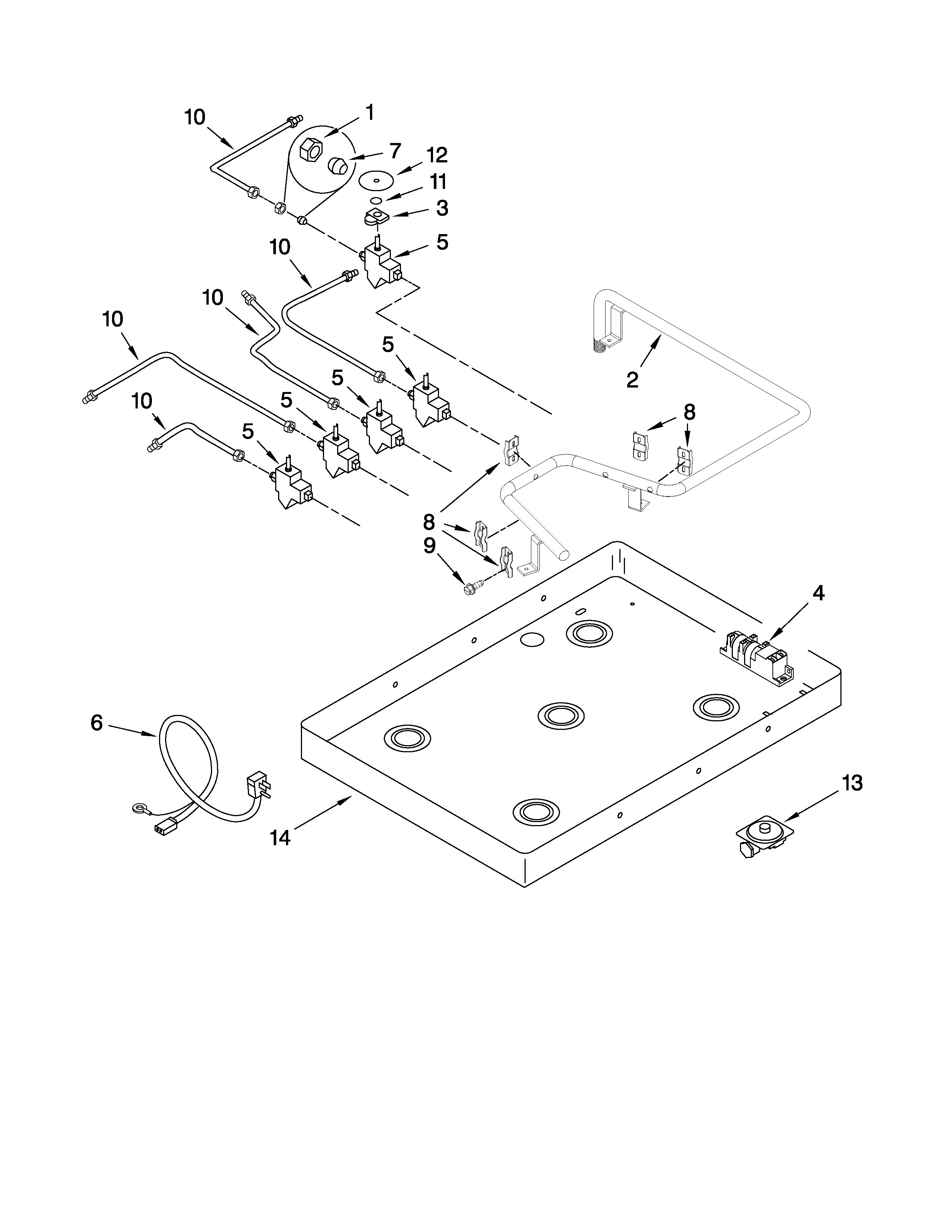

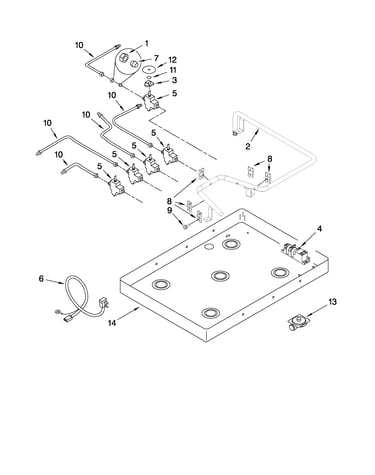

Burner box, gas valves, and switches diagram

Spark module

Part #8190929

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 8190978
#NI

Optional parts (not included) diagram

Mounting bracket

Part #8190978

In Stock
Cooktop Gasket 8190977
#NI

Optional parts (not included) diagram

Cooktop gasket

Part #8190977

In Stock
Nut 8190918
#1

Burner box, gas valves, and switches diagram

Nut

Part #8190918

In Stock
Cooktop Griddle W10285024
#17

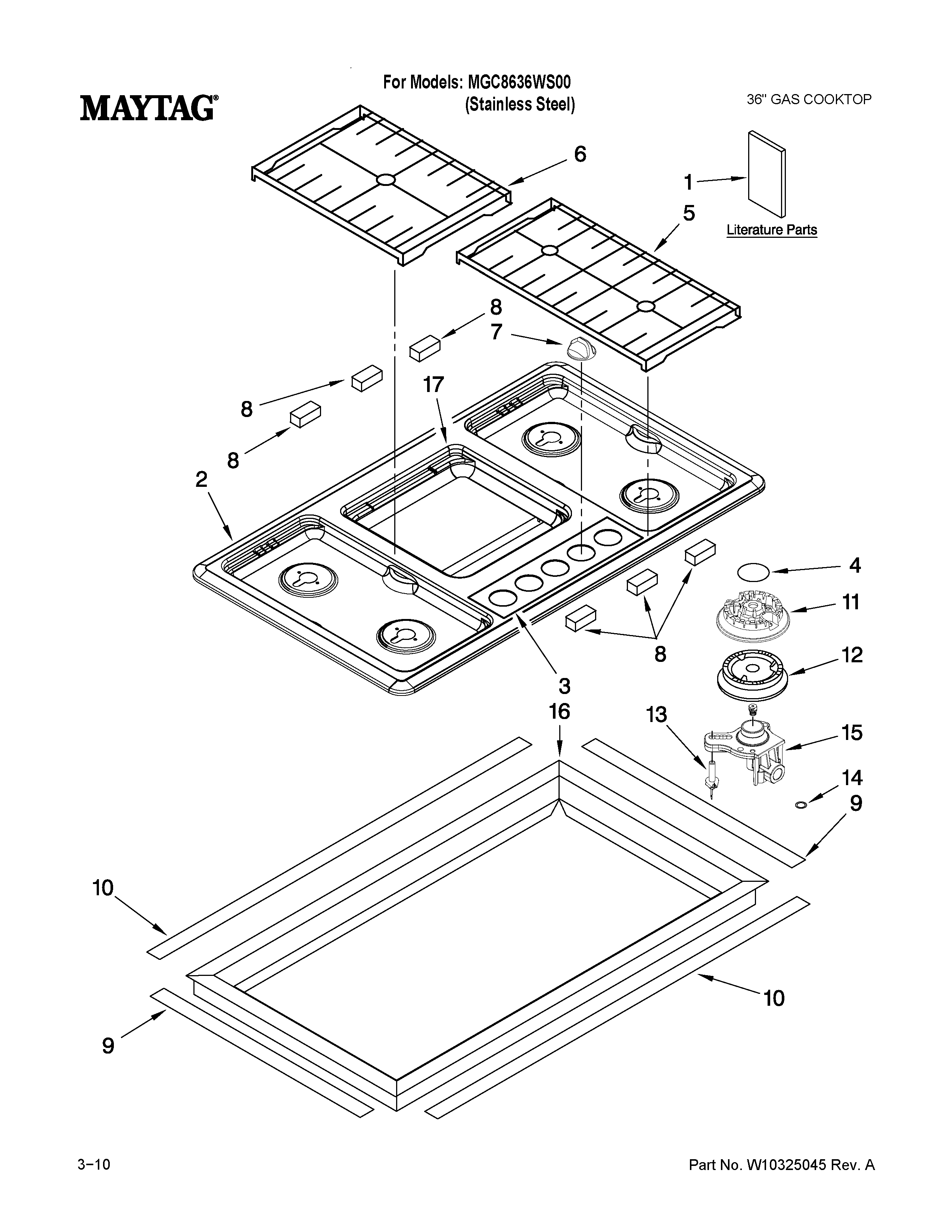

Cooktop, burner and grate parts diagram

Cooktop griddle

Part #W10285024

In Stock
Sleeve 8190917
#7

Burner box, gas valves, and switches diagram

Sleeve

Part #8190917

This item is not returnable
In Stock
Cooktop Burner Knob W10285026
#7

Cooktop, burner and grate parts diagram

Cooktop burner knob

Part #W10285026

In Stock
Power Cord 8190925
#6

Burner box, gas valves, and switches diagram

Power cord

Part #8190925

In Stock
Manifold 8190910
#2

Burner box, gas valves, and switches diagram

Manifold

Part #8190910

$194.49
12% OFF MSRP : $220.00
In Stock
Cooktop Burner Cap (black) 8190895
#4B

Cooktop, burner and grate parts diagram

Cooktop burner cap (black)

Part #8190895

In Stock
