Ikea
Built-In Microwave

Model # IMBS104GSS01 Official Ikea built-in microwave

Here are the diagrams and repair parts for Official Ikea IMBS104GSS01 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Switch 461967848881
#6

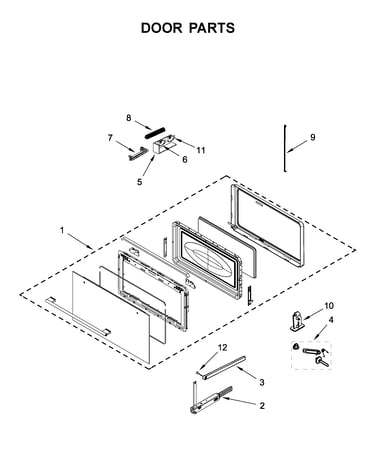

Door parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Microwave Door Interlock Switch 4375346
#11

Door parts diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Lamp G4 Halo W10795595
#14

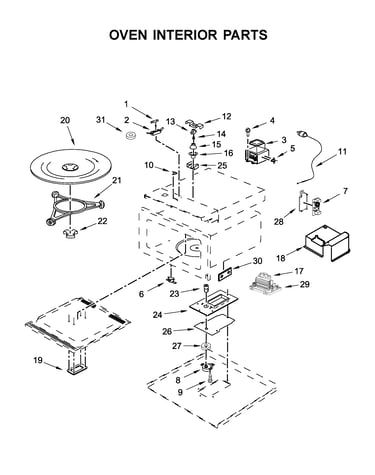

Oven interior parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Microwave Turntable Motor 461967848971
#8

Oven interior parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
Inverter W11237240
#17

Oven interior parts diagram

Inverter

Part #W11237240

Replaced by #W11325604

?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
$151.29 |
6% OFF Phone Price : $161.29
In Stock
Microwave Magnetron Thermostat 4375079
#5

Oven interior parts diagram

Microwave magnetron thermostat

Part #4375079

Replaced by #WP4375079

?
Manufacturer substitution
This part replaces 4375079. Substitute parts can look different from the original.
$35.31 |
12% OFF MSRP : $40.00
In Stock
Switch 461967750452
#5

Door parts diagram

Switch

Part #461967750452

Replaced by #WP8205683

?
Manufacturer substitution
This part replaces 461967750452. Substitute parts can look different from the original.
$40.45 |
11% OFF Phone Price : $45.45
In Stock
Microwave Turntable Tray Support W10422379
#21

Oven interior parts diagram

Microwave turntable tray support

Part #W10422379

$31.89 |
14% OFF Phone Price : $36.89
In Stock
Fuse Block 4375231
#2

Oven interior parts diagram

Fuse block

Part #4375231

Replaced by #W10245194

?
Manufacturer substitution
This part replaces 4375231. Substitute parts can look different from the original.
$33.96
In Stock
Sliding Arm 461967750483
#3

Door parts diagram

Sliding arm

Part #461967750483

Replaced by #W11214480

?
Manufacturer substitution
This part replaces 461967750483. Substitute parts can look different from the original.
$43.33 |
10% OFF Phone Price : $48.33
In Stock
