GE
Upright Freezer

Model #FUF14SVFRWW GE freezer

Here are the diagrams and repair parts for GE FUF14SVFRWW freezer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 78 parts

    Freezer Electronic Control Board

    #152

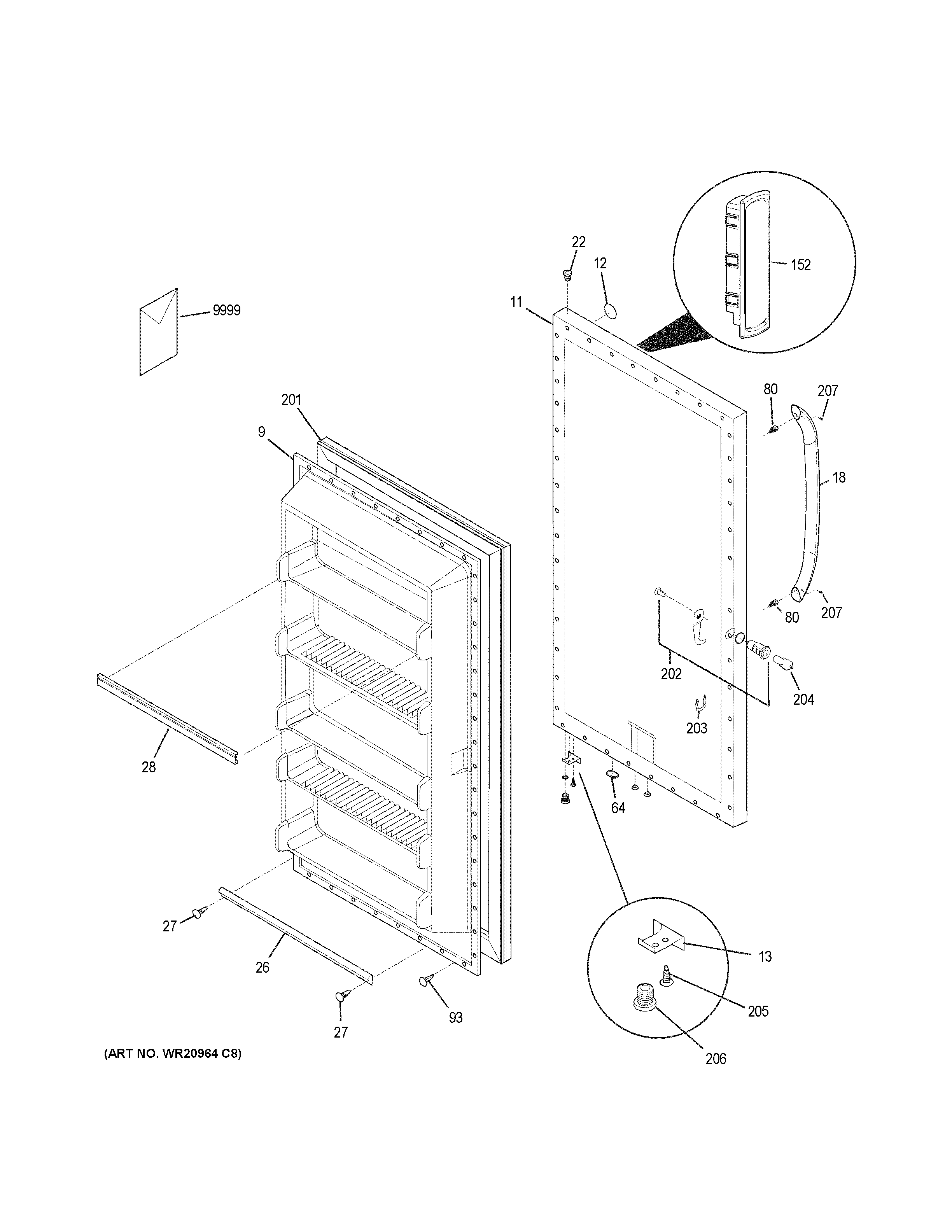

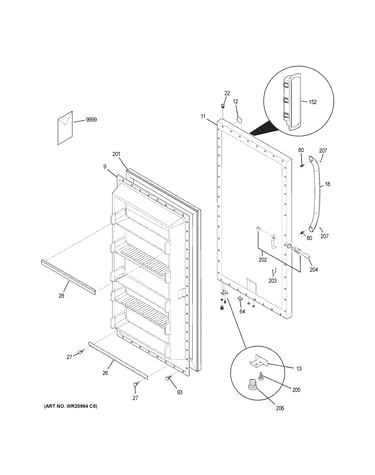

    Door Diagram

    $127.19

    In Stock

    Set Screw

    #207

    Door Diagram

    Set screw

    Part #WR01X10922
    $18.10

    In Stock

    Compressor Controller

    #30

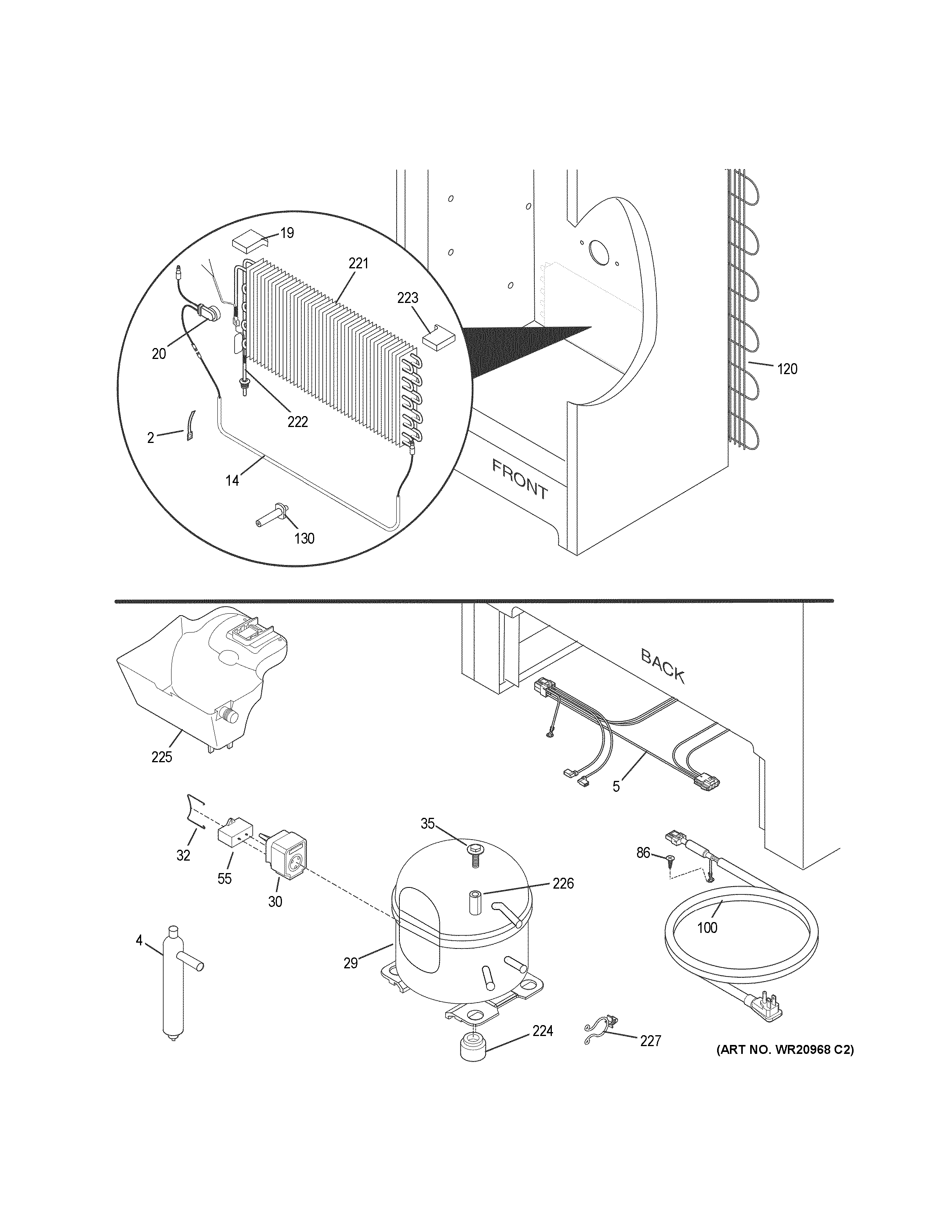

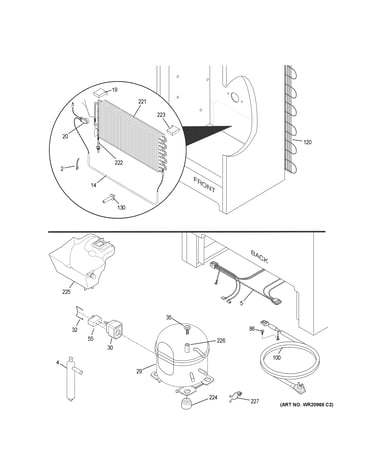

    Machine compartment Diagram

    Compressor controller

    Part #WR07X10119
    $60.04

    In Stock

    Freezer Door Closer Bearing

    #212

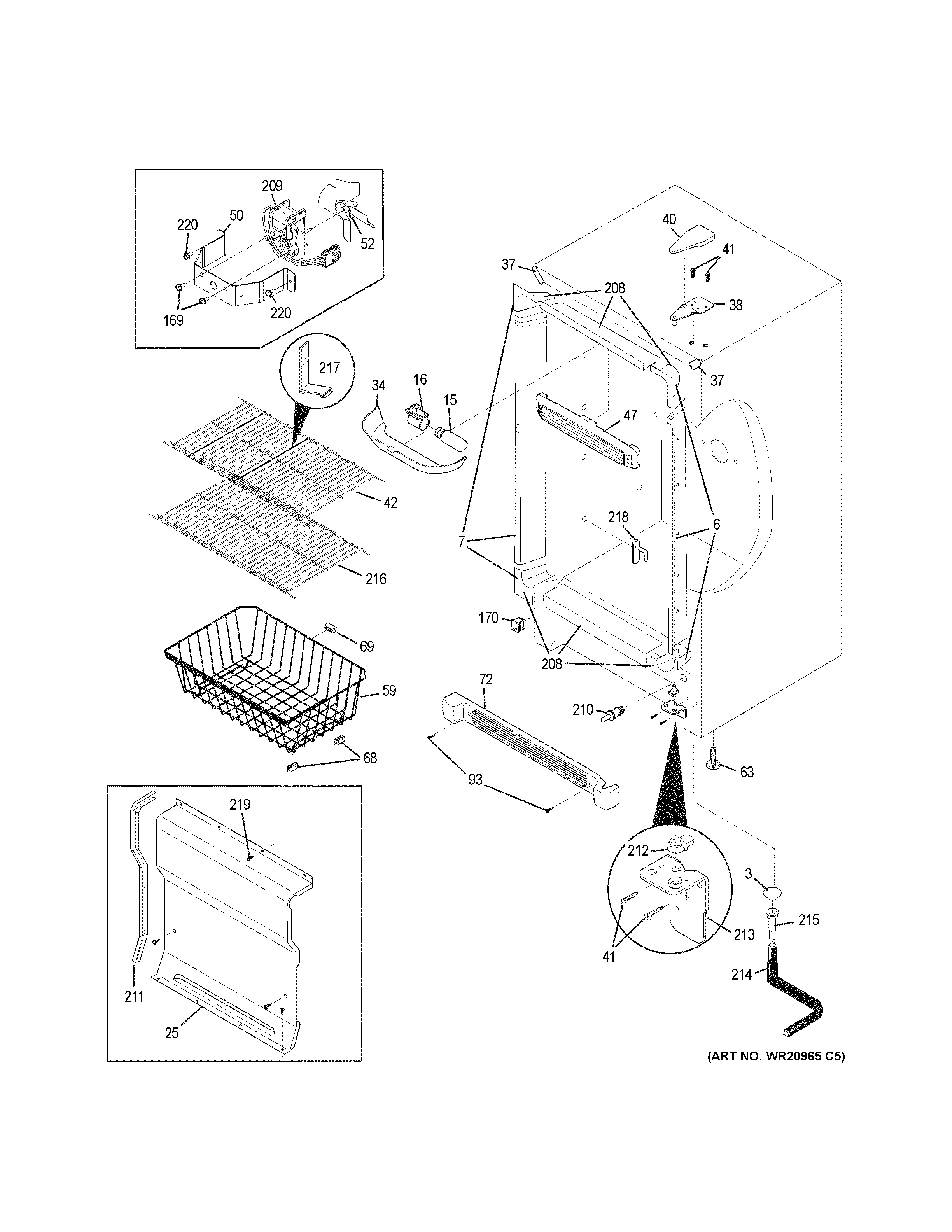

    Cabinet Diagram

    $26.56

    In Stock

    Wire Clip

    #227

    Machine compartment Diagram

    Wire clip

    Part #WR01X10931
    This item is not returnable
    $4.35

    In Stock

    Evaporator Assembly

    #221

    Machine compartment Diagram

    Evaporator assembly

    Part #WR85X10032
    $123.72

    In Stock

    Valve, Breat

    #170

    Cabinet Diagram

    Valve, breat

    Part #WR86X10064
    $12.23

    In Stock

    Clip Control

    #32

    Machine compartment Diagram

    Clip control

    Part #WR02X12032
    $15.33

    In Stock

    Fan Bracket

    #50

    Cabinet Diagram

    Fan bracket

    Part #WR02X12686
    $17.19

    In Stock

    Door Screw

    #205

    Door Diagram

    Door screw

    Part #WR02X12989
    This item is not returnable
    $4.35

    In Stock

    Symptoms common to all freestanding freezers

    Choose a symptom to see related freezer repairs.

    Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
    Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
    Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
    Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
    Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
    Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
    Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
    Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
