Model # 11621114 Official Kenmore powermate

Here are the diagrams and repair parts for Official Kenmore 11621114 powermate, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Yoke Bearing Seal 741423
#6

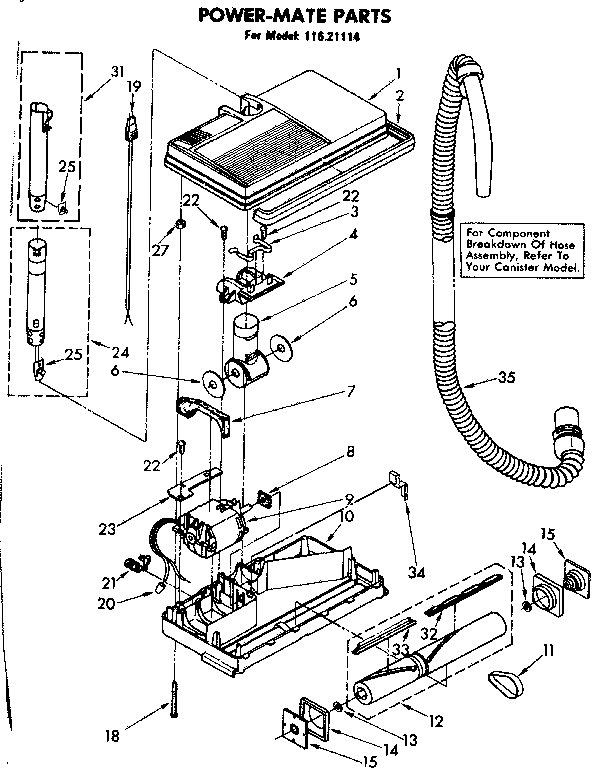

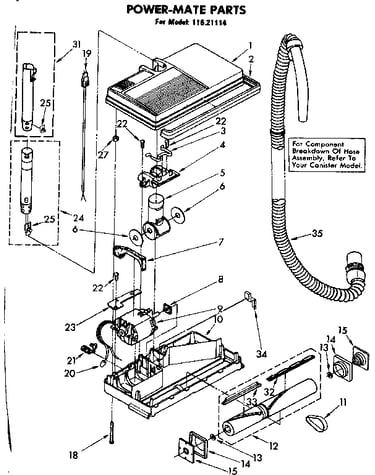

Powermate parts diagram

Yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

Cord 742494
#19

Powermate parts diagram

Cord

Part #742494

The manufacturer no longer makes this part, and there's no substitute part

Catch 741720
#3

Powermate parts diagram

Catch

Part #741720

The manufacturer no longer makes this part, and there's no substitute part

Brush 741517
#12

Powermate parts diagram

Brush

Part #741517

The manufacturer no longer makes this part, and there's no substitute part

Spring 725419
#25

Powermate parts diagram

Spring

Part #725419

The manufacturer no longer makes this part, and there's no substitute part

Beater Bar 741512
#32

Powermate parts diagram

Beater bar

Part #741512

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#35

Powermate parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Yoke Cap 742133
#4

Powermate parts diagram

Yoke cap

Part #742133

The manufacturer no longer makes this part, and there's no substitute part

Brush 741514
#33

Powermate parts diagram

Brush

Part #741514

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 725353
#11

Powermate parts diagram

Vacuum beater bar belt

Part #725353

The manufacturer no longer makes this part, and there's no substitute part
