Jenn-Air JGC9536BDB15 36" gas cooktop Parts
Here are the diagrams and repair parts for Jenn-Air JGC9536BDB15 36" gas cooktop, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JGC9536BDB15 Cooktops

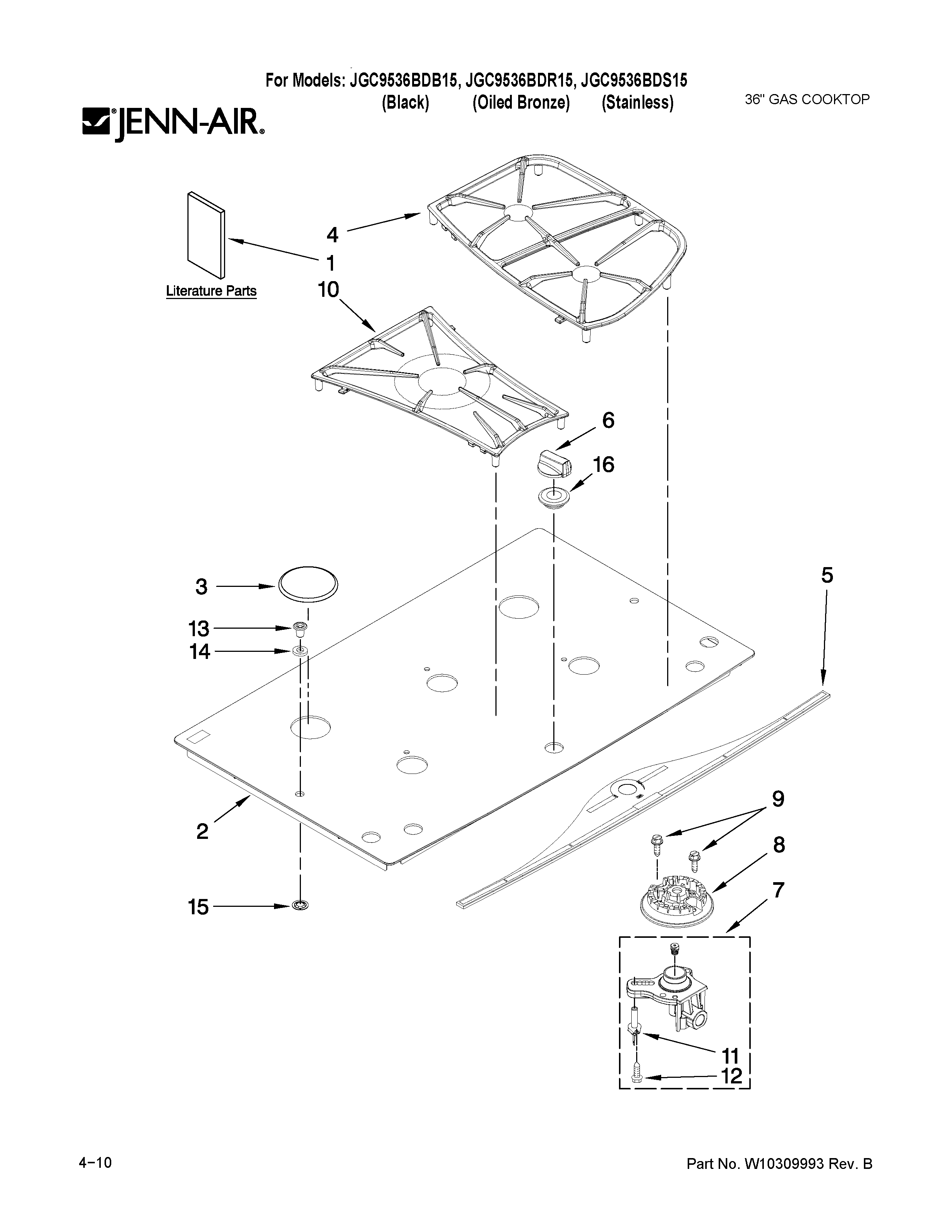

Cooktop, burner and grate parts diagram
Screw (tog 7
Part #7101P685-60
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Igniter
Part #7432P121-60Replaced by #WP74009336
Manufacturer substitutionThis part replaces 7432P121-60. Substitute parts can look different from the original.In Stock$29.2017% OFF Phone Price : $35.20
Qty

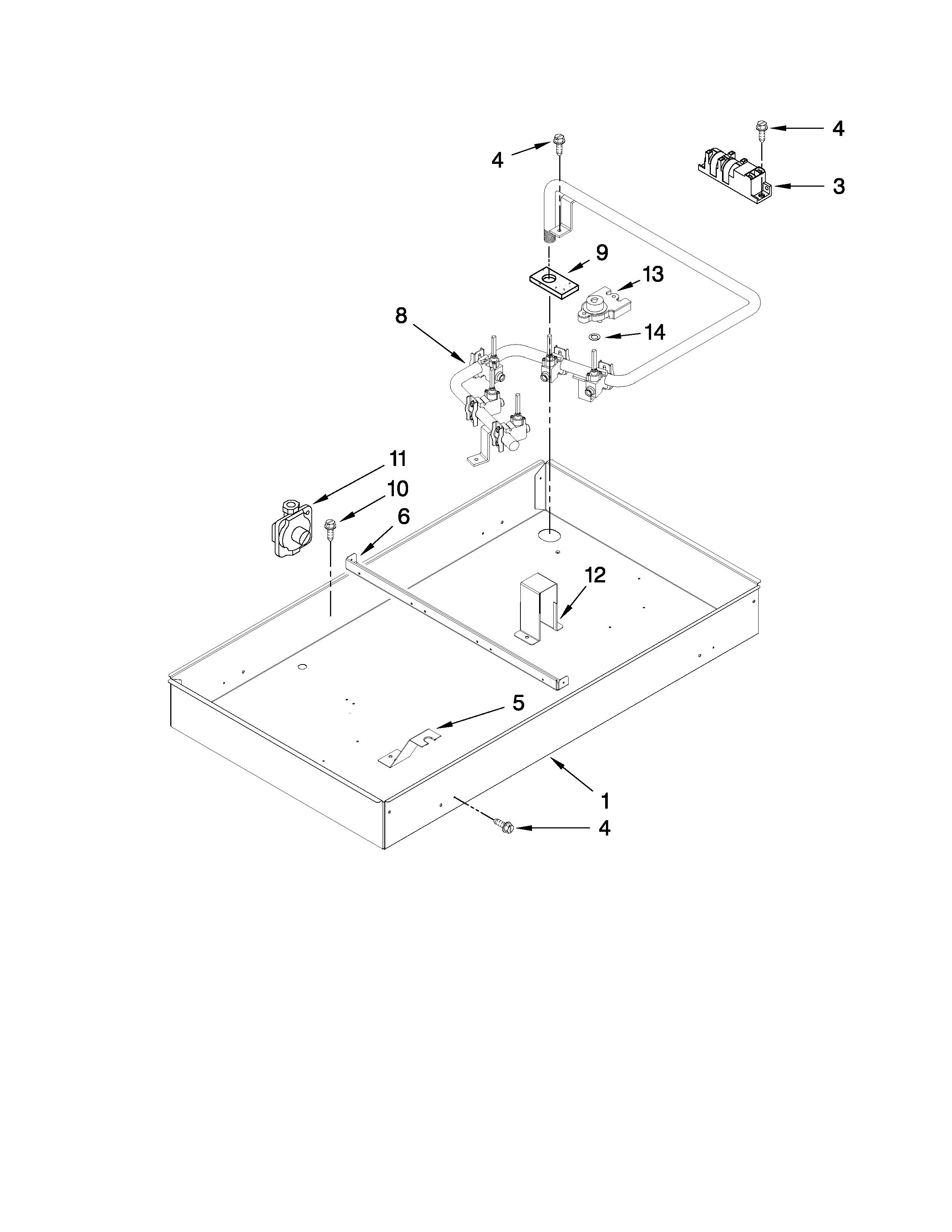

Burner box, gas valves, and switches diagram
Regulator
Part #7510P093-60Replaced by #W11087445
Manufacturer substitutionThis part replaces 7510P093-60. Substitute parts can look different from the original.In Stock$118.449% OFF Phone Price : $130.44QtyBurner box, gas valves, and switches diagram
Switch- Bu
Part #7403P820-60Replaced by #WP74007774
Manufacturer substitutionThis part replaces 7403P820-60. Substitute parts can look different from the original.In Stock$70.698% OFF Phone Price : $76.69QtyBurner box, gas valves, and switches diagram
Spark Module
Part #7431P049-60Replaced by #WP8286828
Manufacturer substitutionThis part replaces 7431P049-60. Substitute parts can look different from the original.In Stock$205.376% OFF Phone Price : $217.37QtyOptional parts (not included) diagram
Wire Harness
In Stock$119.60QtyOptional parts (not included) diagram
Wire Harness
In Stock$112.58QtyOptional parts (not included) diagram
Cooktop Orifice Spud
In Stock$143.38QtyCooktop, burner and grate parts diagram
Cooktop Holder Orifice
In Stock$200.26QtyCooktop, burner and grate parts diagram
Orifice
In Stock$200.51Qty
