Model # AJCS10DCBW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCS10DCBW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Room Air Conditioner Control Knob WJ12X10072
#1086

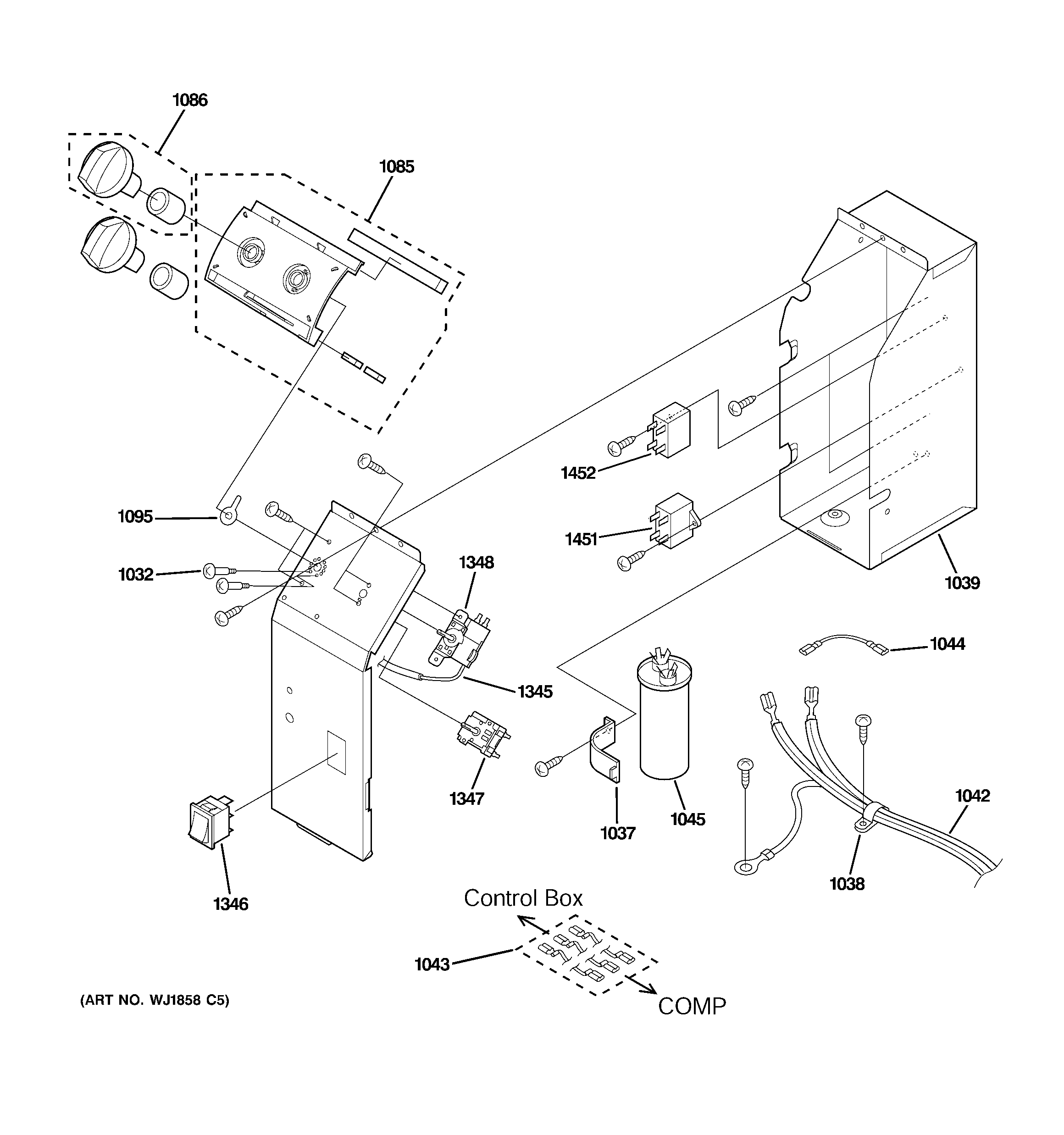

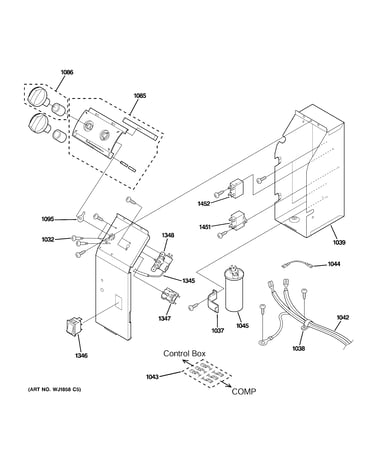

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Motor Cushion WP01X10012
#1052

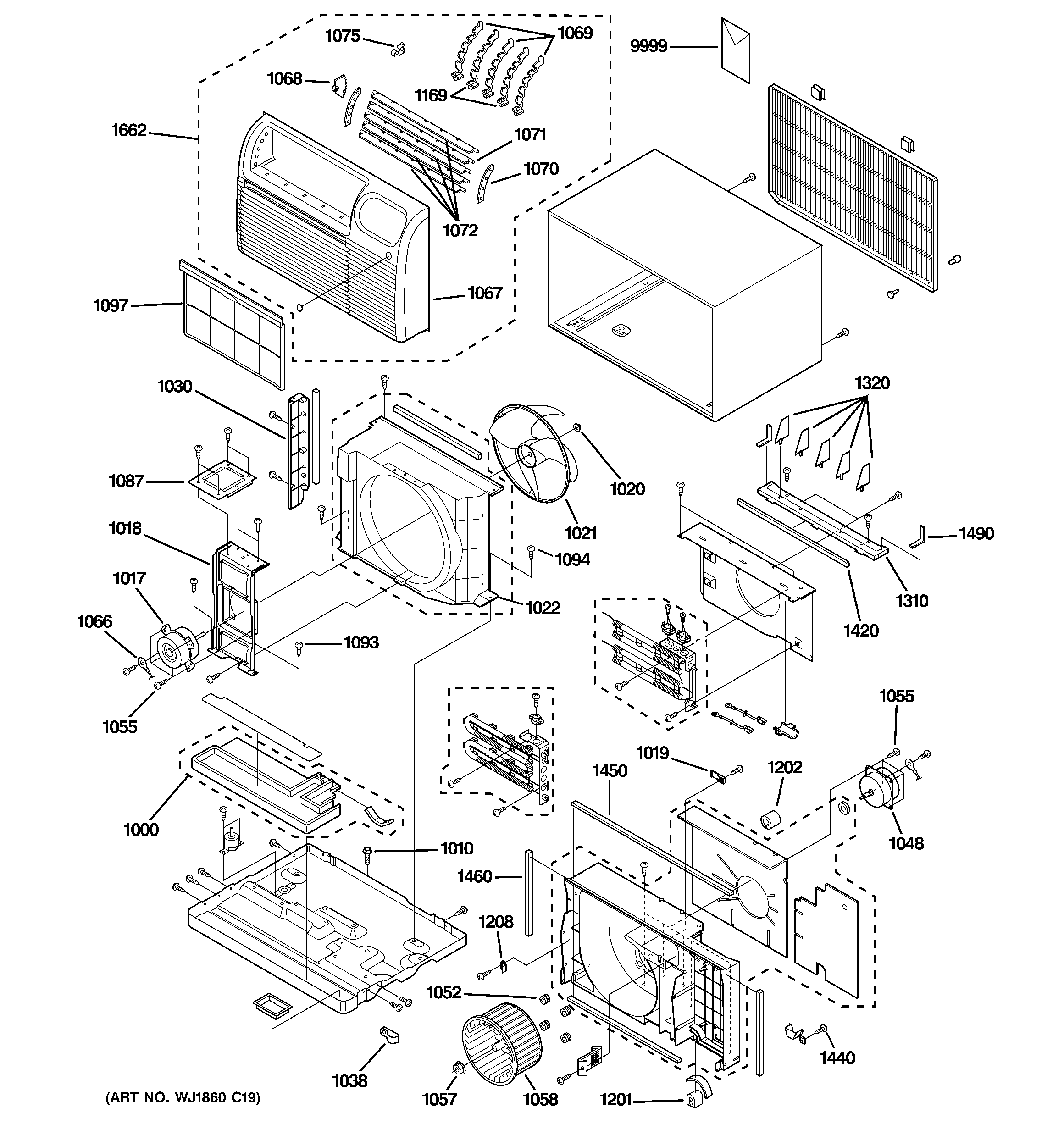

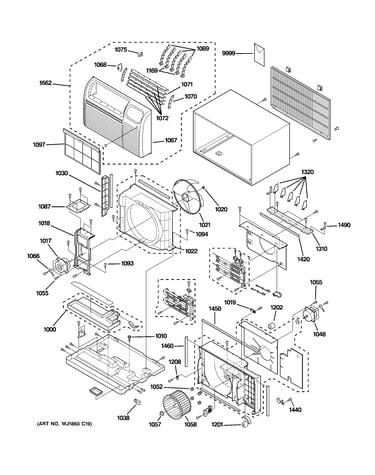

Cabinet & components diagram

Motor cushion

Part #WP01X10012

In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$31.66
14% OFF Phone Price : $36.66
In Stock
Clamp WJ01X10159
#1019

Cabinet & components diagram

Clamp

Part #WJ01X10159

This item is not returnable
In Stock
Condenser Pl WJ79X10134
#1030

Cabinet & components diagram

Condenser pl

Part #WJ79X10134

In Stock
Room Air Conditioner Fan Motor Capacitor WJ20X10115
#1451

Control parts diagram

Room air conditioner fan motor capacitor

Part #WJ20X10115

This item is not returnable
$18.13
10% OFF Phone Price : $20.13
In Stock
Special Screw WJ01X10012
#1094

Cabinet & components diagram

Special screw

Part #WJ01X10012

In Stock
Knob Base WJ11X10016
#1085

Control parts diagram

Knob base

Part #WJ11X10016

This item is not returnable
In Stock
Gasket Washer WJ01X10288
#1083

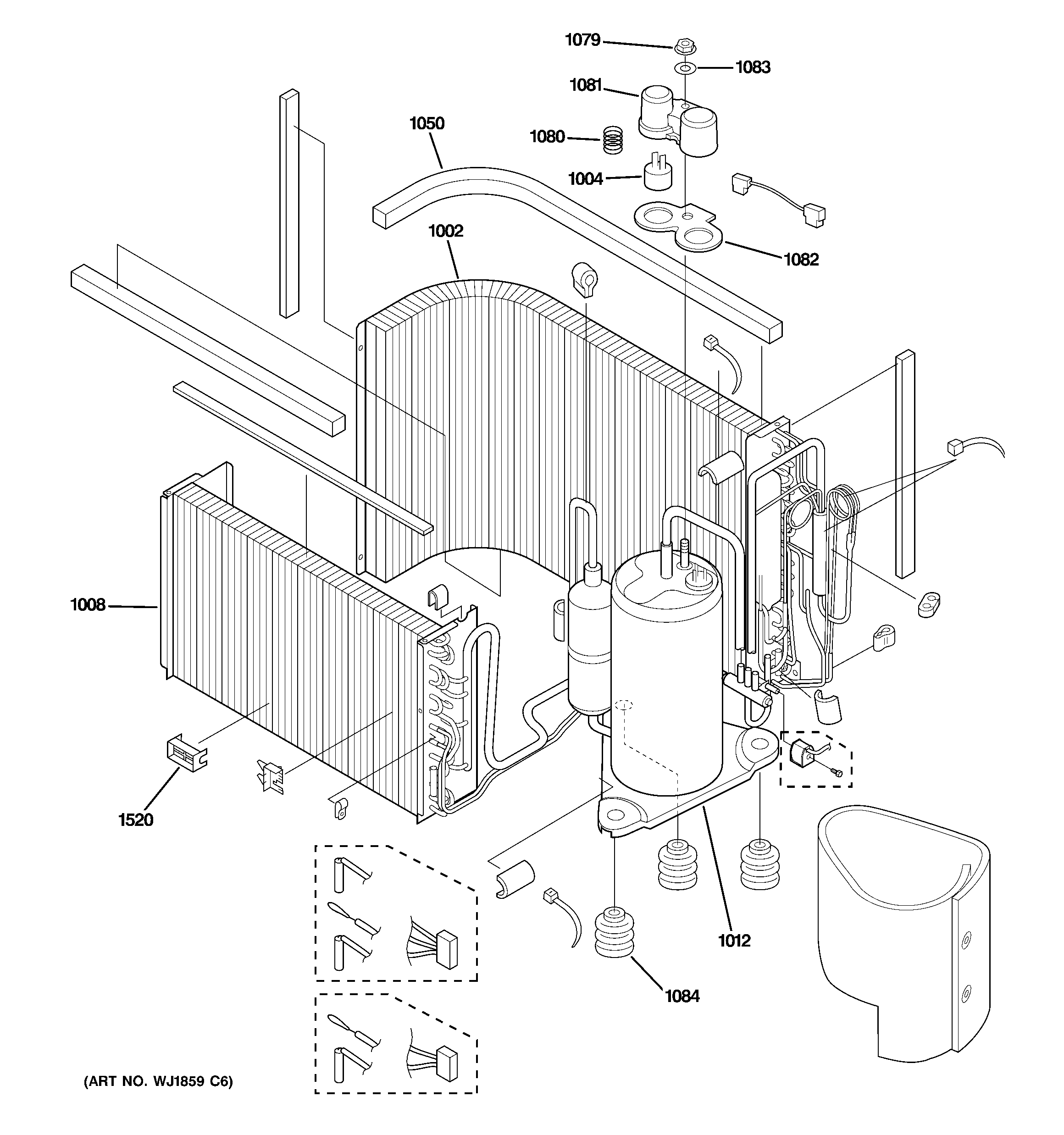

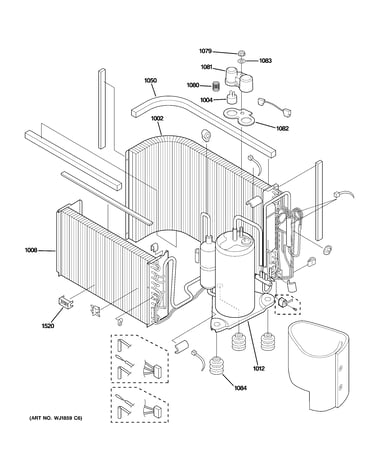

Sealed system & components diagram

Gasket washer

Part #WJ01X10288

This item is not returnable
In Stock
Gas Terminal WJ43X10061
#1082

Sealed system & components diagram

Gas terminal

Part #WJ43X10061

In Stock
