Kenmore 3627391993 gas range Parts

A Kenmore gas range like model 3627391993 typically lasts 15 years with normal household use and basic maintenance. Keeping burners clean, ensuring steady ignition, and addressing weak heating early helps you reach that lifespan.

Typical lifespan and what affects it

Most gas ranges reach their full service life when the oven burner lights reliably and the gas flow stays consistent.

• Heavy daily cooking can shorten lifespan
• Poor ventilation and grease buildup can increase wear
• Repeated ignition failures strain components
• Skipping cleaning can cause uneven flames and hot spots
• Promptly replacing worn parts helps prevent bigger failures

Quick maintenance checklist (high impact)

These steps help a Kenmore gas stove run cleaner and reduce stress on the ignition and burner system.

• Clean surface burner ports and caps so flames stay even
• Keep the oven bottom and burner area free of spills and soot
• Replace a slow-to-glow oven igniter before it stops lighting
• Use the correct appliance light bulb wattage to avoid heat damage in the socket
• Verify the range is level so cookware heats evenly

Common “end-of-life” symptoms vs. fixable issues

Symptom	Most common cause	Typical fix
Oven won’t ignite or takes a long time	Weak igniter	Replace igniter WB2X9154
Oven lights sometimes, sometimes not	Igniter weakening or wiring issue	Inspect wiring, replace igniter if needed
Oven flame is weak or inconsistent	Gas valve or supply issue	Professional diagnosis; gas valve testing
Oven light doesn’t work	Burned-out bulb or bad socket	Replace bulb, inspect socket

Why it matters

A gas range can often run well past a decade, but ignition and gas-delivery problems can turn into no-heat situations. Replacing a failing igniter early is one of the most cost-effective ways to keep your 3627391993 cooking reliably.

Last updated: February 2026

To change a spark electrode igniter on your Kenmore gas range model 3627391993, we shut off power and gas, remove the burner parts to access the electrode, transfer the wire to the new electrode, then reassemble and test for reliable sparking and ignition.

Safety first (do this before touching anything)

• Turn off power to the range at the breaker (spark ignition uses electricity).
• Shut off the gas supply valve.
• Let all burners cool completely.
• Work in a well-ventilated area.
• If you smell gas at any point, stop and ventilate the area before continuing.

Steps to replace the spark electrode igniter

1. Remove the burner grate and burner cap.
2. Lift off the burner head/base so you can see the electrode tip and mounting.
3. Remove the mounting screw holding the electrode to the burner or orifice holder.
4. Pull the electrode up enough to access the wire connector.
5. Transfer the wire to the new electrode:
   • If it uses a push-on terminal, pull the connector straight off and push it onto the new electrode.
   • If it uses a crimp connector, crimp the new connector securely to the wire, then attach it to the new electrode.
6. Reinstall the electrode into the holder and secure it with the screw.
7. Reinstall the burner head/base, cap, and grate.
8. Restore gas and power; test ignition.

Quick checks if it still will not spark or light

• Electrode tip is not aligned near the burner port (gap is off).
• Burner head/base is not seated flat.
• Moisture or food residue is grounding the spark.
• Wire is damaged or not fully seated on the electrode.
• Ignition system issue (switch harness/module) beyond the electrode.

Parts that are commonly involved

Symptom	Most likely area	What we check/replace
No spark at one burner	Electrode or wire	Electrode, connector, wire condition
Weak/intermittent spark	Dirty/wet burner area	Clean/dry burner parts, verify alignment
Oven will not ignite	Oven igniter system	Igniter WB2X9154

Why it matters

A properly mounted, correctly gapped electrode creates a strong spark at the right spot. That prevents delayed ignition, reduces clicking time, and helps the burner light quickly and evenly.

Last updated: February 2026

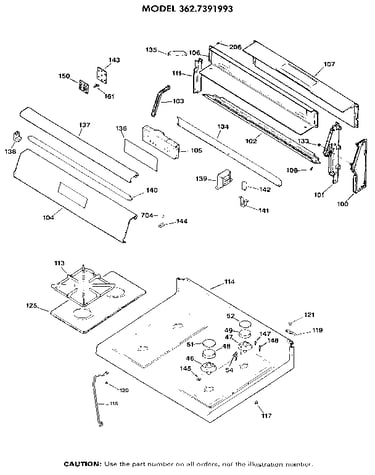

To remove the cooktop (top) on a Kenmore gas range model 3627391993, we typically lift the top after removing the grates and burner pieces, then releasing any hidden front or burner-base screws that lock the top down. The exact fastener locations vary by revision, so work slowly and keep screws organized.

Before you start (safety and prep)

• Turn all burner knobs to OFF and let the range cool completely.
• Shut off the gas supply valve.
• Unplug the range (or switch off the breaker) because the igniters and oven light use electricity.
• Protect the countertop and enamel with a towel or cardboard.
• Take a quick photo of each burner area before disassembly.

Common cooktop removal steps

1. Remove the surface grates.
2. Lift off burner caps.
3. If your model uses removable burner bases, remove the burner-base screws (often in the center of the base).
4. Look for screws along the front lip under the cooktop edge (sometimes accessible when the oven door is open).
5. Lift the cooktop from the front and prop it up (some ranges use support rods; others hinge upward).

If the top will not lift

• Check for one missed screw near a burner base or the front corners.
• Make sure the burner bases are not stuck to spills; gently wiggle, do not pry hard.
• If an igniter wire feels tight, stop and reposition the top to avoid pulling connectors.

Parts you may handle during this job

What you see	What it does	When it matters
Igniter WB2X9154	Sparks to light gas at a burner/oven system	If a wire gets damaged or the igniter is cracked
Pushin receptacle WB08T10026	Oven light socket connection point	If the light area wiring is disturbed
40A15 bulb 40A15	Oven light bulb	If the bulb breaks during access

Why it matters

Removing the top correctly prevents stripped screws, cracked burner bases, and damaged igniter wiring. That protects reliable ignition and helps avoid gas odor issues caused by misaligned burner parts.

Last updated: February 2026

Your Kenmore gas range model number is printed on a rating label attached to the appliance. For Kenmore model 3627391993, the label is most often found around the oven door frame (door jamb) or on the frame behind the storage or broiler drawer.

Where to look on a Kenmore gas range

Check these common label locations first:

• Oven door jamb (open the oven door and look along the frame)
• Frame behind the bottom storage drawer or broiler drawer (pull the drawer out)
• Back panel near the vent area
• Side panel near the lower rear corner
• Under the cooktop edge (less common; only if the top lifts on your design)

What the model label looks like

The label usually includes a few key identifiers. Use the model number to match parts correctly.

Label item	What it’s used for	Example you might see
Model number	Correct parts lookup	3627391993
Serial number	Production date tracking	Letters and numbers
Gas type info	Setup reference	Natural gas or LP

Tips to avoid ordering the wrong parts

Once you find the model number, match it exactly (all digits) before choosing parts.

• Write the model number down exactly as printed
• Take a clear photo of the label for reference
• If the label is worn, use a flashlight and view from an angle
• Use the model number to confirm fit before ordering items like an igniter or gas valve
• For common “no bake” or “won’t ignite” issues on this model, the igniter WB2X9154 is a frequent replacement part

Why it matters

Kenmore ranges can look similar across many model series, but internal components (igniter style, burner tube, light socket, control valve) vary by model. Using the exact model number prevents mismatched parts and repeat repairs.

Last updated: February 2026

If your Kenmore gas range model 3627391993 is clicking but the oven will not light, the most common cause is a weak or failed oven igniter that is not drawing enough current to open the oven gas valve. Less often, the gas valve, wiring, or burner tube alignment is the issue.

Quick checks we recommend first

• Confirm the range has power (the igniter needs electricity even though the oven uses gas).
• Set BAKE and watch through the oven bottom openings: the igniter should glow bright.
• If you smell gas but no ignition occurs, stop and ventilate; then continue troubleshooting.
• If the igniter glows dull orange or takes a long time to heat, treat it as weak.
• If the igniter never glows, check the wiring connections and power supply.

Most likely parts involved

In this model, these parts commonly relate to “clicking but not lighting” symptoms:

• Igniter WB2X9154 (oven burner igniter; heats to ignite gas and helps open the gas valve)
• Control valve WB19K14 (oven gas valve; opens to release gas when the igniter draws the correct current)
• Tube burner support WB28K60 (bake burner gas supply tube; can contribute if misaligned or restricted)

What the symptoms usually mean

What you see/hear	What it usually points to	What to do next
Clicking, no glow from igniter	No power to igniter, broken igniter, wiring issue	Inspect harness, test voltage, replace igniter if open
Igniter glows but stays dim, no flame	Weak igniter (most common)	Replace igniter
Igniter glows bright, still no flame	Gas valve not opening, gas supply issue	Check gas supply, then suspect gas valve
Flame lights sometimes, sometimes not	Igniter weakening or loose connection	Tighten connections, replace igniter if intermittent

Why it matters

A weak igniter can keep the oven from lighting even though you hear clicking, because the oven safety system relies on the igniter heating and drawing the right electrical load before the gas valve opens. Fixing the igniter first solves the majority of “won’t light” oven complaints.

Safety notes before you service

• Unplug the range or shut off power at the breaker before accessing internal wiring.
• Shut off the gas supply valve before removing burner or valve components.
• If you ever smell strong gas, stop and ventilate the area before continuing.

Last updated: February 2026
