Hoover
Upright Vacuum

Model # C1710900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1710900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Vacuum Exhaust Filter 40110004
#16

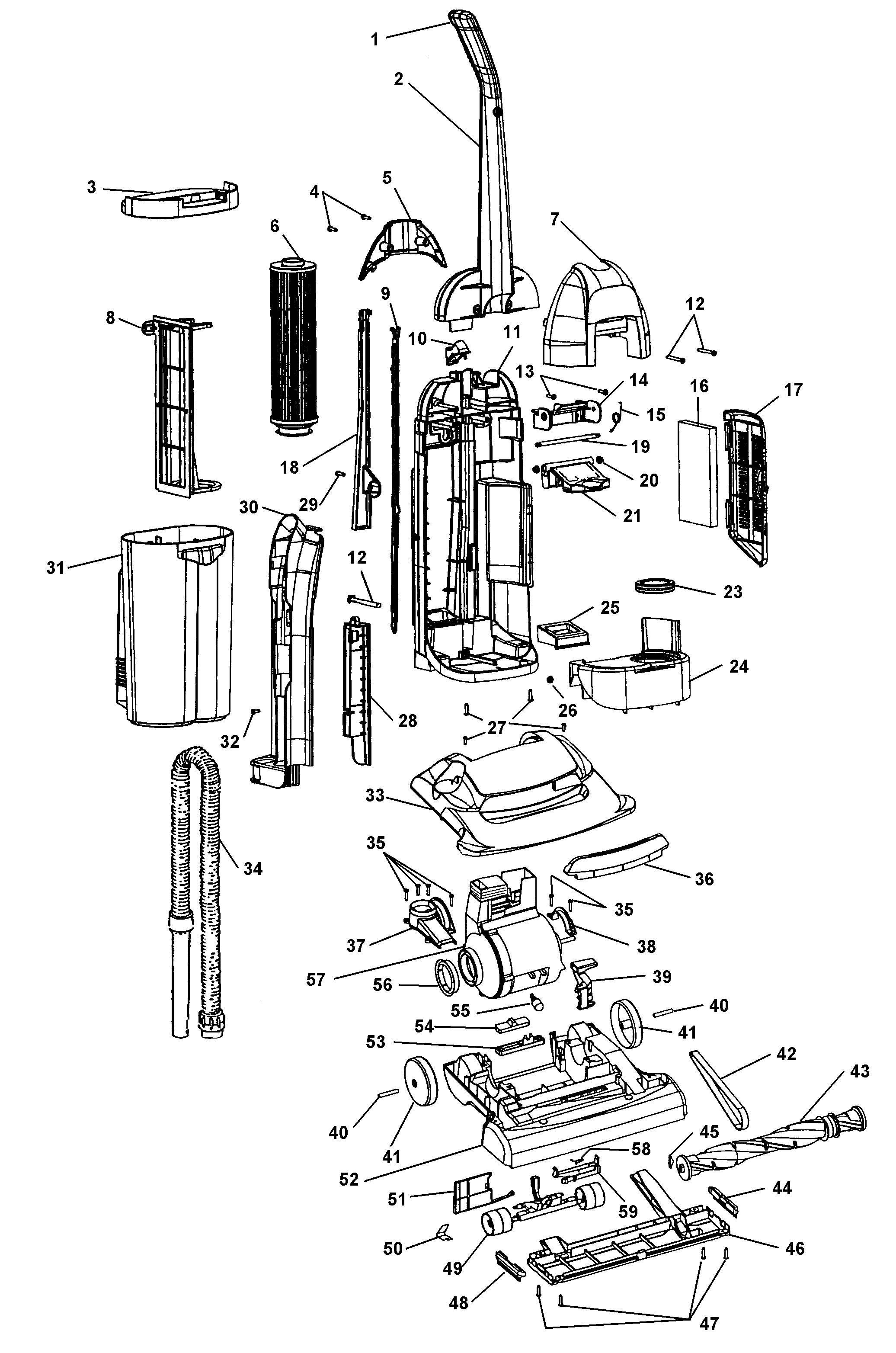

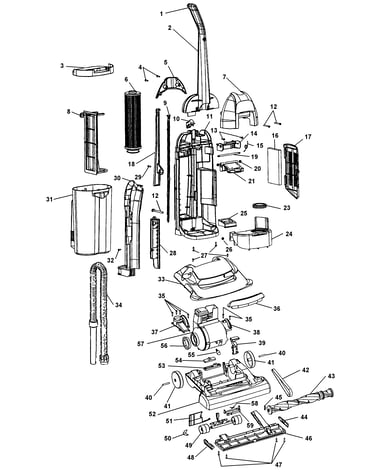

Mainbody, handle, agitator diagram

Vacuum exhaust filter

Part #40110004

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 48414061
#43

Mainbody, handle, agitator diagram

Vacuum beater bar

Part #48414061

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Indicator Knob 38567014
#54

Mainbody, handle, agitator diagram

Vacuum height adjuster indicator knob

Part #38567014

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover 37258132
#5

Mainbody, handle, agitator diagram

Handle cover

Part #37258132

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Assembly 43576201
#1A

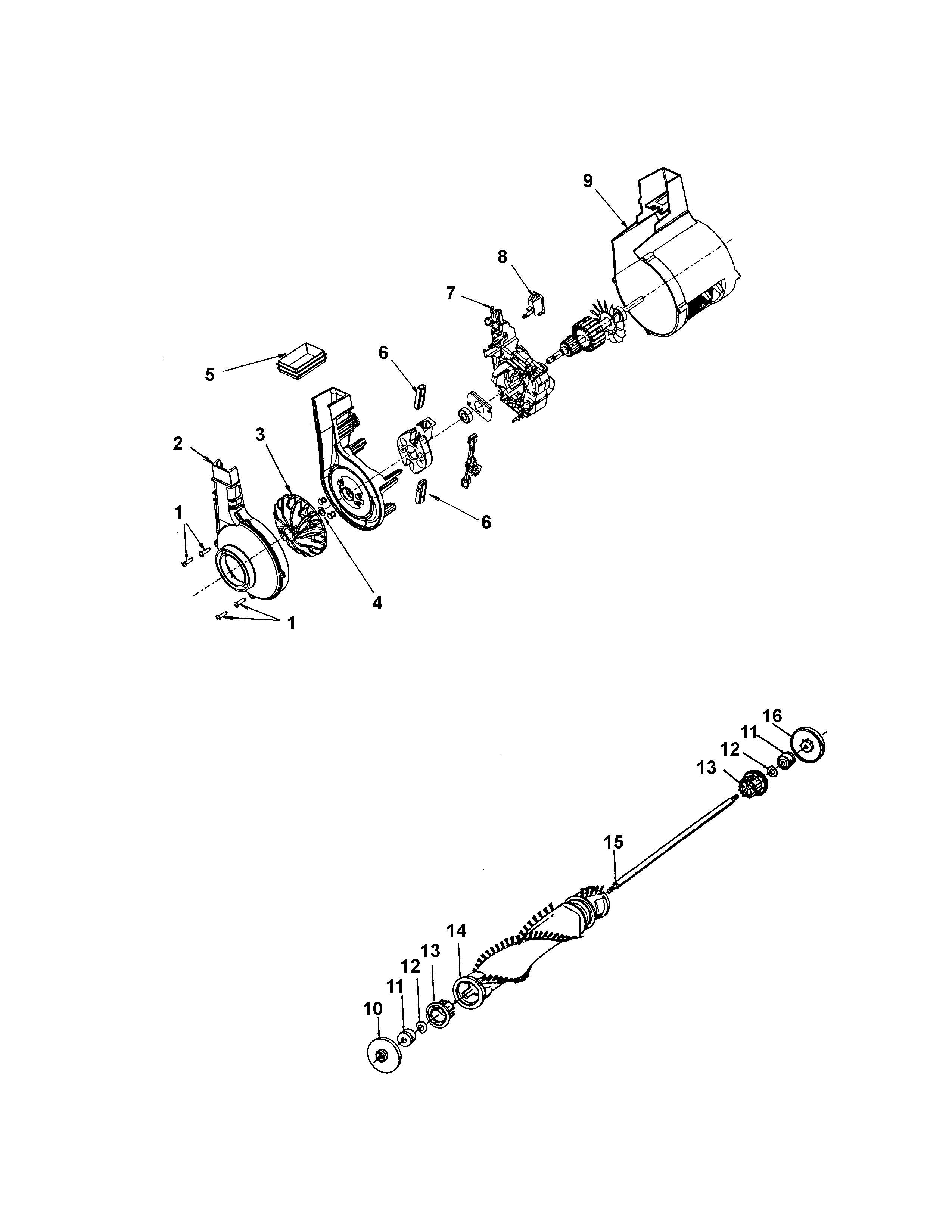

Agitator, motor assembly diagram

Vacuum motor assembly

Part #43576201

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel 43248058
#49

Mainbody, handle, agitator diagram

Front wheel

Part #43248058

The manufacturer no longer makes this part, and there's no substitute part

Support 36153065
#14

Mainbody, handle, agitator diagram

Support

Part #36153065

The manufacturer no longer makes this part, and there's no substitute part

Nut 21641557
#26

Mainbody, handle, agitator diagram

Nut

Part #21641557

The manufacturer no longer makes this part, and there's no substitute part

Grille 37257261
#17

Mainbody, handle, agitator diagram

Grille

Part #37257261

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Main Body 37241166
#52

Mainbody, handle, agitator diagram

Vacuum main body

Part #37241166

The manufacturer no longer makes this part, and there's no substitute part
