Kenmore 9113368292 36" gas counter unit Parts
Here are the diagrams and repair parts for Kenmore 9113368292 36" gas counter unit, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 9113368292 Ranges

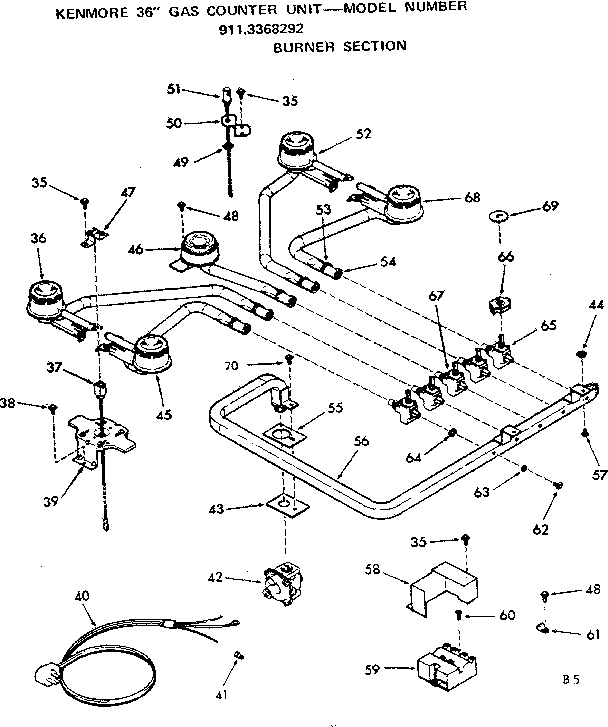

Burner section diagram
Screw
Part #102430Replaced by #WB1X1130
Manufacturer substitutionThis part replaces 102430. Substitute parts can look different from the original.In Stock$9.869% OFF Phone Price : $10.86
Qty

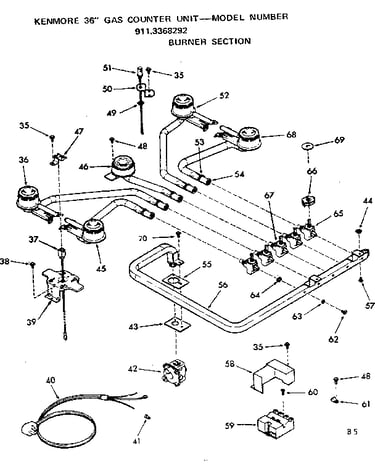

Burner section diagram
Screw
Part #311484Replaced by #WB1X1130
Manufacturer substitutionThis part replaces 311484. Substitute parts can look different from the original.In Stock$9.869% OFF Phone Price : $10.86QtyBurner section diagram
Support

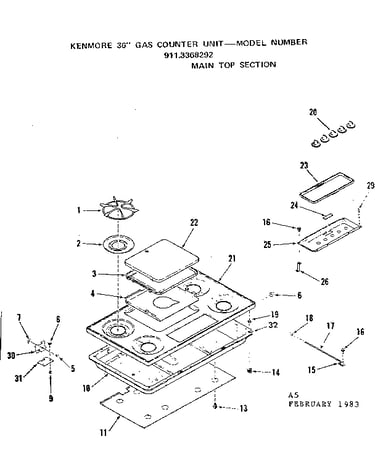

Part #310290This item is not returnableIn Stock$2.49QtyMain top section diagram
Washer
Part #310218This item is not returnableIn Stock$2.16QtyBurner section diagram
Support
Part #311501This item is not returnableIn Stock$2.49QtyMain top section diagram
Screw
Part #105771Replaced by #WB1X1293
Manufacturer substitutionThis part replaces 105771. Substitute parts can look different from the original.This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86QtyBurner section diagram
Spark Module
Part #321965
The manufacturer no longer makes this part, and there's no substitute part
Burner section diagram
Screw
Part #301911Replaced by #WB1X1425
Manufacturer substitutionThis part replaces 301911. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyHex Screw
Part #102429Replaced by #WB1X1297
Manufacturer substitutionThis part replaces 102429. Substitute parts can look different from the original.In Stock$7.6312% OFF Phone Price : $8.63QtyBurner section diagram
Burner
Part #310301Replaced by #WB28X105
Manufacturer substitutionThis part replaces 310301. Substitute parts can look different from the original.In Stock$196.50Qty
