Kenmore 41789090600 combination washer/dryer Parts
Here are the diagrams and repair parts for Kenmore 41789090600 combination washer/dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

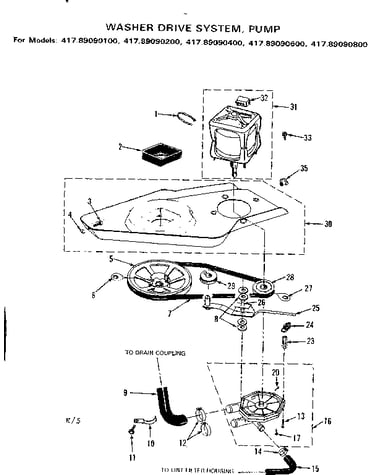

Browse Parts for 41789090600 Combination Washer/Dryer

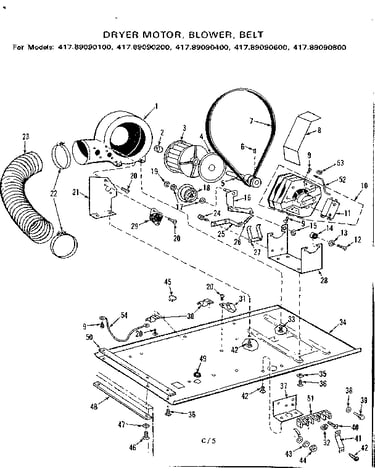

Dryer motor blower belt diagram
Terminal Block
Part #73334Replaced by #5304409888
Manufacturer substitutionThis part replaces 73334. Substitute parts can look different from the original.In Stock$26.0619% OFF Phone Price : $32.06
Qty
#NI
All parts diagram
Adhesive
Part #64709-1Replaced by #5308027429

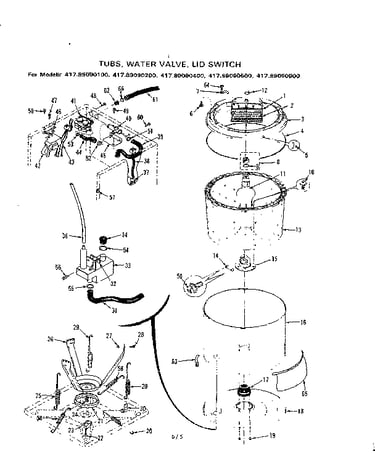

Manufacturer substitutionThis part replaces 64709-1. Substitute parts can look different from the original.In Stock$43.2318% OFF Was : $53.03QtyTubs water valve lid switch diagram
Water Valve
Part #76684Replaced by #134190200
Manufacturer substitutionThis part replaces 76684. Substitute parts can look different from the original.In Stock$130.598% OFF Phone Price : $142.59Qty#NI
All parts diagram
Acr Enamel
Part #94566-10Replaced by #5303321319

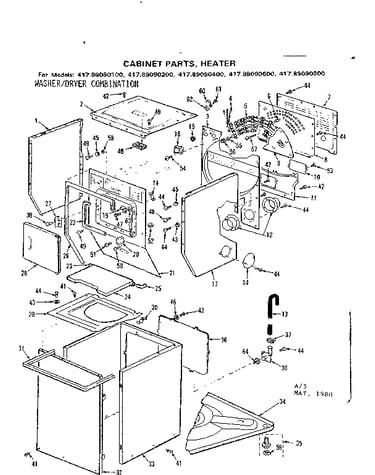

Manufacturer substitutionThis part replaces 94566-10. Substitute parts can look different from the original.This item is not returnableIn Stock$16.5811% OFF Phone Price : $18.58QtyCabinet parts, heater diagram
Screw
Part #136212Replaced by #131205100

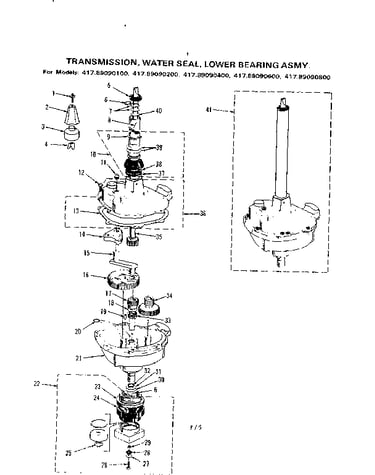

Manufacturer substitutionThis part replaces 136212. Substitute parts can look different from the original.In Stock$17.1610% OFF Phone Price : $19.16QtyTransmission, water seal, lower bearing asm diagram
Drive Lug
Part #63880Replaced by #134596100
Manufacturer substitutionThis part replaces 63880. Substitute parts can look different from the original.In Stock$191.76QtyDryer motor blower belt diagram
Retainer
Part #136345Replaced by #08006557

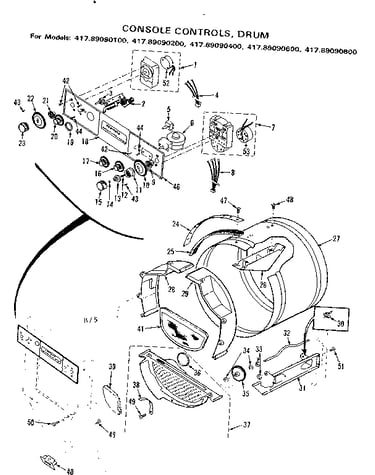

Manufacturer substitutionThis part replaces 136345. Substitute parts can look different from the original.In Stock$25.40QtyConsole controls, drum diagram
Magnet
Part #136019-033Replaced by #5300633924
Manufacturer substitutionThis part replaces 136019-033. Substitute parts can look different from the original.In Stock$56.01QtyTransmission, water seal, lower bearing asm diagram
Shim
Part #63881-3Replaced by #5303161222
Manufacturer substitutionThis part replaces 63881-3. Substitute parts can look different from the original.In Stock$25.77QtyTubs water valve lid switch diagram
Trunnion
Part #78133Replaced by #5308002372
Manufacturer substitutionThis part replaces 78133. Substitute parts can look different from the original.In Stock$213.25Qty
Most common symptoms to help you fix your laundry centers
Choose a symptom to see related laundry center repairs.
Main causes: broken dryer drive belt, weak drive motor, binding drum seals…
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…
Main causes: clogged drain system, blocked drain hose, bad drain pump…
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…
