Model #1106202300 Kenmore washer

Here are the diagrams and repair parts for Kenmore 1106202300 washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 221 parts

    Carriage Bolt

    #63

    Worm gear case and motor assembly Diagram

    Carriage bolt

    Part #126211

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer

    #60

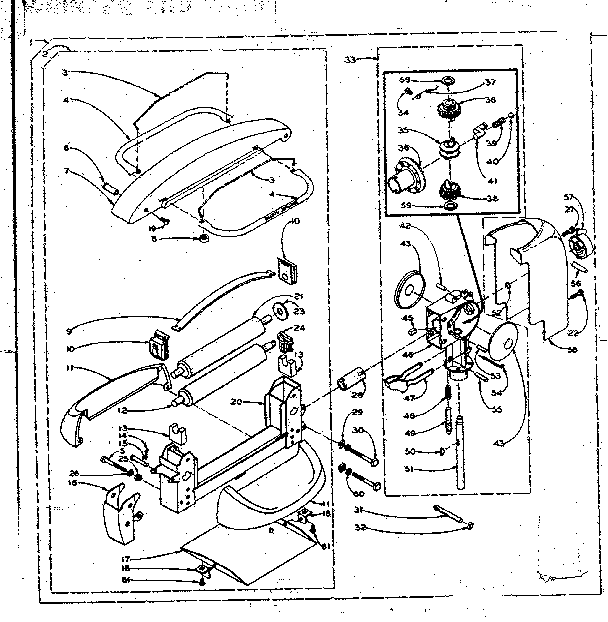

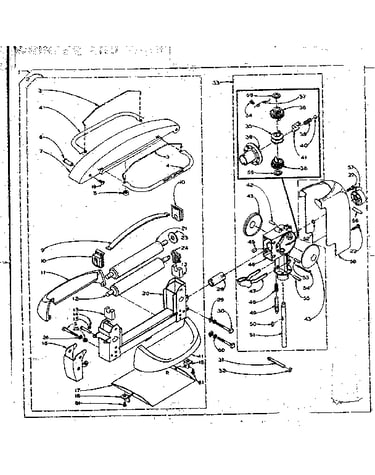

    Wringer and wringer gear case assembly Diagram

    Lock washer

    Part #121637

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #48

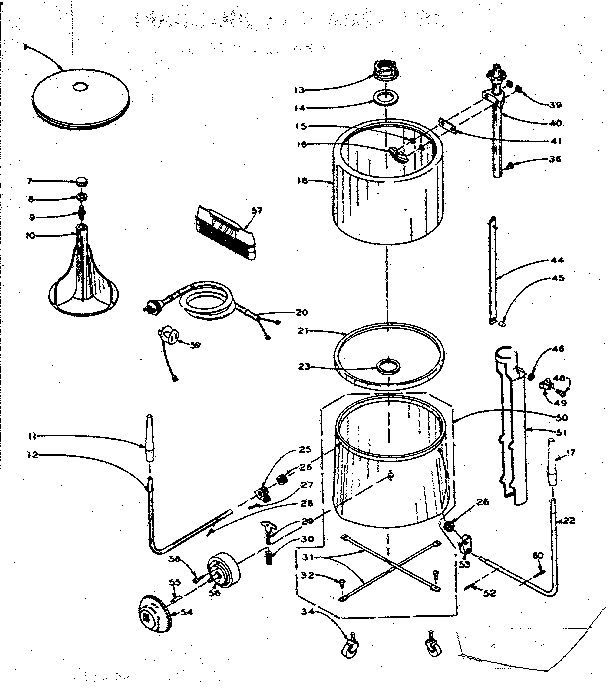

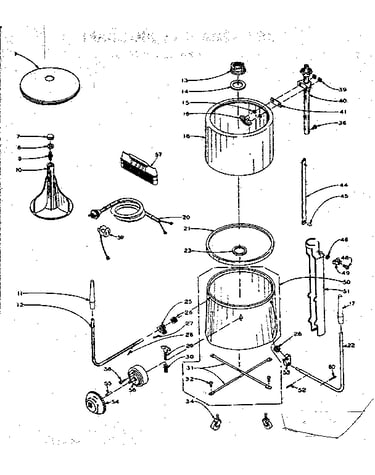

    Machine sub-assembly Diagram

    Screw

    Part #132761

    The manufacturer no longer makes this part, and there's no substitute part

    Cotter Pin

    #54

    Wringer and wringer gear case assembly Diagram

    Cotter pin

    Part #90130

    The manufacturer no longer makes this part, and there's no substitute part

    Sc Set

    #26

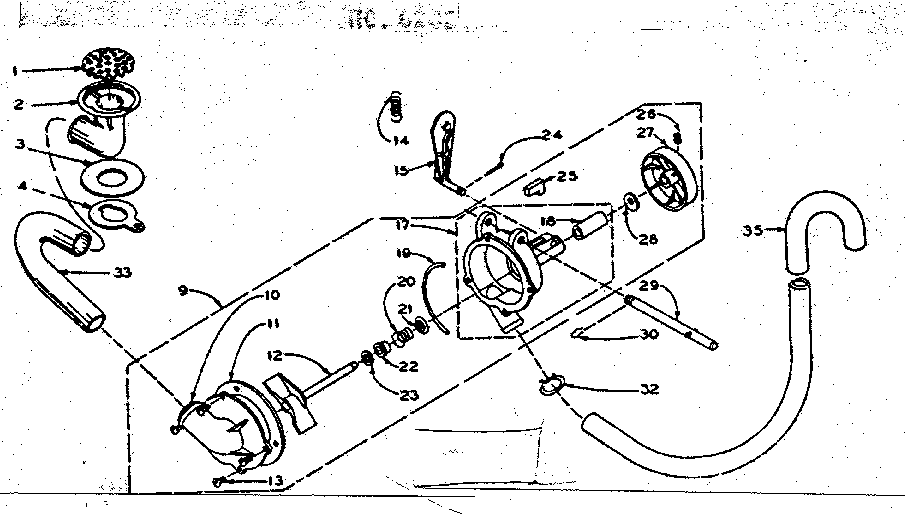

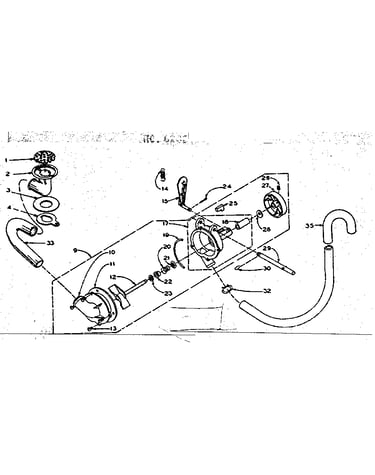

    Pump assembly and pump parts Diagram

    Sc set

    Part #90282

    The manufacturer no longer makes this part, and there's no substitute part

    Cut Screw

    #13

    Pump assembly and pump parts Diagram

    Cut screw

    Part #90497

    The manufacturer no longer makes this part, and there's no substitute part

    Connector

    #NI

    All parts Diagram

    Connector

    Part #WP75614
    ?
    Manufacturer substitution
    This part replaces 75614. Substitute parts can look different from the original.
    This part replaces 75614
    This item is not returnable
    $3.49

    In Stock

    Lock Washer

    #26

    Wringer and wringer gear case assembly Diagram

    Lock washer

    Part #121801

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #46

    Machine sub-assembly Diagram

    Hex nut

    Part #120622

    The manufacturer no longer makes this part, and there's no substitute part

    Hose Clamp

    #32

    Pump assembly and pump parts Diagram

    Hose clamp

    Part #STD316716
    ?
    Manufacturer substitution
    This part replaces 272856. Substitute parts can look different from the original.
    This part replaces 272856
    This item is not returnable
    $3.61

    In Stock
