Model # RS744GP3BG Official Hotpoint 30" electric pyro slide-in range

Here are the diagrams and repair parts for Official Hotpoint RS744GP3BG 30" electric pyro slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

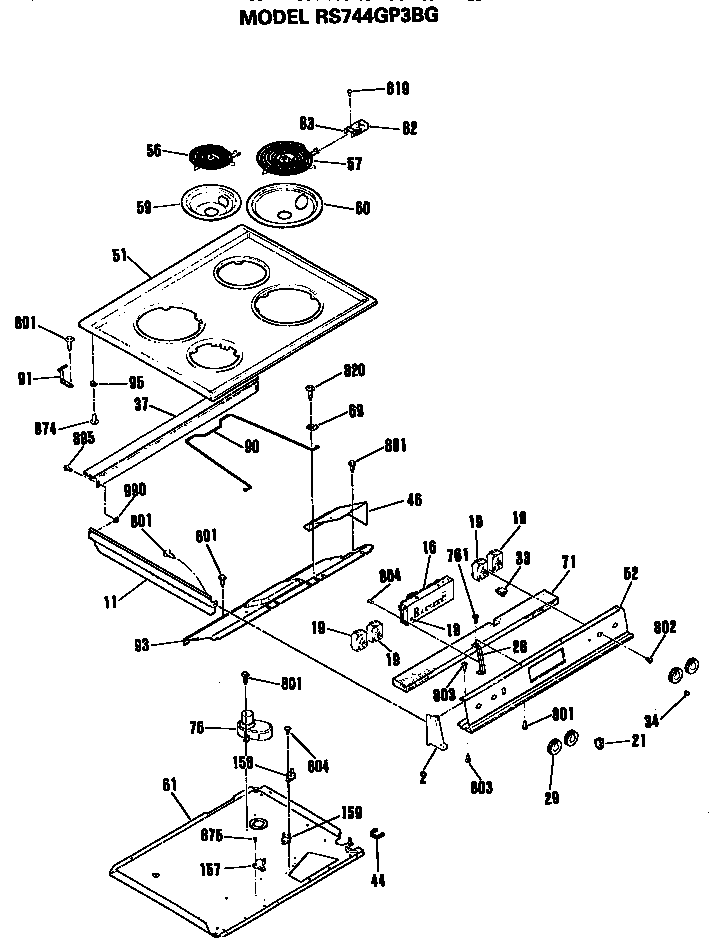

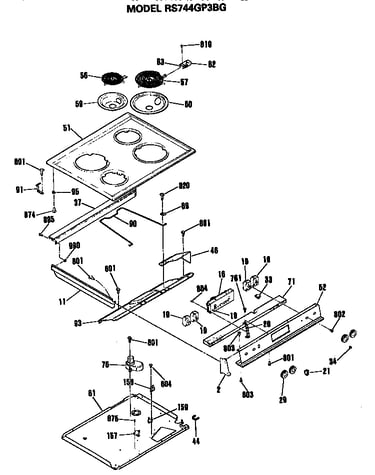

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012

#251

All parts diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$50.38 |
9% OFF Phone Price : $55.38
In Stock
Range Broil Element (replaces Wb44x0232) WB44X232

#252

All parts diagram

Range broil element (replaces wb44x0232)

Part #WB44X232

BEST SELLER
$57.55 |
8% OFF Phone Price : $62.55
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719

#294

All parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
8" Surf Elem WB30M0002

#57

All parts diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
10% OFF Phone Price : $51.48
In Stock
Range Drip Pan WB31M16

#59

All parts diagram

Range drip pan

Part #WB31M16

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB31M16. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Screw-10-32 WB1X1253

#810

All parts diagram

Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket (replaces Wb02x9168, Wb2x9381) WB2X9168

#131

All parts diagram

Range oven door gasket (replaces wb02x9168, wb2x9381)

Part #WB2X9168

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Light Lens WB25X94

#34

All parts diagram

Light lens

Part #WB25X94

Replaced by #WB25T10042

?
Manufacturer substitution
This part replaces WB25X94. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer, 12-pack WB1X1254

#927

All parts diagram

Washer, 12-pack

Part #WB1X1254

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X1254. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
18% OFF Phone Price : $27.85
In Stock
Griddle Broil WB49X627

#247

All parts diagram

Griddle broil

Part #WB49X627

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X627. Substitute parts can look different from the original.
$31.29 |
14% OFF Phone Price : $36.29
In Stock
