Craftsman
Router

Model # 315175110 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315175110 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

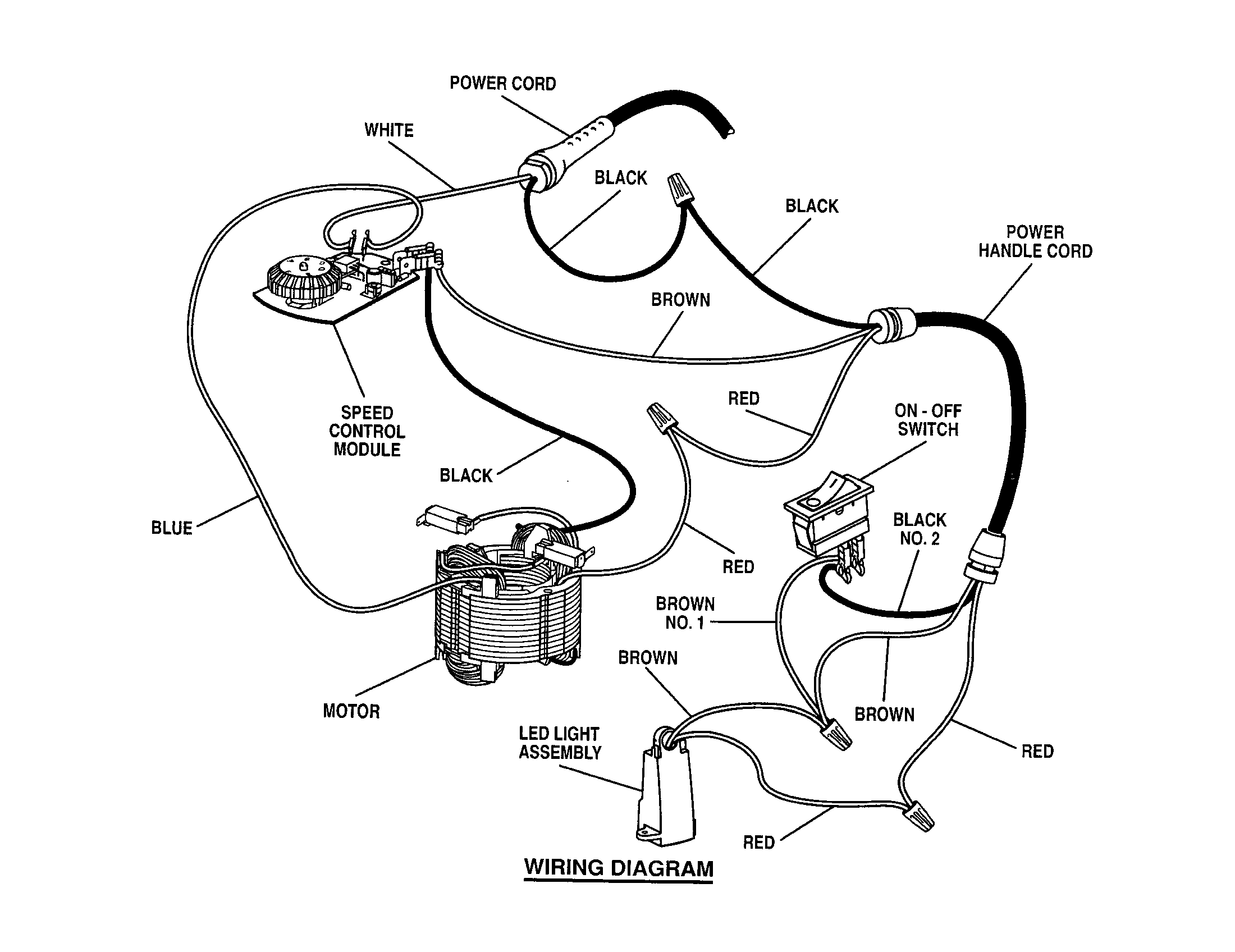

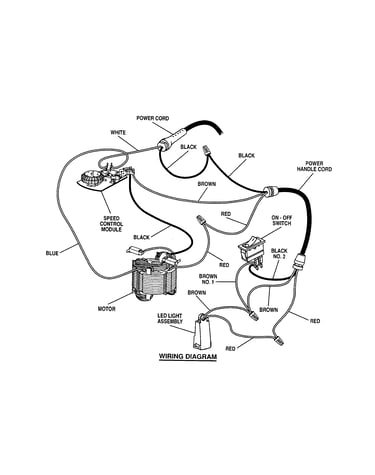

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Screw 998401-001
#23

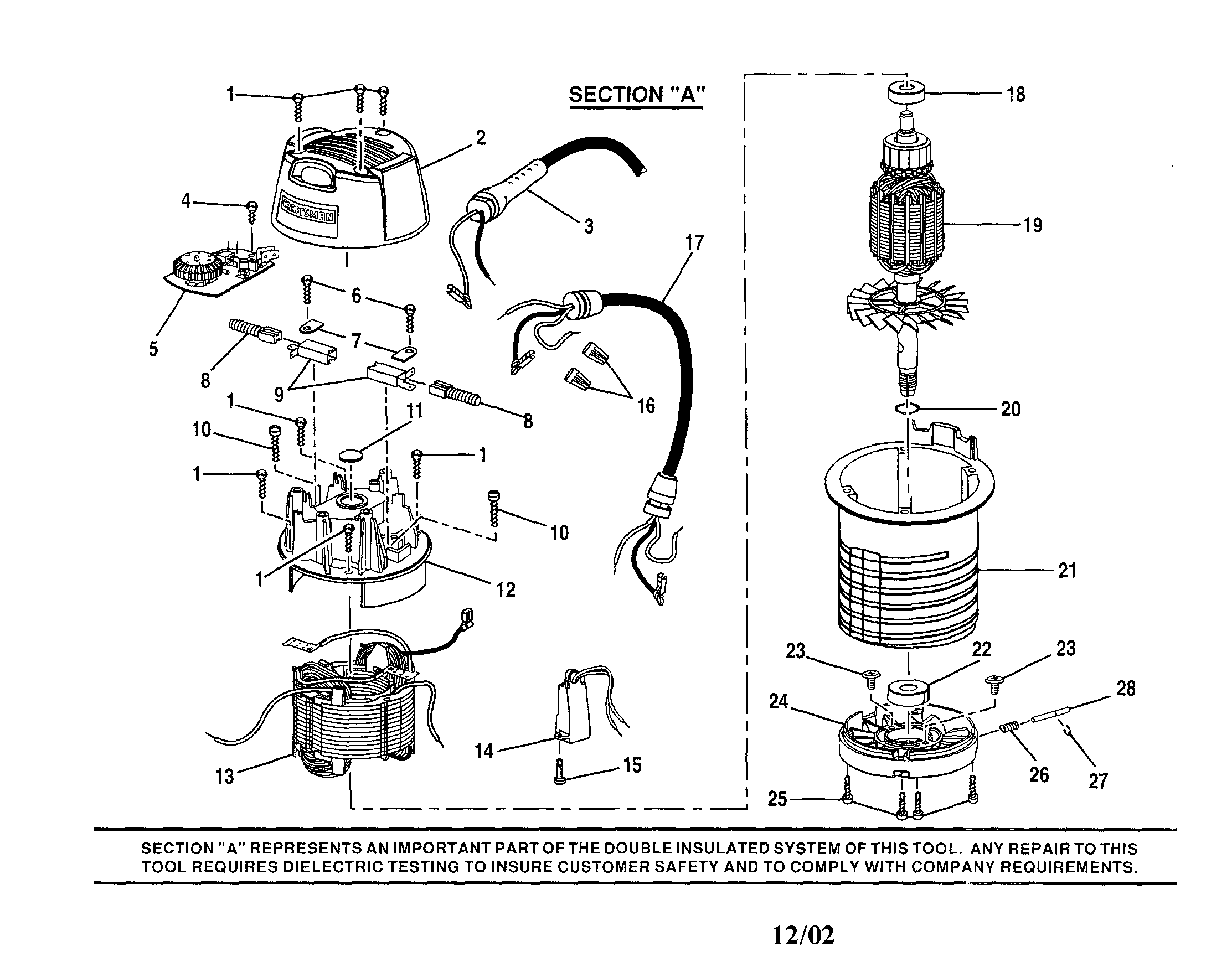

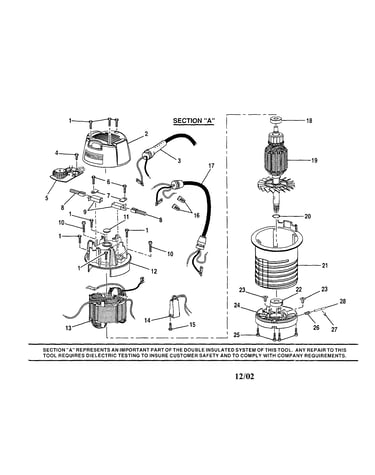

Top cap/cord/motor housing diagram

Screw

Part #998401-001

The manufacturer no longer makes this part, and there's no substitute part

Router Wrench 983012-001
#22

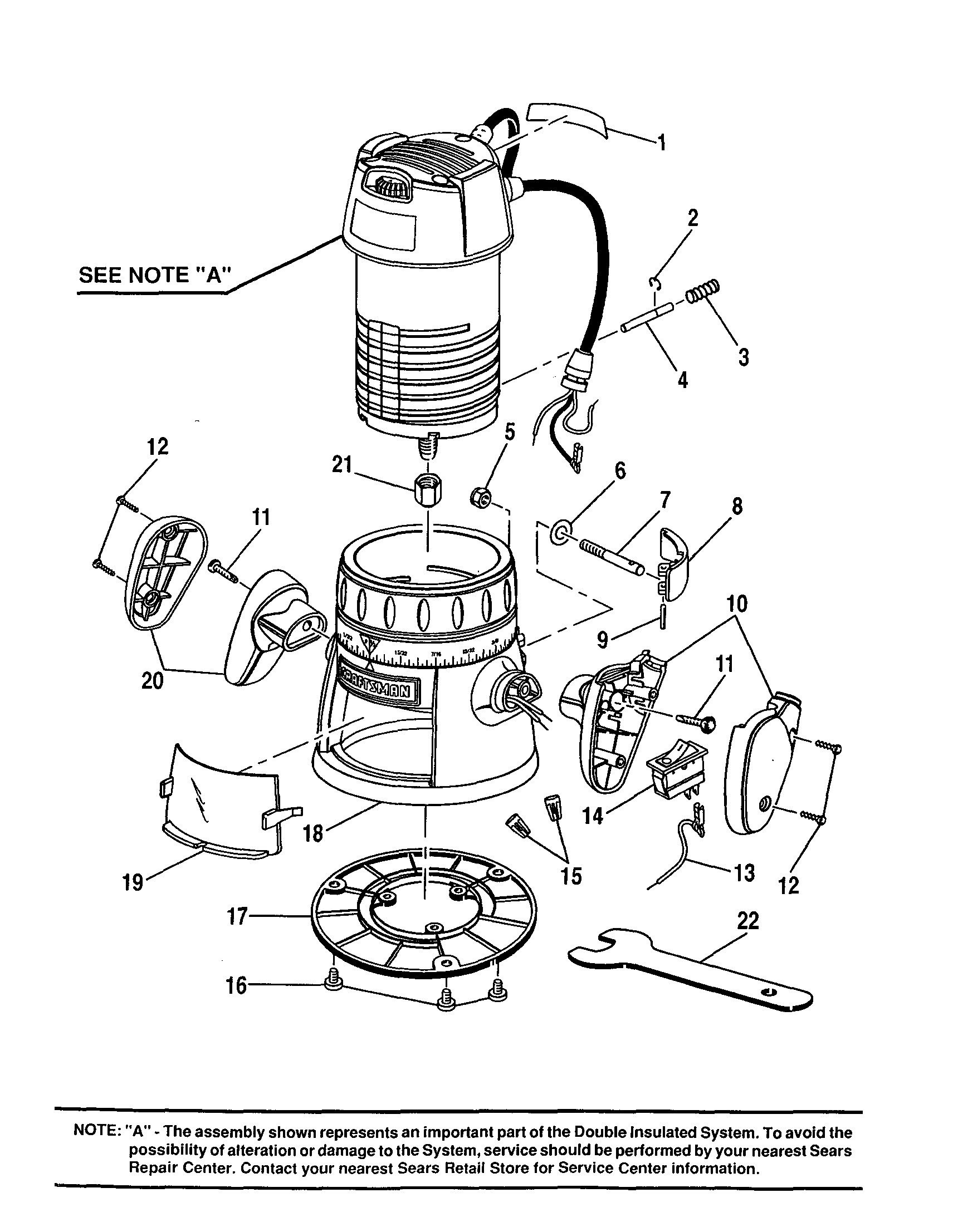

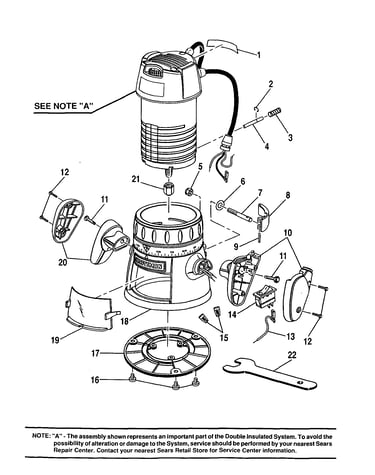

Base/handle/subbase diagram

Router wrench

Part #983012-001

The manufacturer no longer makes this part, and there's no substitute part

Shield 982966-001
#19

Base/handle/subbase diagram

Shield

Part #982966-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 643526-006
#25

Top cap/cord/motor housing diagram

Screw

Part #643526-006

The manufacturer no longer makes this part, and there's no substitute part

Connector 623173-006
Connector

Part #623173-006

The manufacturer no longer makes this part, and there's no substitute part

Led Light 982942-001
#14

Top cap/cord/motor housing diagram

Led light

Part #982942-001

The manufacturer no longer makes this part, and there's no substitute part

Brown Lead W/terminal 983060-007
#13

Base/handle/subbase diagram

Brown lead w/terminal

Part #983060-007

The manufacturer no longer makes this part, and there's no substitute part

Lock Lever 982971-002
#8

Base/handle/subbase diagram

Lock lever

Part #982971-002

The manufacturer no longer makes this part, and there's no substitute part

Handle 982990-001
#10

Base/handle/subbase diagram

Handle

Part #982990-001

The manufacturer no longer makes this part, and there's no substitute part

Jumper 973976-004
#17

Top cap/cord/motor housing diagram

Jumper

Part #973976-004

The manufacturer no longer makes this part, and there's no substitute part
