Frigidaire UFPF101LZ1 freezer - 5995206009 Parts
Here are the diagrams and repair parts for Frigidaire UFPF101LZ1 freezer - 5995206009, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic

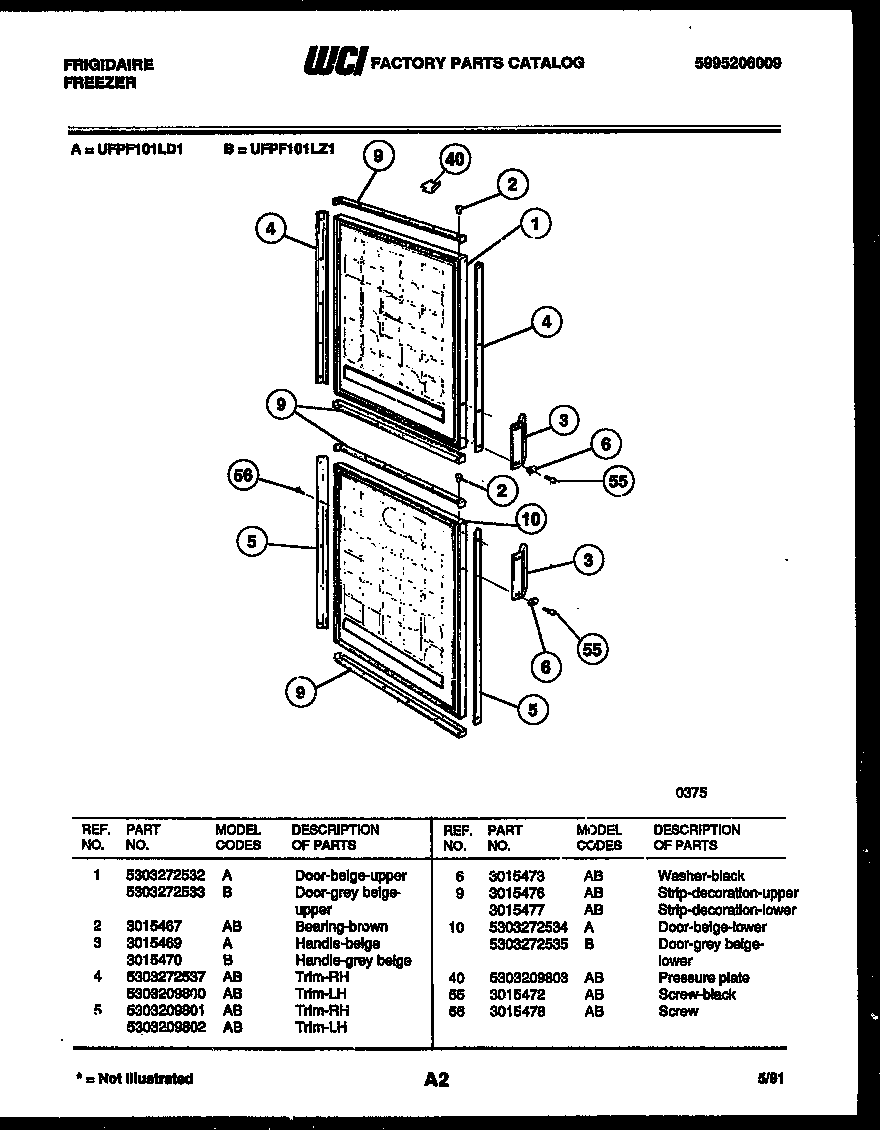

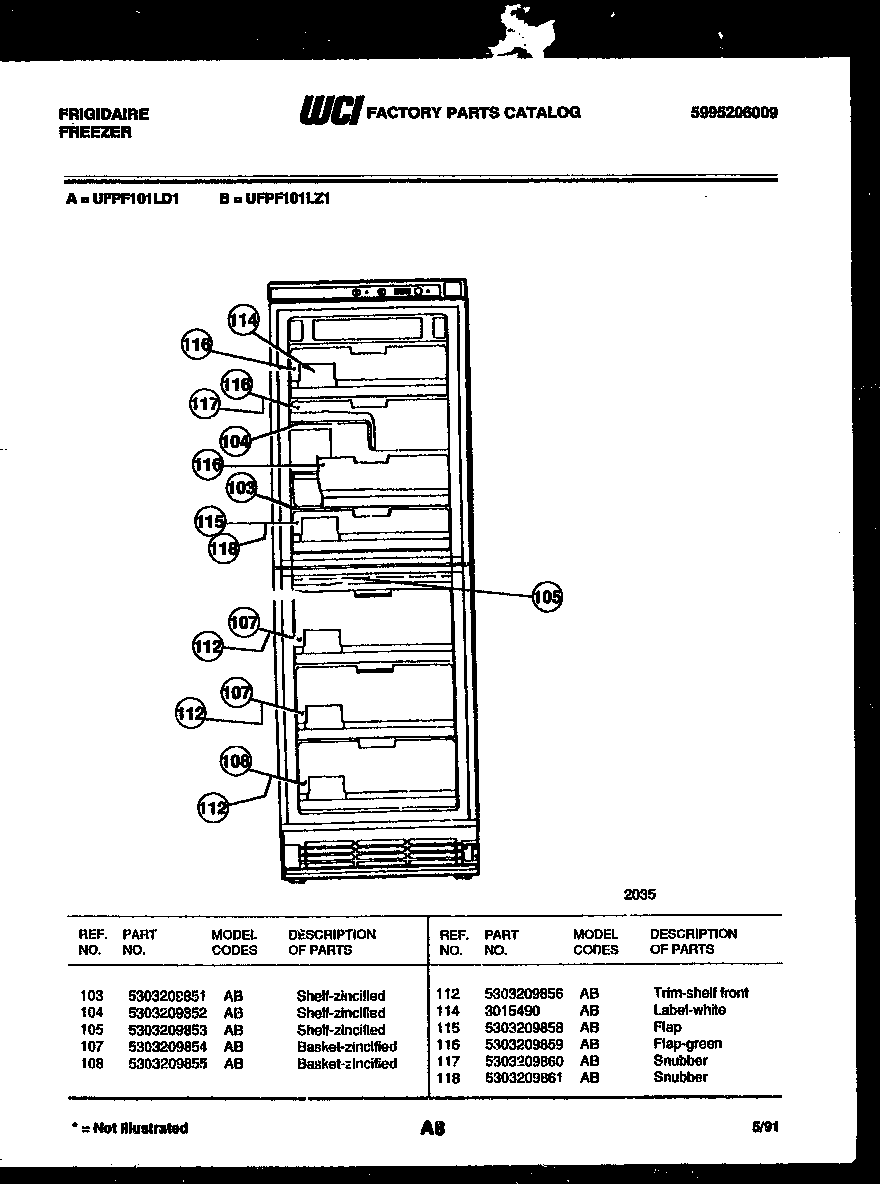

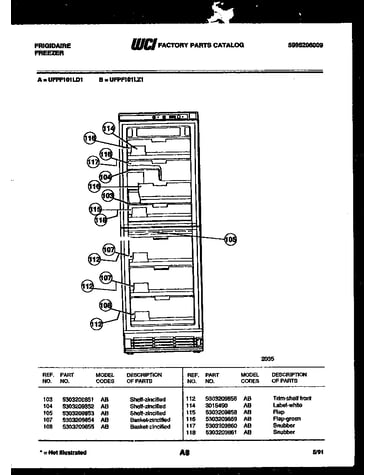

SELECT DIAGRAM
Browse Parts for UFPF101LZ1 Freestanding Freezers

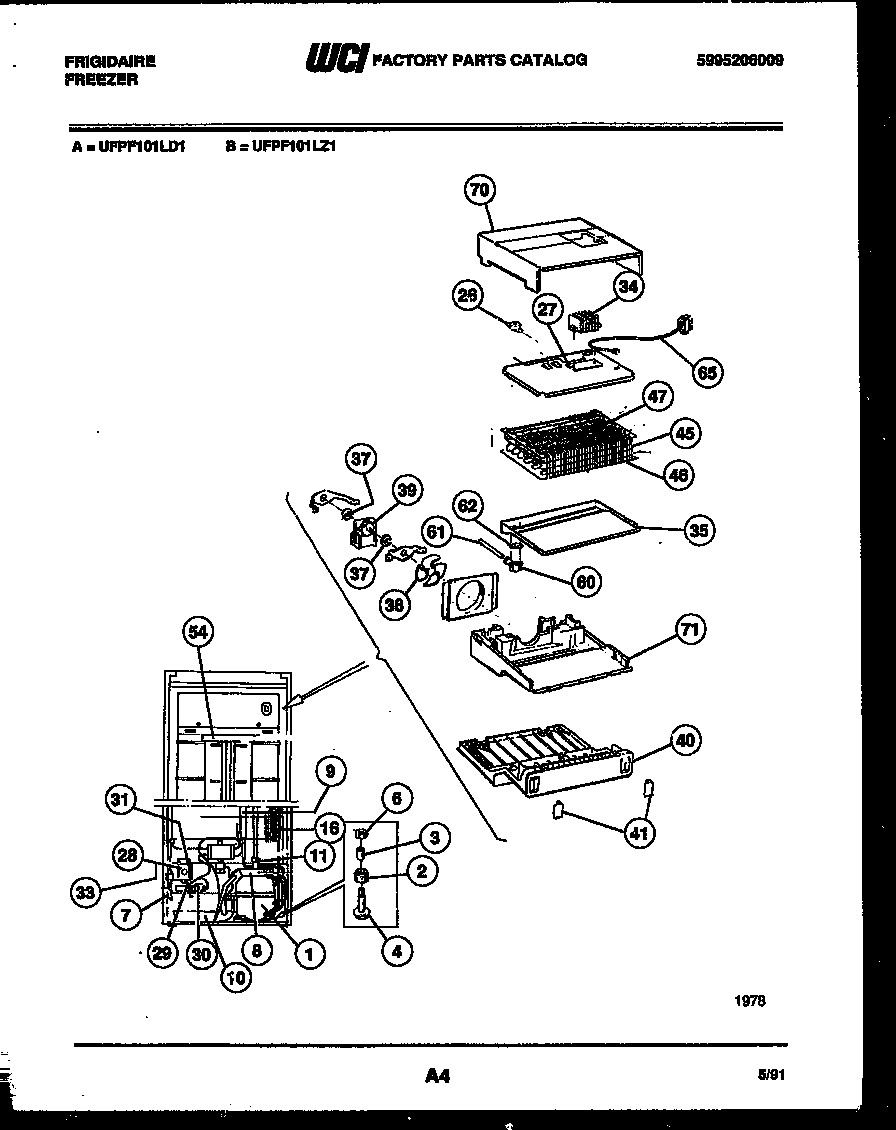

System and automatic defrost parts diagram
Filter
Part #5308000027Replaced by #5303305677
Manufacturer substitutionThis part replaces 5308000027. Substitute parts can look different from the original.In Stock$25.3619% OFF Phone Price : $31.36
Qty

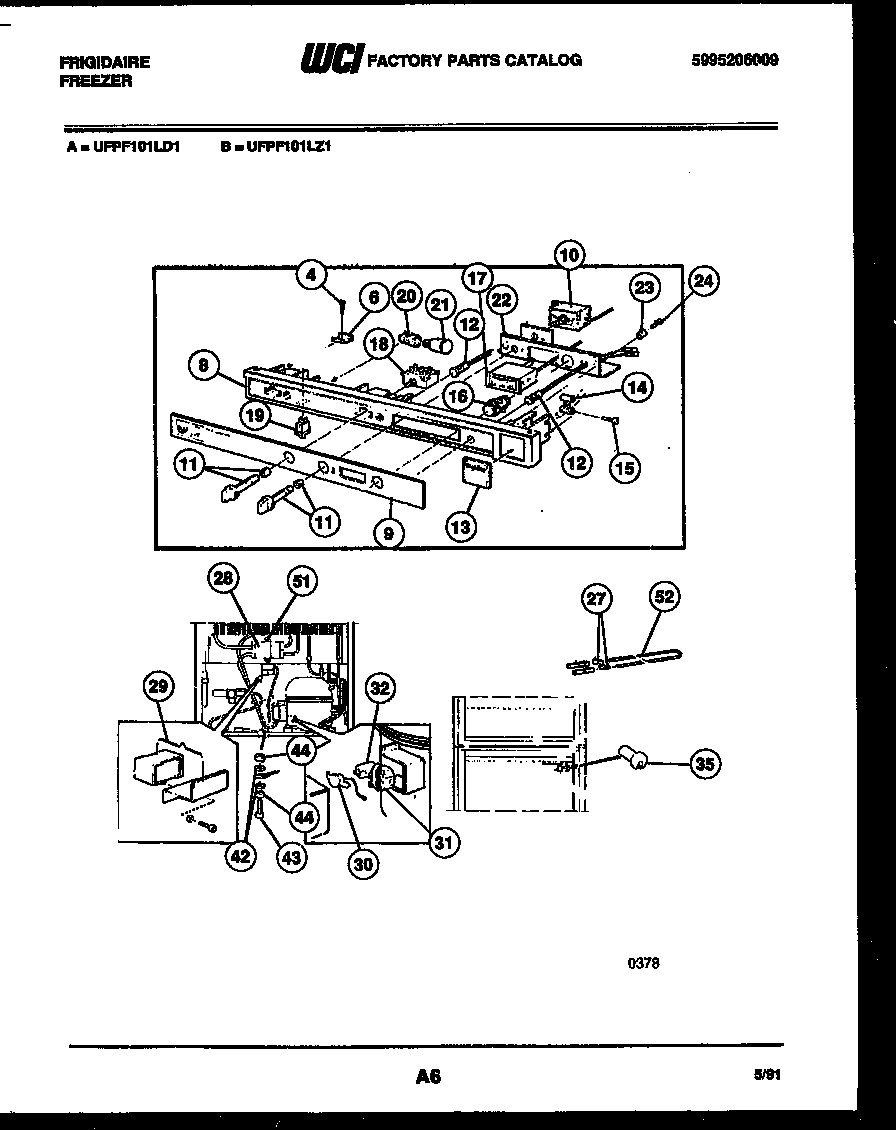

System and control parts diagram
Capacitor
Part #3015552Replaced by #5304464438
Manufacturer substitutionThis part replaces 3015552. Substitute parts can look different from the original.In Stock$32.6116% OFF Phone Price : $38.61QtySystem and control parts diagram
Switch
In Stock$94.13QtySystem and automatic defrost parts diagram
Motor
In Stock$191.46QtySystem and automatic defrost parts diagram
Heater

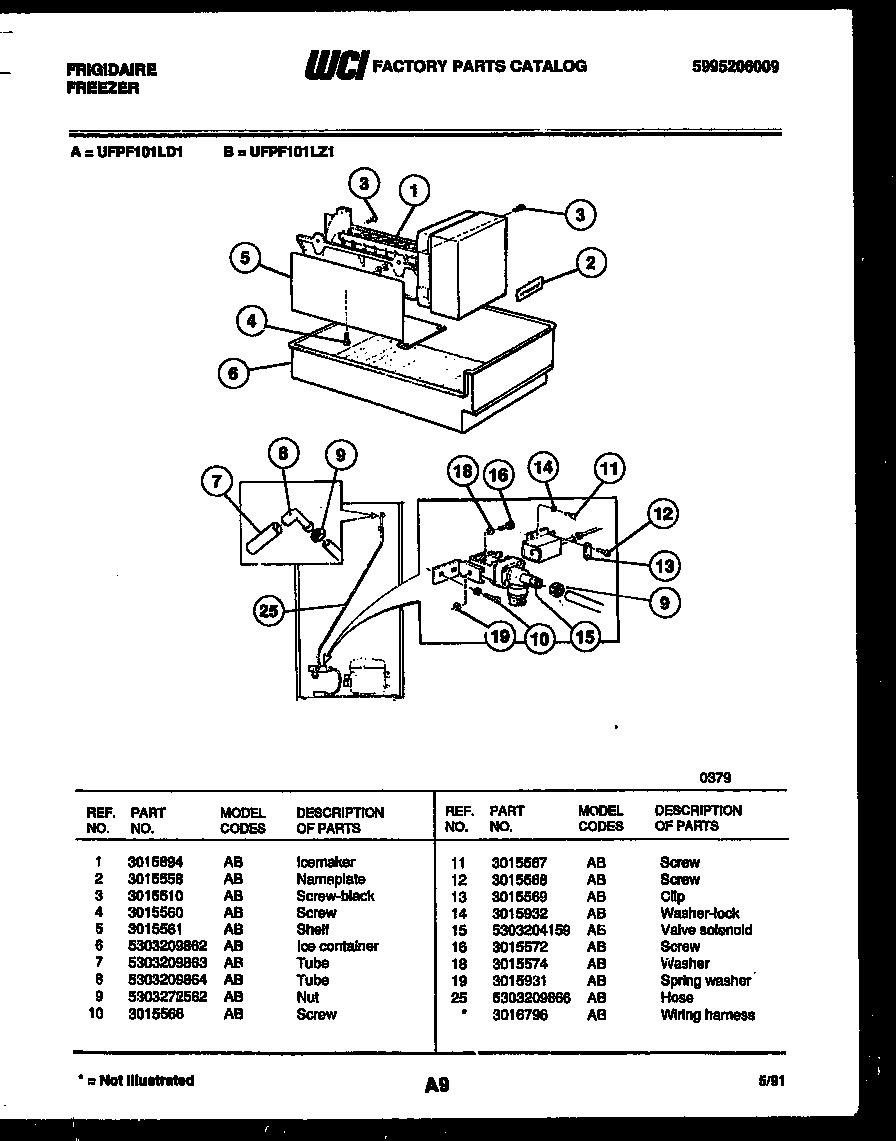

In Stock$148.34QtyIce maker parts diagram
Screw
In Stock$27.59QtySystem and control parts diagram
Thermomtr

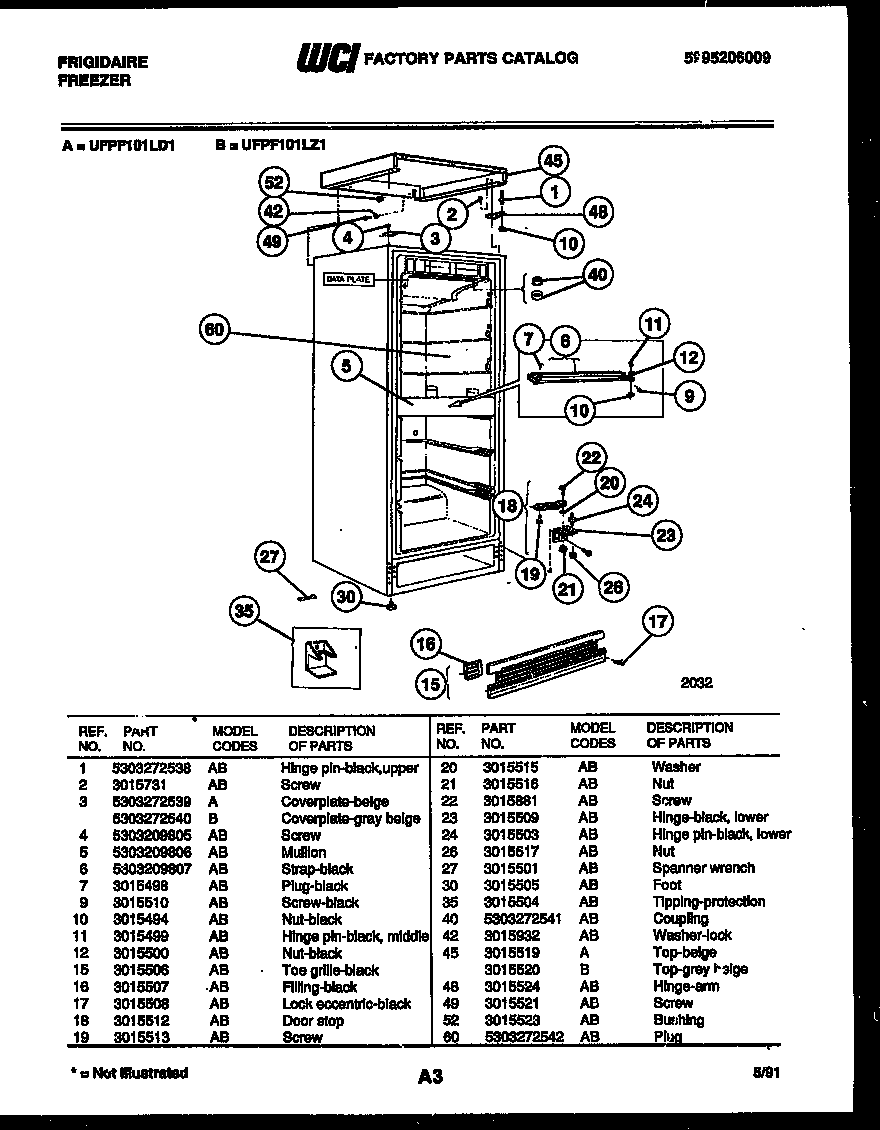

In Stock$127.66QtyCabinet parts diagram
Lock
In Stock$27.84QtySystem and control parts diagram
Receptacle
In Stock$51.55QtyCabinet parts diagram
Nut
In Stock$27.44Qty
