Model # CL2000-3 Official InSinkErator dishwasher

Here are the diagrams and repair parts for Official InSinkErator CL2000-3 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

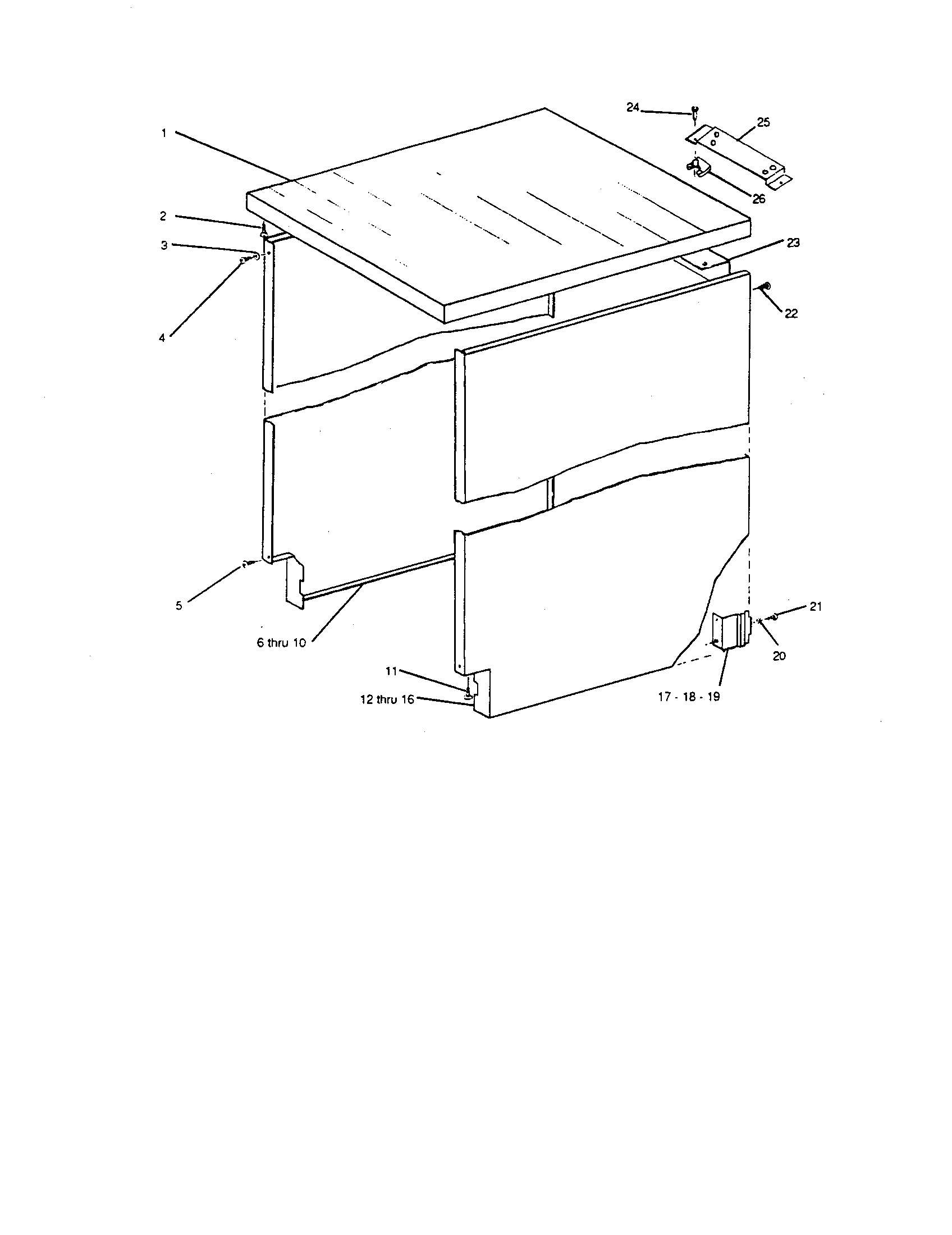

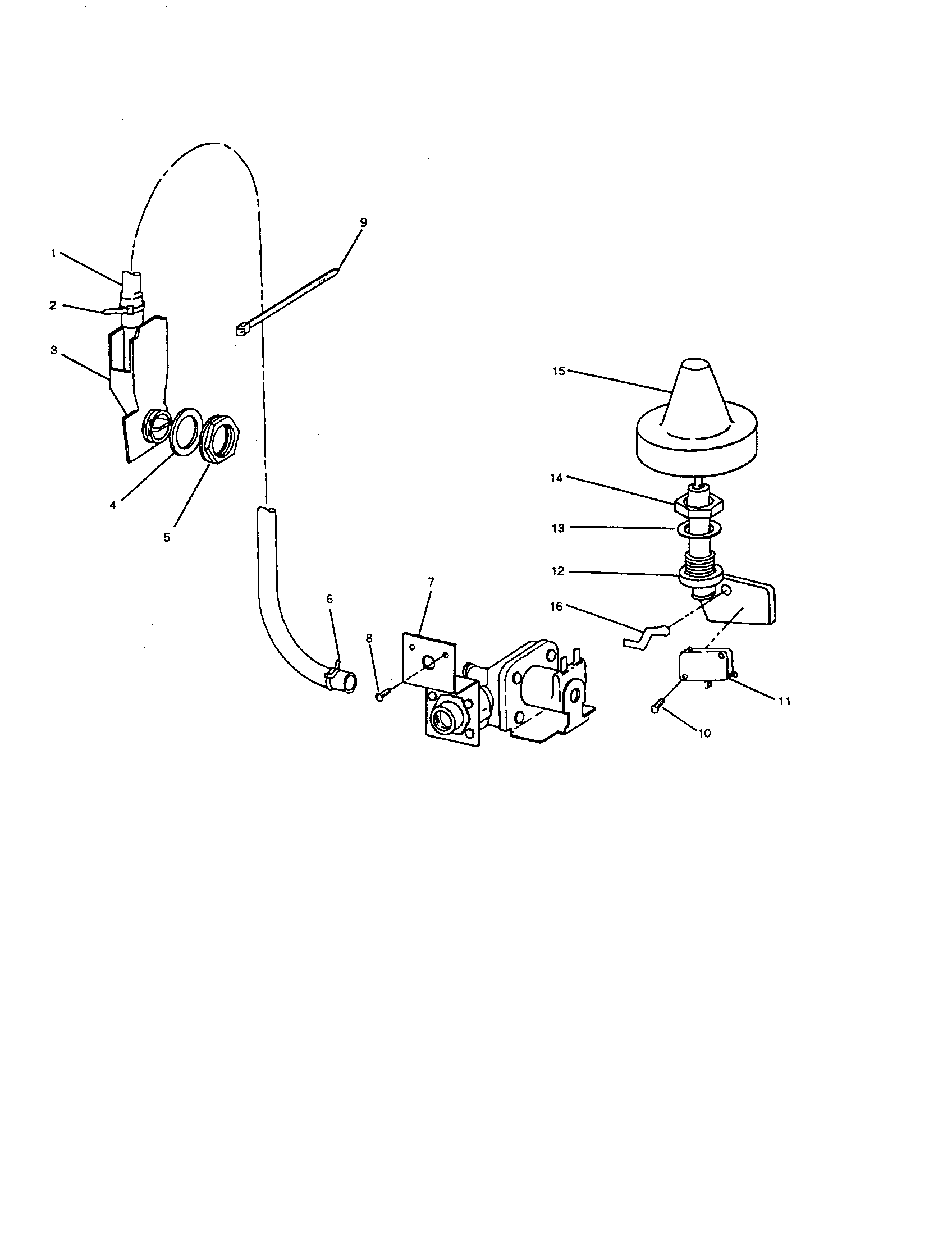

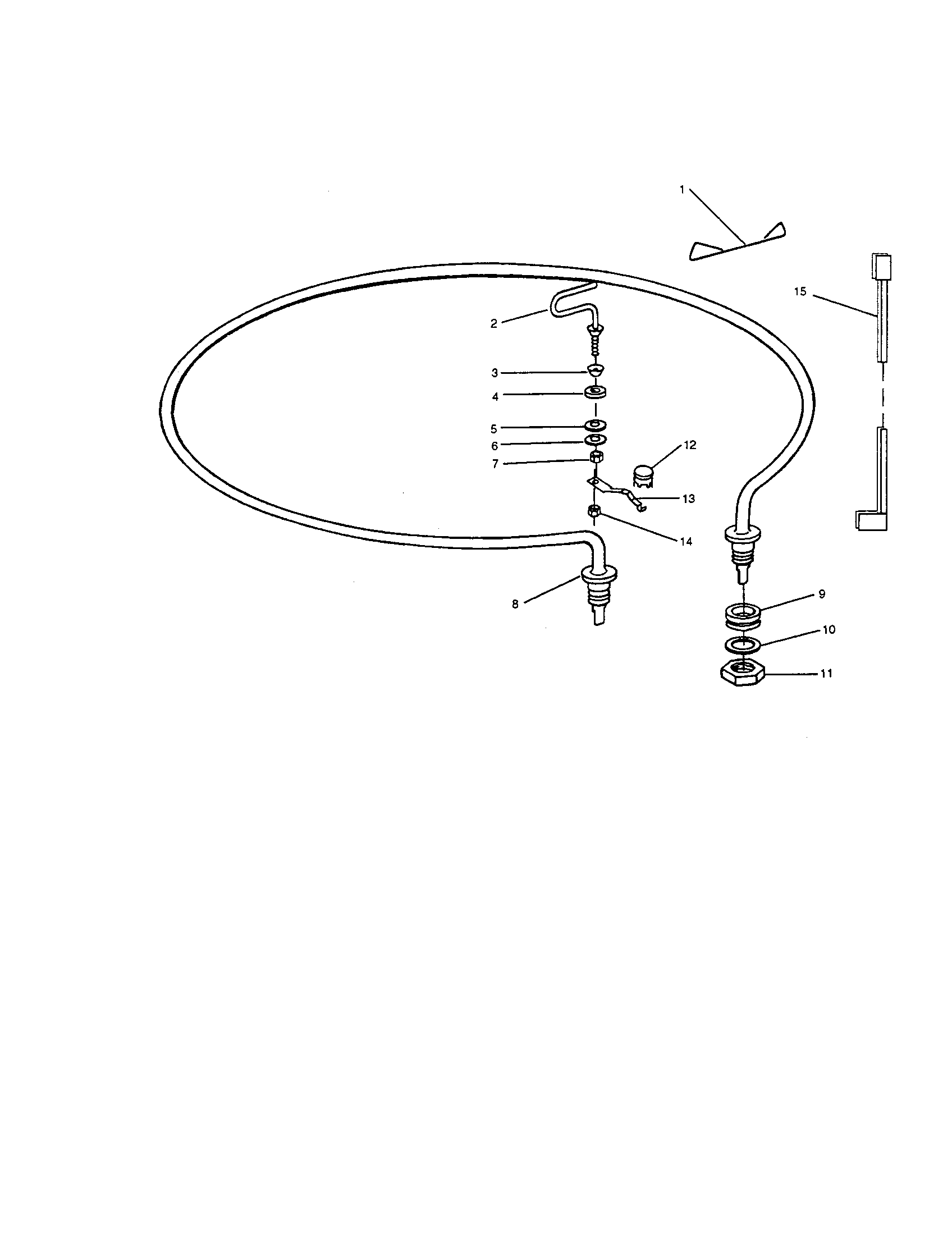

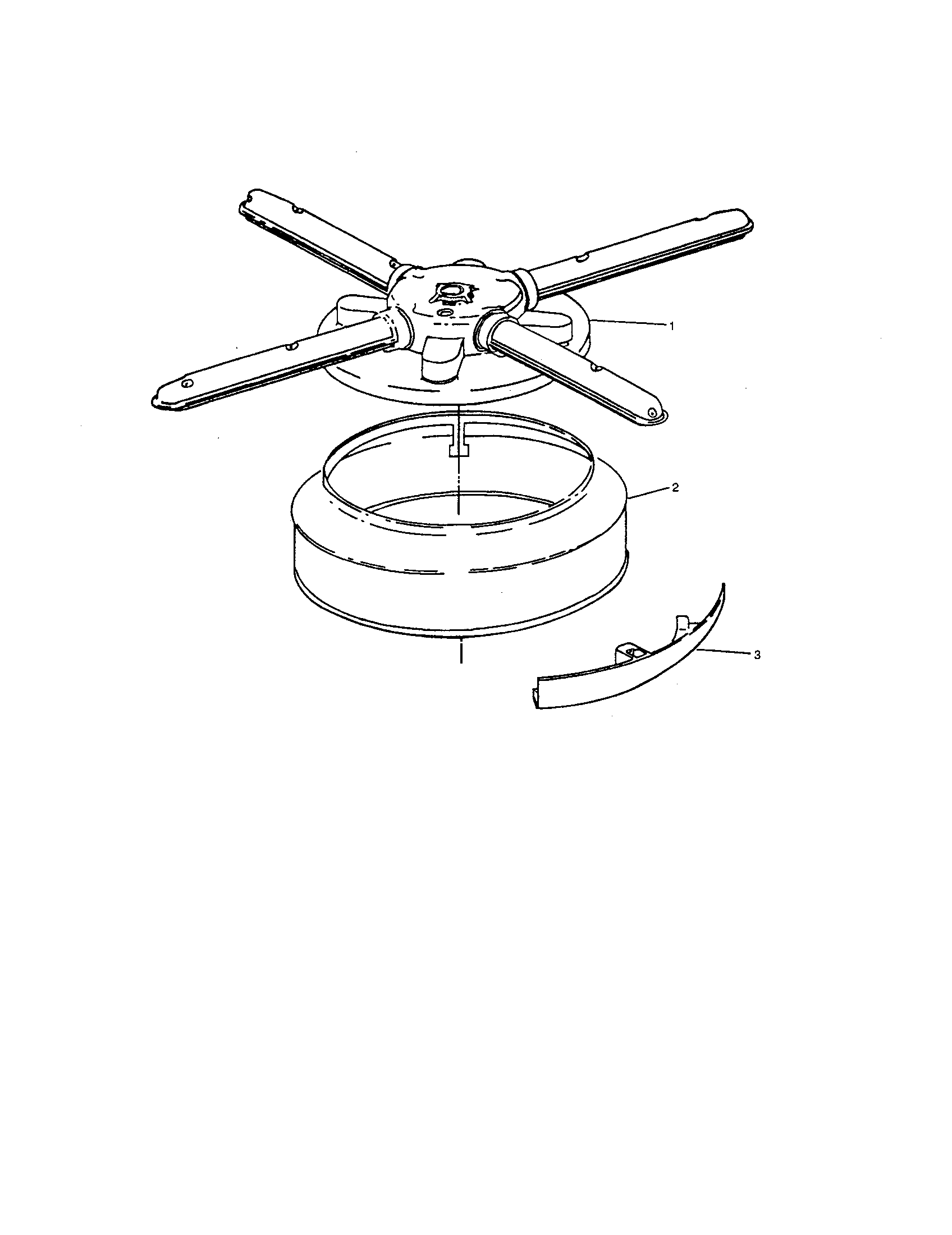

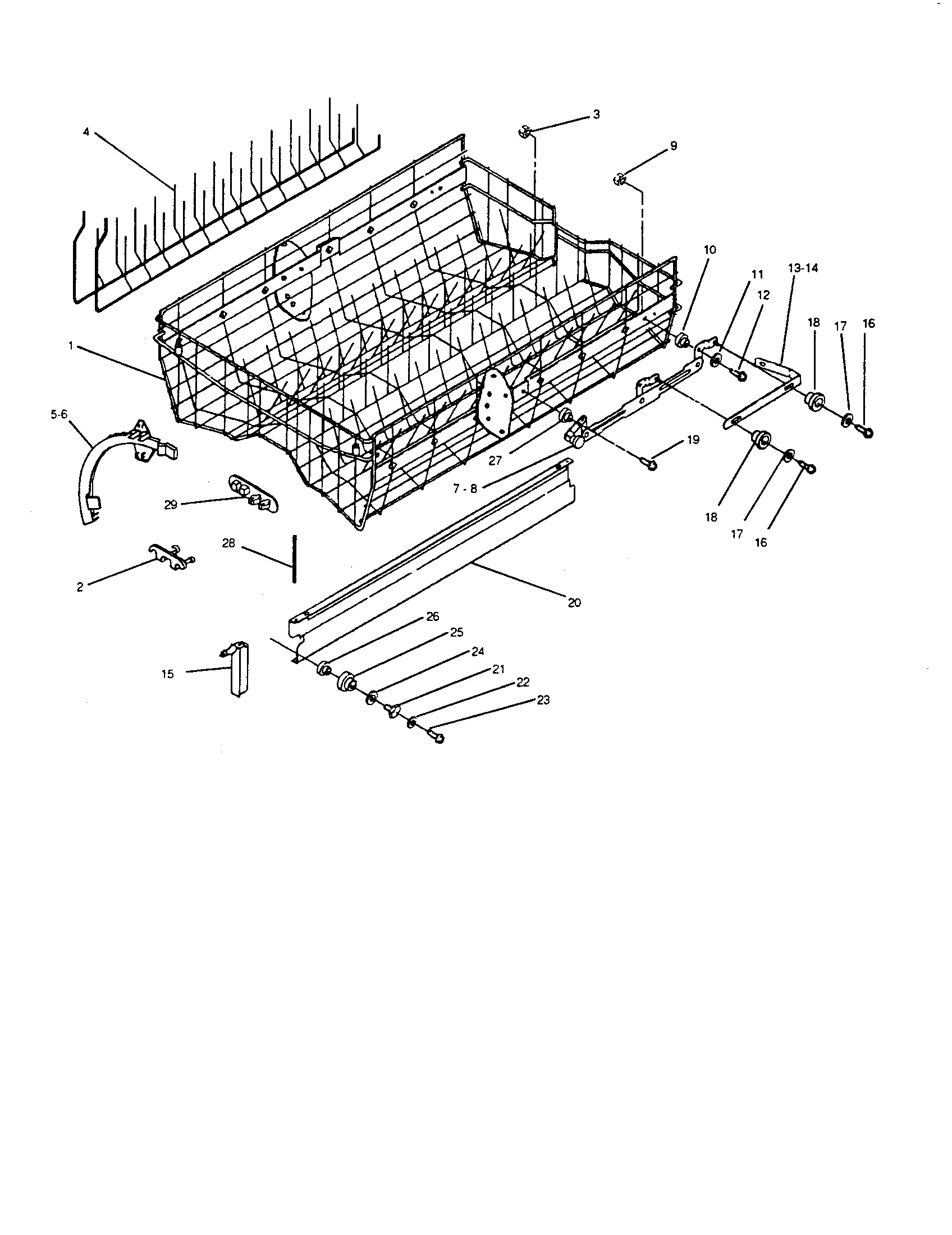

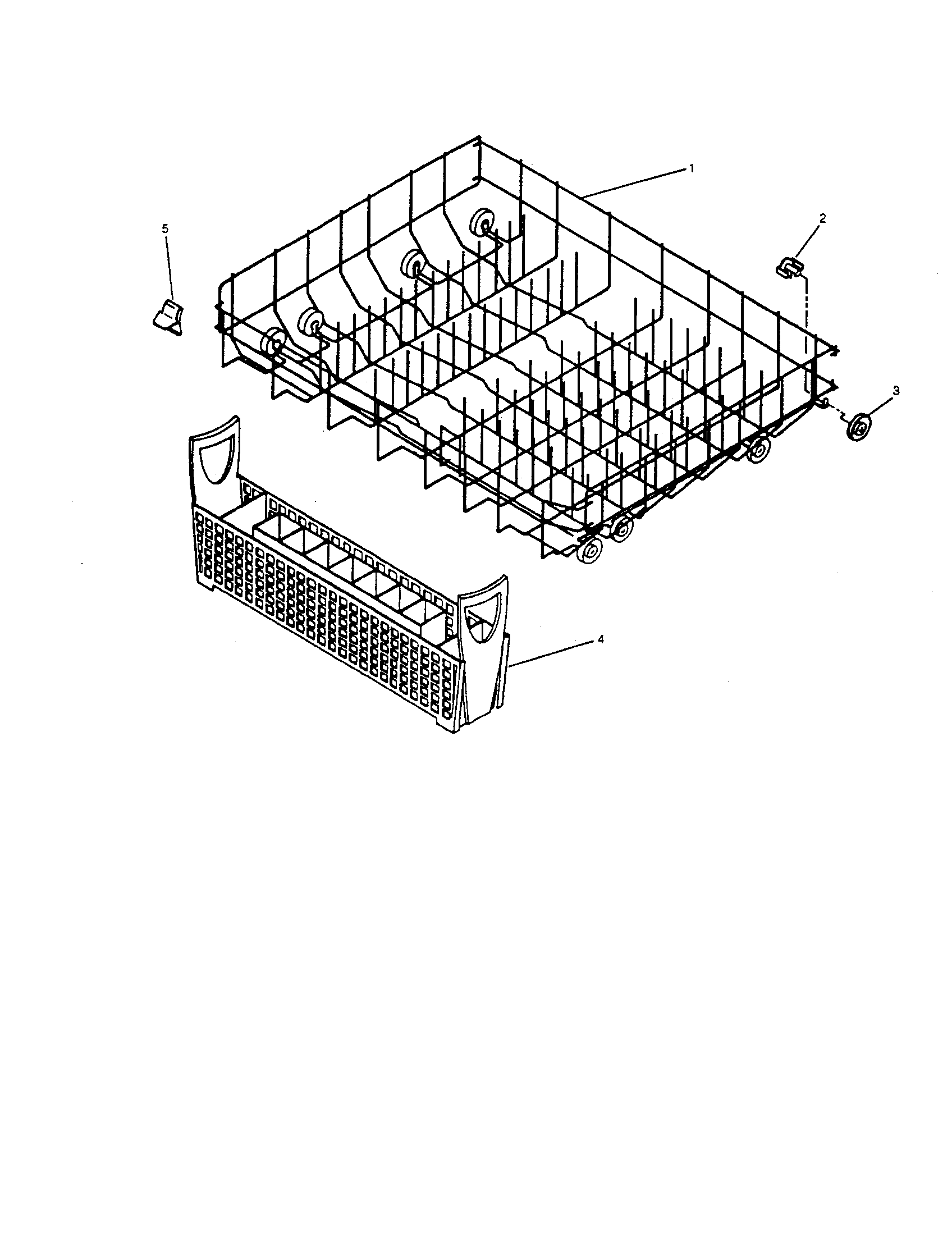

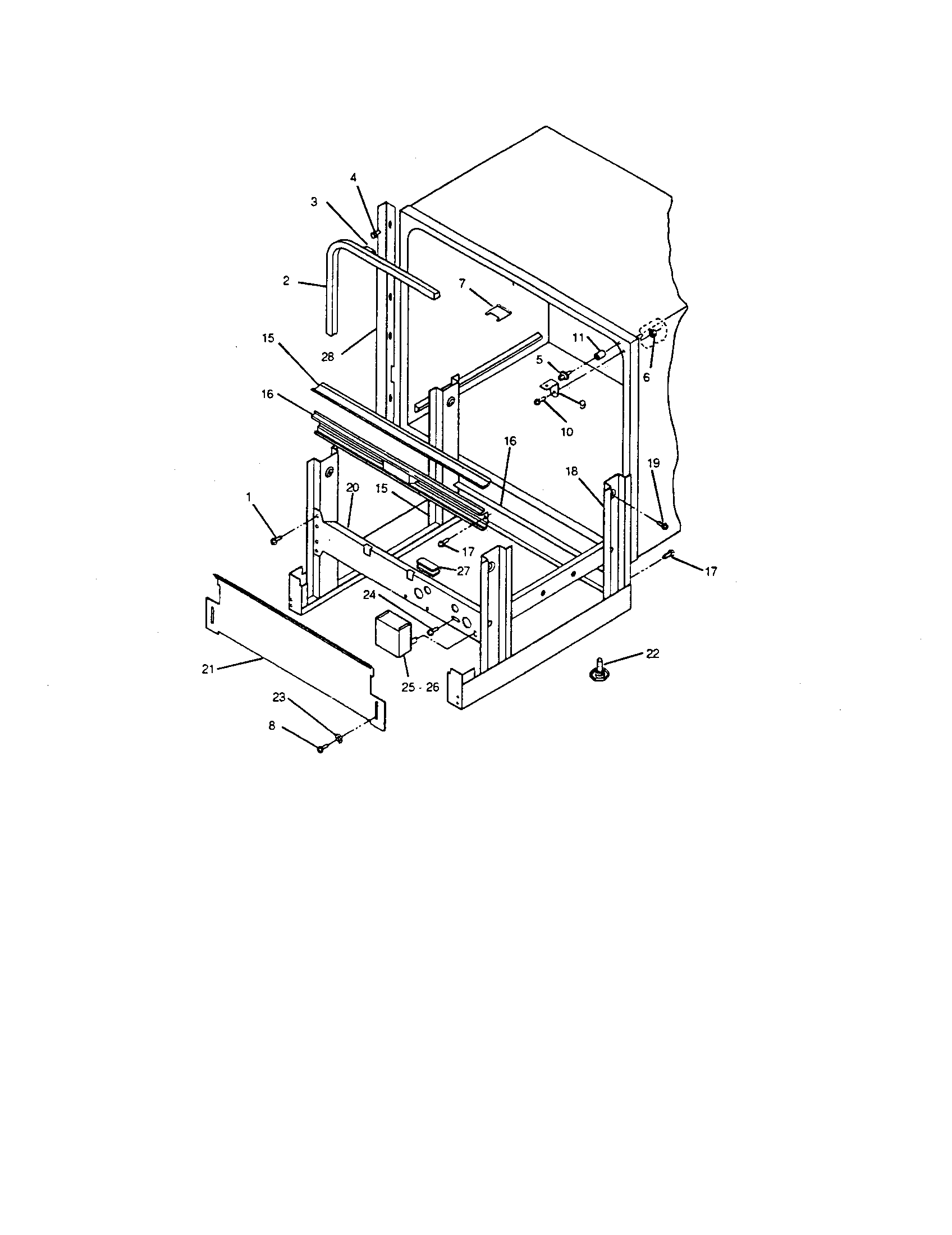

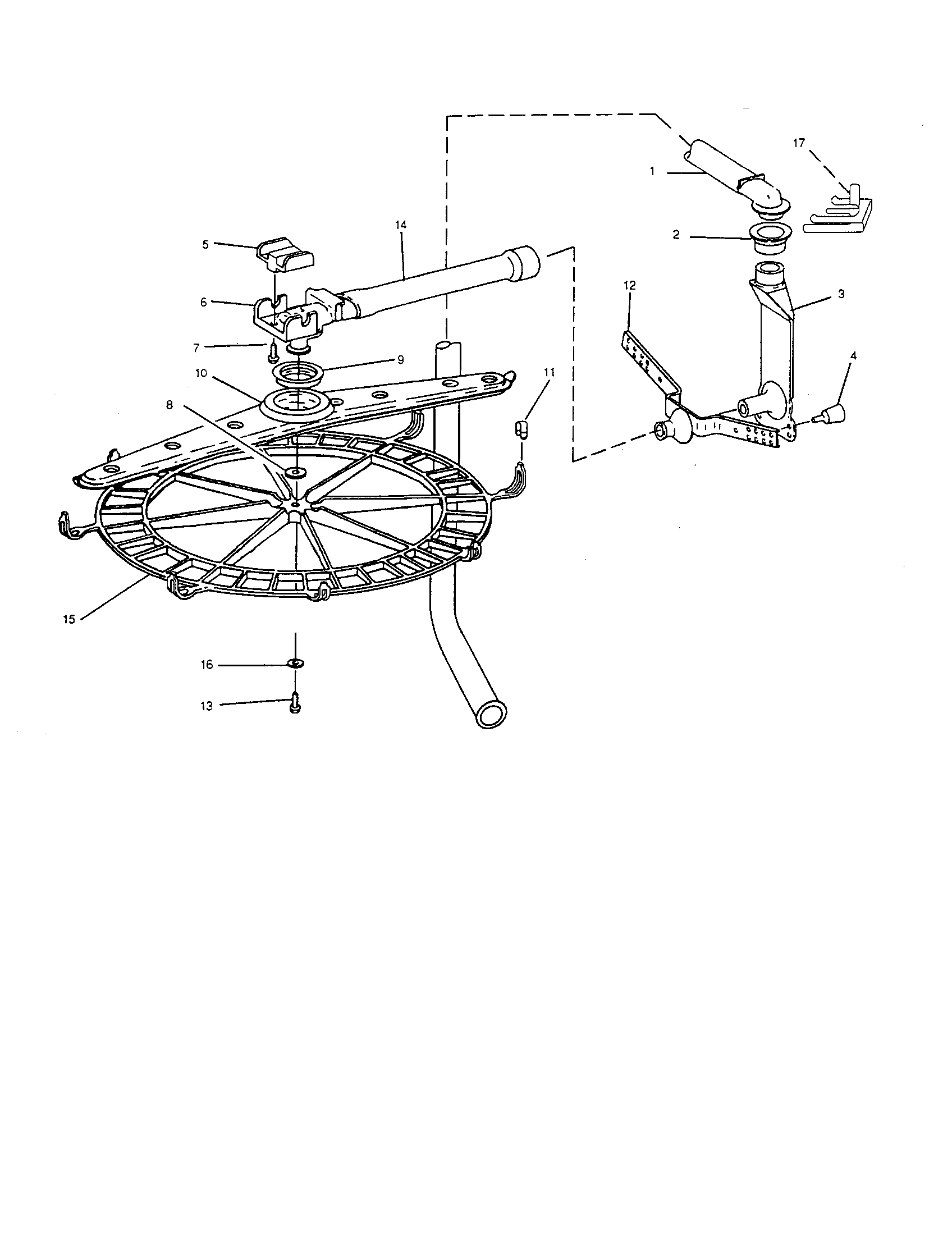

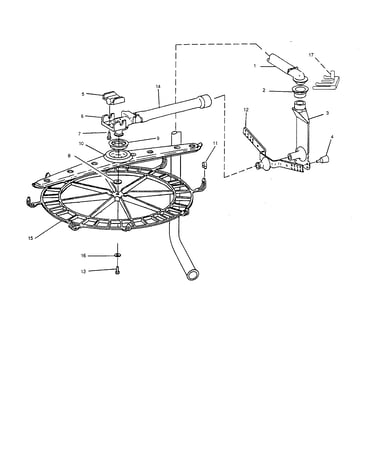

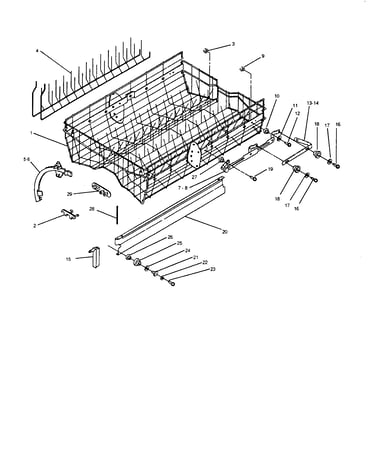

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 260 parts  |
Bracket-l.h. Spring Mounting 51145
#23

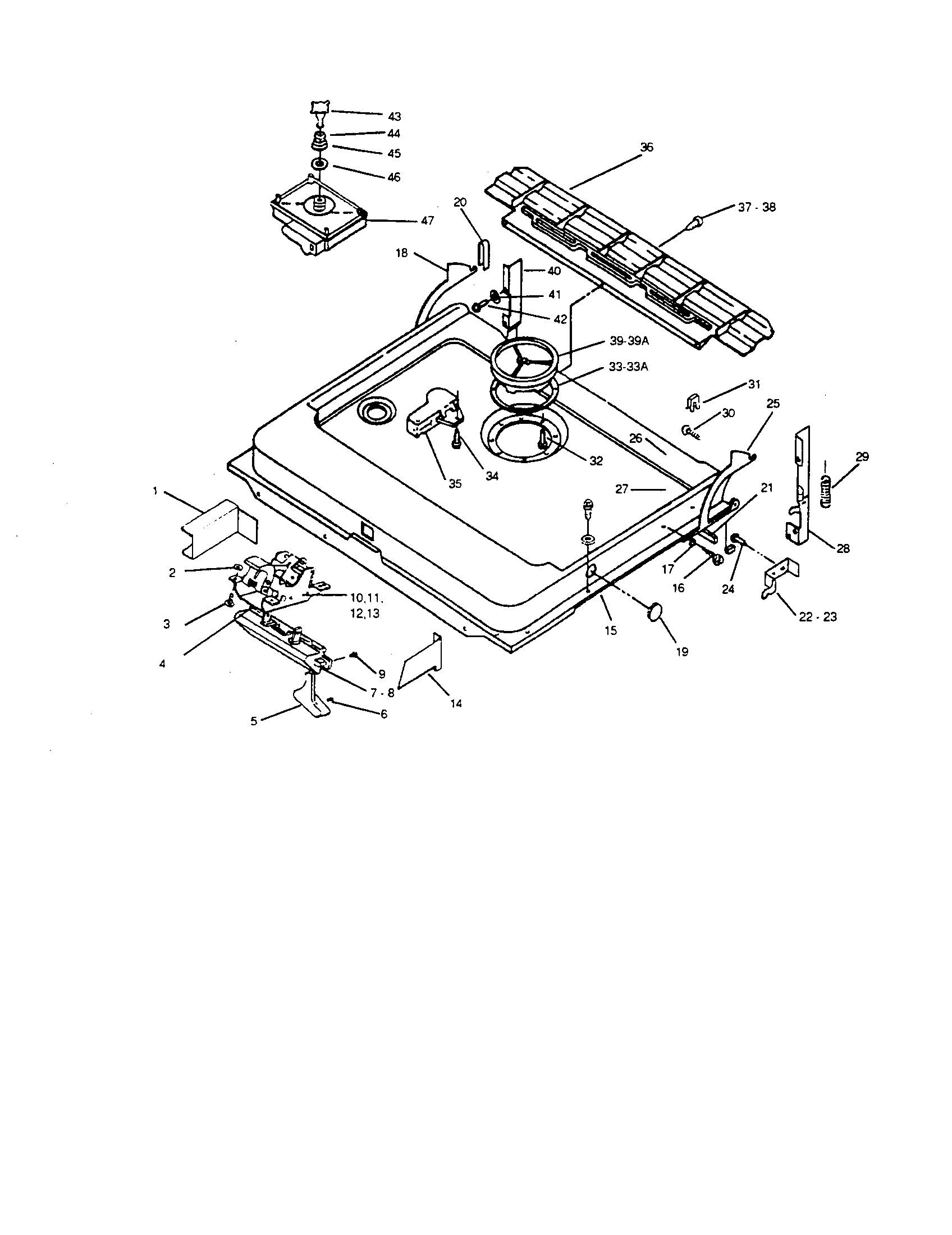

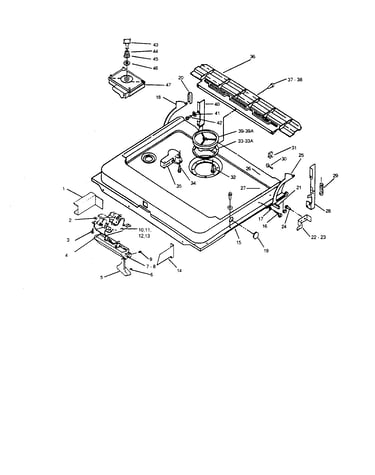

Door and latch diagram

Bracket-l.h. spring mounting

Part #51145

The manufacturer no longer makes this part, and there's no substitute part

Insulation-switch 51138
#14

Door and latch diagram

Insulation-switch

Part #51138

The manufacturer no longer makes this part, and there's no substitute part

Bearing-ddor Stop Insert (2) 51142
#20

Door and latch diagram

Bearing-ddor stop insert (2)

Part #51142

The manufacturer no longer makes this part, and there's no substitute part

Housing-blower 51052
#8

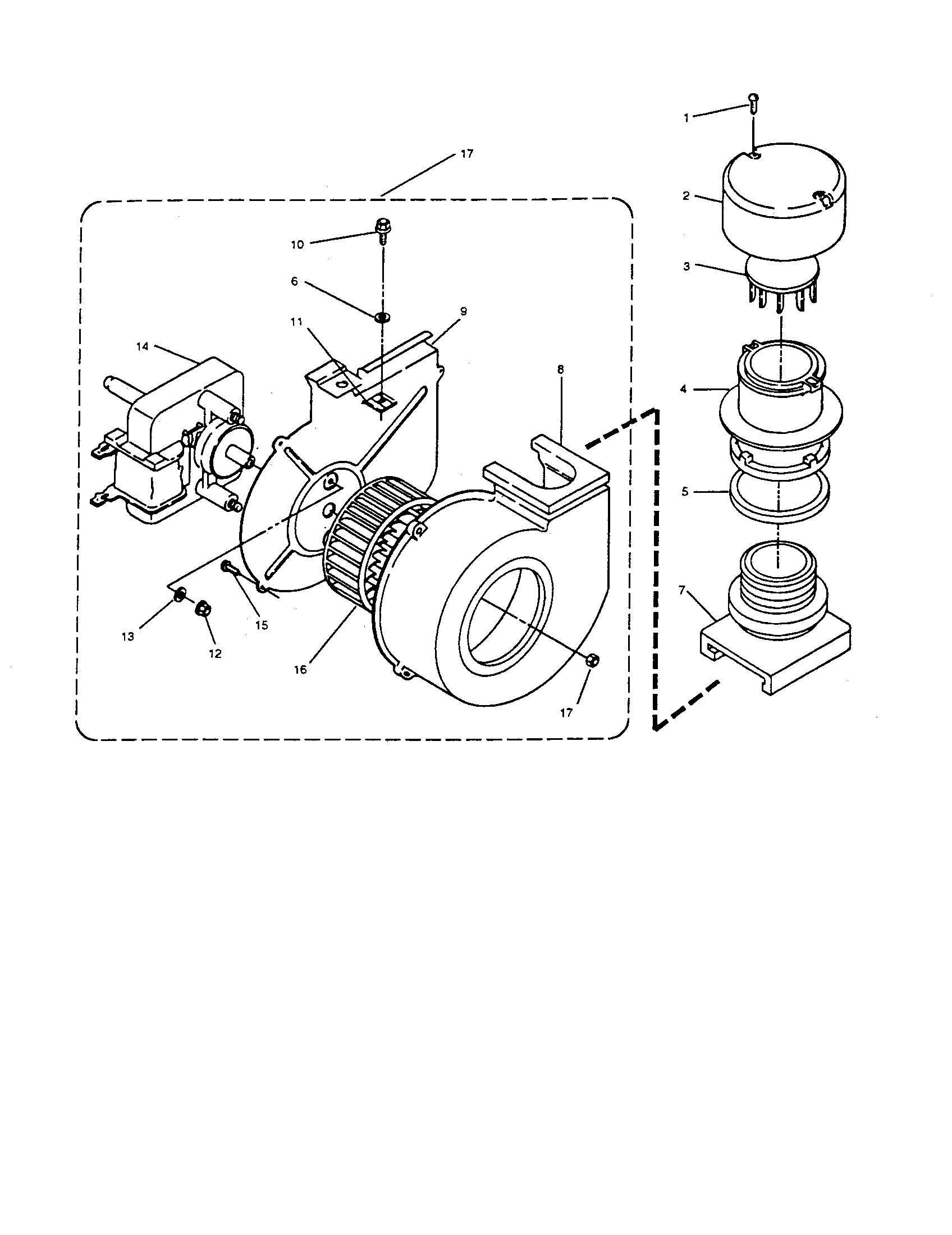

Circa-dry diagram

Housing-blower

Part #51052

The manufacturer no longer makes this part, and there's no substitute part

Shield-drip 51412
#1

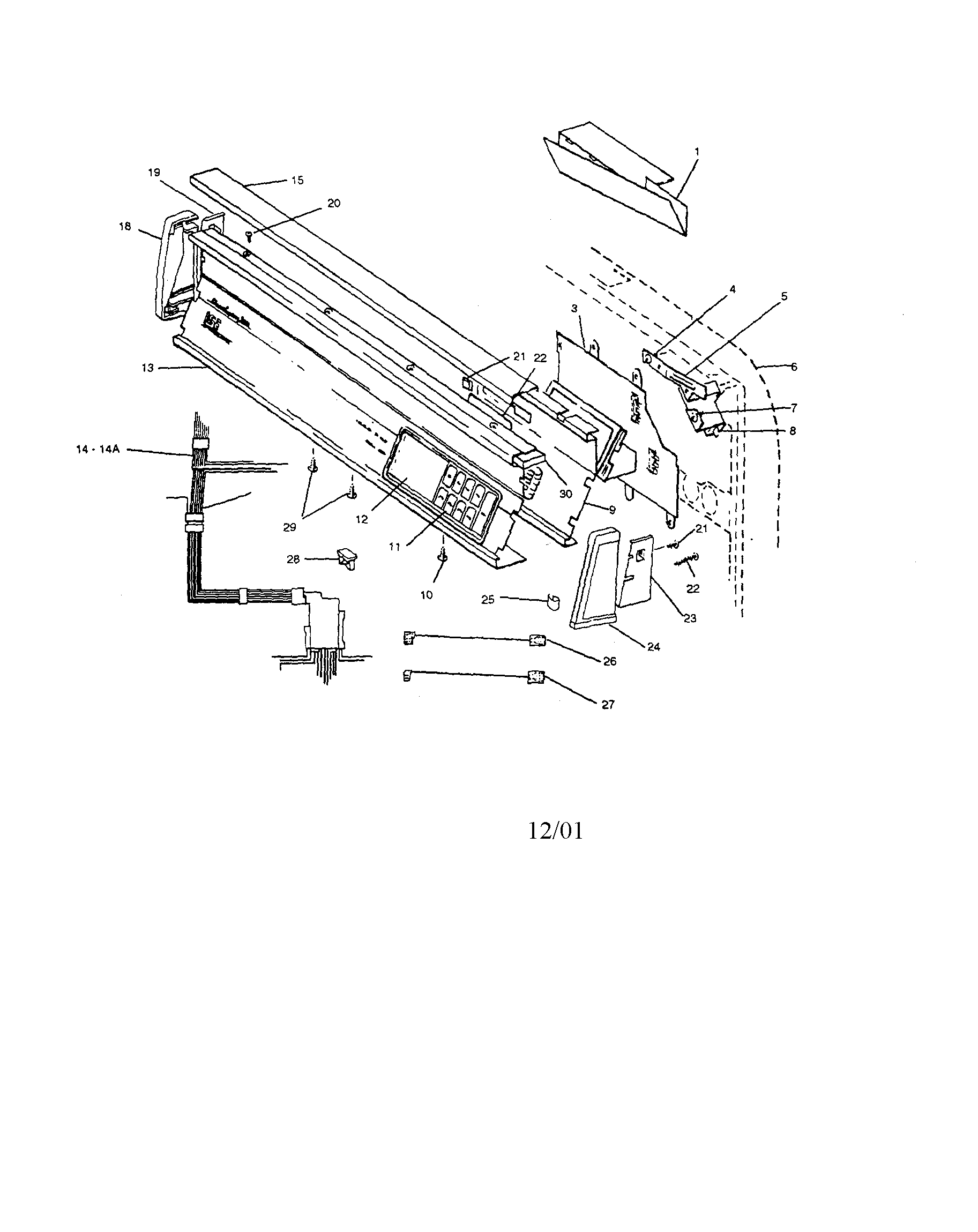

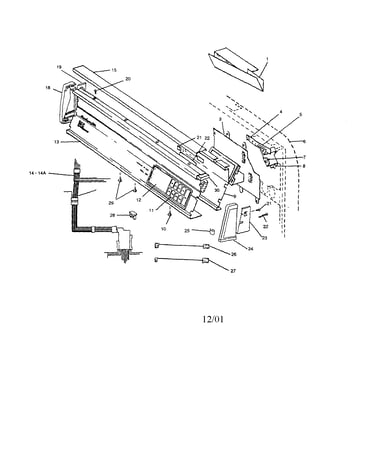

Control panel diagram

Shield-drip

Part #51412

The manufacturer no longer makes this part, and there's no substitute part

Seal-wash Pump Ring 51083
#13

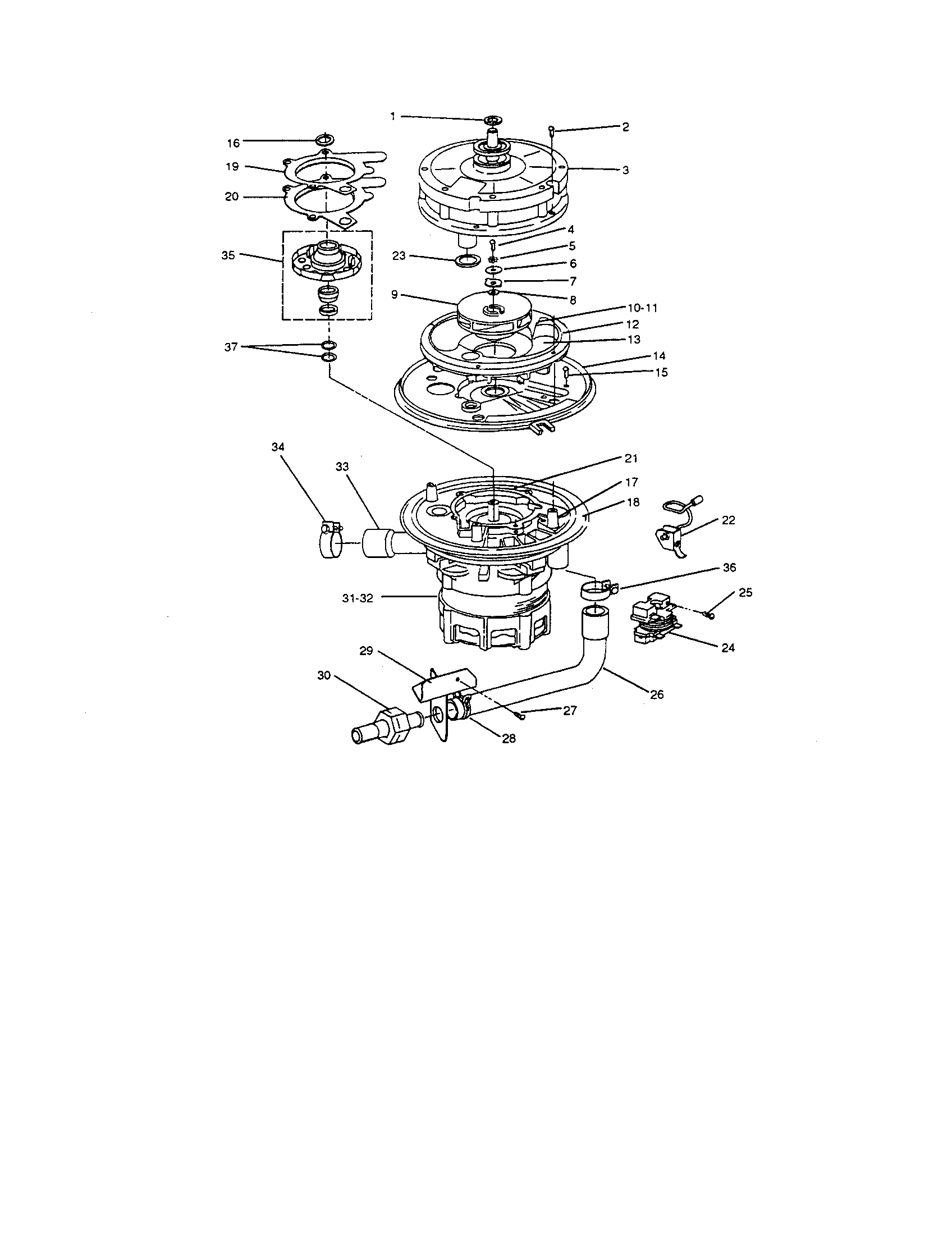

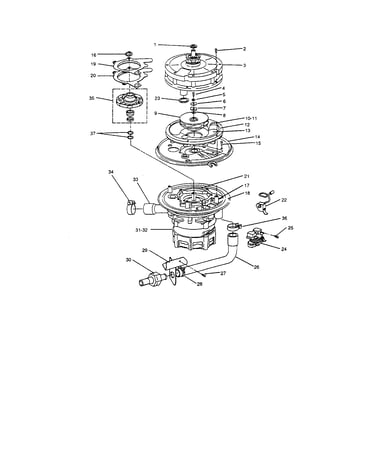

Wash and disposer/drain pump diagram

Seal-wash pump ring

Part #51083

The manufacturer no longer makes this part, and there's no substitute part

Color Panel Inserts (almond/white) 51004
#14

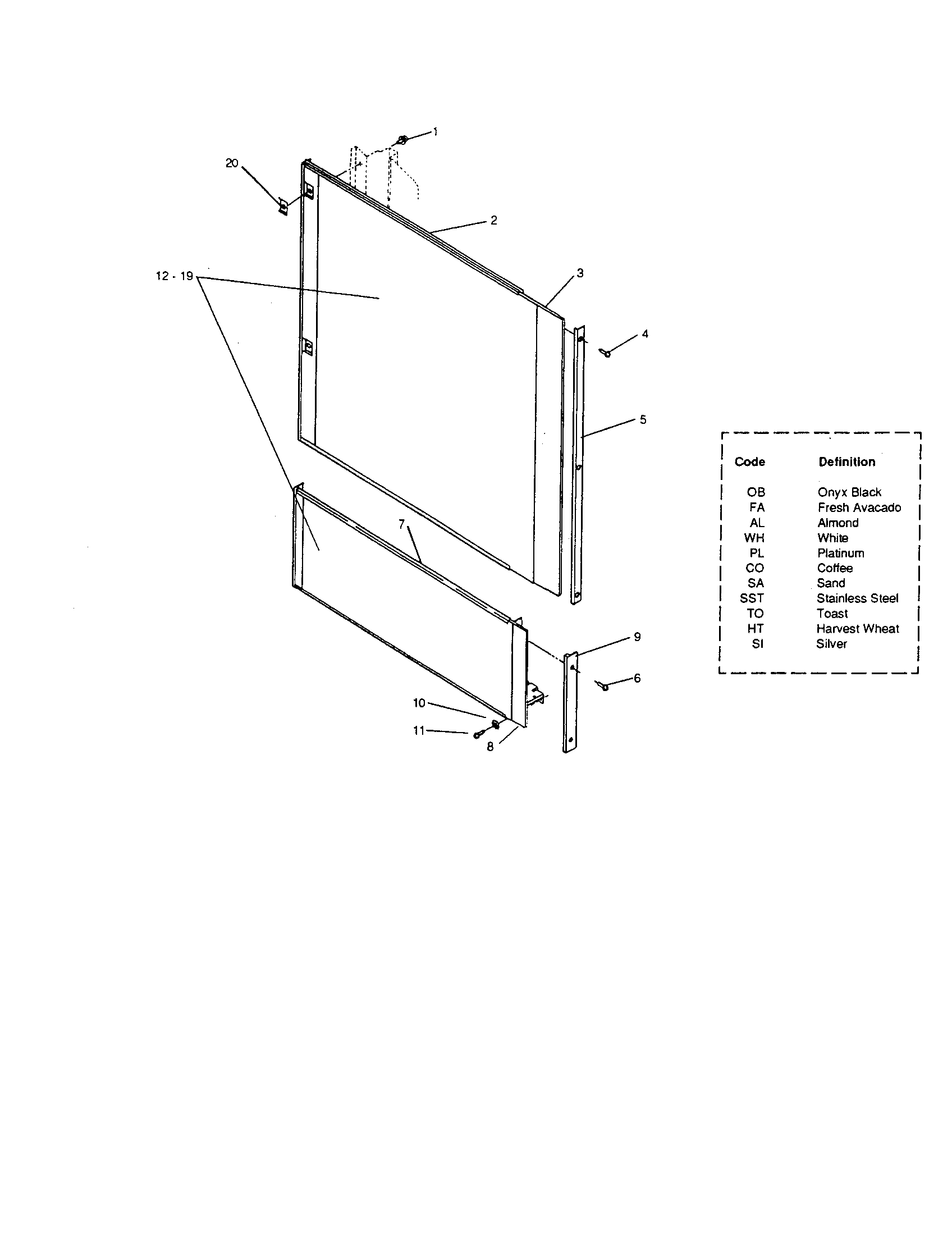

Front panel diagram

Color panel inserts (almond/white)

Part #51004

The manufacturer no longer makes this part, and there's no substitute part

Mach Screw (2) 8-32 X 1/2 Phil. Pan Hd. 51237
Mach screw (2) 8-32 x 1/2 phil. pan hd.

Part #51237

The manufacturer no longer makes this part, and there's no substitute part

Contact-spring 51449
#11

Door and latch diagram

Contact-spring

Part #51449

The manufacturer no longer makes this part, and there's no substitute part

Detergent Disp/gskt Assembly (incls. Code 36) 51440
#39A

Door and latch diagram

Detergent disp/gskt assembly (incls. code 36)

Part #51440

The manufacturer no longer makes this part, and there's no substitute part
