Model #536918101 Official Craftsman 20" snow blower

Here are the diagrams and repair parts for Craftsman 536918101 20" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

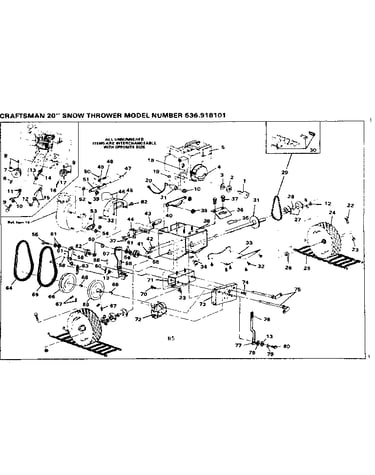

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 162 parts

    Snowblower Nut

    See All Related Diagrams

    Lock nut

    Part #9424215
    Replaced by #703251
    ?
    Manufacturer substitution
    This part replaces 9424215. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Snowblower Auger Worm Gear#40

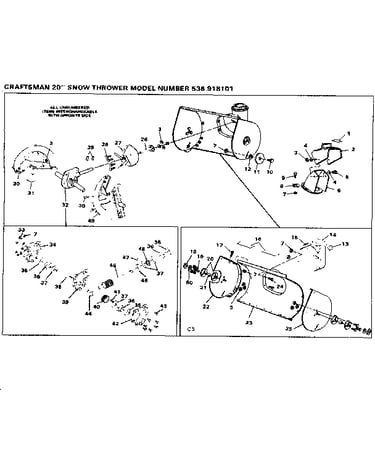

    Auger housing assembly Diagram

    Worm gear

    Part #51405
    Replaced by #51405MA
    ?
    Manufacturer substitution
    This part replaces 51405. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $69.51 |
    25% OFF
    MSRP: $93.00
    Snowblower Gearbox Housing Gasket#39

    Auger housing assembly Diagram

    Gasket

    Part #51279
    Replaced by #51279MA
    ?
    Manufacturer substitution
    This part replaces 51279. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.49 |
    19% OFF
    Phone Price: $26.49
    Lawn & Garden Equipment Woodruff Key#41

    Auger housing assembly Diagram

    Woodruff key

    Part #431787
    Replaced by #703891
    ?
    Manufacturer substitution
    This part replaces 431787. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $8.09 |
    11% OFF
    Phone Price: $9.09
    Snowblower Gearbox Oil Seal#35

    Auger housing assembly Diagram

    Oil seal

    Part #24274
    Replaced by #9566MA
    ?
    Manufacturer substitution
    This part replaces 24274. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $20.89 |
    19% OFF
    Phone Price: $25.89
    Snowblower Formed Washer#9

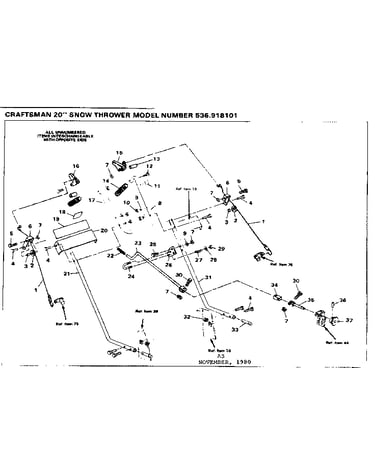

    Handle assembly Diagram

    Formd washer

    Part #22025
    Replaced by #311936MA
    ?
    Manufacturer substitution
    This part replaces 22025. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.69 |
    14% OFF
    Phone Price: $14.69
    Snowblower Auger Shaft Flange Bearing#44

    Auger housing assembly Diagram

    Bushing

    Part #50221
    Replaced by #50221MA
    ?
    Manufacturer substitution
    This part replaces 50221. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.69 |
    13% OFF
    Phone Price: $15.69
    Snowblower Flat Washer#37

    Auger housing assembly Diagram

    Washer

    Part #48275
    Replaced by #48275MA
    ?
    Manufacturer substitution
    This part replaces 48275. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.99 |
    15% OFF
    Phone Price: $12.99
    Cap Screw, 8-pack

    See All Related Diagrams

    Screw

    Part #121887
    Replaced by #STD522507
    ?
    Manufacturer substitution
    This part replaces 121887. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $1.49 |
    40% OFF
    Phone Price: $2.49
    Snowblower Clutch Cable#1

    Handle assembly Diagram

    Cble a cltch

    Part #50817
    Replaced by #584223MA
    ?
    Manufacturer substitution
    This part replaces 50817. Substitute parts can look different from the original.
    In Stock
    $40.59 |
    11% OFF
    Phone Price: $45.59
