GE
Top-Mount Refrigerator

Model # TBHA25ZRDRAD Official GE top-mount refrigerator - 1992 rebate model

Here are the diagrams and repair parts for Official GE TBHA25ZRDRAD top-mount refrigerator - 1992 rebate model, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

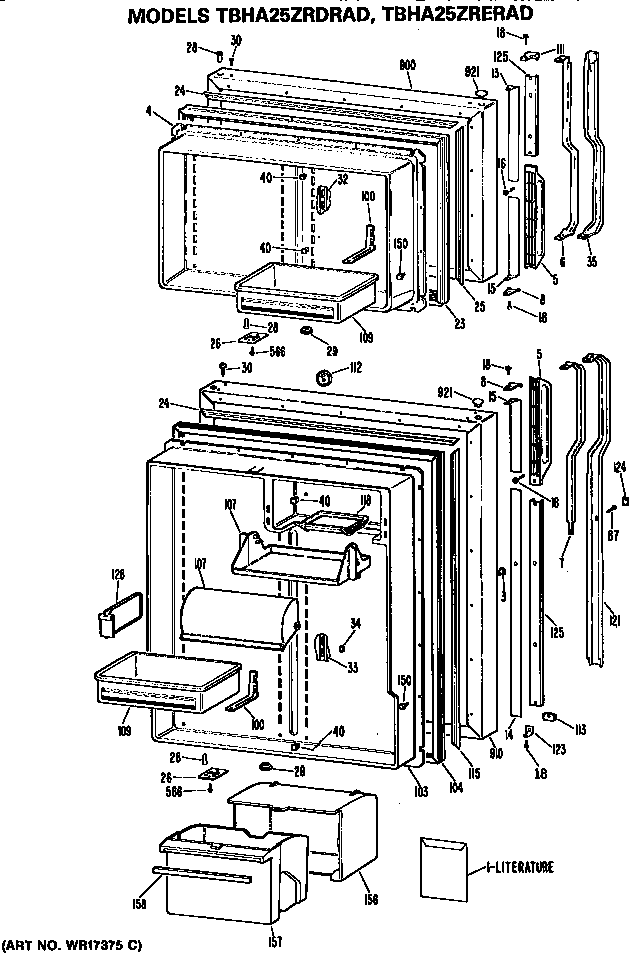

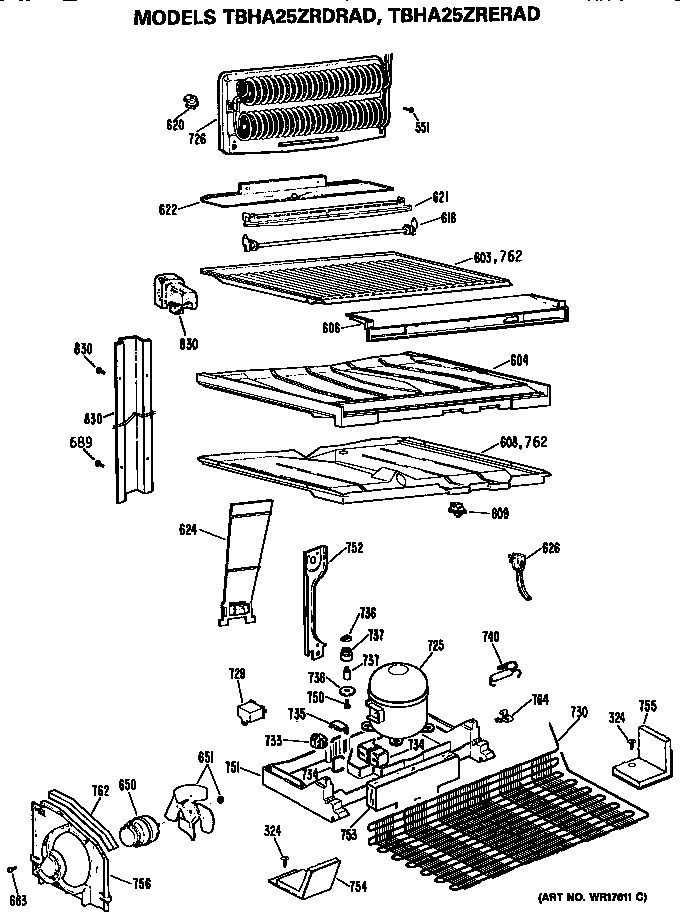

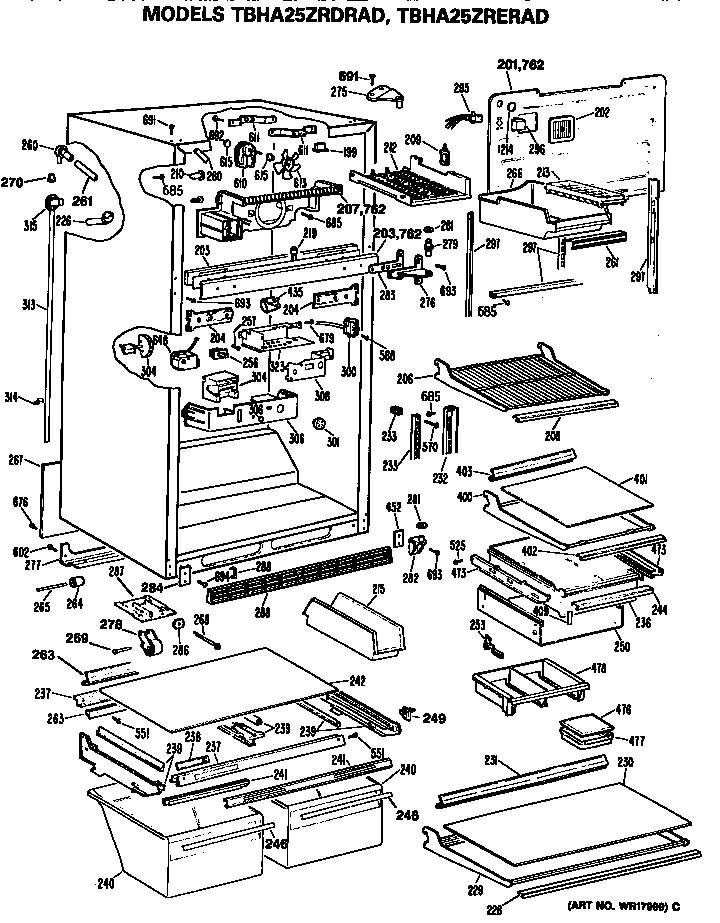

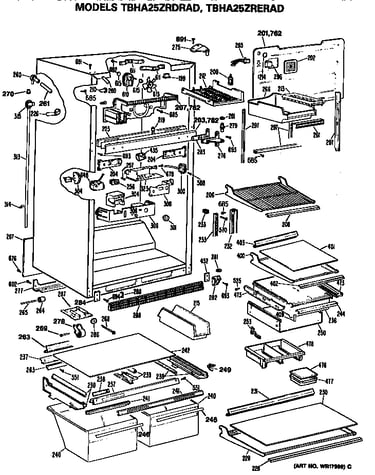

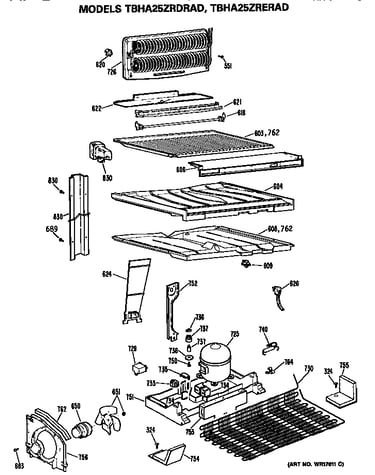

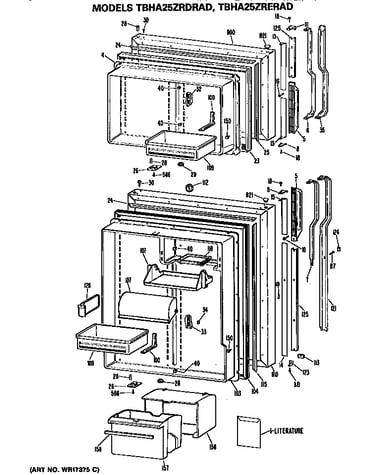

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402

#435

All parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$12.83 |
13% OFF Phone Price : $14.83
In Stock
Refrigerator Thermostat WR50X110

#620

All parts diagram

Refrigerator thermostat

Part #WR50X110

Replaced by #WR50X60

?
Manufacturer substitution
This part replaces WR50X110. Substitute parts can look different from the original.
$12.22 |
14% OFF Phone Price : $14.22
In Stock
Terminal Socket WR2X8265

#435

All parts diagram

Terminal socket

Part #WR2X8265

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR2X8265. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Fan Blade WR2X3198

#613

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Run Capacitor (replaces Swr62x43, Swr62x46, Wr62x0051, Wr62x43, Wr62x46, Wr62x63) WR62X51
Refrigerator run capacitor (replaces swr62x43, swr62x46, wr62x0051, wr62x43, wr62x46, wr62x63)

Part #WR62X51

This item is not returnable
$27.79 |
18% OFF Phone Price : $33.79
In Stock
Refrigerator Capacitor WR62X46

#729

All parts diagram

Refrigerator capacitor

Part #WR62X46

Replaced by #WR62X51

?
Manufacturer substitution
This part replaces WR62X46. Substitute parts can look different from the original.
This item is not returnable
$27.79 |
18% OFF Phone Price : $33.79
In Stock
Power Cord WR23X108

#626

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Relay WR7X194

#733

All parts diagram

Refrigerator relay

Part #WR7X194

Replaced by #WR07X26748

?
Manufacturer substitution
This part replaces WR7X194. Substitute parts can look different from the original.
This item is not returnable
$13.37 |
13% OFF Phone Price : $15.37
In Stock
Refrigerator Evaporator Fan Blade WR60X123

#613

All parts diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
