GE
Countertop Microwave

Model # JE1250GN01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1250GN01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Je1250 Uc 49-8490

#NI

All parts diagram

Je1250 uc

Part #49-8490

$8.49
In Stock
Je1250 Gv U 49-8614

#NI

All parts diagram

Je1250 gv u

Part #49-8614

$8.49
In Stock
Ttble Mtr Cv WB56X2072

#NI

All parts diagram

Ttble mtr cv

Part #WB56X2072

The manufacturer no longer makes this part, and there's no substitute part

Tempa Fu WB27X677
#1460

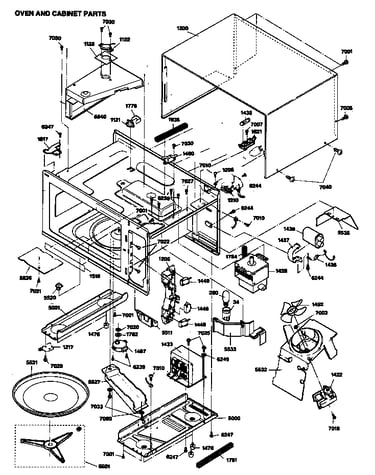

Oven and cabinet parts diagram

Tempa fu

Part #WB27X677

The manufacturer no longer makes this part, and there's no substitute part

Door Latch WB9X280

#NI

All parts diagram

Door latch

Part #WB9X280

The manufacturer no longer makes this part, and there's no substitute part

Choke Cover WB55X754
#1805

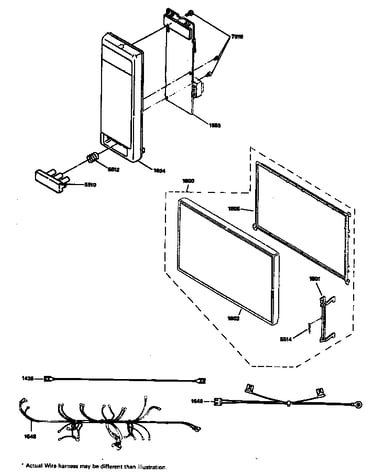

Wiring harness diagram

Choke cover

Part #WB55X754

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord A WB18X527
#1210

Oven and cabinet parts diagram

Ac cord a

Part #WB18X527

The manufacturer no longer makes this part, and there's no substitute part

Ah Sensr WB20X156
#1122

Oven and cabinet parts diagram

Ah sensr

Part #WB20X156

The manufacturer no longer makes this part, and there's no substitute part

Magnetron WB27X969
#1428

Oven and cabinet parts diagram

Magnetron

Part #WB27X969

The manufacturer no longer makes this part, and there's no substitute part

Lower Hinge WB14X172
#1217

Oven and cabinet parts diagram

Lower hinge

Part #WB14X172

The manufacturer no longer makes this part, and there's no substitute part
