Model # 315219140 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 315219140 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
R Bracket 089140301143
#12

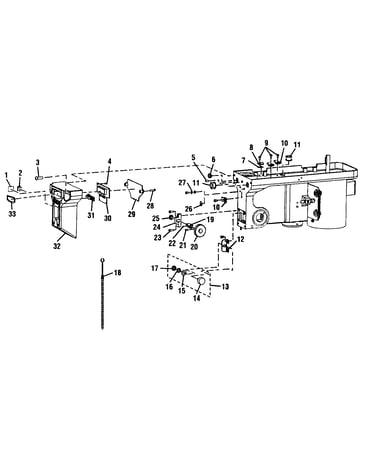

Switch box diagram

R bracket

Part #089140301143

The manufacturer no longer makes this part, and there's no substitute part

Switch 089140301075
#16

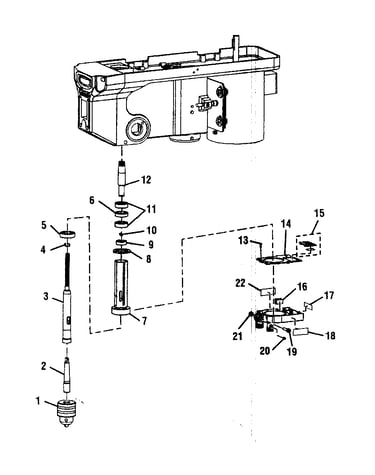

Chuck assy diagram

Switch

Part #089140301075

The manufacturer no longer makes this part, and there's no substitute part

Feed Crank 089140301096
#19

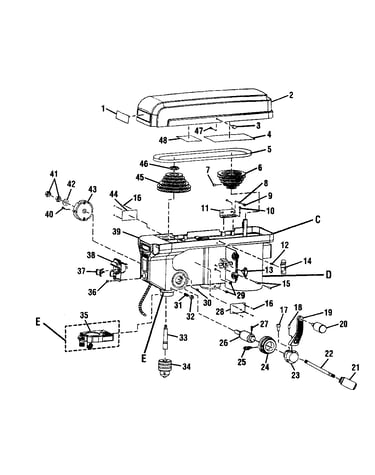

Head assy diagram

Feed crank

Part #089140301096

The manufacturer no longer makes this part, and there's no substitute part

Screw 089140301031
#40

Head assy diagram

Screw

Part #089140301031

The manufacturer no longer makes this part, and there's no substitute part

Label 089140301076
#22

Chuck assy diagram

Label

Part #089140301076

The manufacturer no longer makes this part, and there's no substitute part

Rivet 089140301168
#16

Head assy diagram

Rivet

Part #089140301168

The manufacturer no longer makes this part, and there's no substitute part

Screw 089140301021
#29

Head assy diagram

Screw

Part #089140301021

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Fence 089140301126
#31

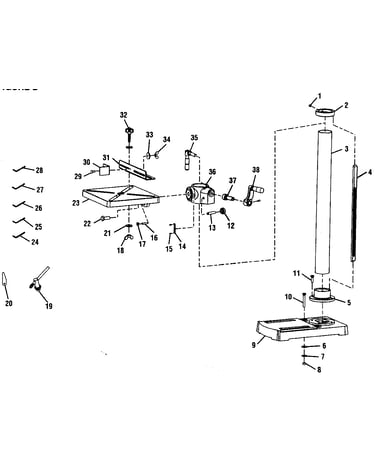

Stamd assy diagram

Adjustment fence

Part #089140301126

The manufacturer no longer makes this part, and there's no substitute part

Bolt 089140301108
#4

Motor assy diagram

Bolt

Part #089140301108

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Chuck Key 089140301154
#20

Stamd assy diagram

Drill press chuck key

Part #089140301154

The manufacturer no longer makes this part, and there's no substitute part
