Thermador
Dishwasher

Model # IP11 Official Thermador dishwasher

Here are the diagrams and repair parts for Official Thermador IP11 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Cam Detergent Cup 14748

#19

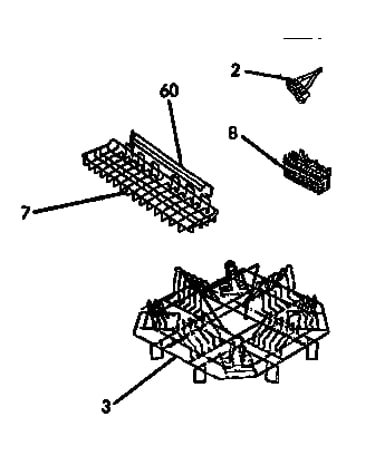

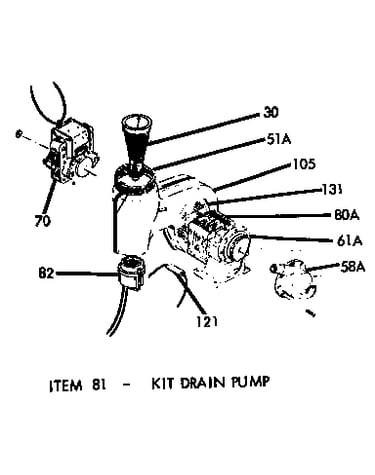

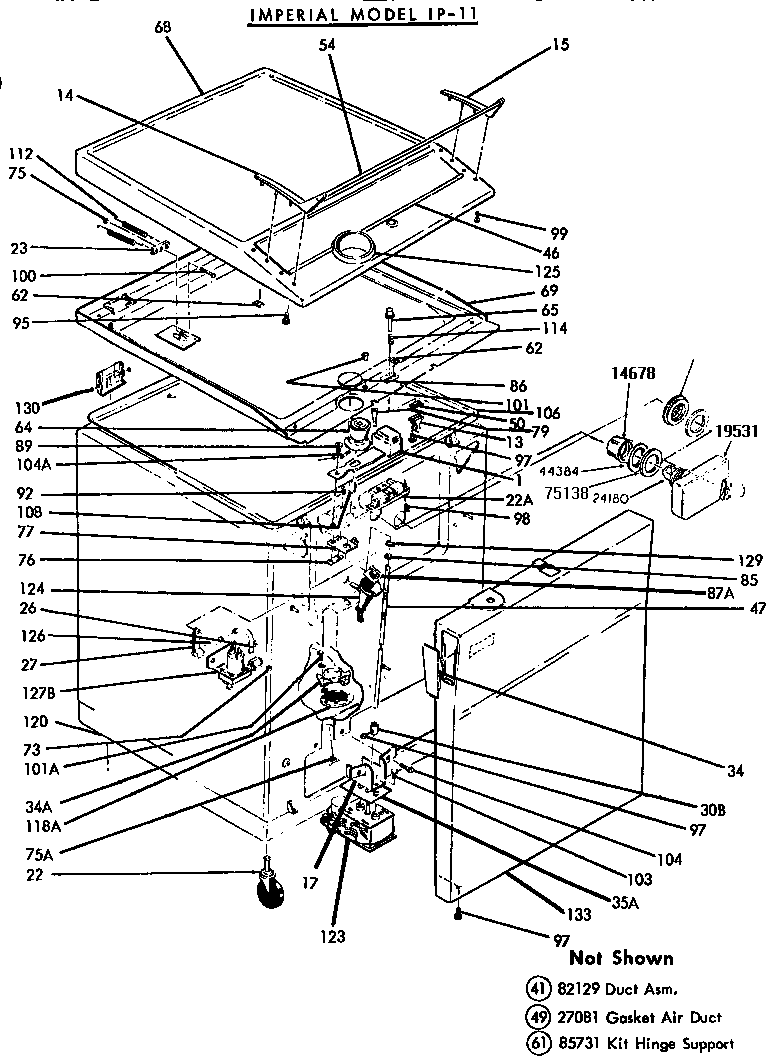

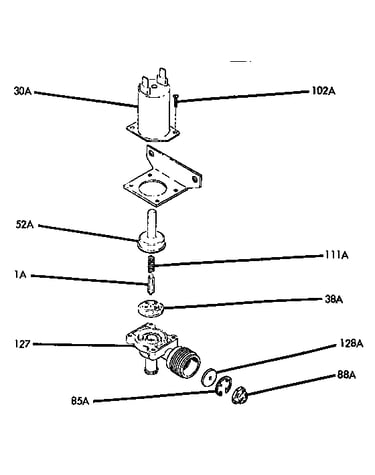

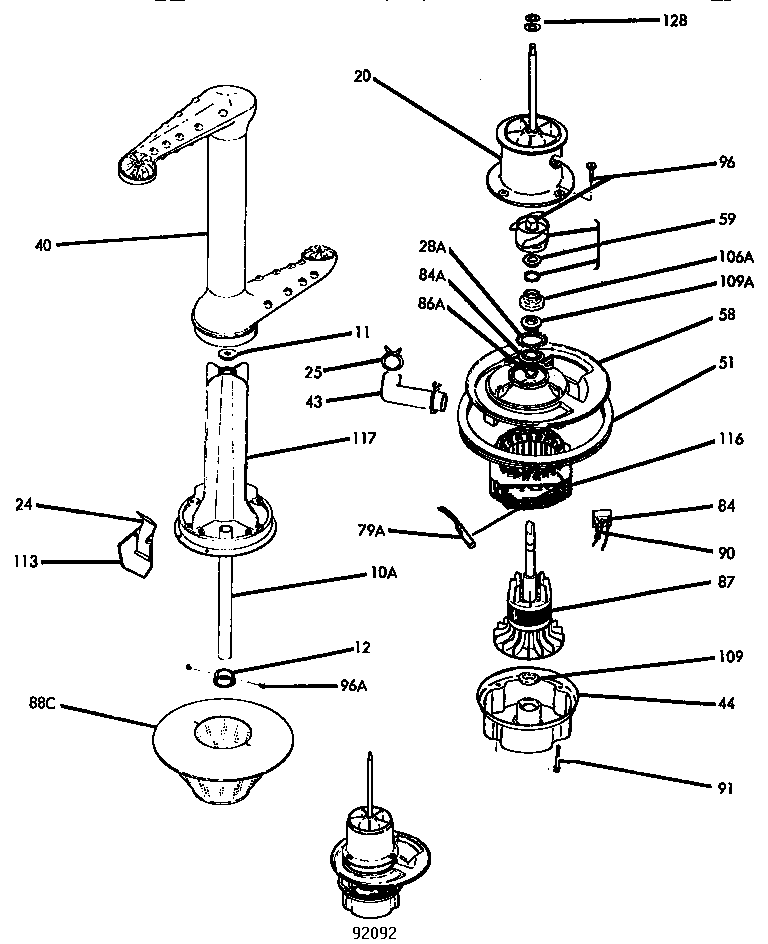

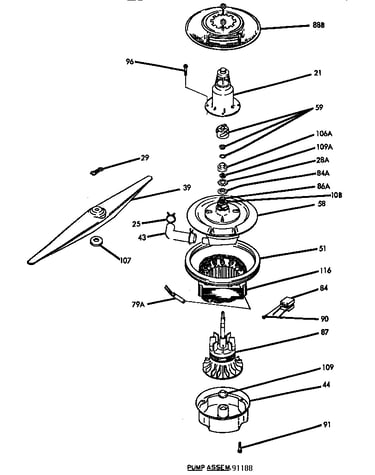

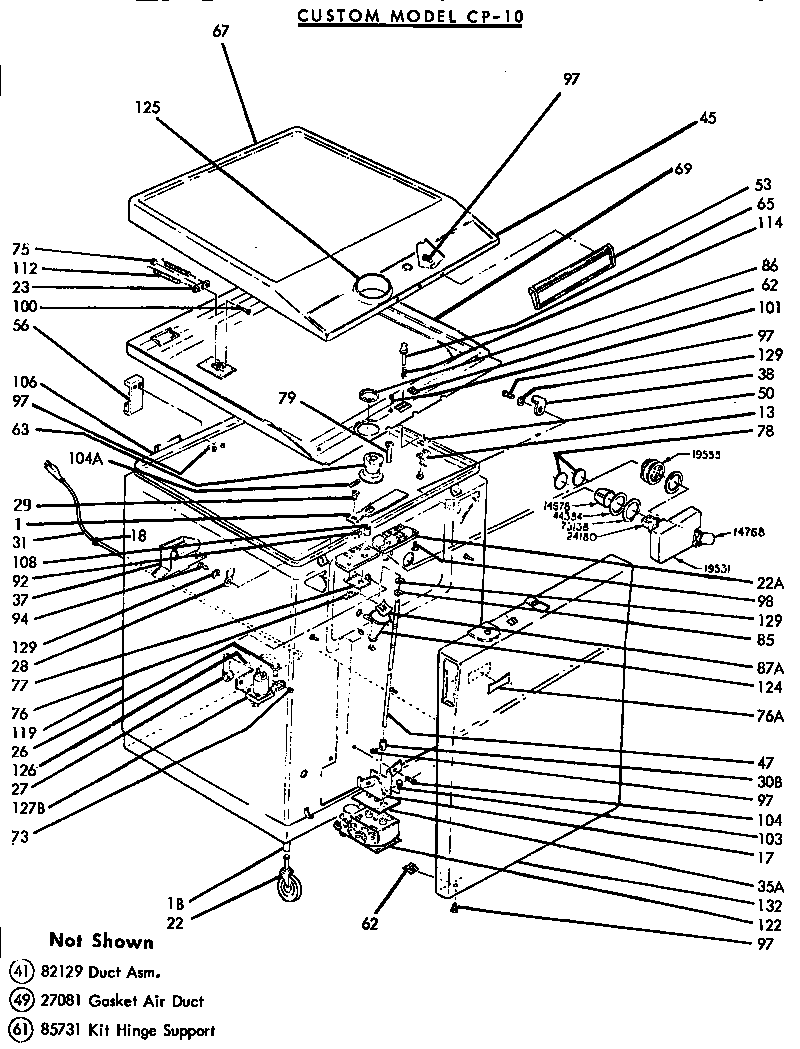

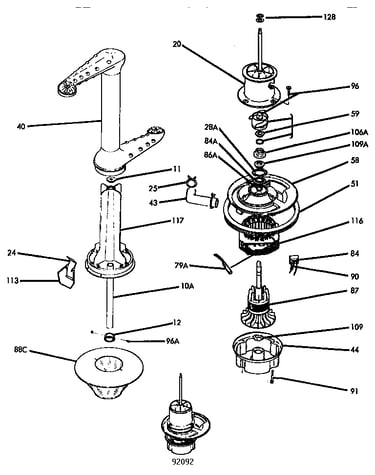

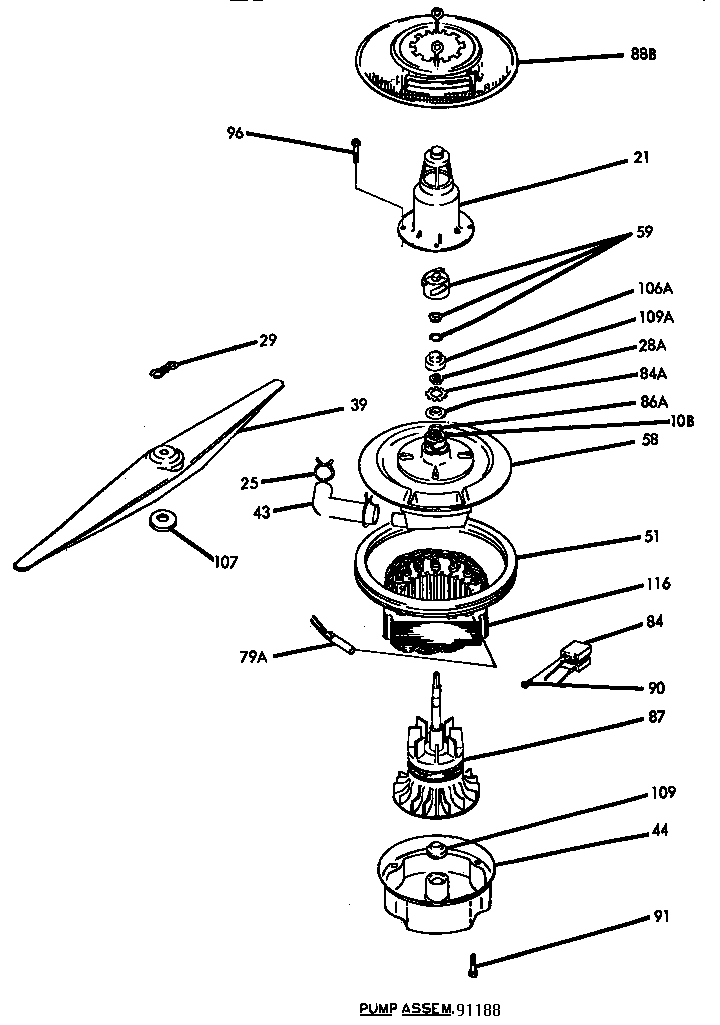

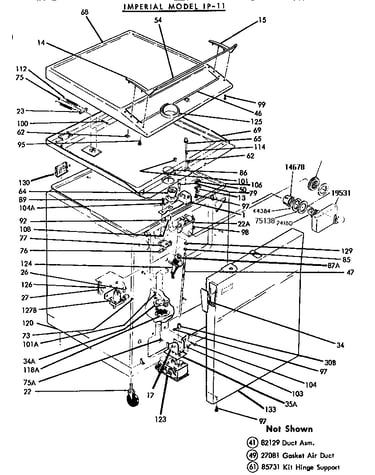

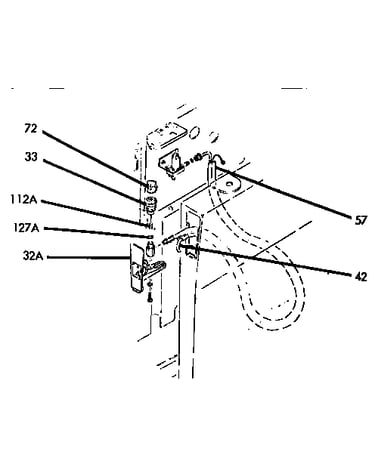

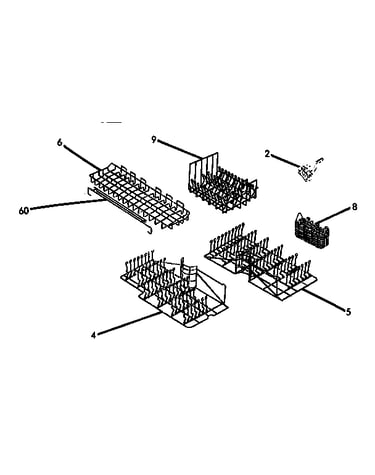

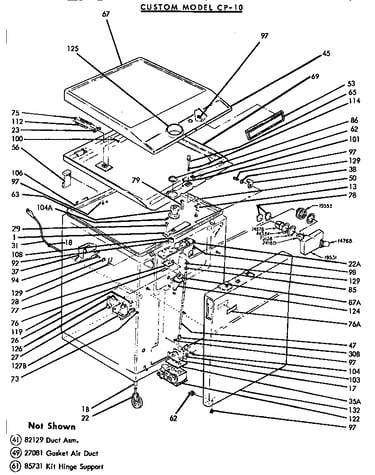

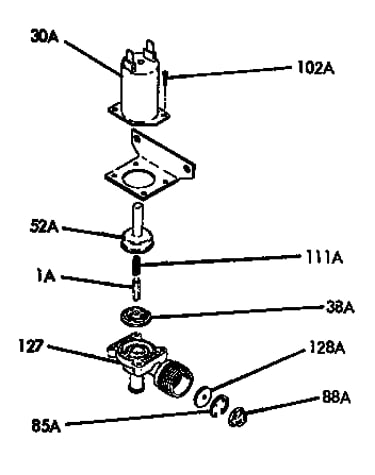

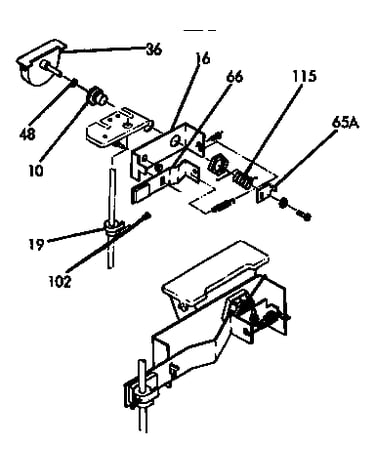

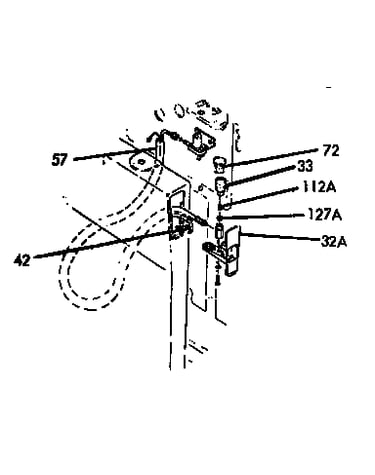

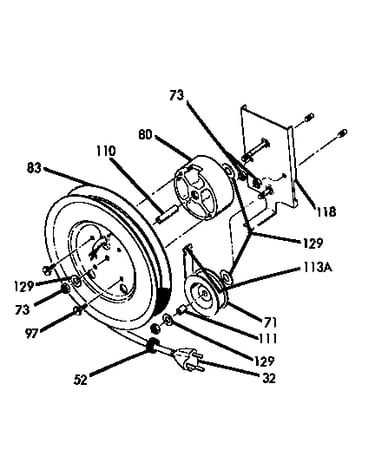

All parts diagram

Cam detergent cup

Part #14748

The manufacturer no longer makes this part, and there's no substitute part
