Frigidaire
Side-By-Side Refrigerator

Model #FRS24AGGW2 Frigidaire side-by-side refrigerator - p5995328183

Here are the diagrams and repair parts for Frigidaire FRS24AGGW2 side-by-side refrigerator - p5995328183, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 335 parts

    Hanger-snack

    #473A

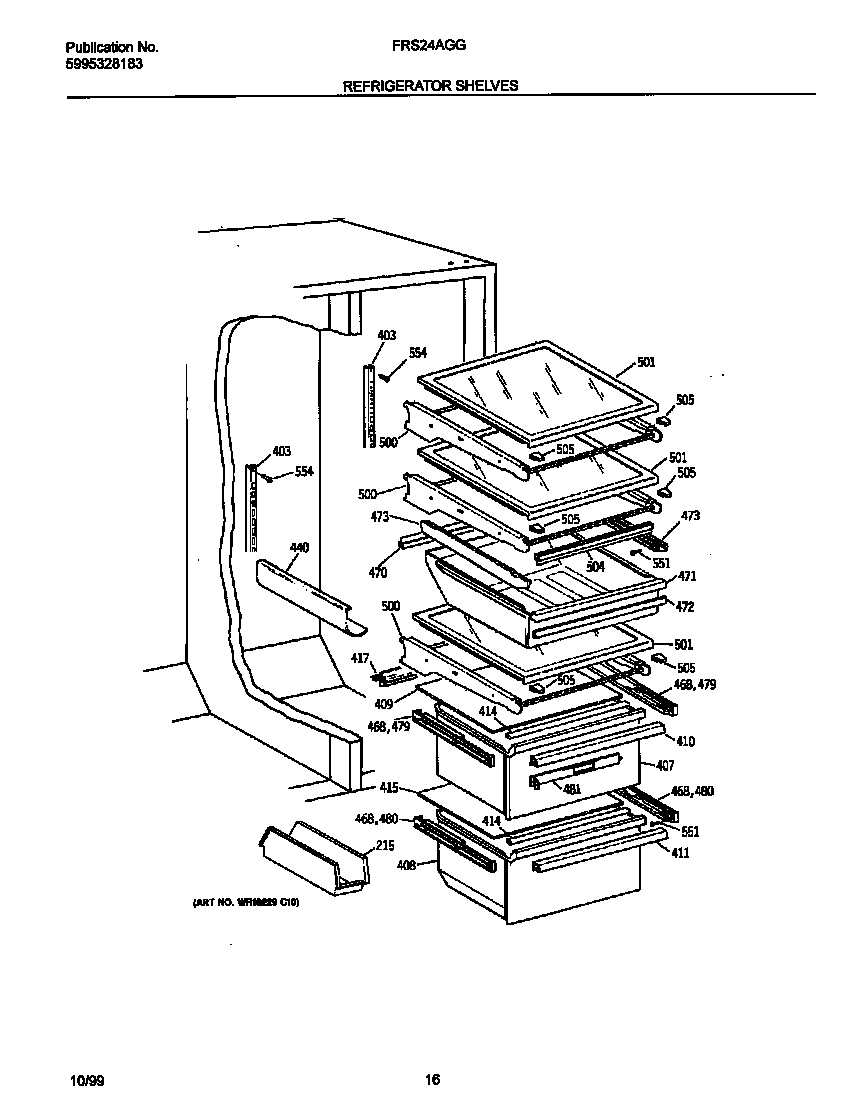

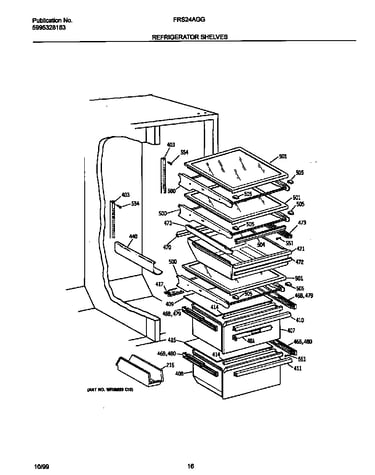

    Refr shelves Diagram

    Hanger-snack

    Part #5304406617
    $81.20

    In Stock

    Refrigerator Dispenser Spring

    #63

    Ice & water dispenser Diagram

    $22.16

    In Stock

    Refrigerator Door Handle

    #7

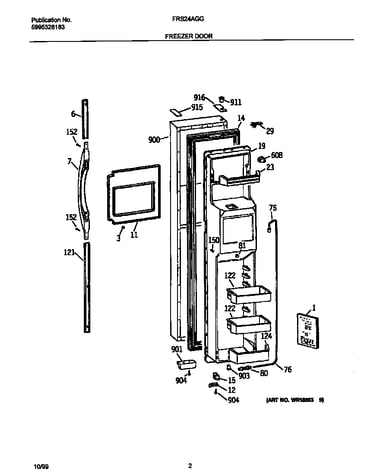

    Freezer door Diagram

    Refrigerator door handle

    Part #5304406666
    $51.99

    In Stock

    Light Grille

    #446

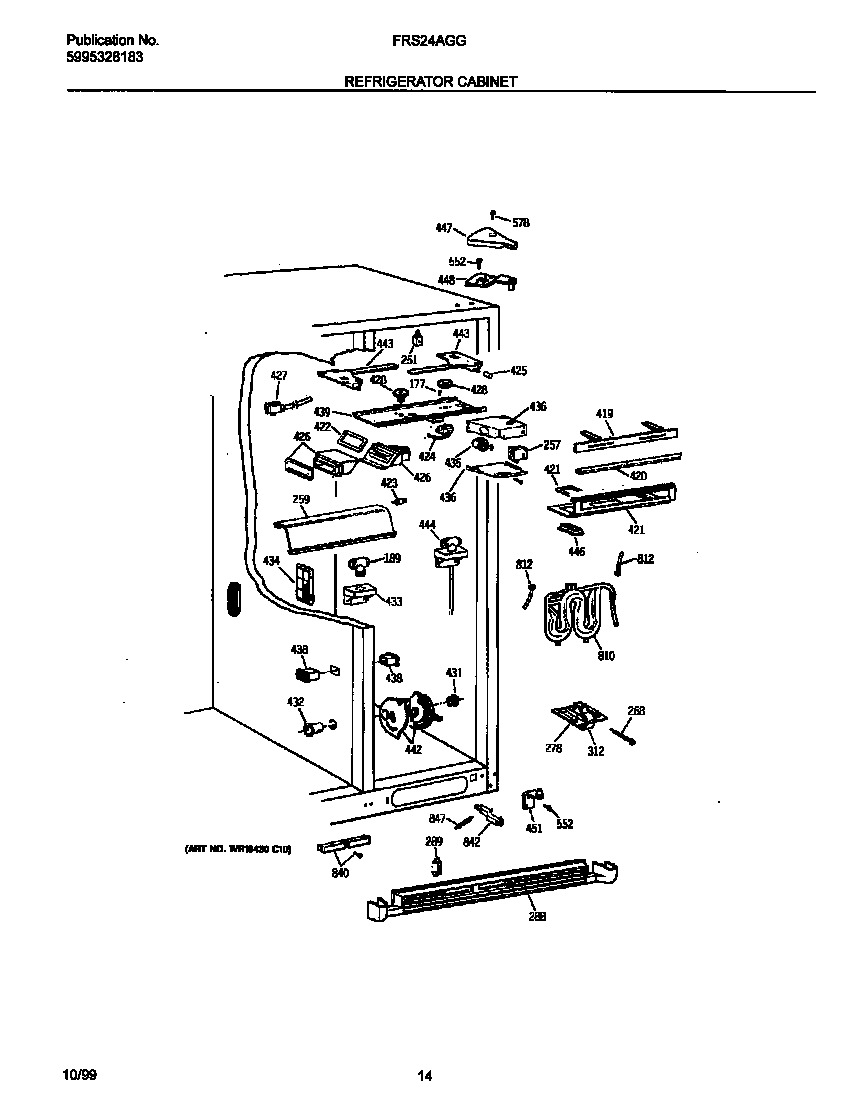

    Refr cabinet Diagram

    Light grille

    Part #5304406591
    $54.91

    In Stock

    Relay Cover

    #734

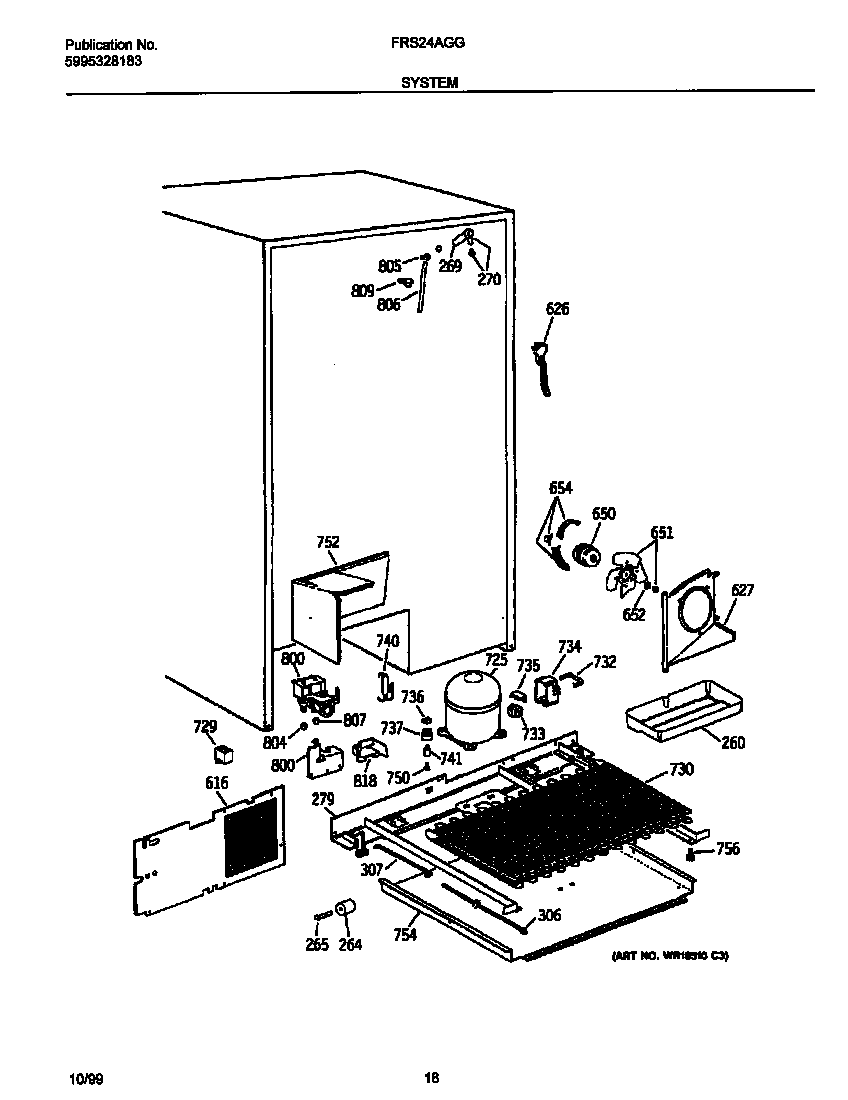

    System Diagram

    Relay cover

    Part #5304406337
    $12.56

    In Stock

    Housing Dispenser

    #32

    Ice & water dispenser Diagram

    Housing dispenser

    Part #5304406401
    $89.26

    In Stock

    Refrigerator Freezer Door Gasket (Black)

    #14

    Freezer door Diagram

    Refrigerator freezer door gasket (black)

    Part #WR24X561
    ?
    Manufacturer substitution
    This part replaces 5304406363. Substitute parts can look different from the original.
    This part replaces 5304406363
    $219.02

    In Stock

    Compr-r134a

    #725

    System Diagram

    Compr-r134a

    Part #5303917933
    ?
    Manufacturer substitution
    This part replaces 5304406657. Substitute parts can look different from the original.
    This part replaces 5304406657
    $450.37

    In Stock

    Refrigerator Motor Screw

    #367

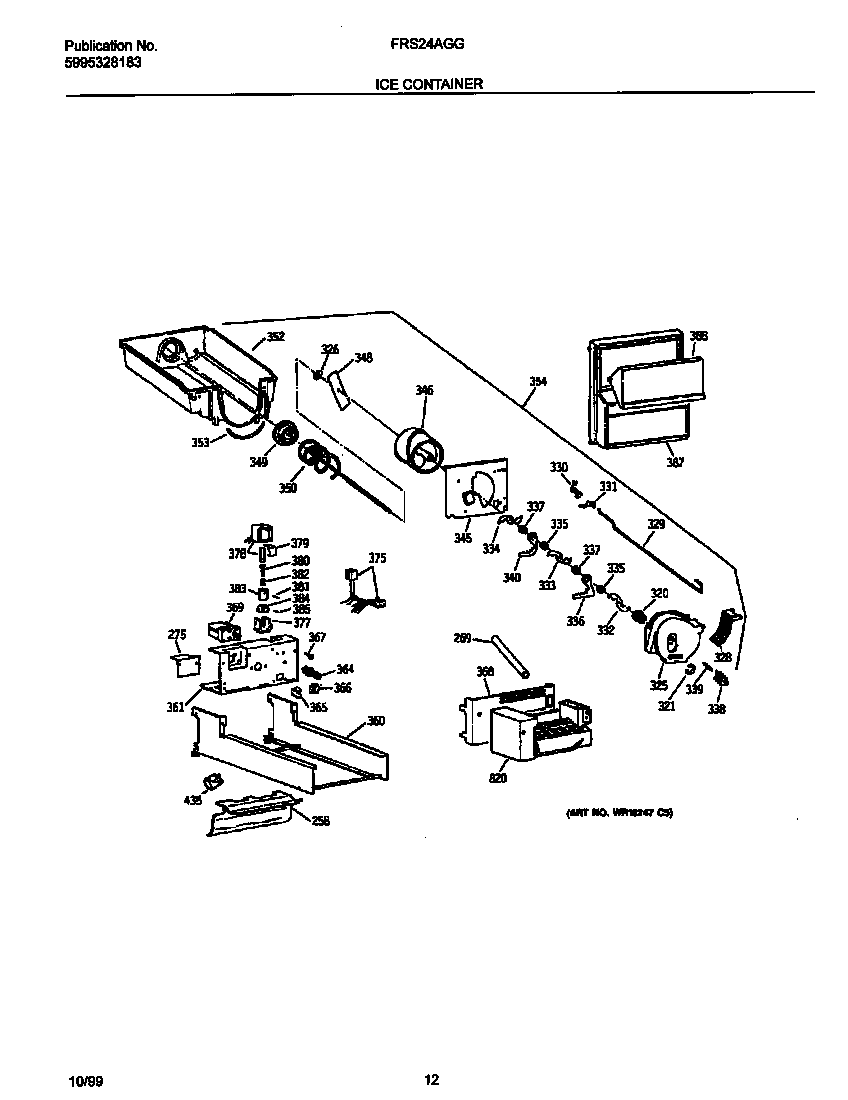

    Ice container Diagram

    Refrigerator motor screw

    Part #5304406534

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Light Socket

    #435A

    Refr cabinet Diagram

    Refrigerator light socket

    Part #5304406550

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
