Amana LW9103W/P1122812WW heavy-duty washer Parts
Here are the diagrams and repair parts for Amana LW9103W/P1122812WW heavy-duty washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forLW9103W/P1122812WW Heavy-Duty Washer

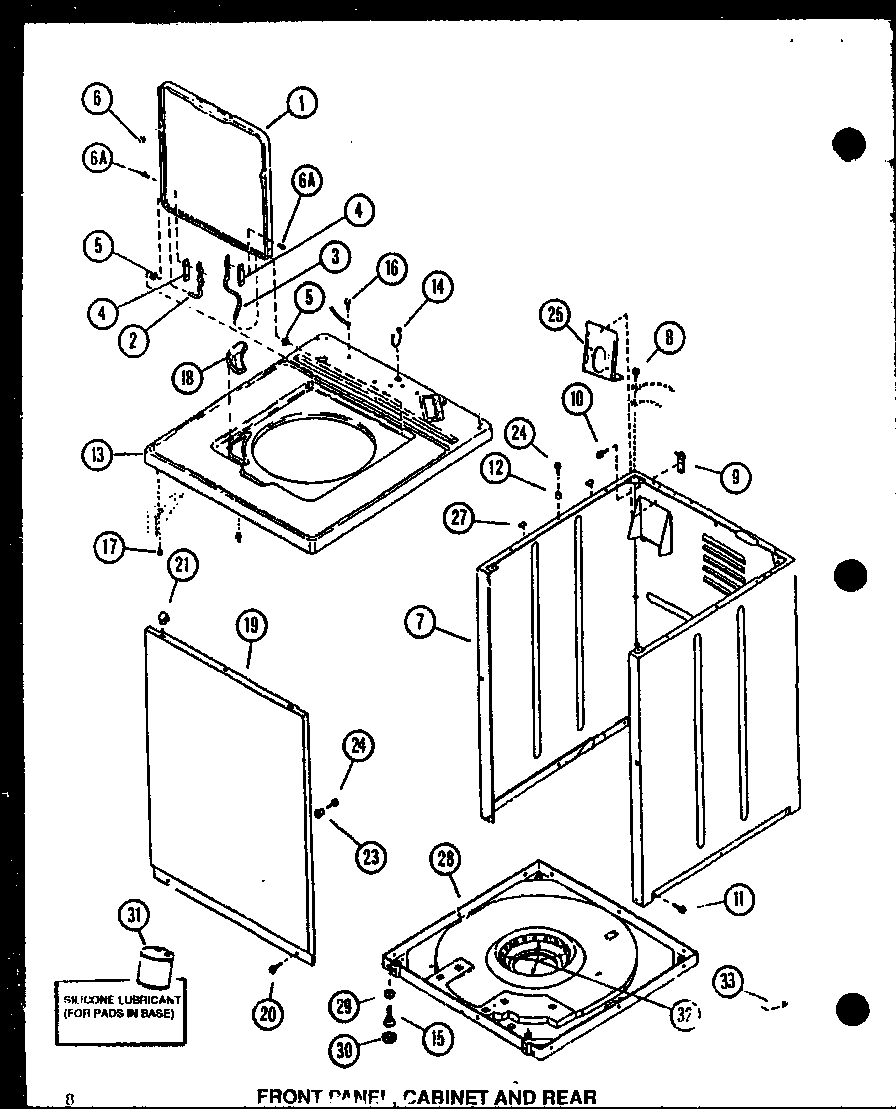

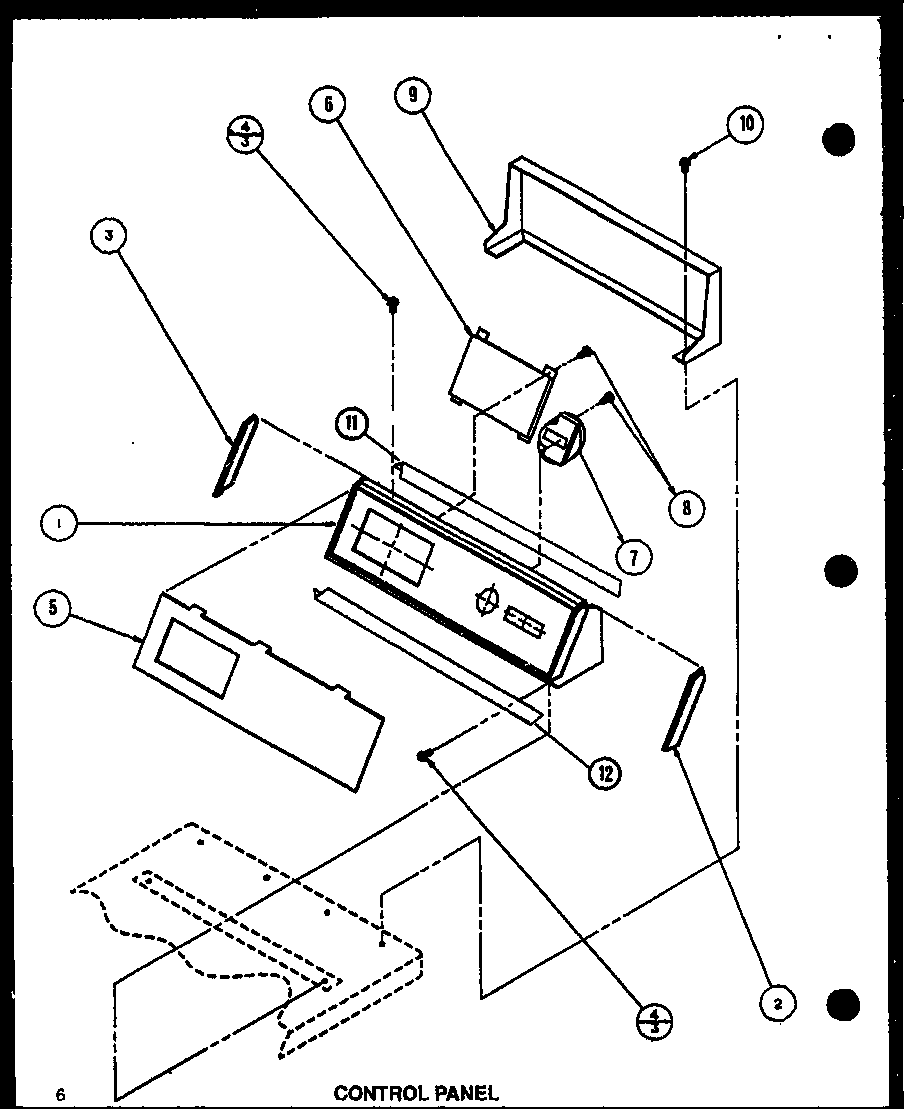

Front panel (lw3903w/p1122407ww) (lw3903l/p1122408wl) (lw3603w/p1122405ww) (lw3603l/p1122406wl) (lw9103w/p1122812ww) diagram
Clip
Part #28835Replaced by #WP22001650
Manufacturer substitutionThis part replaces 28835. Substitute parts can look different from the original.This item is not returnableIn Stock$7.4812% OFF Phone Price : $8.48
Qty

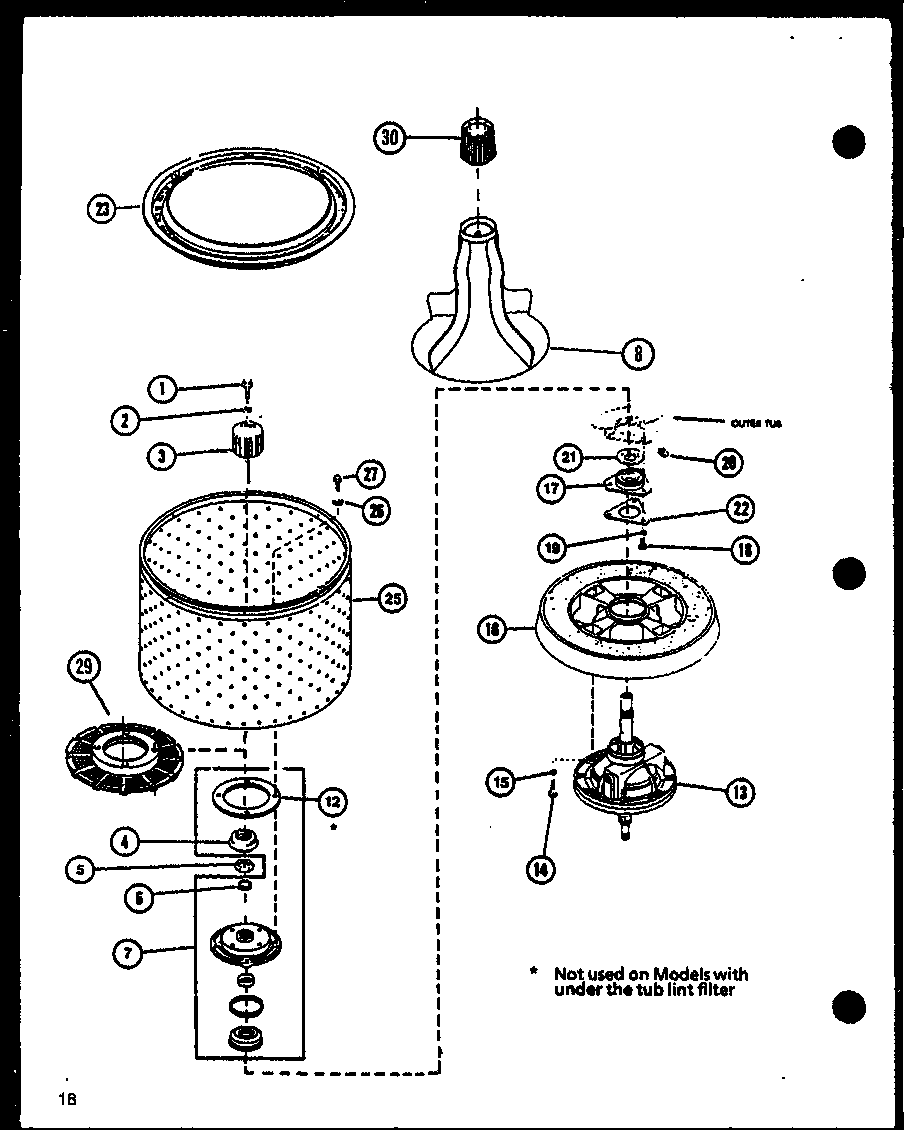

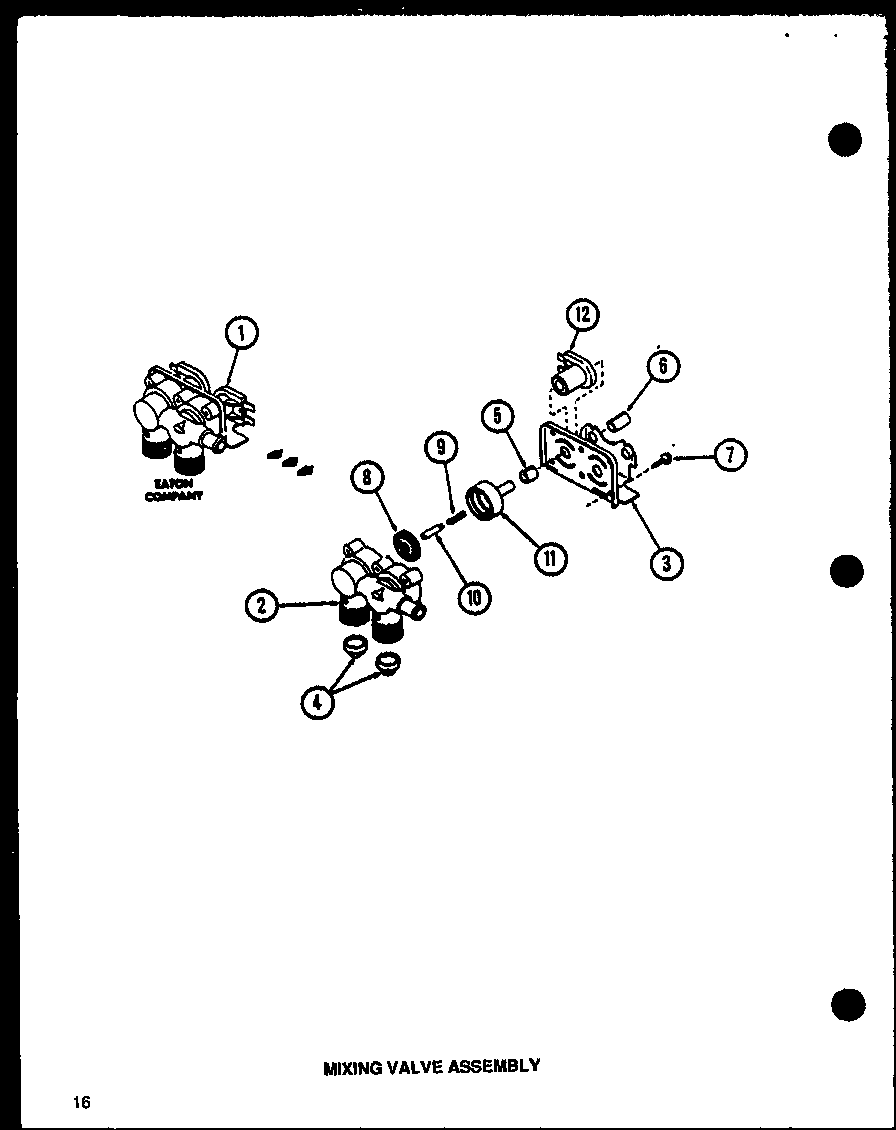

(lw3903/p1110506w) (lw3603/p1110504w) (lw9103/p1110503w) diagram
Nut
Part #27222Replaced by #27222
Manufacturer substitutionThis part replaces 27222. Substitute parts can look different from the original.In Stock$32.12QtyScrew
Part #31645Replaced by #WP27001200
Manufacturer substitutionThis part replaces 31645. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91Qty(lw3903w/p1122407ww) (lw3903l/p1122408wl) (lw3603w/p1122405ww) (lw3603l/p1122406wl) (lw9103w/p1122812ww) diagram
Screw
Part #30016
The manufacturer no longer makes this part, and there's no substitute part
Front panel (lw3903w/p1122407ww) (lw3903l/p1122408wl) (lw3603w/p1122405ww) (lw3603l/p1122406wl) (lw9103w/p1122812ww) diagram
Dispenser
Part #33516
The manufacturer no longer makes this part, and there's no substitute part

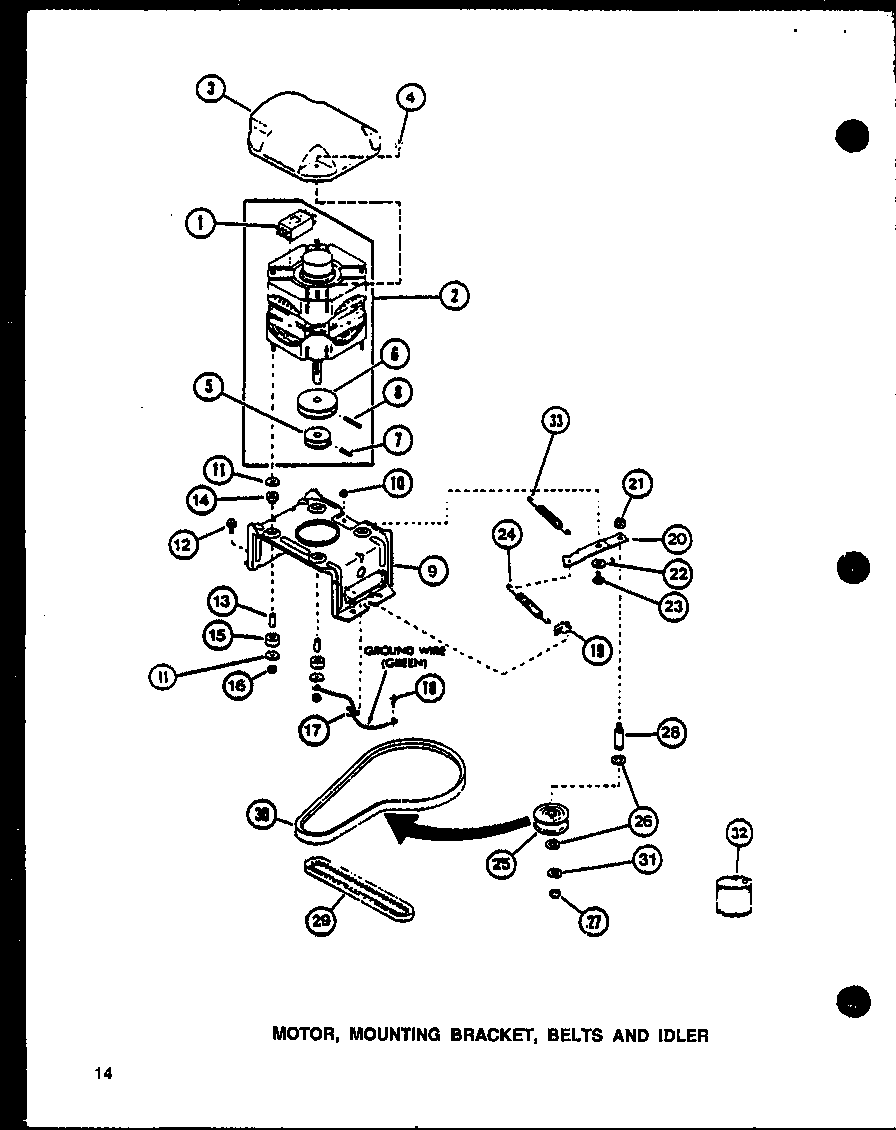

Motor (lw3903w/p1122407ww) (lw3903l/p1122408wl) (lw3603w/p1122405ww) (lw3603l/p1122406wl) (lw9103w/p1122812ww) diagram
Screw
Part #26592
The manufacturer no longer makes this part, and there's no substitute part

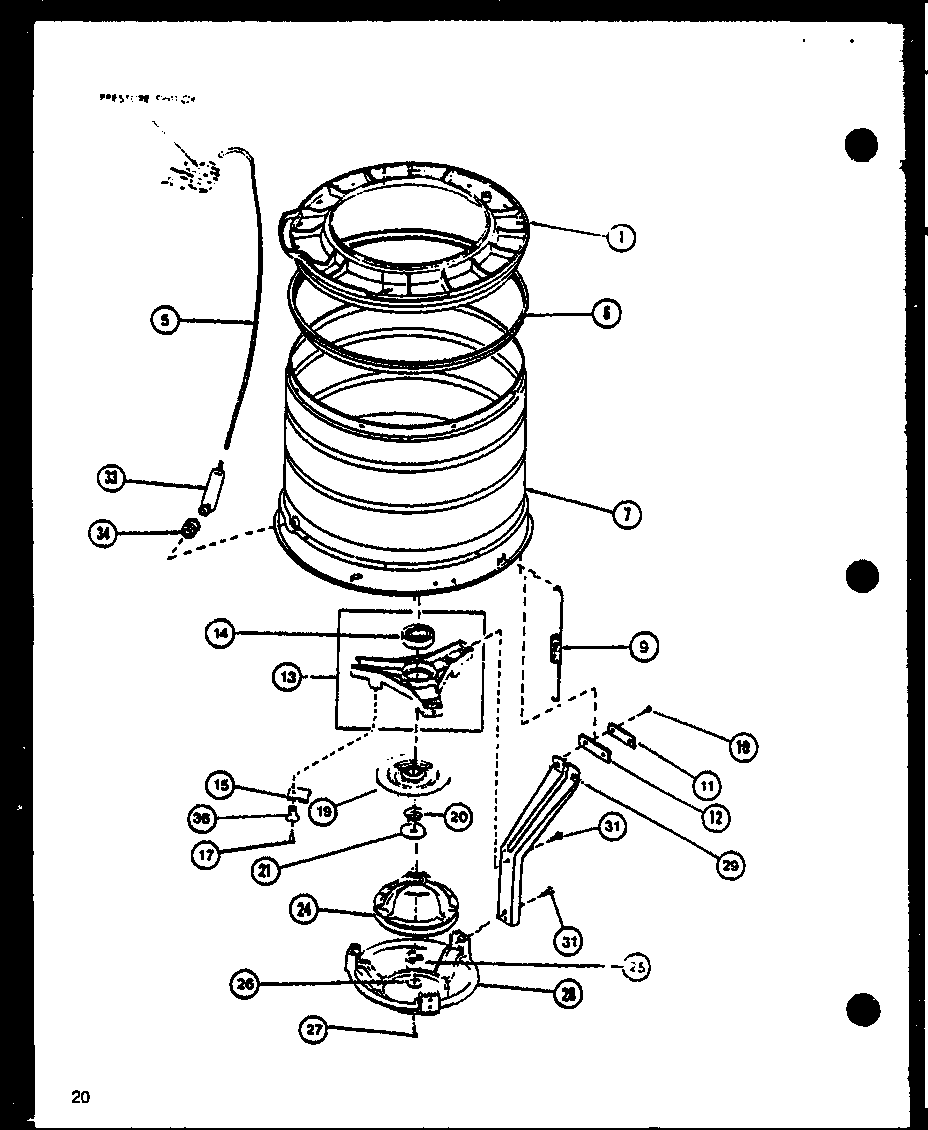

(lw3903/p1110506w) (lw3603/p1110504w) (lw9103/p1110503w) diagram
Gasket
Part #28094
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Removal Tool
Part #254P4P
The manufacturer no longer makes this part, and there's no substitute part
Inlet hose (lw3903w/p1122407ww) (lw3903l/p1122408wl) (lw3603w/p1122405ww) (lw3603l/p1122406wl) (lw9103w/p1122812ww) diagram
Hose
Part #27183
The manufacturer no longer makes this part, and there's no substitute part
(lw3903w/p1122407ww) (lw3903l/p1122408wl) (lw3603w/p1122405ww) (lw3603l/p1122406wl) (lw9103w/p1122812ww) diagram
Leg
Part #27090
The manufacturer no longer makes this part, and there's no substitute part
