Maytag CHE9800ACB electric freestanding range Parts
Here are the diagrams and repair parts for Maytag CHE9800ACB electric freestanding range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for CHE9800ACB Ranges

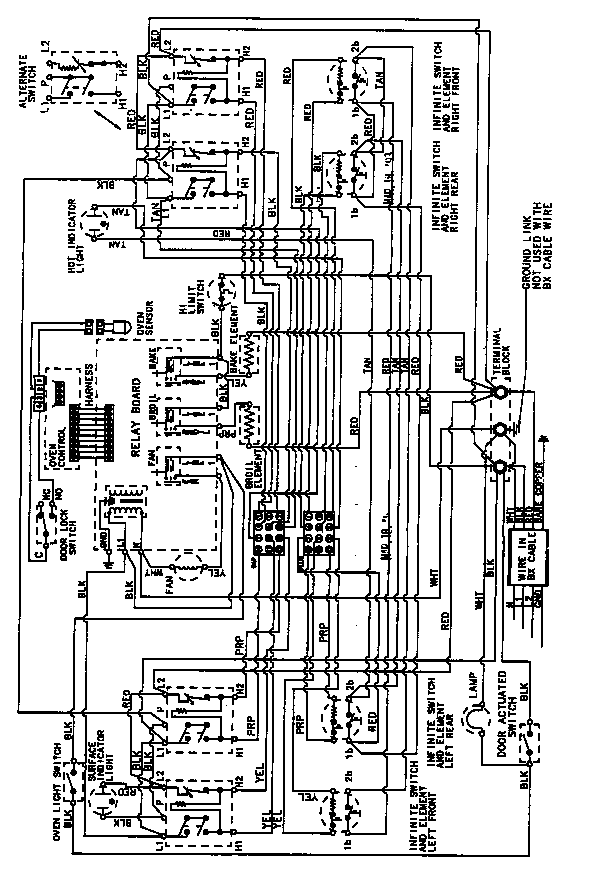

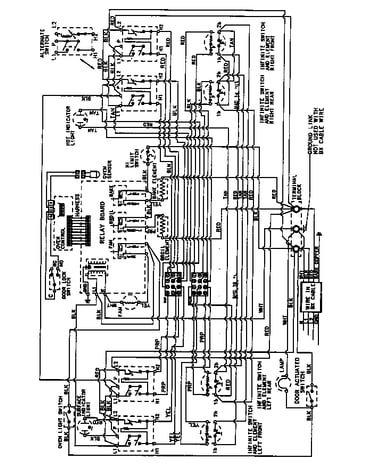

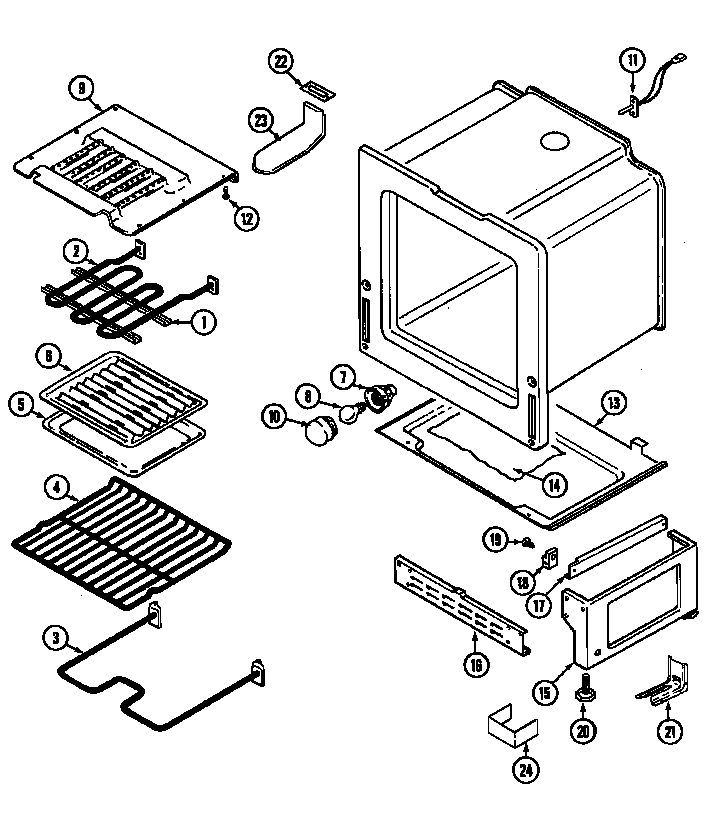

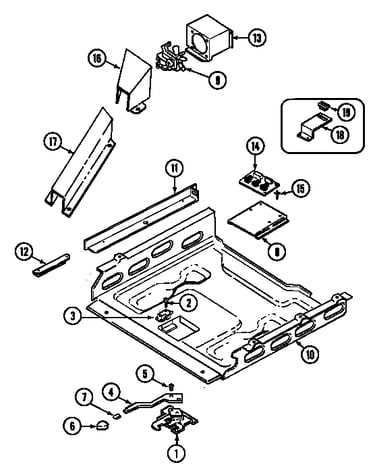

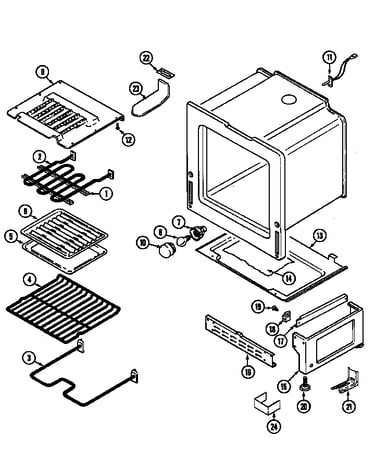

Oven/base diagram
Oven Sensor
Part #7430P010-60Replaced by #12001656
Manufacturer substitutionThis part replaces 7430P010-60. Substitute parts can look different from the original.In Stock$22.6421% OFF Phone Price : $28.64
Qty
Range Surface Element Control Switch
Part #7403P238-60Replaced by #WP7403P238-60
Manufacturer substitutionThis part replaces 7403P238-60. Substitute parts can look different from the original.In Stock$55.3010% OFF Phone Price : $61.30QtyOven/base diagram
Bake Element
Part #04000058Replaced by #WP74003019
Manufacturer substitutionThis part replaces 04000058. Substitute parts can look different from the original.In Stock$49.7311% OFF Phone Price : $55.73QtyScraper, Raz
Part #8312P001-60Replaced by #WA906B

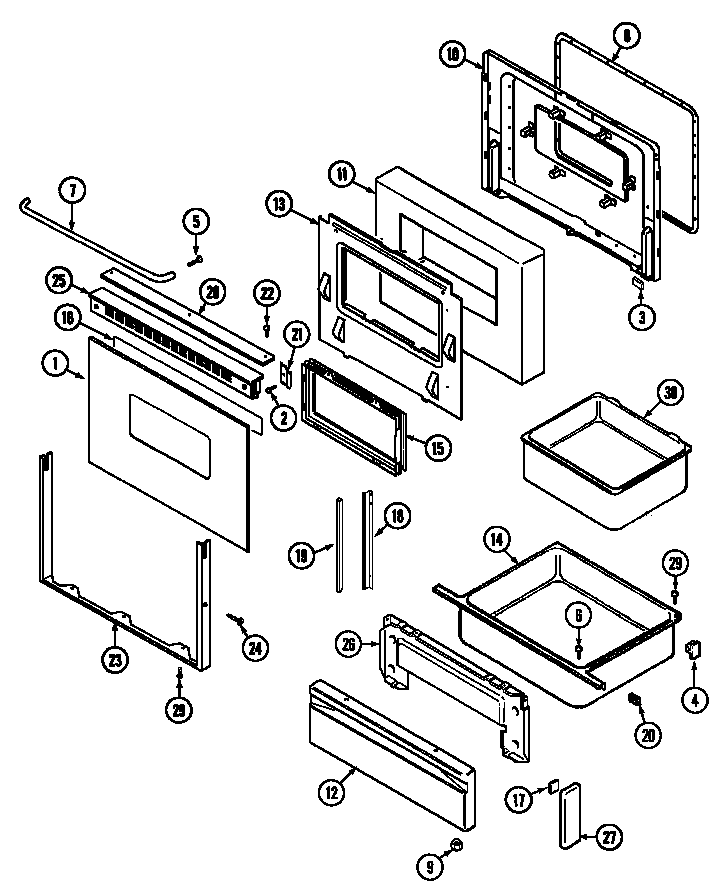

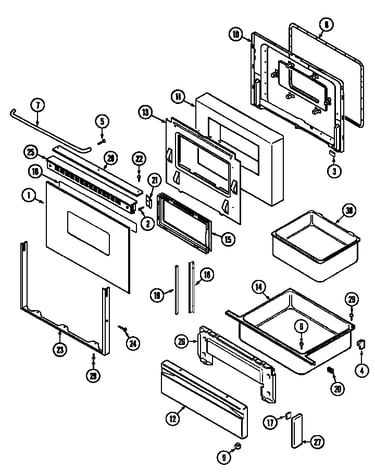

Manufacturer substitutionThis part replaces 8312P001-60. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic ReorderIn Stock$7.41QtyDoor/drawer diagram
Door Gasket
Part #7201P046-60Replaced by #WPW10162384
Manufacturer substitutionThis part replaces 7201P046-60. Substitute parts can look different from the original.In Stock$84.057% OFF Phone Price : $90.05QtyBracket Screw
Part #7101P040-60Replaced by #WP98008545
Manufacturer substitutionThis part replaces 7101P040-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.4715% OFF Phone Price : $6.47QtyOven/base diagram
Oven Rack
Part #74001757Replaced by #WPW10282492

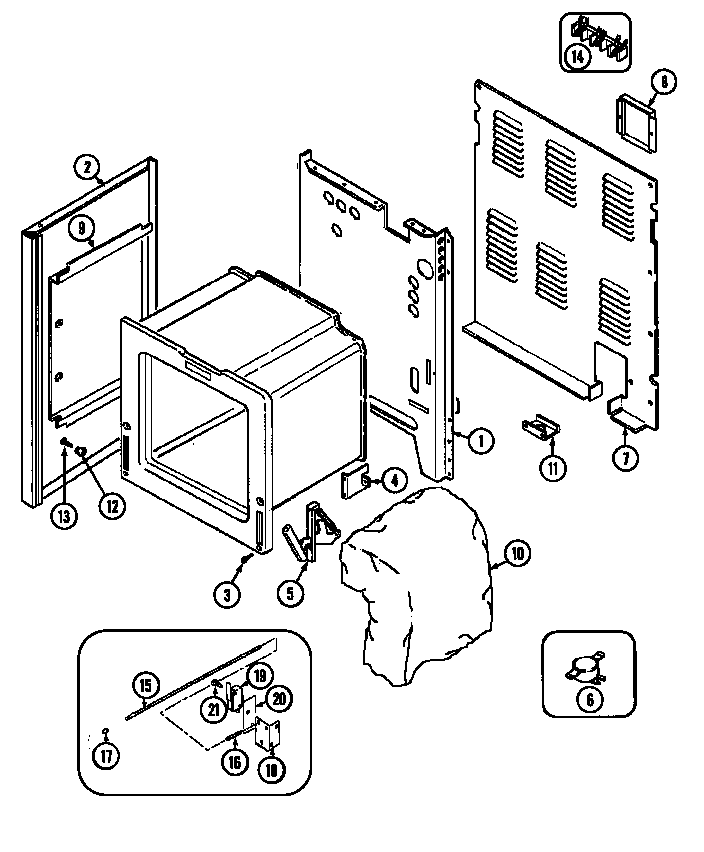

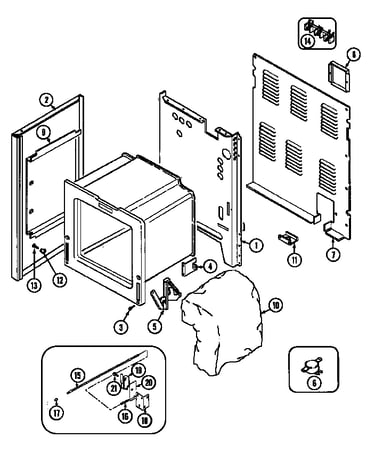

Manufacturer substitutionThis part replaces 74001757. Substitute parts can look different from the original.In Stock$67.328% OFF Phone Price : $73.32QtyBody diagram
Screw
Part #74001530Replaced by #W11233072
Manufacturer substitutionThis part replaces 74001530. Substitute parts can look different from the original.In Stock$17.63QtyScrew
Part #7101P290-60Replaced by #W11233072

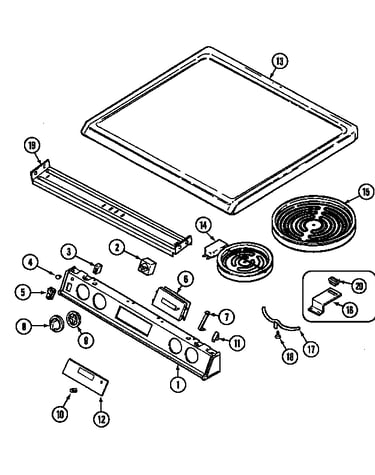

Manufacturer substitutionThis part replaces 7101P290-60. Substitute parts can look different from the original.In Stock$17.63QtyTop assy. (blk) (che9800acb) diagram
Clock Knob
Part #7711P486-60Replaced by #WP7711P492-60
Manufacturer substitutionThis part replaces 7711P486-60. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3812% OFF Phone Price : $17.38Qty
