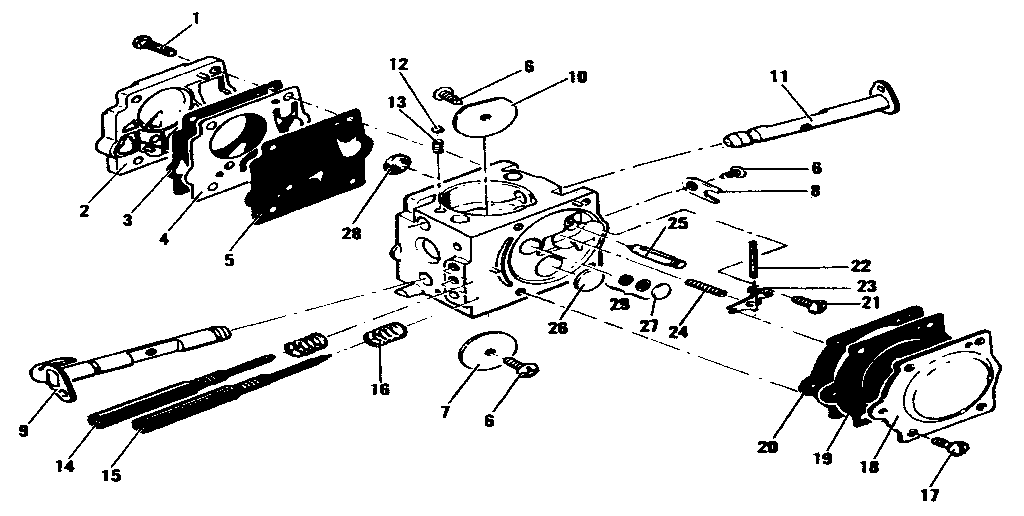

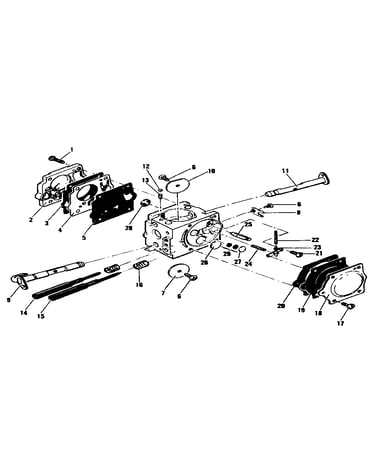

Model #PRO MAC 4300 MODEL 600116-05 McCulloch chainsaw

Here are the diagrams and repair parts for McCulloch PRO-MAC-4300-MODEL-600116-05 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 212 parts

    Spark Plug

    #77

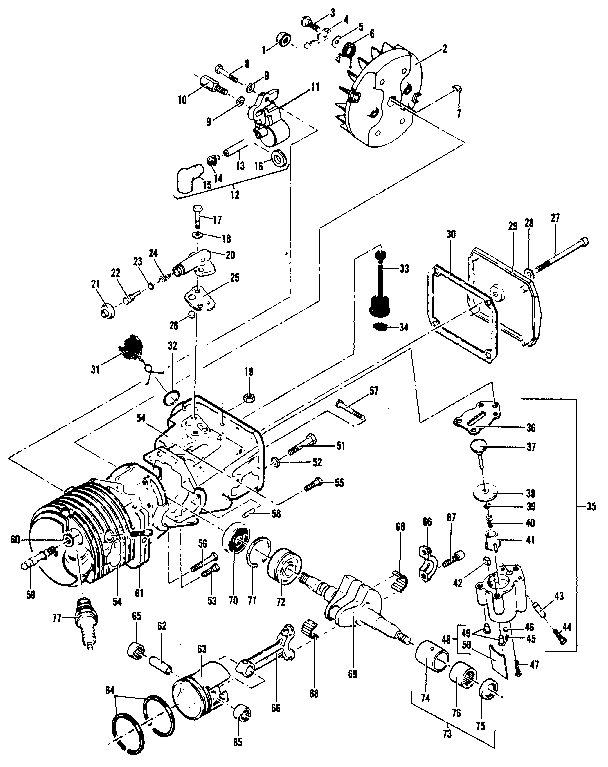

    Figure 6 powerhead assembly Diagram

    Spark plug

    Part #62345

    The manufacturer no longer makes this part, and there's no substitute part

    Ring-"o"

    #21

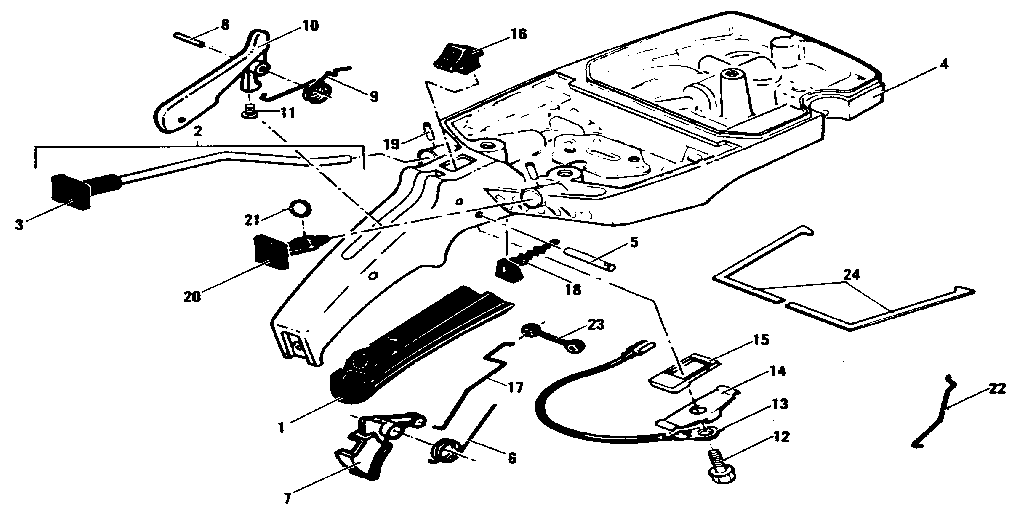

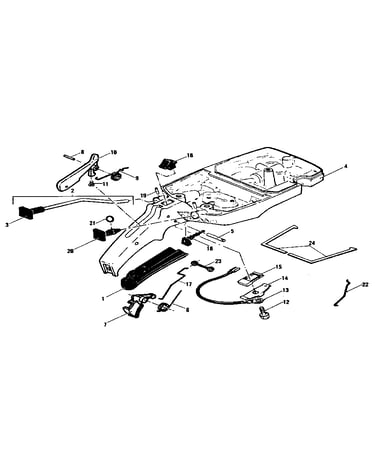

    Fuel tank assembly figure 5 Diagram

    Ring-"o"

    Part #105614

    The manufacturer no longer makes this part, and there's no substitute part

    Woodruff Key

    #7

    Figure 6 powerhead assembly Diagram

    Woodruff key

    Part #100106

    The manufacturer no longer makes this part, and there's no substitute part

    Retaining Co

    #NI

    All parts Diagram

    Retaining co

    Part #322236

    The manufacturer no longer makes this part, and there's no substitute part

    Bar Assembly

    #3

    Figure 1 general assembly Diagram

    Bar assembly

    Part #FIG9

    The manufacturer no longer makes this part, and there's no substitute part

    Pivot Latch

    #7

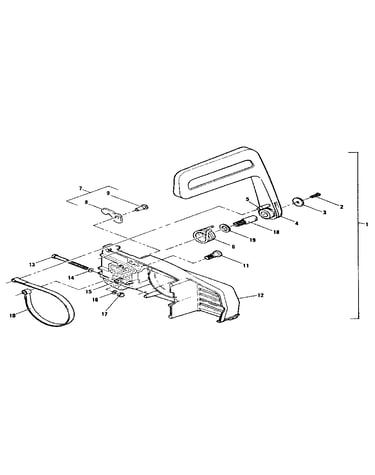

    Figure 2 chain brake assembly Diagram

    Pivot latch

    Part #222478

    The manufacturer no longer makes this part, and there's no substitute part

    Reed Stop

    #72

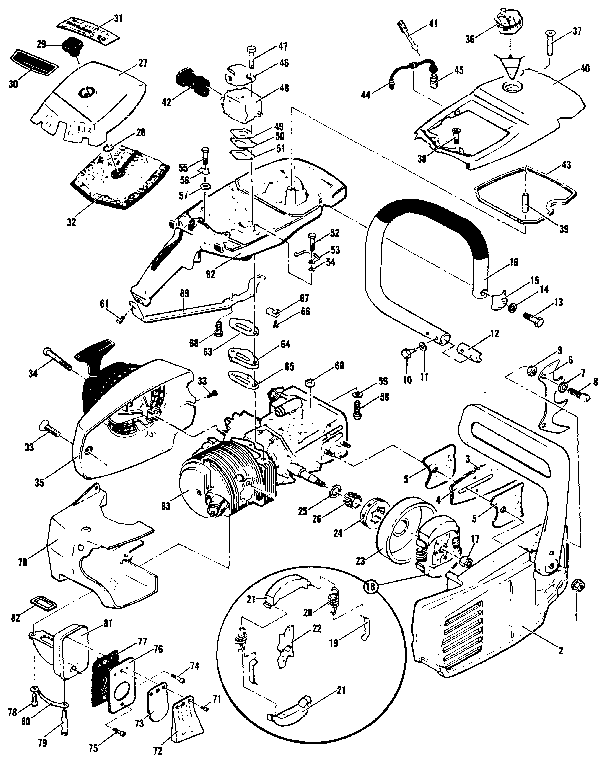

    Figure 1 general assembly Diagram

    Reed stop

    Part #92996-01

    The manufacturer no longer makes this part, and there's no substitute part

    Starter Handle

    #15

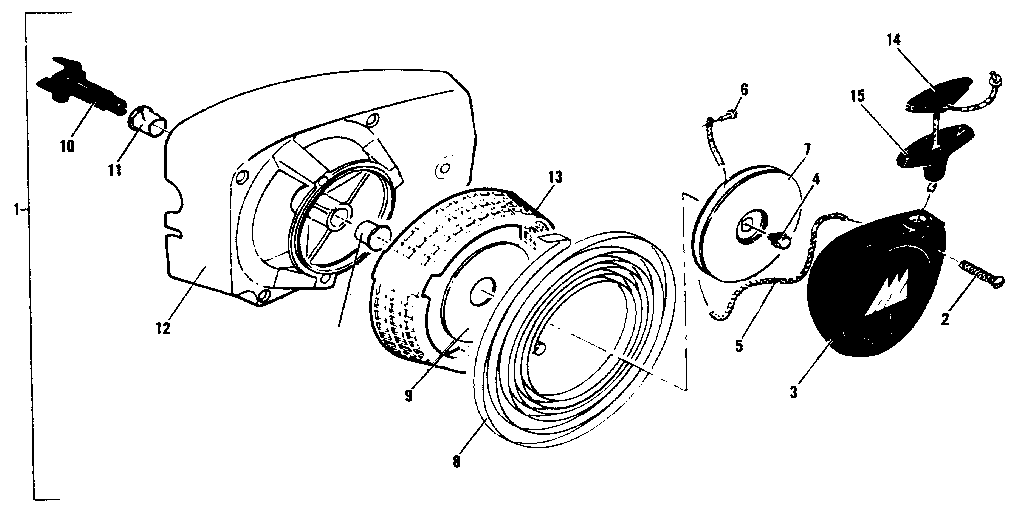

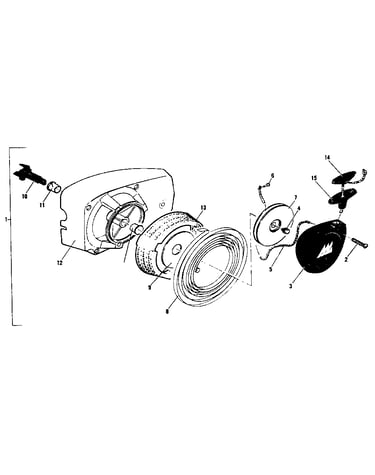

    Fan housing/starter assembly figure 3 Diagram

    Starter handle

    Part #93137

    The manufacturer no longer makes this part, and there's no substitute part

    Release

    #10

    Fuel tank assembly figure 5 Diagram

    Release

    Part #94275

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #18

    Figure 6 powerhead assembly Diagram

    Washer

    Part #110613

    The manufacturer no longer makes this part, and there's no substitute part
