Model # GX-8250 Official Brother electronic typewriter

Here are the diagrams and repair parts for Official Brother GX-8250 electronic typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

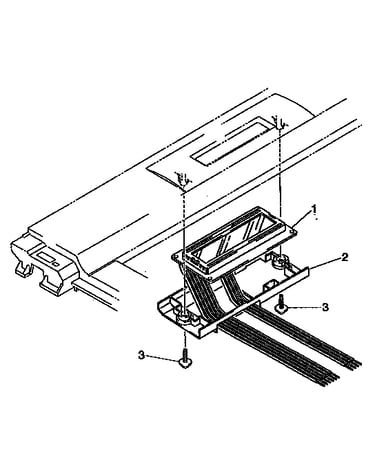

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Pcb UC5445002
#1-40

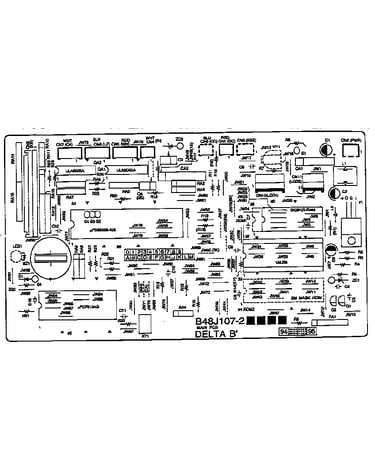

Solder diagram

Pcb

Part #UC5445002

The manufacturer no longer makes this part, and there's no substitute part

Screw 085411615
#4

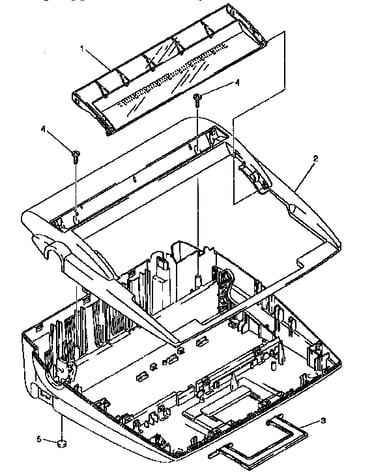

Covers diagram

Screw

Part #085411615

The manufacturer no longer makes this part, and there's no substitute part

Fpc Abx UC4940000
#14

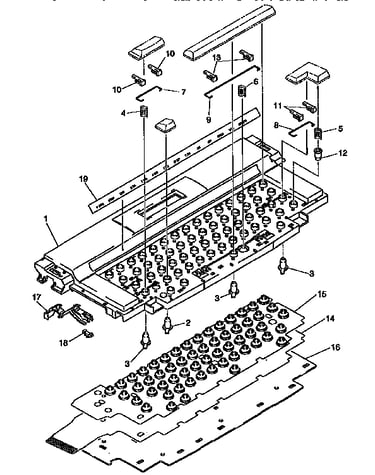

Keyboard mechanism diagram

Fpc abx

Part #UC4940000

The manufacturer no longer makes this part, and there's no substitute part

Label UC5498001
#2

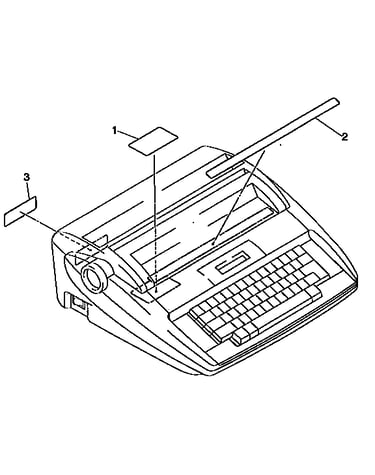

Labels diagram

Label

Part #UC5498001

The manufacturer no longer makes this part, and there's no substitute part

Key 583264077
#21

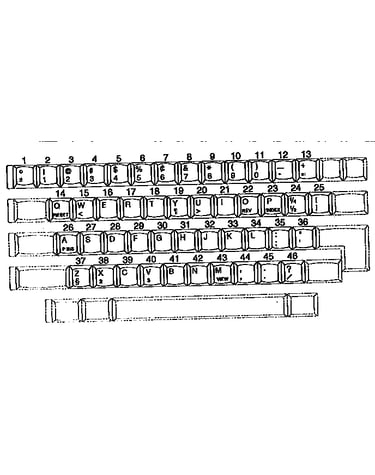

Character keys usa (english) diagram

Key

Part #583264077

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 591010761
#1

Printed matters diagram

Owner's manual

Part #591010761

The manufacturer no longer makes this part, and there's no substitute part

Key 583562077
#4

Character keys usa (english) diagram

Key

Part #583562077

The manufacturer no longer makes this part, and there's no substitute part

F Key Assebmly B+, Prestige Usa.english UC5297119
#1-12

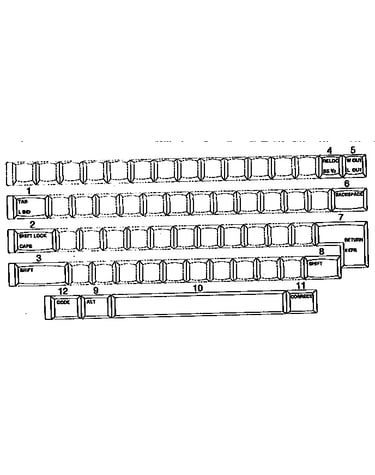

Functions keys, usa (english) (prestige) diagram

F key assebmly b+, prestige usa.english

Part #UC5297119

The manufacturer no longer makes this part, and there's no substitute part

Key 583292077
#41

Character keys usa (english) diagram

Key

Part #583292077

The manufacturer no longer makes this part, and there's no substitute part

Space Key UA0302077
#10

Functions keys, usa (english) (prestige) diagram

Space key

Part #UA0302077

The manufacturer no longer makes this part, and there's no substitute part
