GE JGBC17PEA1WH gas range Parts

Here are the diagrams and repair parts for GE JGBC17PEA1WH gas range, as well as links to manuals and error code tables, if available.

GE JGBC17PEA1WH gas range
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JGBC17PEA1WH Ranges

  • Range Door Bumper for GE JGBC17PEA1WH - Part WB2K15

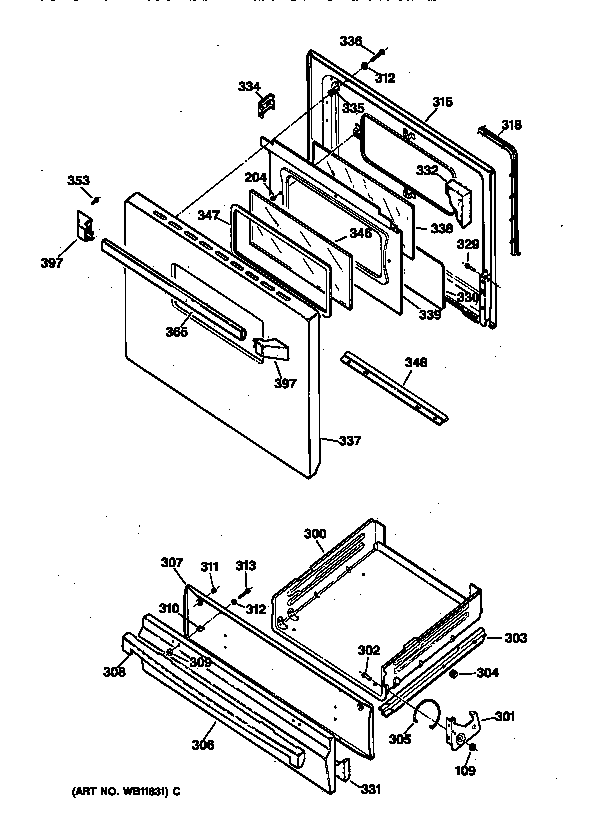

    Door & drawer parts diagram

    Bumper

    Part #WB02K0015

    Replaced by #WB2K15

    Info Icon
    Manufacturer substitution
    This part replaces WB02K0015. Substitute parts can look different from the original.
    In Stock
    $10.90
    16% OFF Phone Price : $12.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Lp Conversion Kit for GE JGBC17PEA1WH - Part WB28K10564

    Gas & burner parts diagram

    Conversion Kit

    Part #WB28K10042

    Replaced by #WB28K10564

    Info Icon
    Manufacturer substitution
    This part replaces WB28K10042. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $17.73
    10% OFF Phone Price : $19.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw, 12-pack for GE JGBC17PEA1WH - Part WB1X5731D

    Door & drawer parts diagram

    Screw

    Part #WB01K0031

    Replaced by #WB1X5731D

    Info Icon
    Manufacturer substitution
    This part replaces WB01K0031. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $34.08
    15% OFF Phone Price : $40.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve for GE JGBC17PEA1WH - Part WB21K39

    Gas & burner parts diagram

    Valve Top Bu

    Part #WB21K0039

    Replaced by #WB21K39

    Info Icon
    Manufacturer substitution
    This part replaces WB21K0039. Substitute parts can look different from the original.
    In Stock
    $86.98
    6% OFF Phone Price : $92.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Ven Brace for GE JGBC17PEA1WH - Part WB38K2

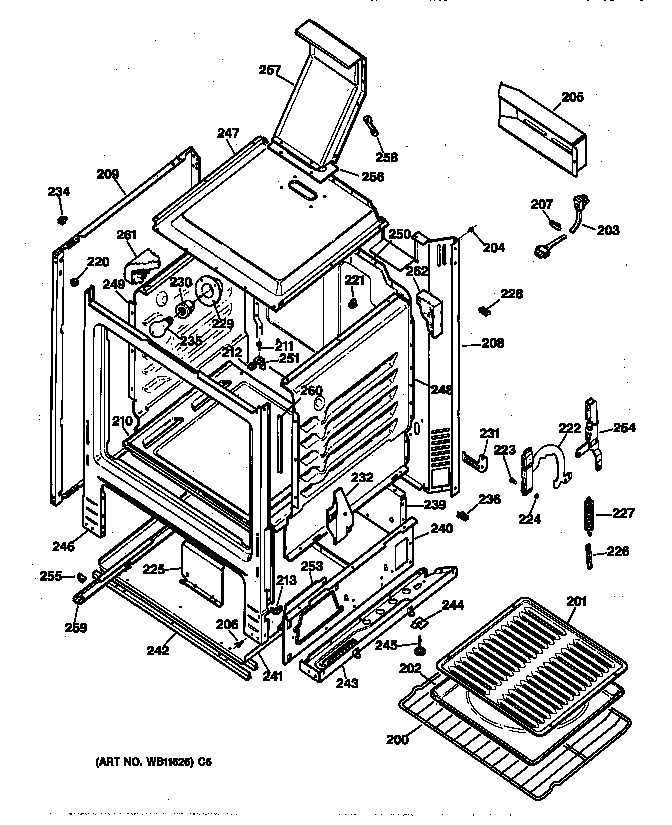

    Body parts diagram

    Brace Vent

    Part #WB38K0002

    Replaced by #WB38K2

    Info Icon
    Manufacturer substitution
    This part replaces WB38K0002. Substitute parts can look different from the original.
    In Stock
    $32.12
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JGBC17PEA1WH - Part WB1K83

    Gas & burner parts diagram

    Screw

    Part #WB01K0083

    Replaced by #WB1K83

    Info Icon
    Manufacturer substitution
    This part replaces WB01K0083. Substitute parts can look different from the original.
    In Stock
    $9.56
    9% OFF Phone Price : $10.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Cvr Bck Pnl for GE JGBC17PEA1WH - Part WB34K21

    Body parts diagram

    Cvr Bck Pnl

    Part #WB34K0021

    Replaced by #WB34K21

    Info Icon
    Manufacturer substitution
    This part replaces WB34K0021. Substitute parts can look different from the original.
    In Stock
    $61.05
    Minus Item
    Qty
    Plus Item
  • Screw for GE JGBC17PEA1WH - Part WB1K37

    Gas & burner parts diagram

    Screw

    Part #WB01K0037

    Replaced by #WB1K37

    Info Icon
    Manufacturer substitution
    This part replaces WB01K0037. Substitute parts can look different from the original.
    In Stock
    $36.20
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Igniter, Left Front for GE JGBC17PEA1WH - Part WB18X26988

    Gas & burner parts diagram

    Surface Igniter Burner

    Part #WB19K0020

    Replaced by #WB18X26988

    Info Icon
    Manufacturer substitution
    This part replaces WB19K0020. Substitute parts can look different from the original.
    In Stock
    $17.97
    10% OFF Phone Price : $19.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Burner for GE JGBC17PEA1WH - Part WB16K10043

    Gas & burner parts diagram

    Oven Burner

    Part #WB16K0027

    Replaced by #WB16K10043

    Info Icon
    Manufacturer substitution
    This part replaces WB16K0027. Substitute parts can look different from the original.
    In Stock
    $51.51
    10% OFF Phone Price : $57.51Info Icon
    Minus Item
    Qty
    Plus Item
