Whirlpool WDT970SAKZ0 dishwasher Parts

No. While many built-in dishwashers are designed for a 24-inch cabinet opening, not all dishwashers are 24 inches wide. For Whirlpool model WDT970SAKZ0, the installation dimensions call out an opening width of about 24 inches (with a minimum opening of 23 7/8 inches); always measure your space before buying.

Most kitchens are built around a standard size, but there are several real-world options:

• 24-inch built-in: the most common width for full-size dishwashers
• 18-inch built-in: compact models for smaller kitchens and apartments
• Portable or countertop: widths vary by design and capacity
• Panel-ready models: still typically fit a 24-inch opening, but depth and door panel details can change clearances

For the exact cabinet opening and clearance requirements for this Whirlpool dishwasher, use the WDT970SAKZ0 owner's manual.

Use these steps to avoid a “does not fit” surprise:

• Measure the opening width at the front and back
• Measure the opening height from the floor to the underside of the countertop
• Confirm depth to the back wall, including any plumbing or electrical protrusions
• Check that the door and handle will clear nearby drawers and pulls
• Verify where the utility connections (water, drain, power) can run

Dishwasher “width” is only part of fit. Cabinet opening width, height adjustability, and door/handle clearance determine whether the unit installs cleanly and the door opens without rubbing.

Last updated: February 2026

Yes, many parts on your Whirlpool WDT970SAKZ0 dishwasher are DIY-friendly, especially non-electrical items like racks, seals, and some hoses. For electrical work, leak checks, and any wiring inside the terminal box, we recommend following the WDT970SAKZ0 owner's manual closely and using safe shutoff steps.

These repairs are commonly manageable with basic tools and careful handling:

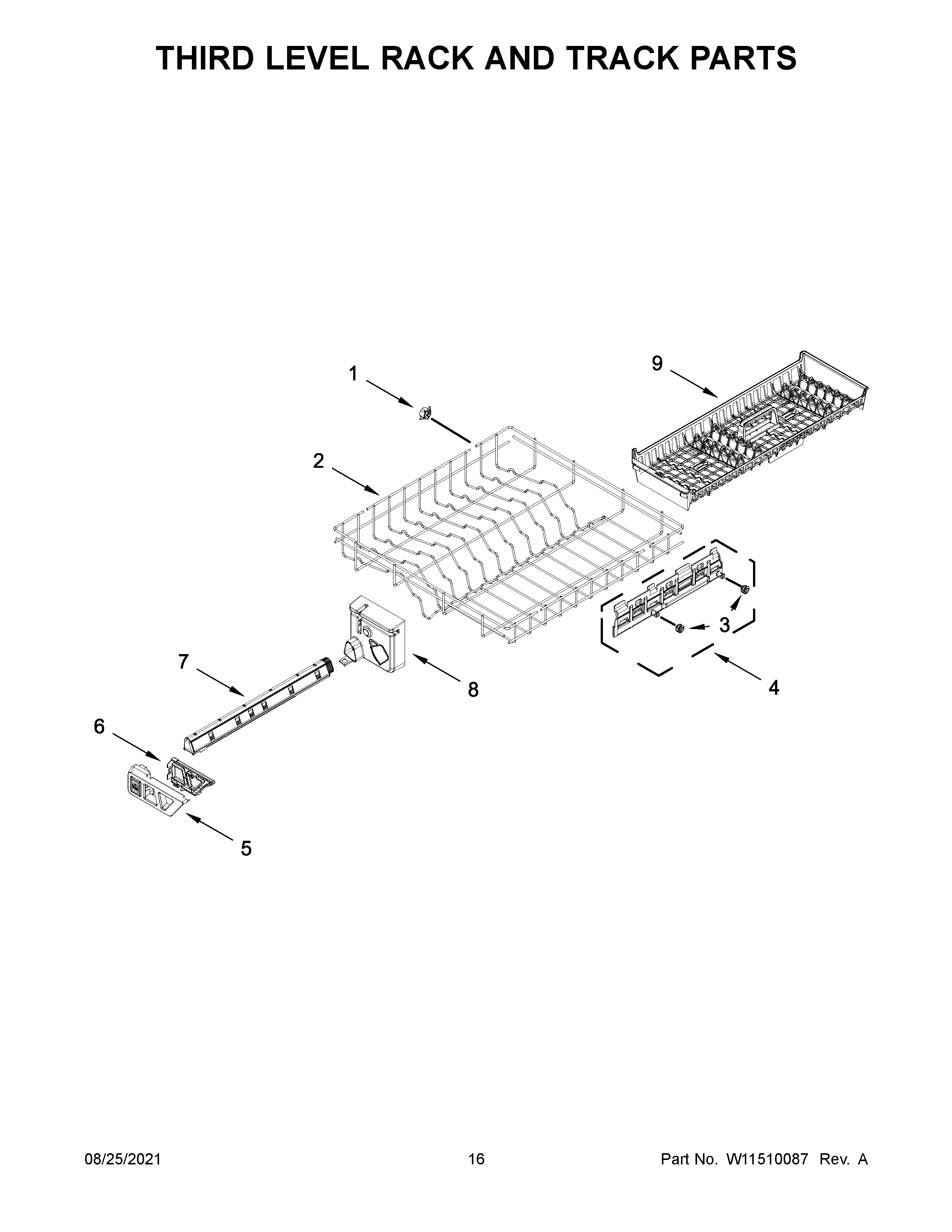

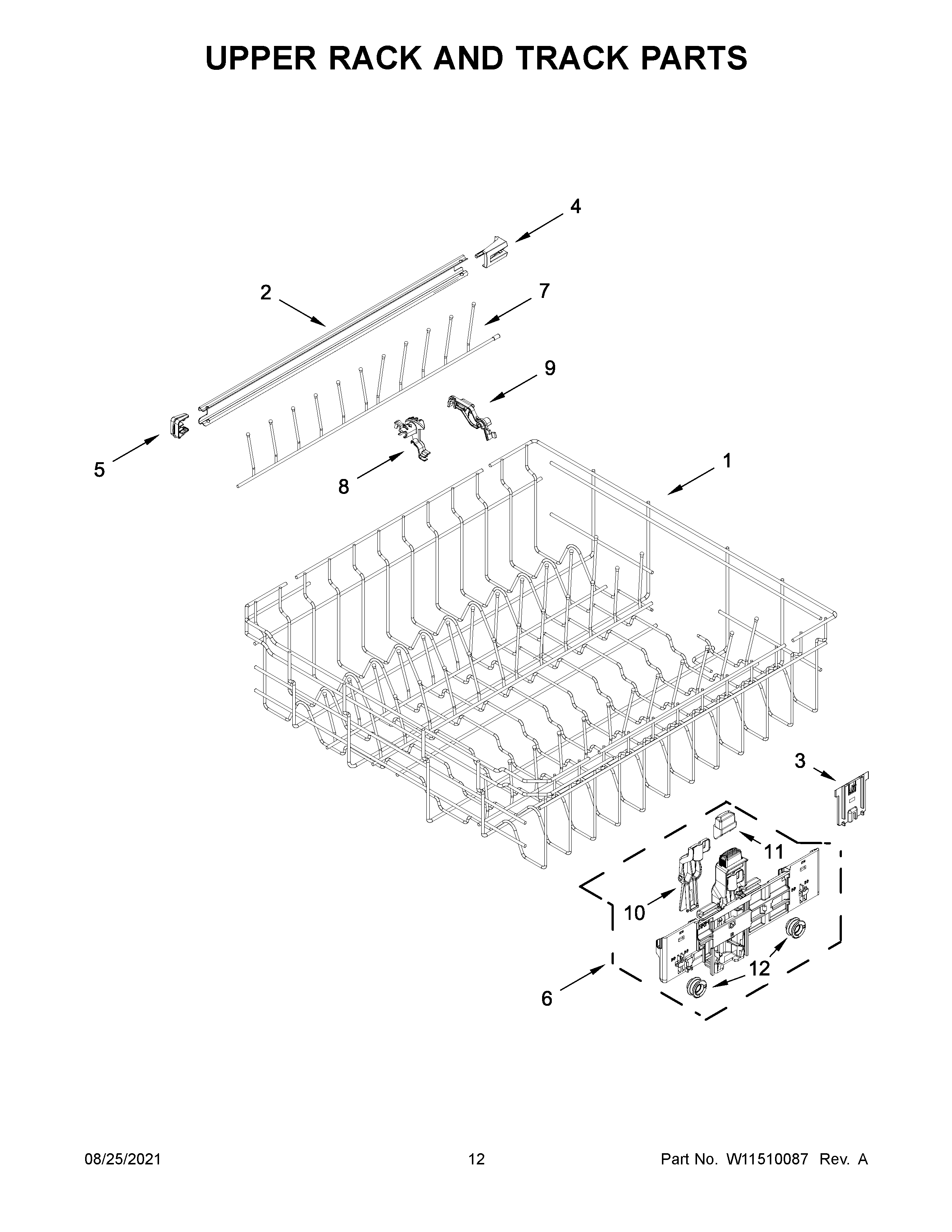

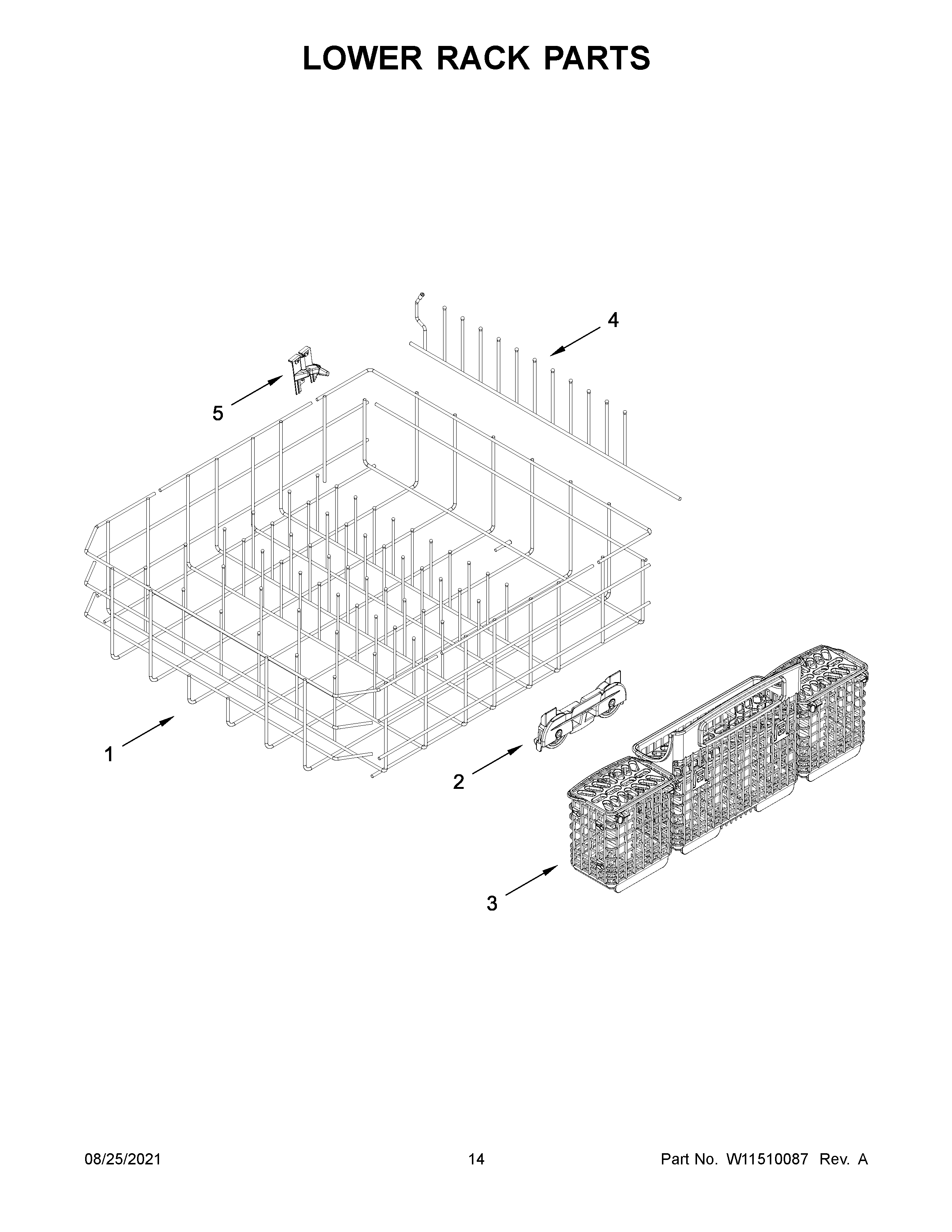

• Dish racks and rack components (fit and alignment)
• Door seals and tub gaskets (leak prevention)
• Drain hose routing and clamps (drain performance)
• Access panel removal and reinstallation
• Basic cleaning and maintenance that improves wash results

Some jobs are still DIY for experienced homeowners, but they require stricter safety steps and more disassembly:

• Water supply connection work (verify water pressure and fittings)
• Replacing the water inlet valve (risk of leaks if fittings are mis-seated)
• Wiring and terminal box connections (shock/fire risk if miswired)

The manual also calls out important safety points: avoid touching the heating element during or immediately after use, keep sharp items from damaging the door seal, and do not use non-recommended replacement parts (such as homemade or 3D-printed parts). Refer to the WDT970SAKZ0 owner's manual for the exact cautions and procedures.

• Disconnect power at the breaker (or unplug if accessible)
• Shut off the water supply valve
• Protect the floor; keep towels ready for residual water
• Take photos of hose routing and wire positions before removal
• Run a short cycle after reassembly to check for leaks (with panels installed unless the manual instructs otherwise)

DIY replacement can save time and service costs, but dishwashers combine water, electricity, and heat. Using the correct Whirlpool parts and following the model-specific steps helps prevent leaks, repeat failures, and safety hazards.

Last updated: February 2026

Yes. The Whirlpool WDT970SAKZ0 is designed as a stainless steel tub dishwasher; that stainless tub can leave a small amount of residual water visible at the end of a cycle, which is normal and helps keep seals from drying out.

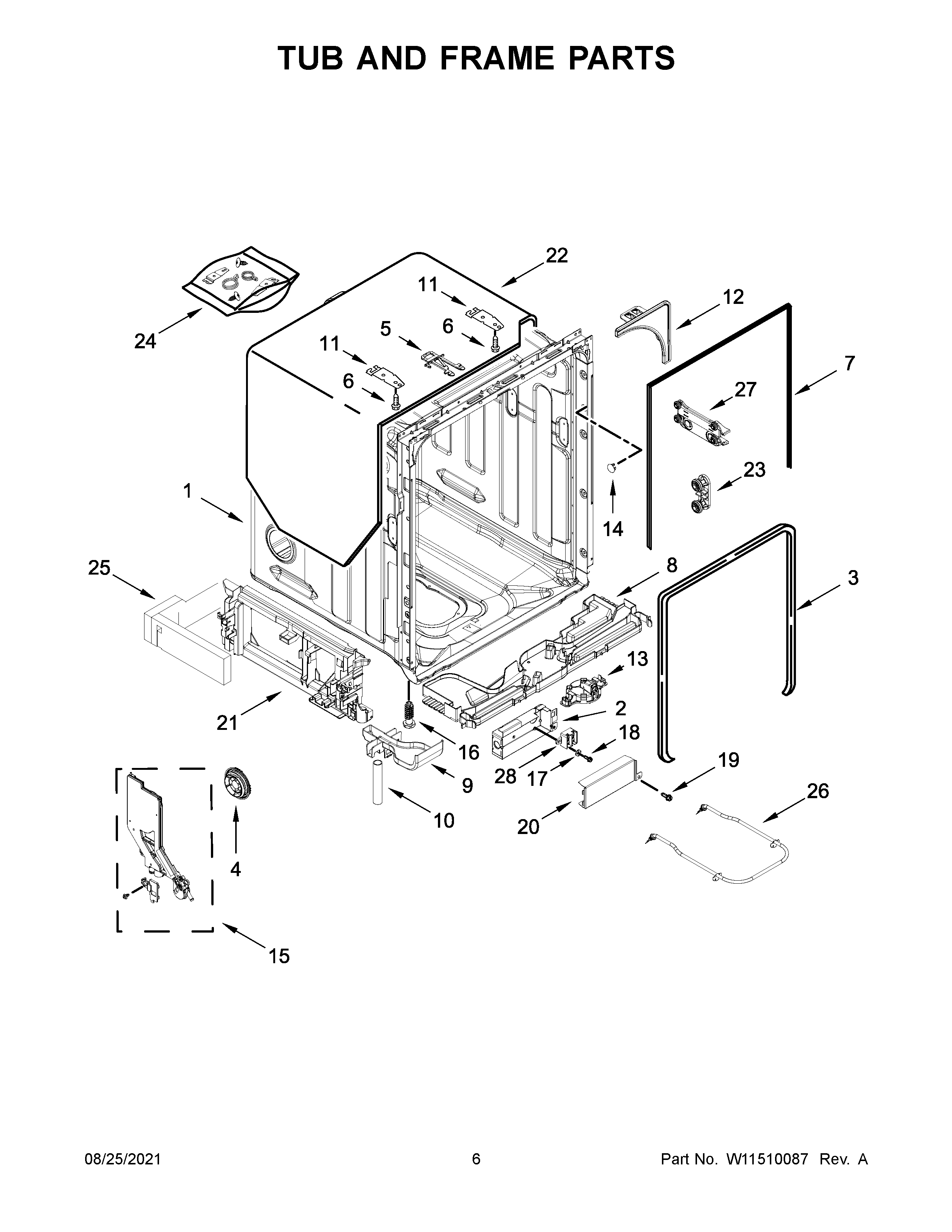

The installation instructions for this model include separate bracket score lines for stainless steel tubs versus plastic tubs, indicating the WDT970SAKZ0 uses the stainless steel tub configuration. For more model-specific details and care tips, use the WDT970SAKZ0 owner’s manual.

A little water in the bottom after the cycle is common on many Whirlpool dishwashers, especially around the sump area.

• Confirm the cycle fully ended (not paused mid-cycle).
• Open the door after the cycle and let steam vent for a few minutes.
• Check that the drain hose is not kinked or crushed under the cabinet.
• Make sure the sink/disposer connection is not blocked.
• If you recently installed the unit, verify the drain setup meets the manual’s guidance (air gap or high loop where required).

Knowing you have a stainless steel tub helps set expectations for drying, heat retention, and normal moisture patterns. If you are troubleshooting standing water (not just a thin puddle), focus on the drain path and drain components.

Last updated: February 2026

On a Whirlpool dishwasher like model WDT970SAKZ0, an F4 display typically points to a drain or water removal problem. In the WDT970SAKZ0 tech sheet, the drain-related fault you will most often see is F9E1 (dishwasher will not drain), so treat “F4” as a drain issue and start with the drain path checks in the WDT970SAKZ0 owner's manual.

• Press Cancel once to stop the cycle and attempt a drain.
• Check the sink/disposer connection; if connected to a garbage disposal, confirm the disposal inlet plug was knocked out.
• Inspect the drain hose for kinks, crushing, or a sag that traps water.
• Clean the filter area and look for debris around the sump.

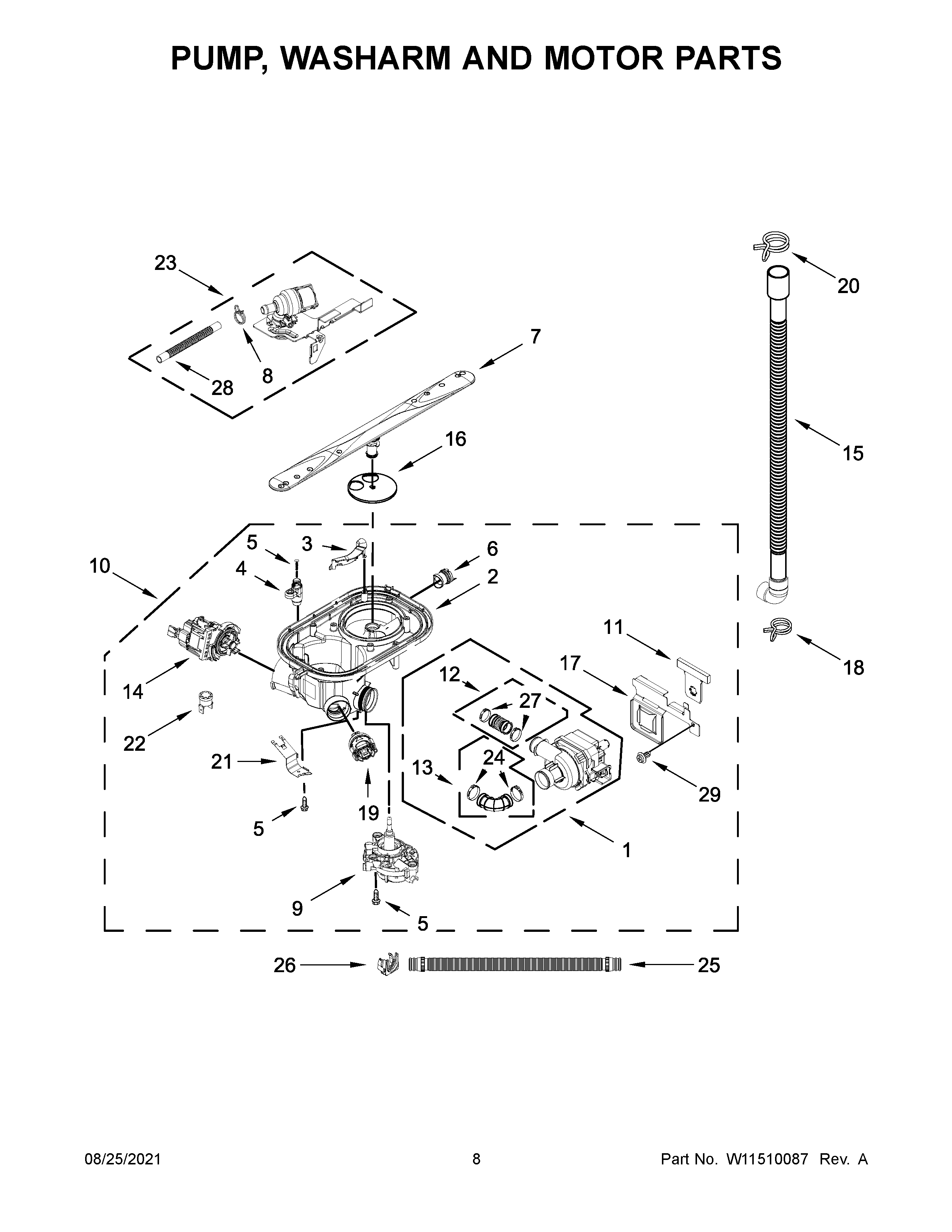

• If the hose is clogged or split, replace the drain hose using hose-drain,e W11414944.

Whirlpool dishwashers often communicate faults as a code or as a repeating blink pattern. For this model family, a true no-drain condition is commonly identified as F9E1, and the unit may end the cycle when it cannot pump water out.

A restricted drain can leave dirty water in the tub, trigger beeping, and prevent the next cycle from starting normally. Fixing the drain path first avoids unnecessary part replacement and helps protect the wash motor and sump from debris.

• Whirlpool dishwasher error codes
• How to reset a Whirlpool dishwasher
• Dishwasher not draining video

Last updated: February 2026

Poor draining and poor cleaning are the most common Whirlpool dishwasher complaints, and they usually come from simple flow problems: a clogged filter area, blocked spray arm holes, or a restricted drain hose. On the Whirlpool WDT970SAKZ0, we start with cleaning and drain-path checks from the WDT970SAKZ0 owner's manual.

• Standing water after a cycle: drain path restriction (filter area, drain hose, disposer inlet plug, or pump issue)
• Dishes still dirty or gritty: spray arm holes blocked, filter area dirty, or wash pump circulation problem
• Won’t start or stops mid-cycle: door not latching, control not reset, or power issue
• Leaks at the door: worn door seals or tub gasket
• Loud grinding/rattling: debris in the sump or foreign object cup area

1. Cancel the cycle and confirm the unit drains.
2. Inspect the drain hose routing for kinks or crushing; verify the sink/disposer connection is clear.
3. Clean the filter area and check for debris in the sump/foreign object cup area.

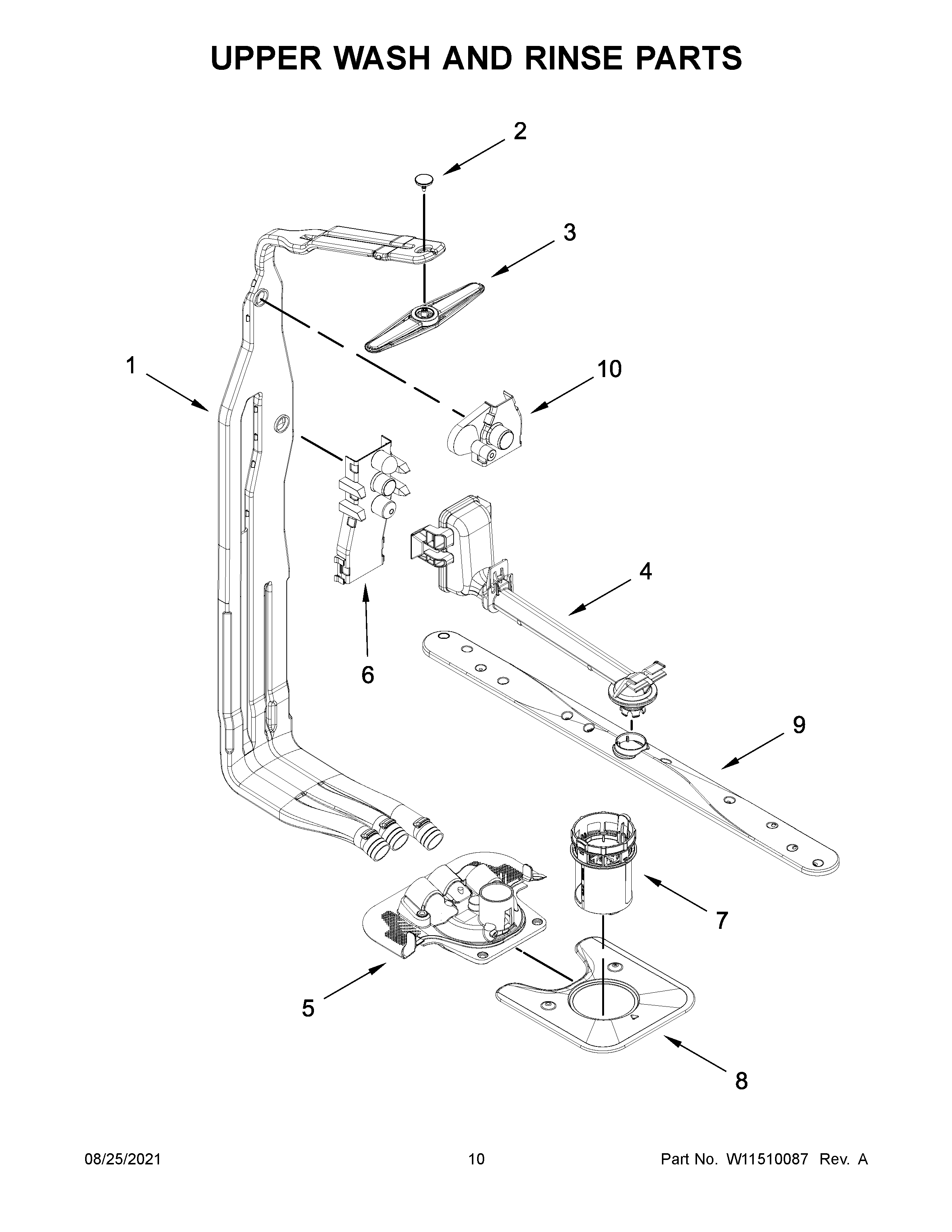

4. Spin and rinse the spray arms; clear any plugged jets.
5. If the dishwasher won’t run, verify the door closes firmly and the latch engages.

Drain and spray issues reduce wash pressure and can leave food soil behind; drain restrictions also cause standing water and odors. Fixing the basic flow path first prevents unnecessary part replacement and restores normal cycle performance.

• Use how to reset a Whirlpool dishwasher when the control is unresponsive or a cycle won’t resume.
• If you see a fault code, match it using Whirlpool dishwasher error codes.

Last updated: February 2026
