Model # LUV400T Official LG vacuum

Here are the diagrams and repair parts for Official LG LUV400T vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

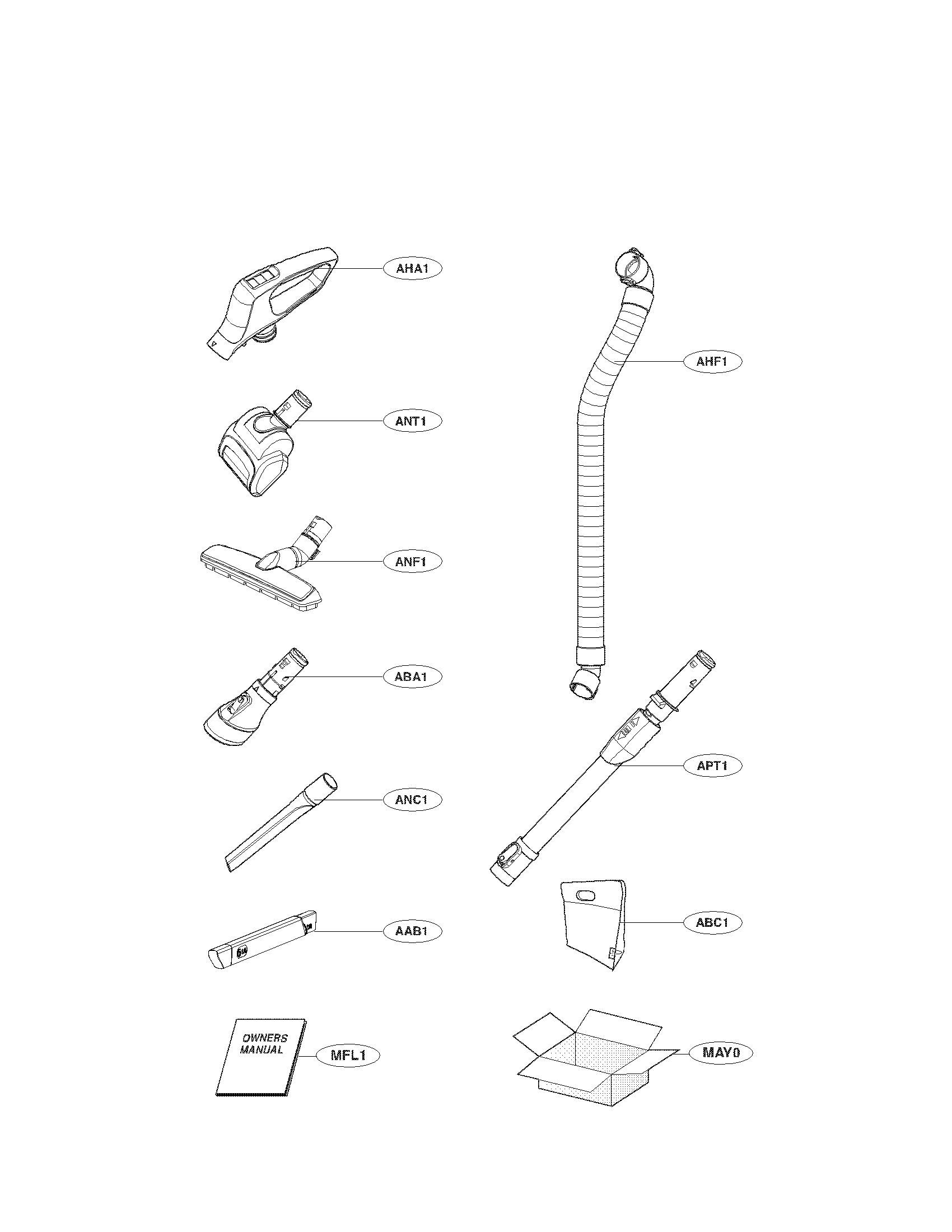

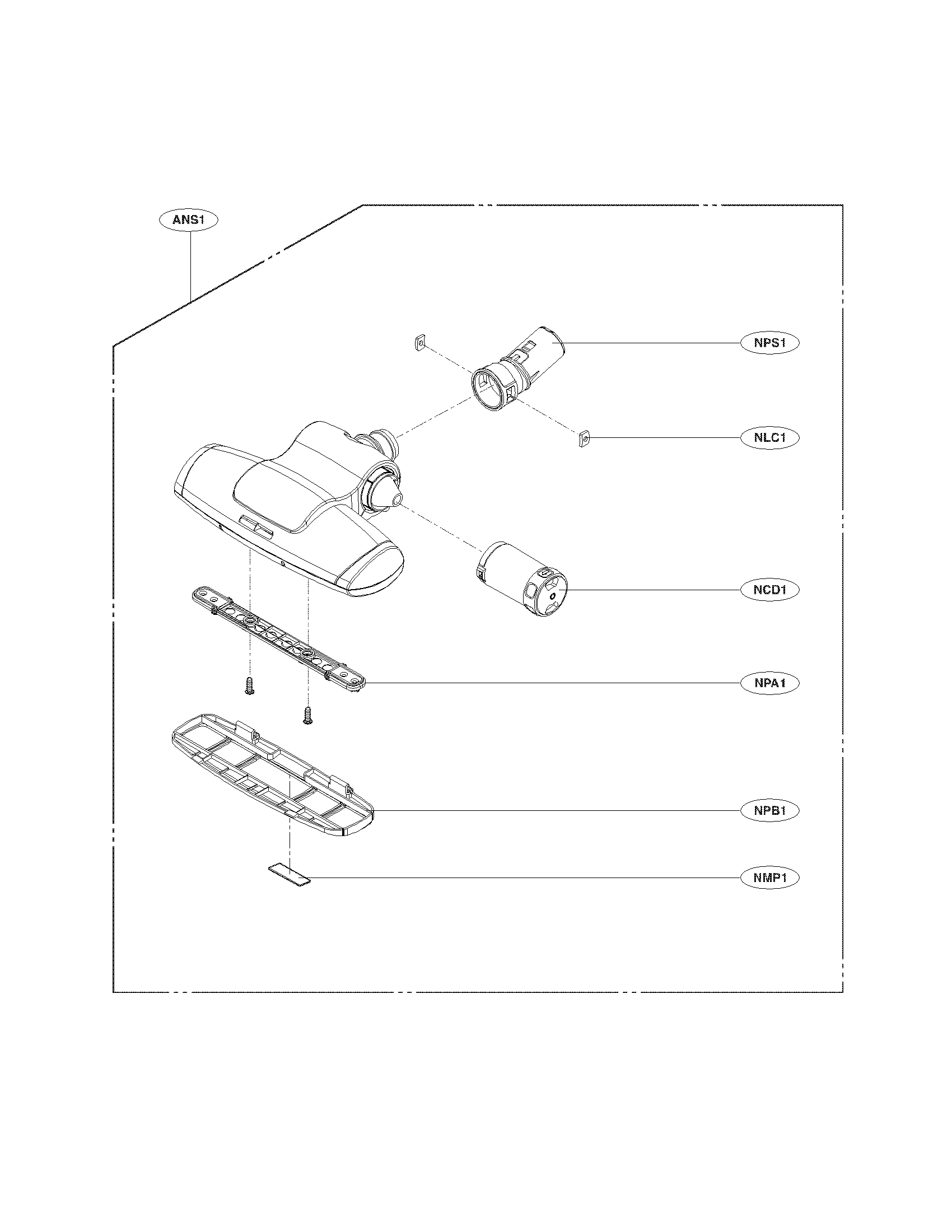

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Vacuum Switch Assembly EBF60693501
#BSW2

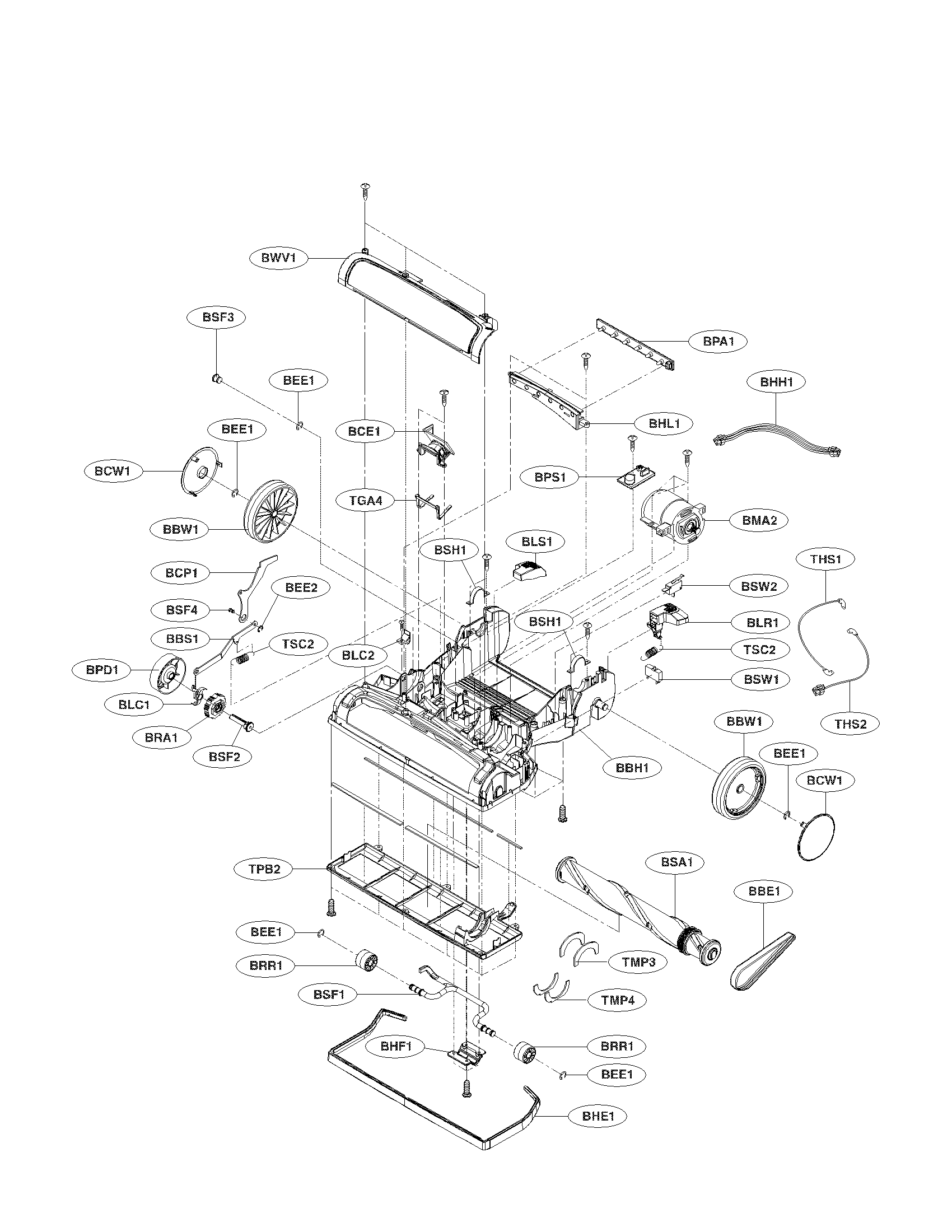

Head base assembly parts diagram

Vacuum switch assembly

Part #EBF60693501

This item is not returnable
$2.16
In Stock
Vacuum Motor EAU60683805
#BMA1

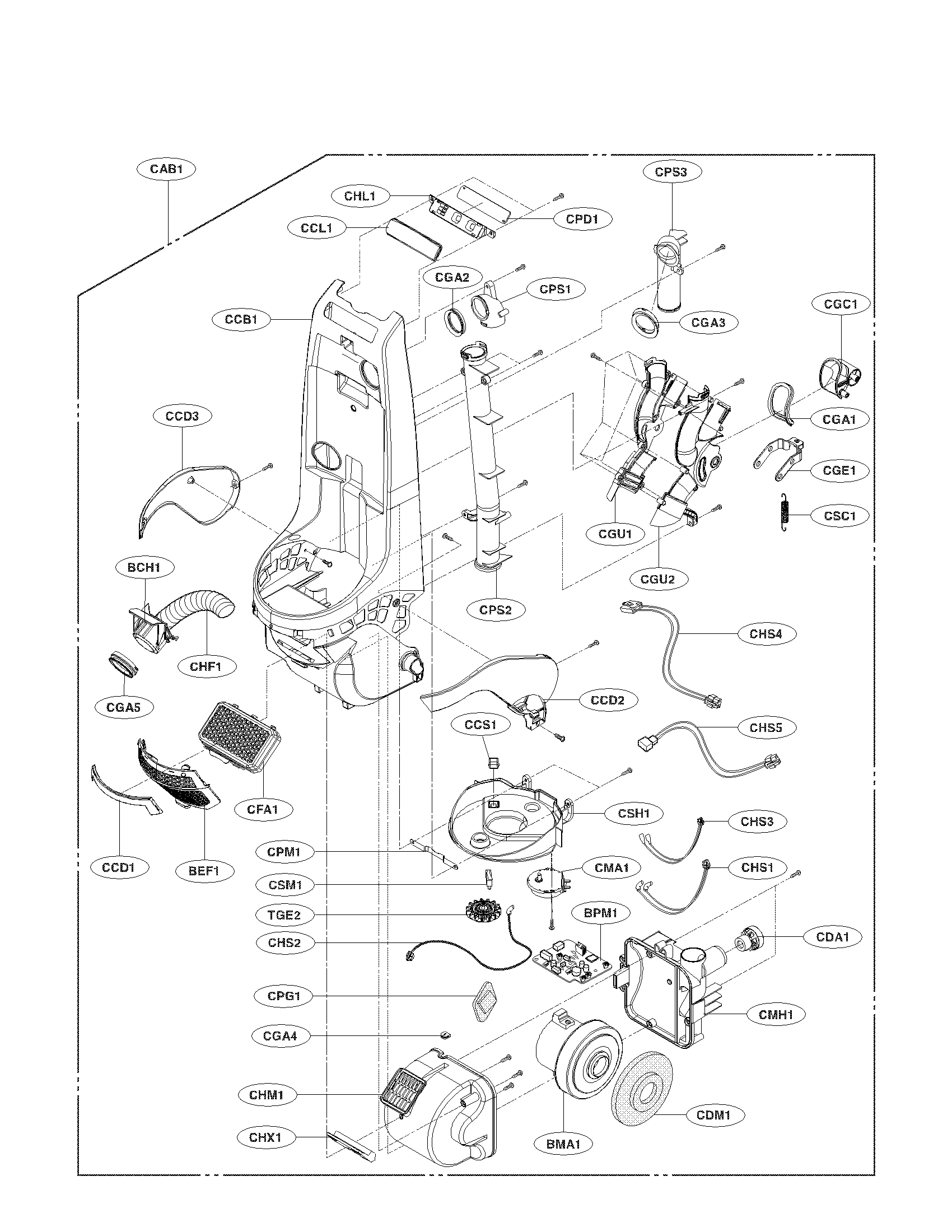

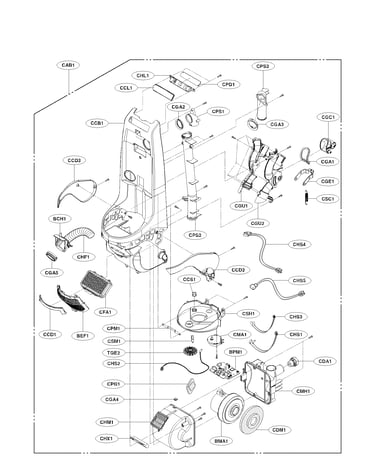

Body cover assembly parts diagram

Vacuum motor

Part #EAU60683805

$35.33
In Stock
Coil Spring MHY61881901
#BSC1

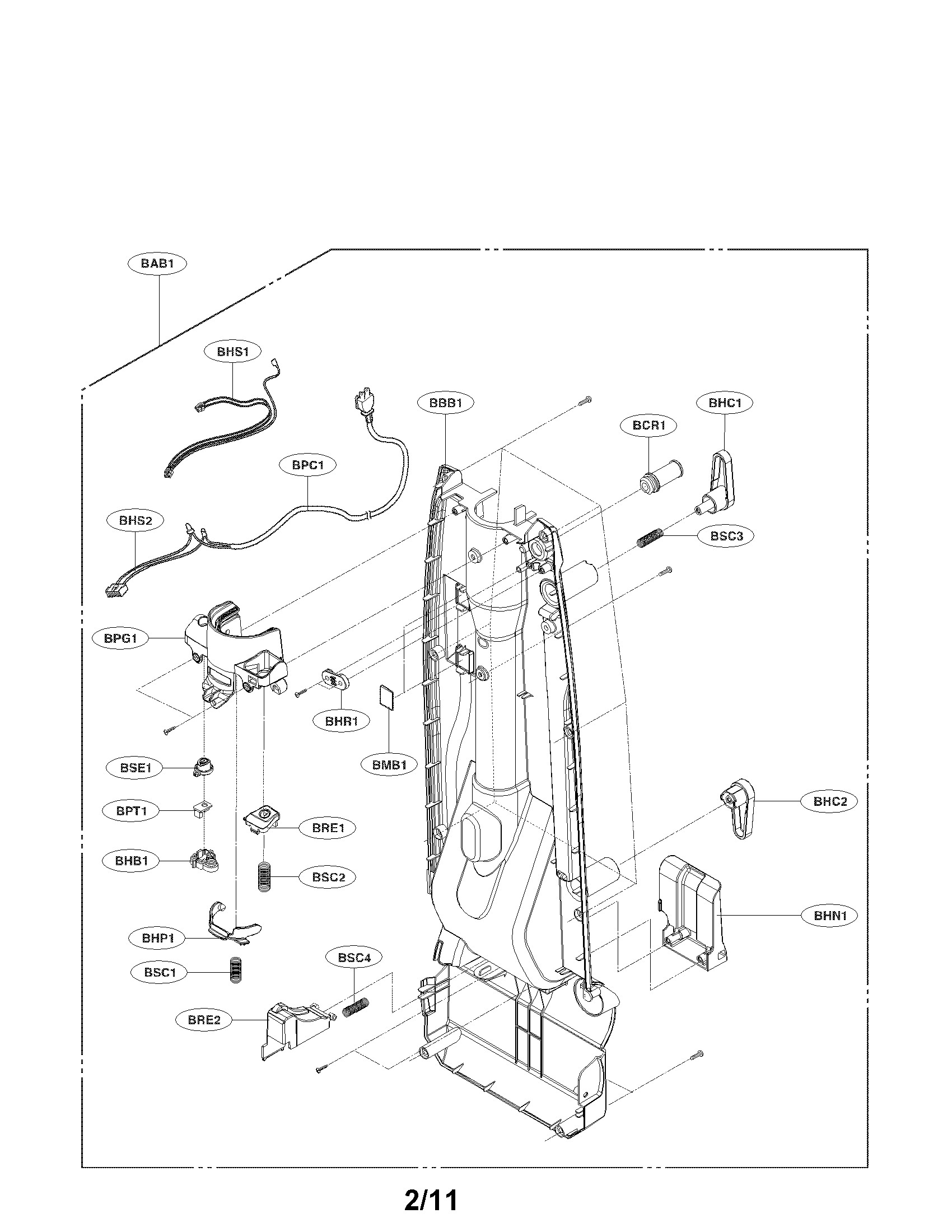

Base and body assembly parts diagram

Coil spring

Part #MHY61881901

This item is not returnable
$2.33
In Stock
Sub Pcb Assembly EBR66044701
#BPS1

Head base assembly parts diagram

Sub pcb assembly

Part #EBR66044701

The manufacturer no longer makes this part, and there's no substitute part

Air Guide MEA61892702
#CGU2

Body cover assembly parts diagram

Air guide

Part #MEA61892702

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Plate MGJ61967801
#TPB1

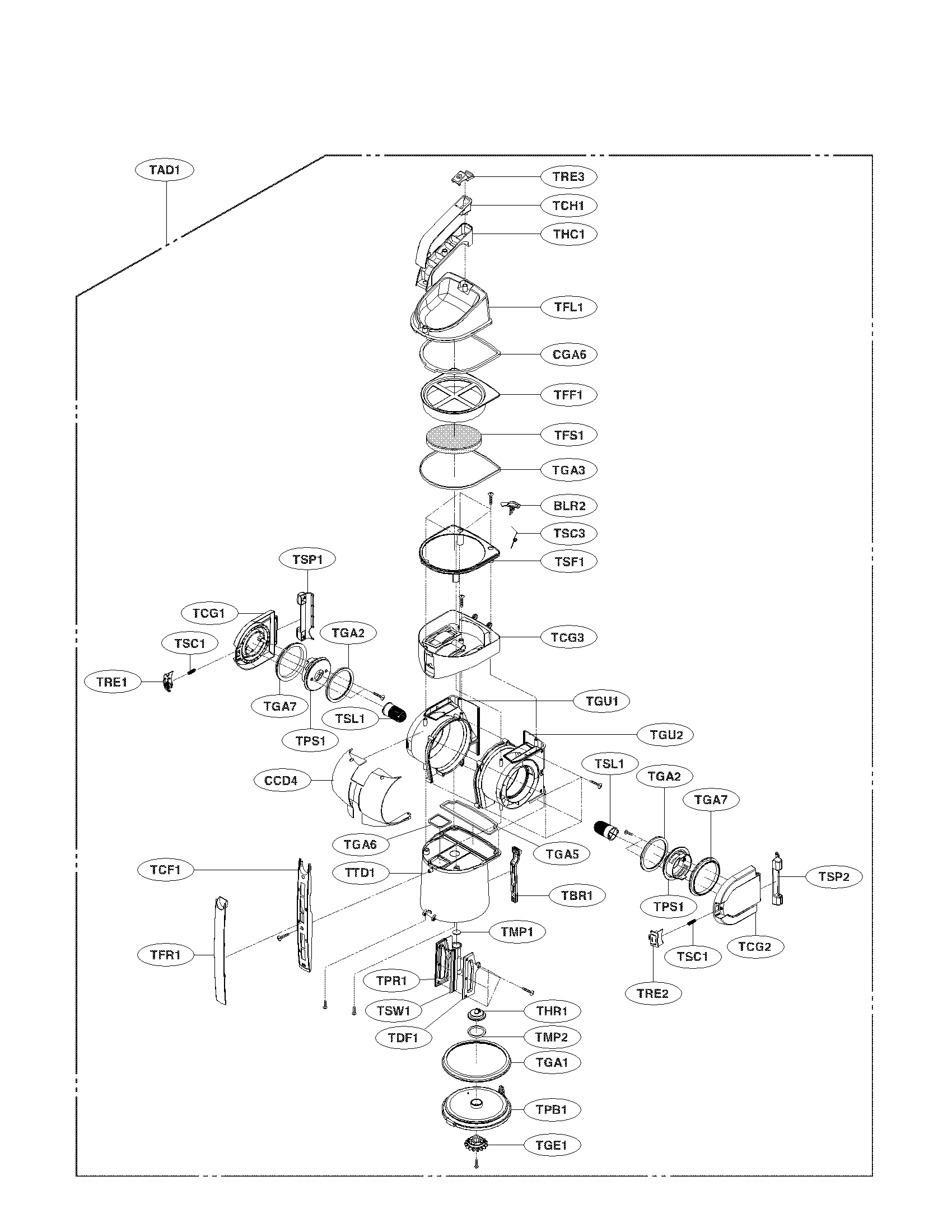

Dust tank assembly parts diagram

Vacuum plate

Part #MGJ61967801

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch EBF35163501
#CSM1

Body cover assembly parts diagram

Micro-switch

Part #EBF35163501

The manufacturer no longer makes this part, and there's no substitute part

Display Cover MCK62605301
#CDP1

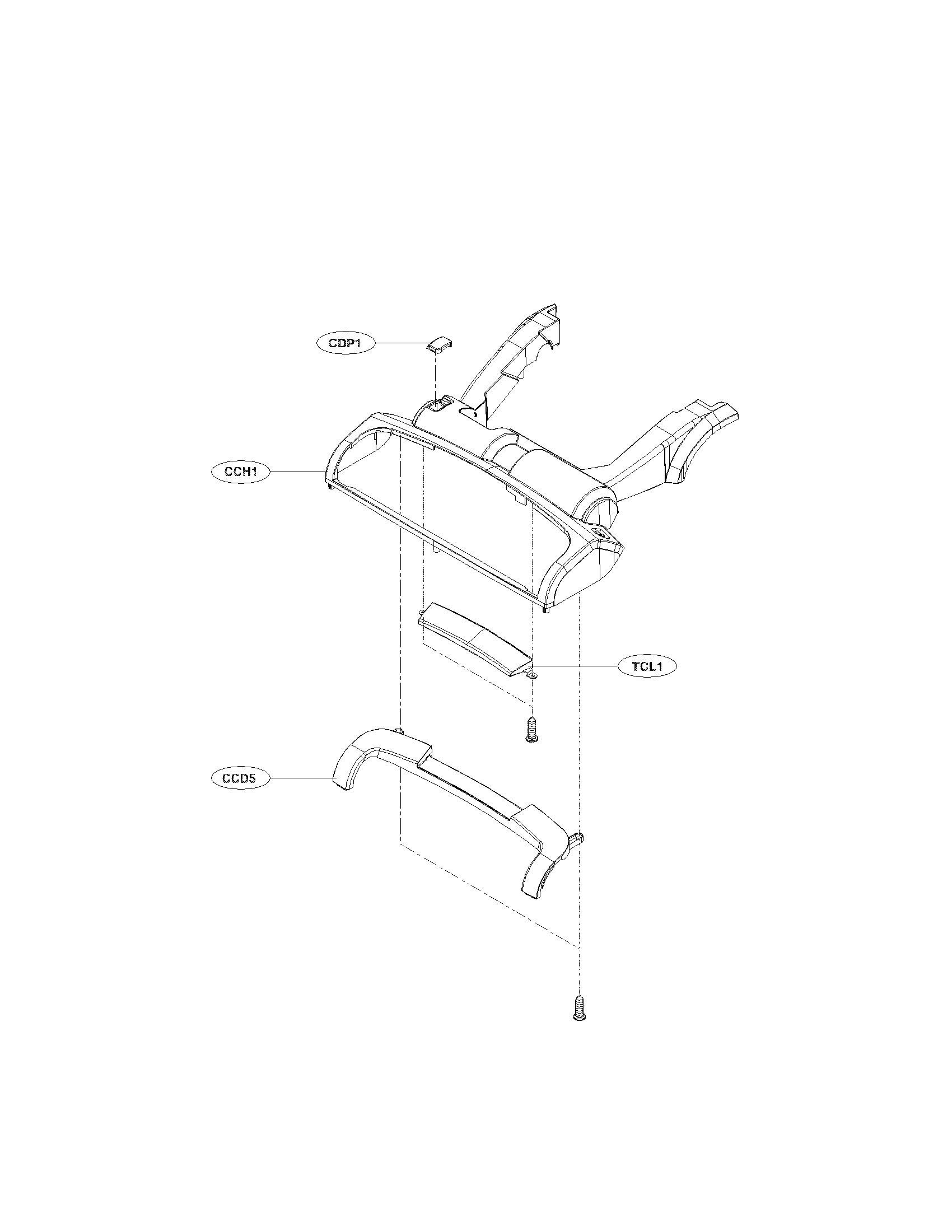

Head cover assembly parts diagram

Display cover

Part #MCK62605301

The manufacturer no longer makes this part, and there's no substitute part

Coil Spring MHY61882001
#CSC1

Body cover assembly parts diagram

Coil spring

Part #MHY61882001

The manufacturer no longer makes this part, and there's no substitute part

Decorative Cover MCK62607103
#CCD1

Body cover assembly parts diagram

Decorative cover

Part #MCK62607103

The manufacturer no longer makes this part, and there's no substitute part
