Model # 259836000 Official Kenmore electric can opener

Here are the diagrams and repair parts for Official Kenmore 259836000 electric can opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

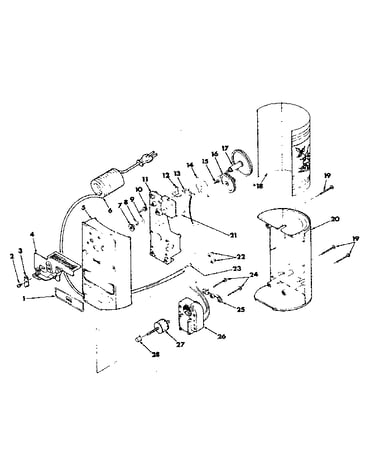

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Washer 1909-028
#9

Replacement parts diagram

Washer

Part #1909-028

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 9002-802
#13

Replacement parts diagram

Switch assembly

Part #9002-802

The manufacturer no longer makes this part, and there's no substitute part

Shaft (idler Gear) 1907-044
#21

Replacement parts diagram

Shaft (idler gear)

Part #1907-044

The manufacturer no longer makes this part, and there's no substitute part

Nameplate (sears) 1401-416
#1

Replacement parts diagram

Nameplate (sears)

Part #1401-416

The manufacturer no longer makes this part, and there's no substitute part

Washer 1909-027
#8

Replacement parts diagram

Washer

Part #1909-027

The manufacturer no longer makes this part, and there's no substitute part

Rotor 1804-011
#27

Replacement parts diagram

Rotor

Part #1804-011

The manufacturer no longer makes this part, and there's no substitute part

Bracket 0202-049
#25

Replacement parts diagram

Bracket

Part #0202-049

The manufacturer no longer makes this part, and there's no substitute part

Stator 1913-024
#26

Replacement parts diagram

Stator

Part #1913-024

The manufacturer no longer makes this part, and there's no substitute part

Terminal 2005-042
#23

Replacement parts diagram

Terminal

Part #2005-042

The manufacturer no longer makes this part, and there's no substitute part

Drive Gear 9002-600
#17

Replacement parts diagram

Drive gear

Part #9002-600

The manufacturer no longer makes this part, and there's no substitute part
