Model # 1172 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover 1172 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

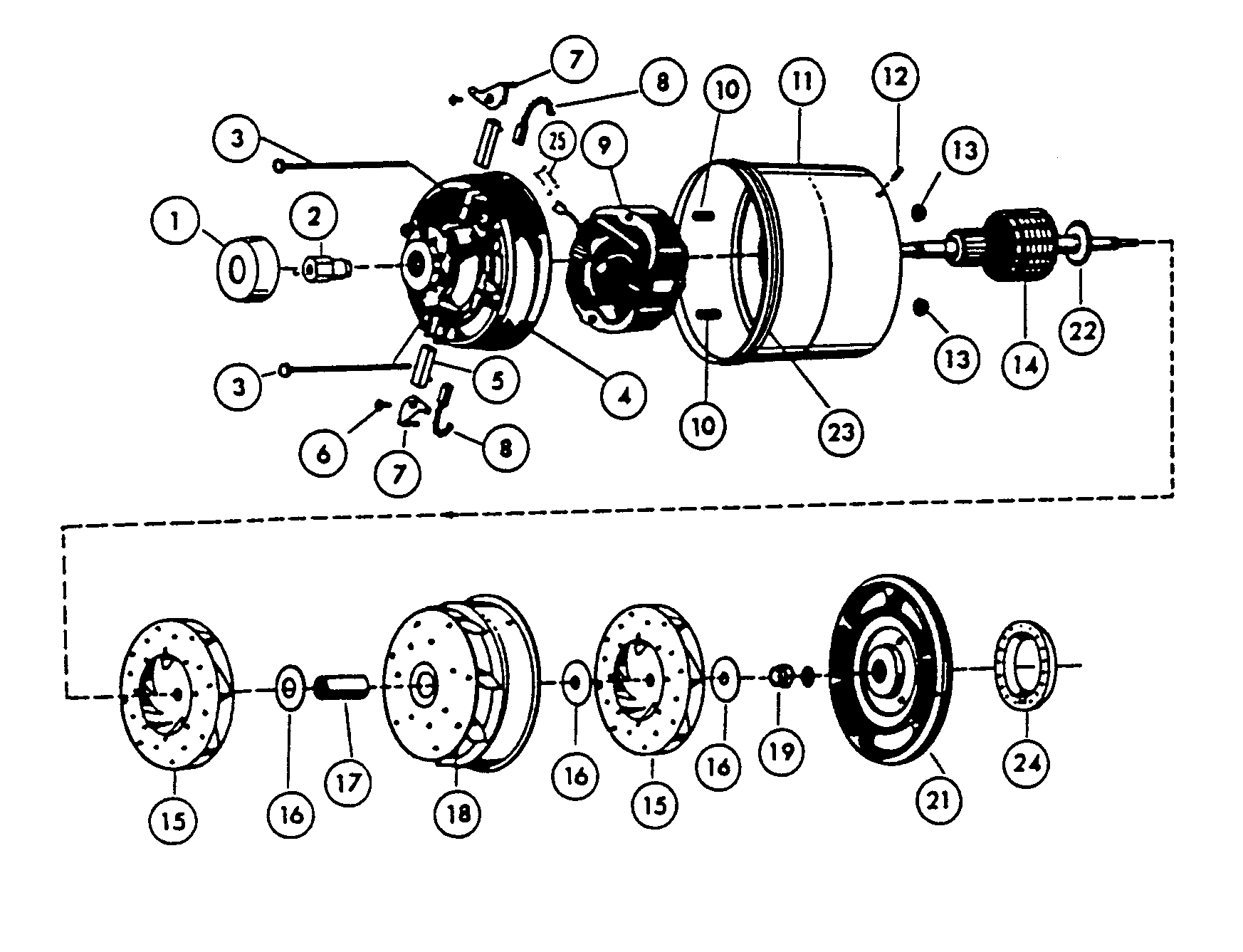

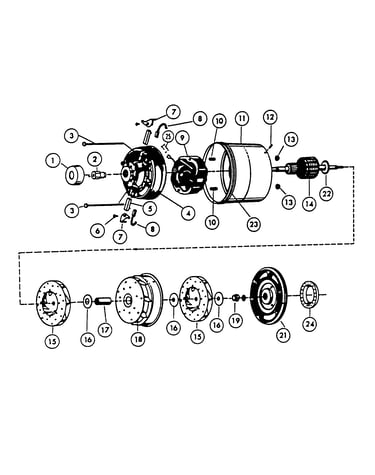

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Split Ring 33712007
#30

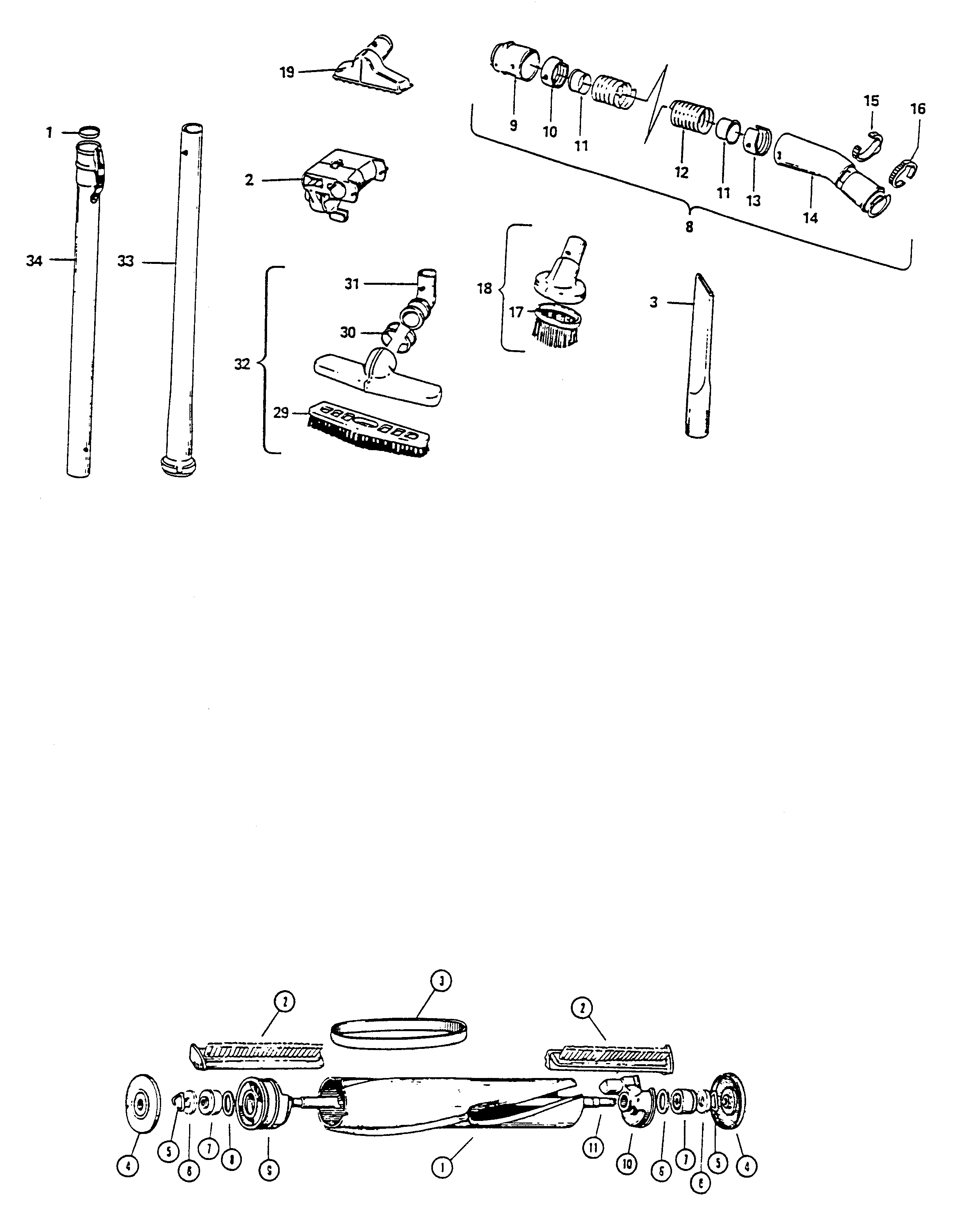

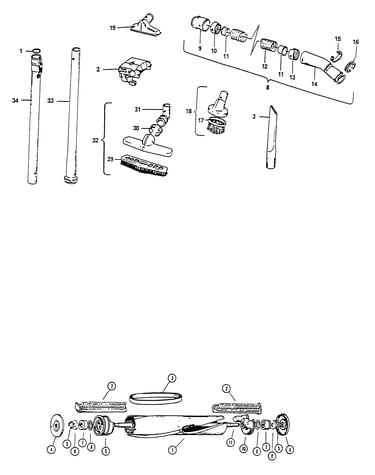

Agitator, cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#8B

Agitator, cleaningtools diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27317307
Vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Diffuser 34366001
Vacuum diffuser

Part #34366001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 48447001
#29

Agitator, cleaningtools diagram

Vacuum brush

Part #48447001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21465314
Vacuum screw

Part #21465314

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Bag, Type D, 3-pack 4010005D
Hoover vacuum bag, type d, 3-pack

Part #4010005D

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Grip Handle 48663159
#1A

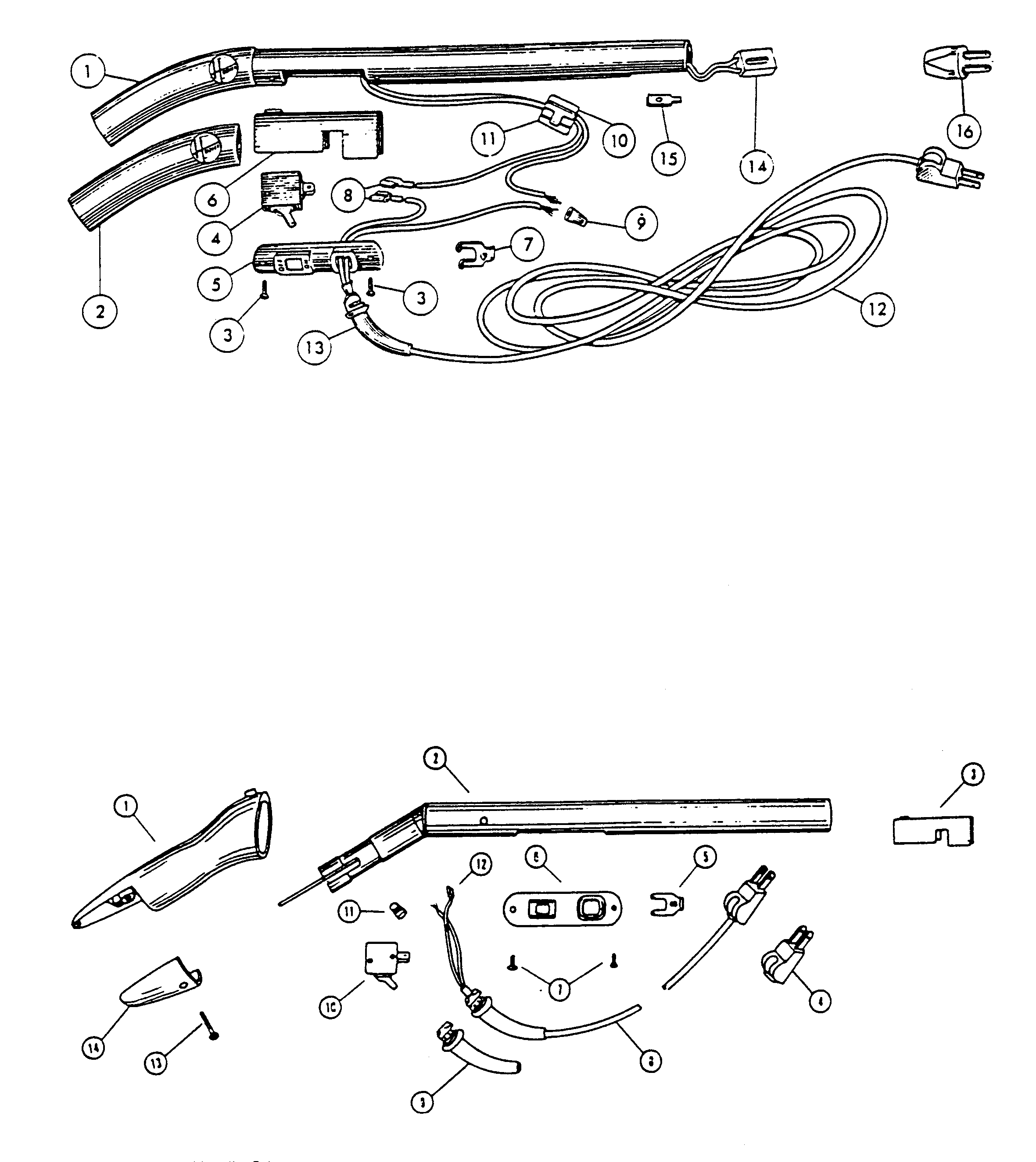

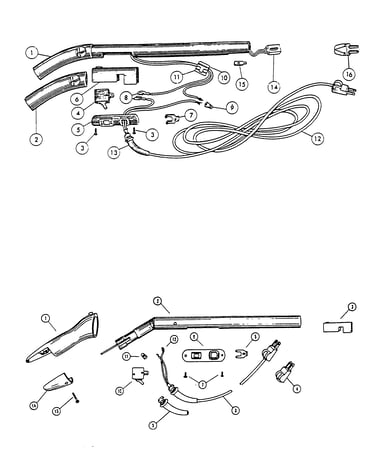

Handle diagram

Vacuum grip handle

Part #48663159

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush Attachment Swivel 38644020
#31

Agitator, cleaningtools diagram

Vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Hose 32156010
Sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part
