Model # WBXR1060T5AA Official GE washer

Here are the diagrams and repair parts for Official GE WBXR1060T5AA washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

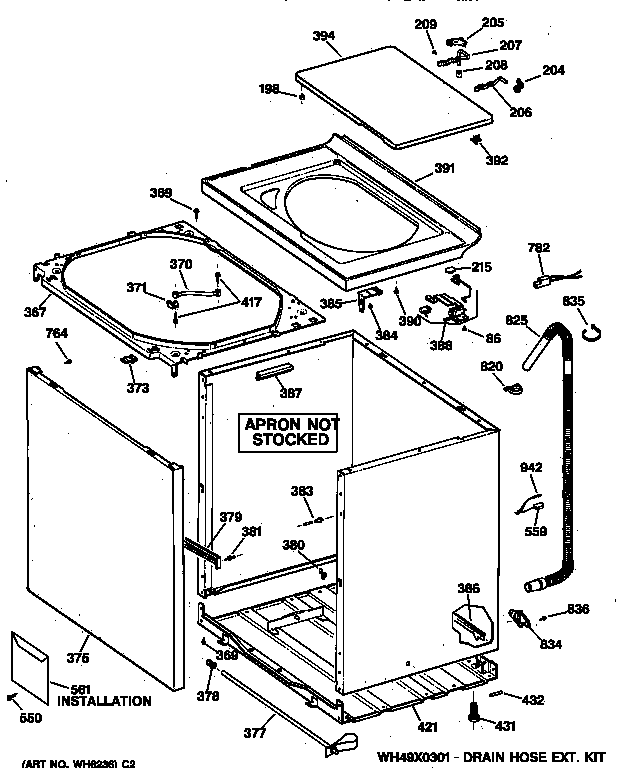

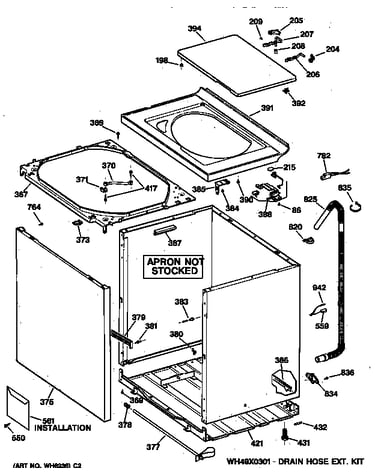

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Hub Nut WH02X1193
#325

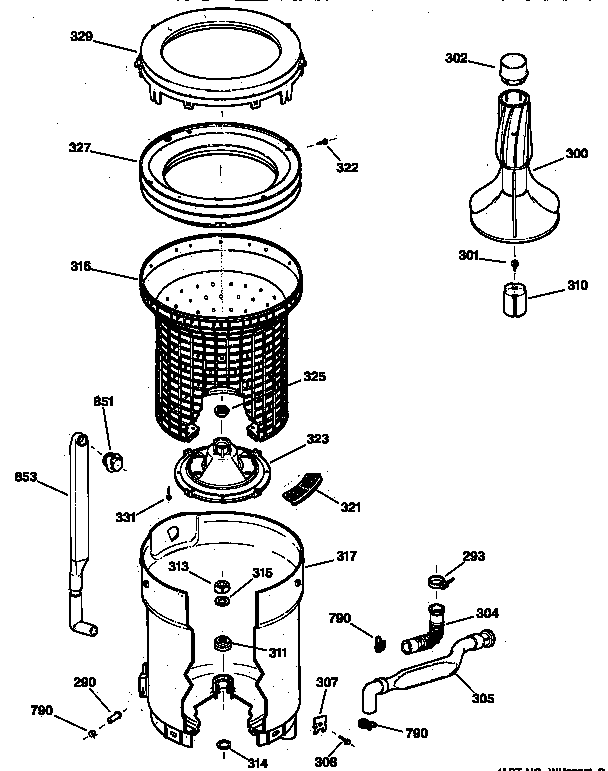

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH02X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Tub Seal WH02X1196
#311

Tub, basket & agitator diagram

Tub seal

Part #WH02X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Tub Bearing WH02X1197
#314

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1197

Replaced by #WH2X1197

?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Pump Bracket WH23X0091
#655

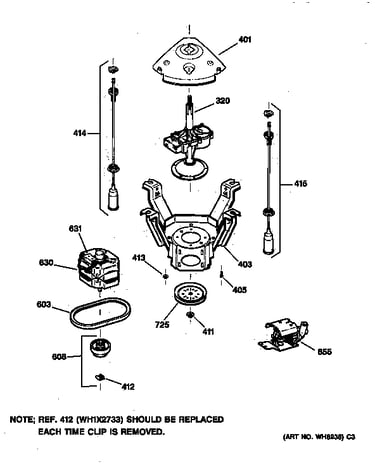

Suspension, pump & drive components diagram

Pump bracket

Part #WH23X0091

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X0091. Substitute parts can look different from the original.
BEST SELLER
$69.29 |
8% OFF Phone Price : $75.29
In Stock
Knob Clip WE01X1208
#19

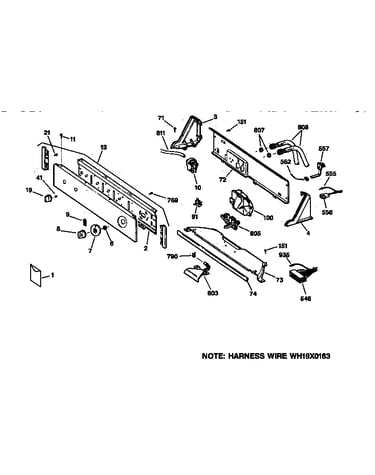

Controls & backsplash diagram

Knob clip

Part #WE01X1208

Replaced by #WH1X2721

?
Manufacturer substitution
This part replaces WE01X1208. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Spring Clip WH01X2117
#9

Controls & backsplash diagram

Spring clip

Part #WH01X2117

Replaced by #WH1X2117

?
Manufacturer substitution
This part replaces WH01X2117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Belt WH01X2026
#603

Suspension, pump & drive components diagram

Belt

Part #WH01X2026

Replaced by #WH1X2026

?
Manufacturer substitution
This part replaces WH01X2026. Substitute parts can look different from the original.
BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Scr 1/4-20 WH02X1200
#301

Tub, basket & agitator diagram

Scr 1/4-20

Part #WH02X1200

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH02X1200. Substitute parts can look different from the original.
$21.12 |
22% OFF Phone Price : $27.12
In Stock
