White-Westinghouse RT114LLD7 top-mount refrigerator - 5995237392

White-Westinghouse RT114LLD7 top-mount refrigerator - 5995237392 Parts

Here are the diagrams and repair parts for White-Westinghouse RT114LLD7 top-mount refrigerator - 5995237392, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RT114LLD7 Refrigerators

  • Refrigerator Filter Dryer for White-Westinghouse RT114LLD7 - Part 5303305677

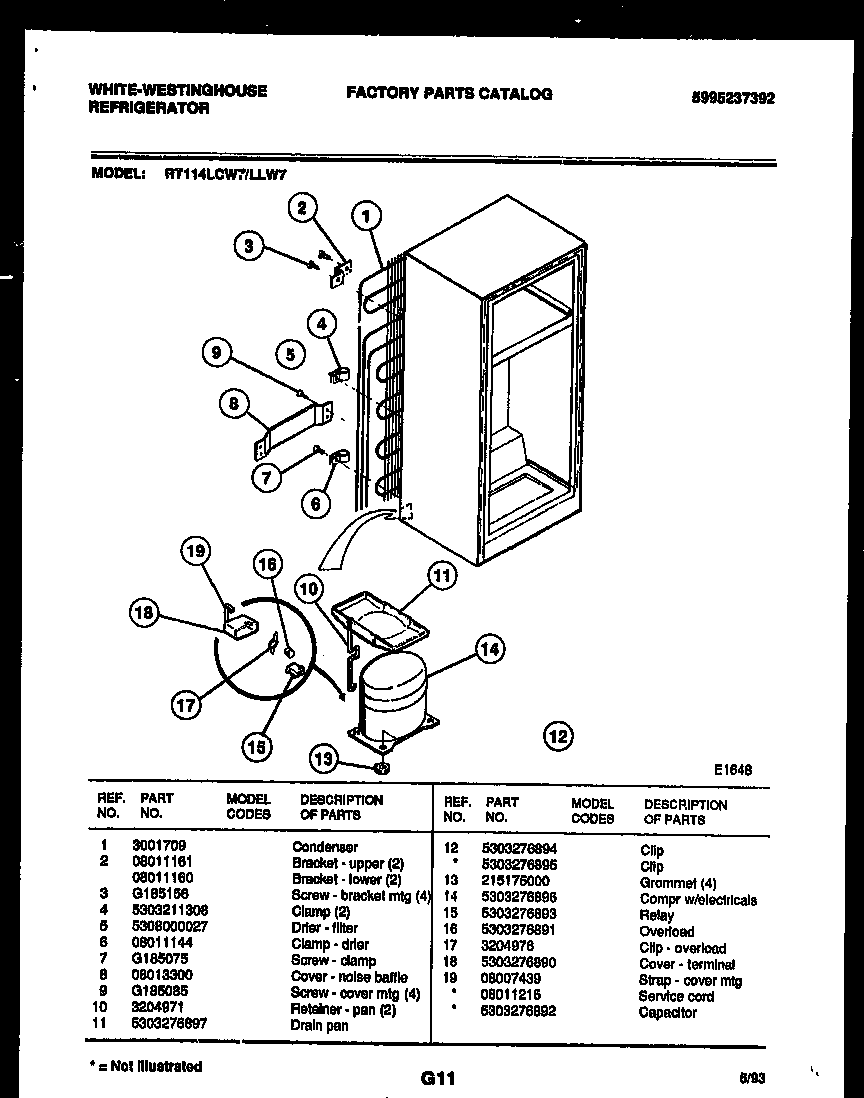

    System and automatic defrost parts diagram

    Filter

    Part #5308000027

    Replaced by #5303305677

    Info Icon
    Manufacturer substitution
    This part replaces 5308000027. Substitute parts can look different from the original.
    In Stock
    $25.36
    19% OFF Phone Price : $31.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Crosley Refrigerator Defrost Timer for White-Westinghouse RT114LLD7 - Part 215846602

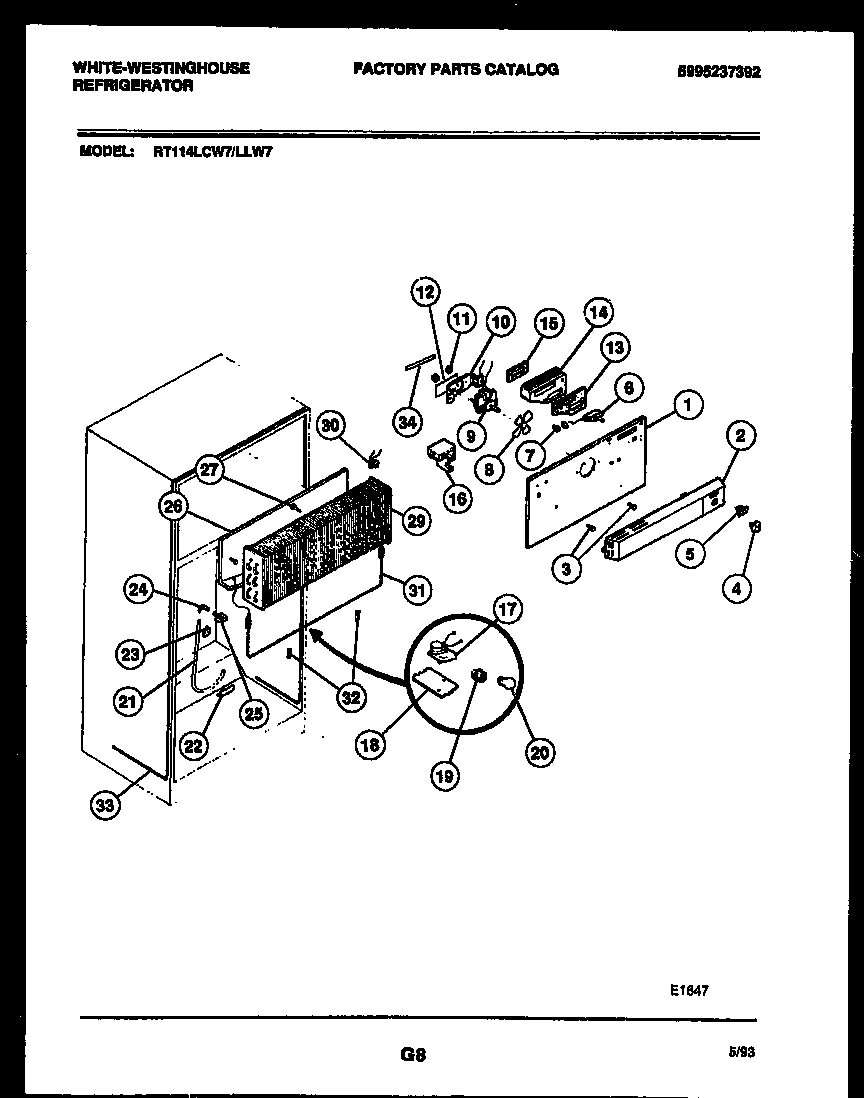

    Inner parts diagram

    Refrigerator Timer

    Part #5303211155

    Replaced by #215846602

    Info Icon
    Manufacturer substitution
    This part replaces 5303211155. Substitute parts can look different from the original.
    In Stock
    $26.07
    19% OFF Phone Price : $32.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Universal/multiflex (frigidaire) Refrigerator Defrost Bi-metal Thermostat for White-Westinghouse RT114LLD7 - Part 5303917954

    Inner parts diagram

    Refrigerator Thermostat

    Part #3204985

    Replaced by #5303917954

    Info Icon
    Manufacturer substitution
    This part replaces 3204985. Substitute parts can look different from the original.
    In Stock
    $27.39
    18% OFF Phone Price : $33.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Hole Plug for White-Westinghouse RT114LLD7 - Part 240494001

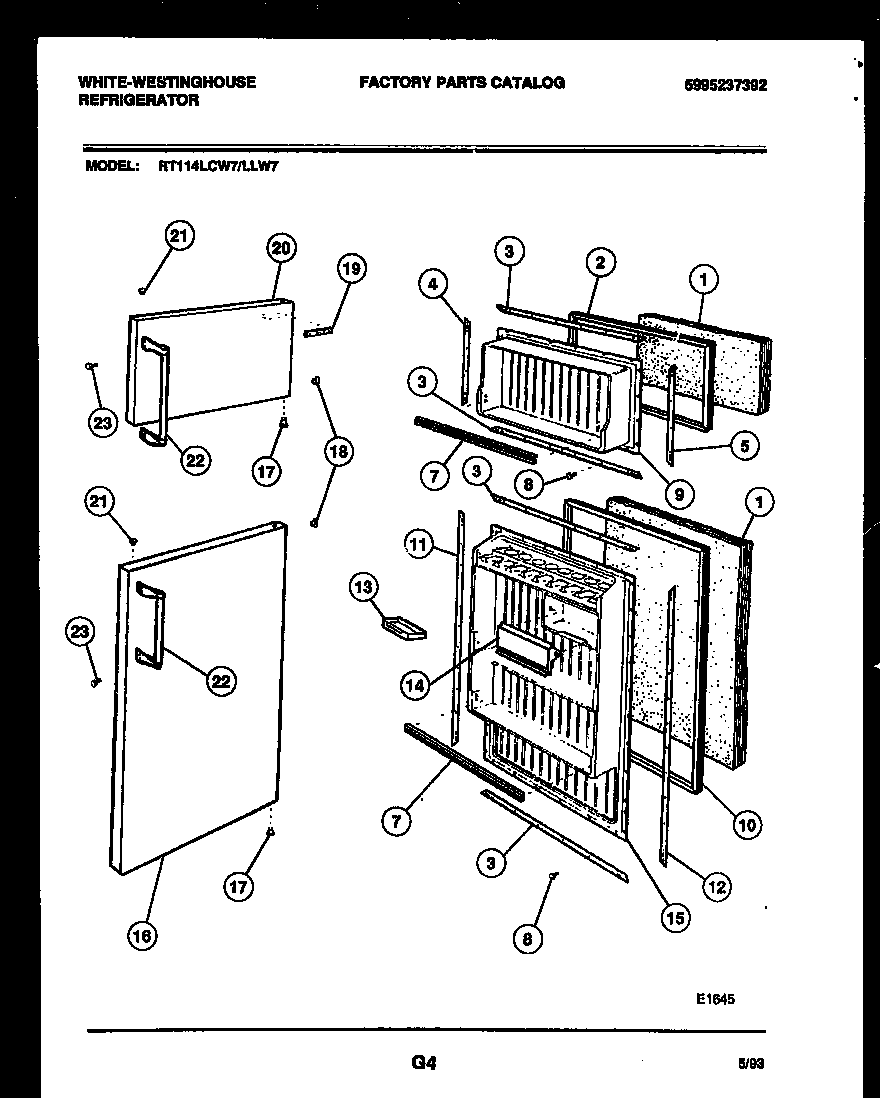

    Door parts diagram

    Refrigerator Plug (white)

    Part #5308000090

    Replaced by #240494001

    Info Icon
    Manufacturer substitution
    This part replaces 5308000090. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $21.59
    22% OFF Phone Price : $27.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Cabinet Hole Plug for White-Westinghouse RT114LLD7 - Part 5303208309

    Inner parts diagram

    Refrigerator Cabinet Hole Plug

    Part #5303208309
    In Stock
    $41.92
    13% OFF Phone Price : $47.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Grommet for White-Westinghouse RT114LLD7 - Part 218513300

    System and automatic defrost parts diagram

    Grommet

    Part #215175000

    Replaced by #218513300

    Info Icon
    Manufacturer substitution
    This part replaces 215175000. Substitute parts can look different from the original.
    In Stock
    $41.89
    13% OFF Phone Price : $47.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer for White-Westinghouse RT114LLD7 - Part 08011152

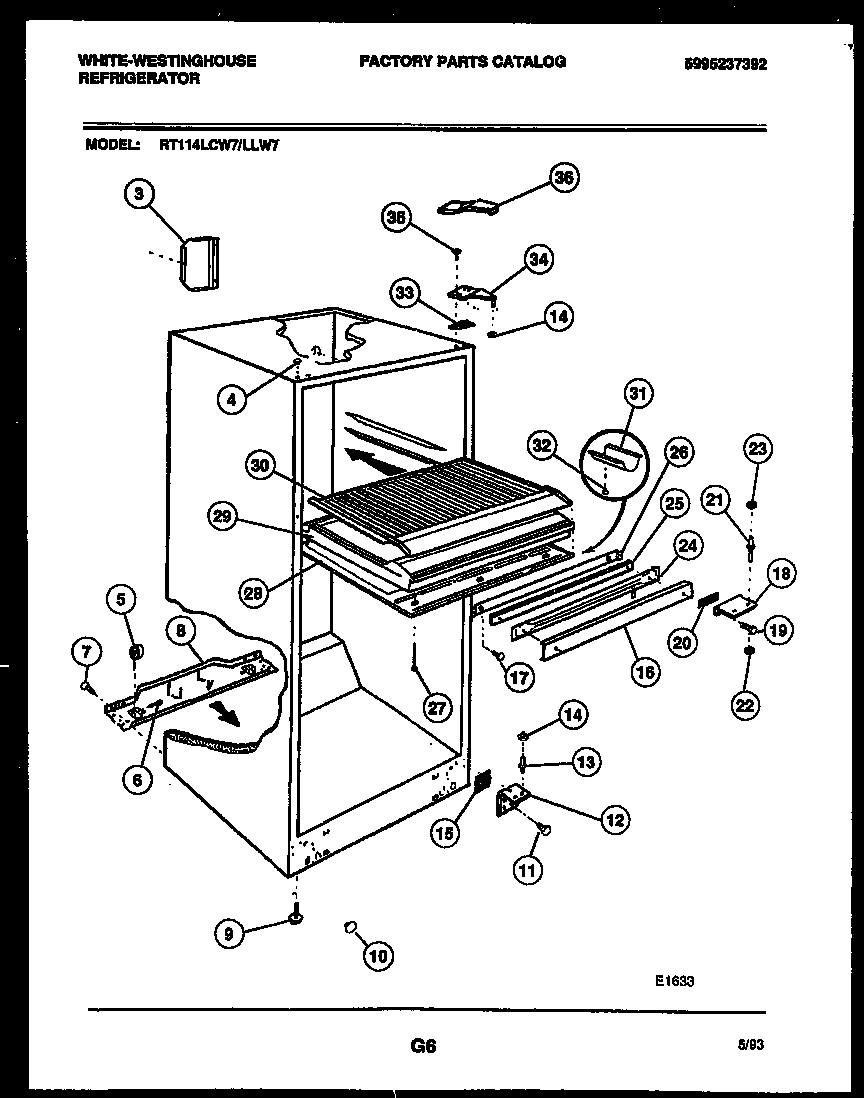

    Cabinet parts diagram

    Washer

    Part #08011152
    In Stock
    $25.73
    Minus Item
    Qty
    Plus Item
  • Refrigerator Trough for White-Westinghouse RT114LLD7 - Part 08011216

    Inner parts diagram

    Refrigerator Trough

    Part #08011216
    In Stock
    $42.65
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Hinge Hole Cover (white) for White-Westinghouse RT114LLD7 - Part 5308000134

    Door parts diagram

    Refrigerator Door Hinge Hole Cover (white)

    Part #5308000134
    In Stock
    $26.95
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for White-Westinghouse RT114LLD7 - Part 5303211311

    Door parts diagram

    Refrigerator Screw

    Part #5303211311
    In Stock
    $38.66
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Refrigerator Roller 08011155

Refrigerator Roller

Part #08011155
In Stock
$30.90
Minus Item
Qty
Plus Item
