Magic Chef W20FY4C washer/dryer Parts
Here are the diagrams and repair parts for Magic Chef W20FY4C washer/dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

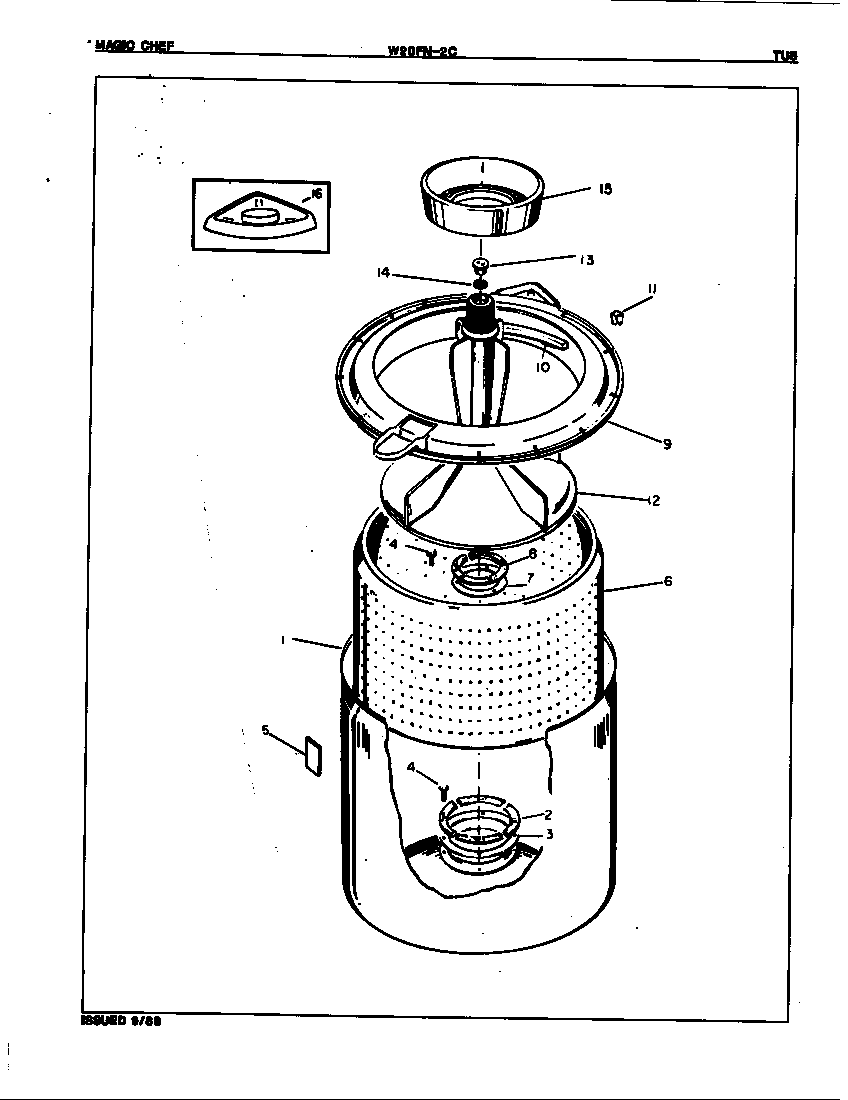

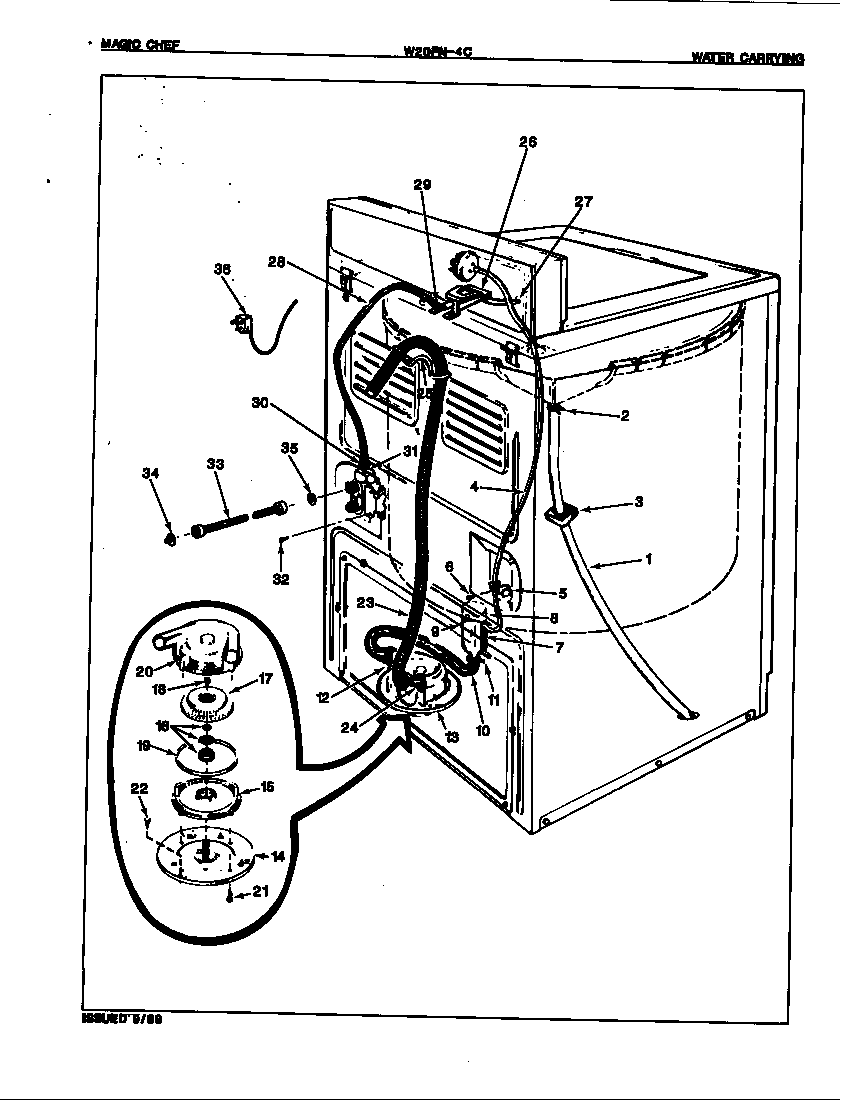

SELECT DIAGRAM
Browse Parts for W20FY4C Washer/Dryer
Base & drive diagram
Washer Motor Isolator
Part #33-9967Replaced by #WP33-9967
Manufacturer substitutionThis part replaces 33-9967. Substitute parts can look different from the original.This item is not returnableIn Stock$2.8226% OFF Phone Price : $3.82
Qty
Base & drive diagram
Locator Nut
Part #25-0224Replaced by #WP3400029

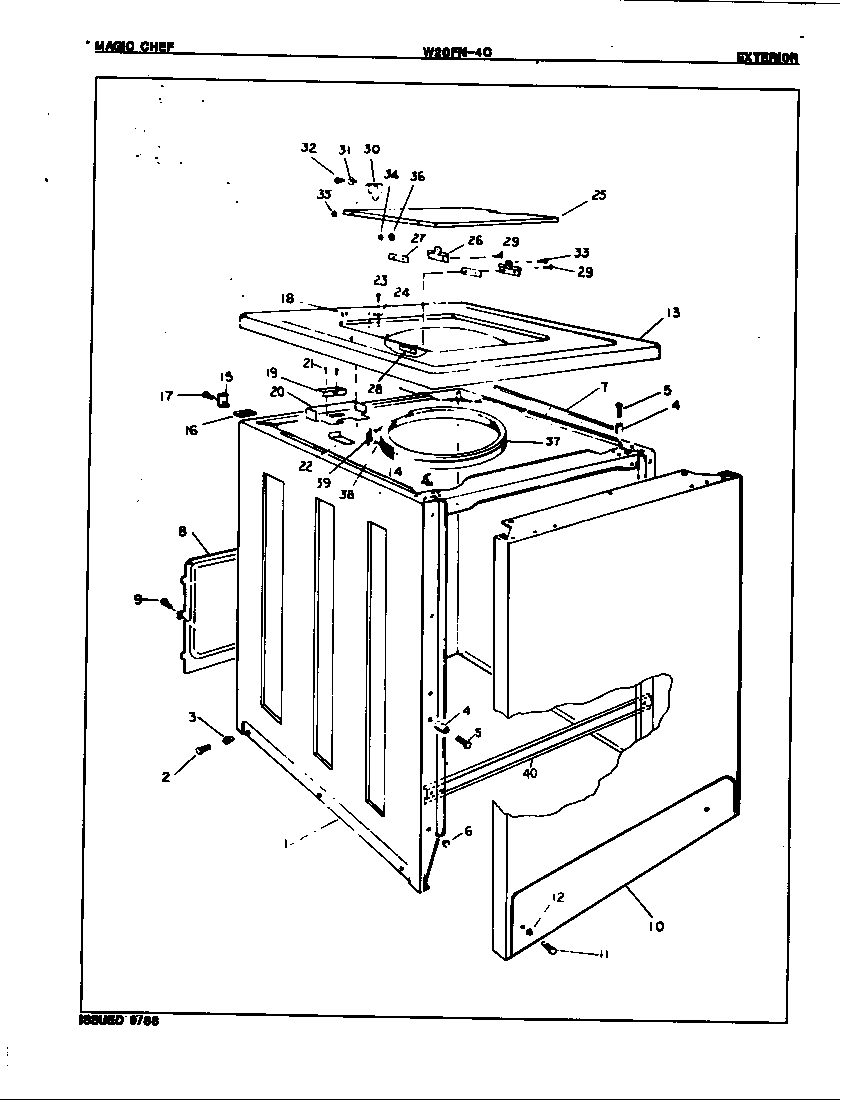

Manufacturer substitutionThis part replaces 25-0224. Substitute parts can look different from the original.In Stock$7.2112% OFF Phone Price : $8.21QtyExterior diagram
Hinge
Part #33-7450Replaced by #35-2846
Manufacturer substitutionThis part replaces 33-7450. Substitute parts can look different from the original.In Stock$27.4218% OFF Phone Price : $33.42QtyBase & drive diagram
Screw
Part #25-6121Replaced by #212951

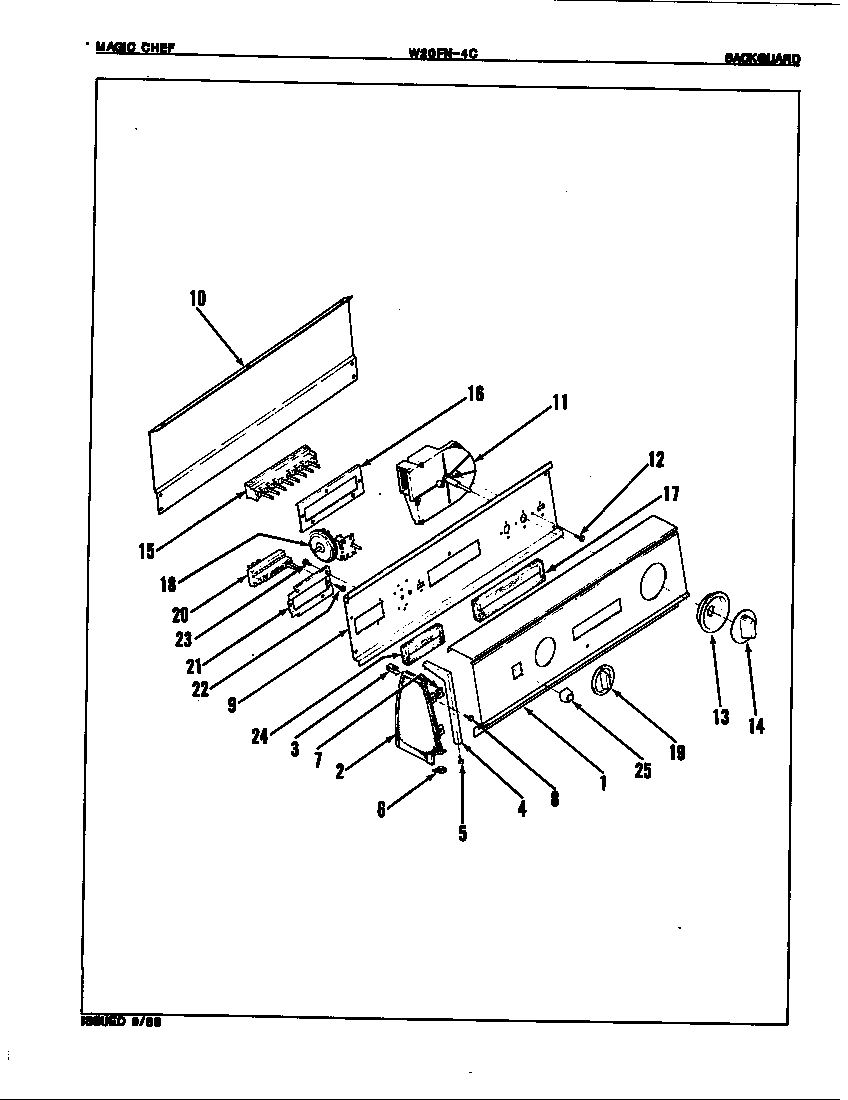

Manufacturer substitutionThis part replaces 25-6121. Substitute parts can look different from the original.In Stock$27.79QtyControl panel diagram
Screw
Part #25-7435Replaced by #WP33002917
Manufacturer substitutionThis part replaces 25-7435. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyScrew Purch
Part #25-7418Replaced by #WP308544
Manufacturer substitutionThis part replaces 25-7418. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyBase & drive diagram
Washer Motor Isolator
Part #33-9946Replaced by #WP33-9946
Manufacturer substitutionThis part replaces 33-9946. Substitute parts can look different from the original.In Stock$30.93QtyBase & drive diagram
Washer
Part #33-0279
The manufacturer no longer makes this part, and there's no substitute part

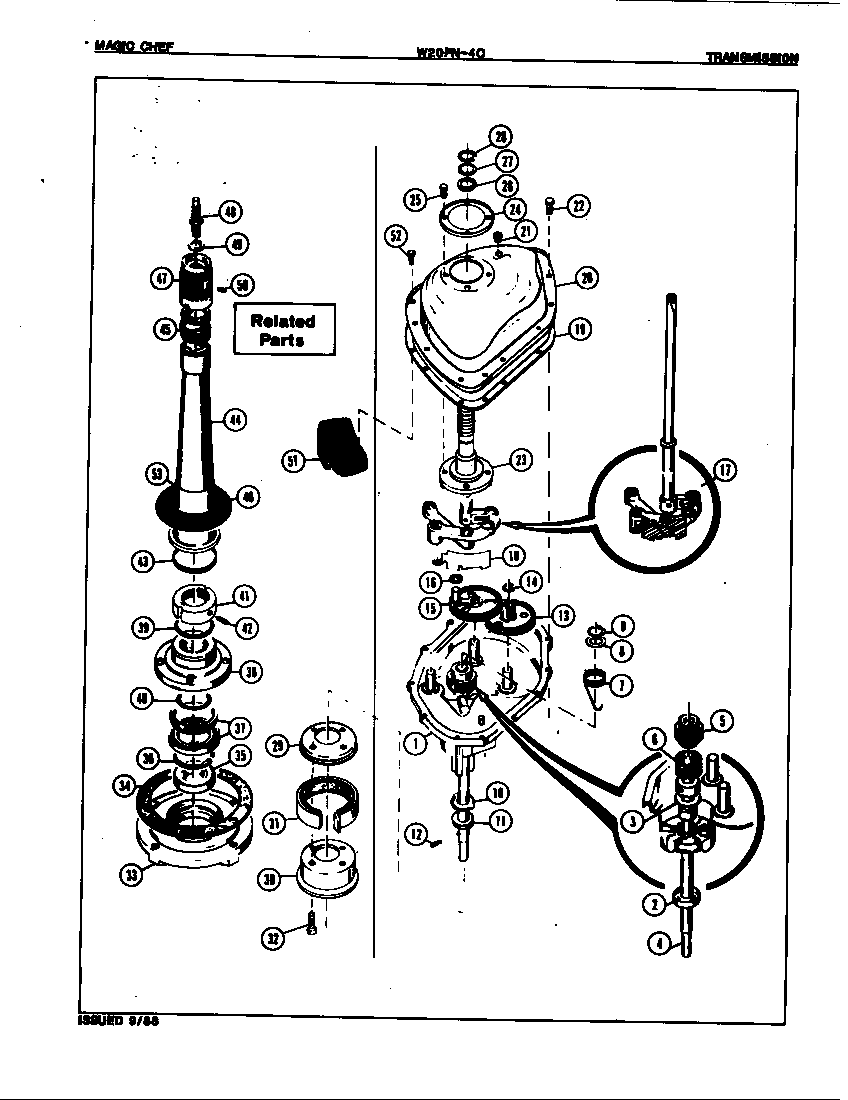

Transmission diagram
Centerpost A
Part #33-9498
The manufacturer no longer makes this part, and there's no substitute part
Base & drive diagram
Pad
Part #34-0062
The manufacturer no longer makes this part, and there's no substitute part
