Kenmore 9119249182 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119249182 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

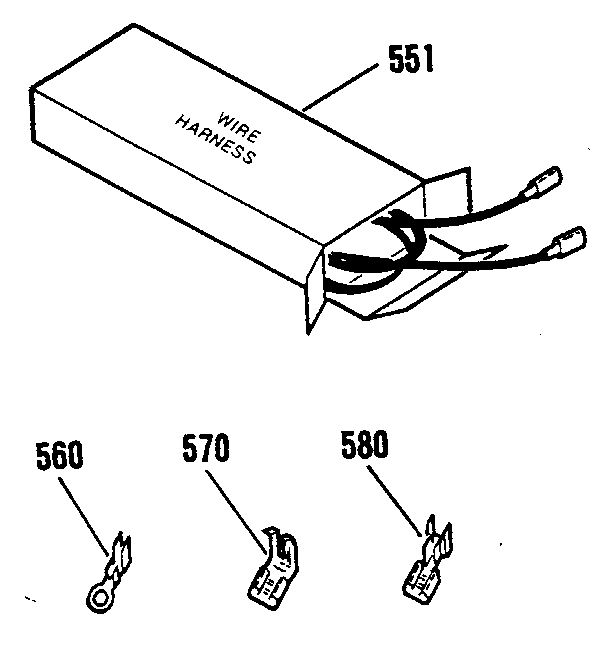

SELECT DIAGRAM
Browse Parts for 9119249182 Ranges

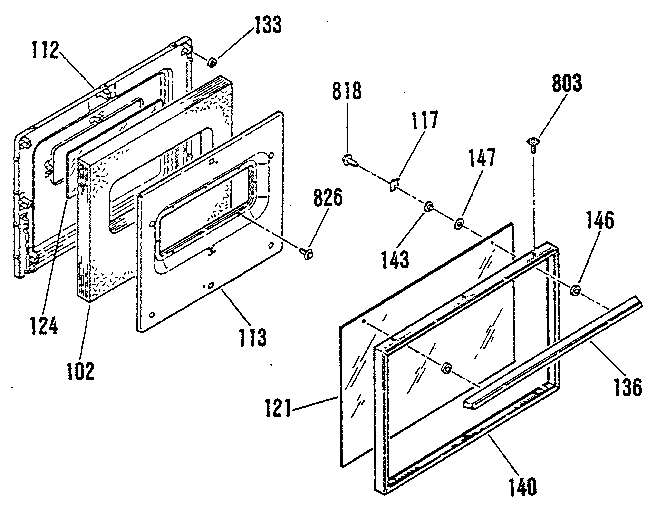

Oven door section diagram
Washer
Part #333014Replaced by #WB1X1138
Manufacturer substitutionThis part replaces 333014. Substitute parts can look different from the original.In Stock$47.91
Qty

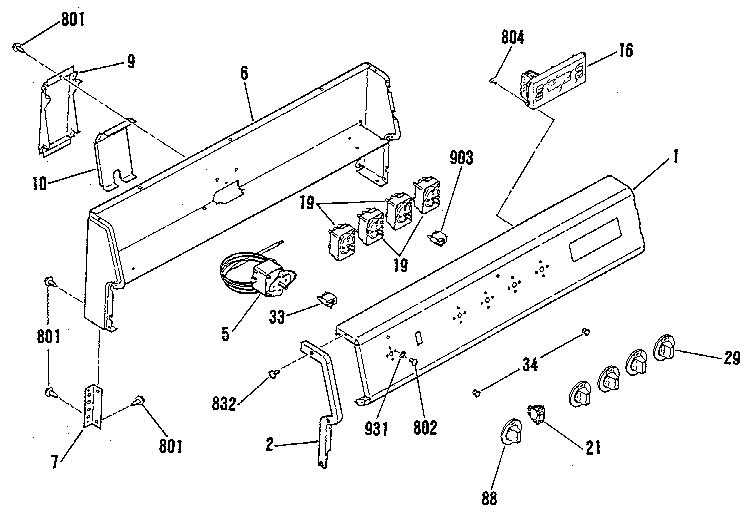

Backguard section diagram
Screw (white)
Part #327621Replaced by #WB1X1118
Manufacturer substitutionThis part replaces 327621. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38

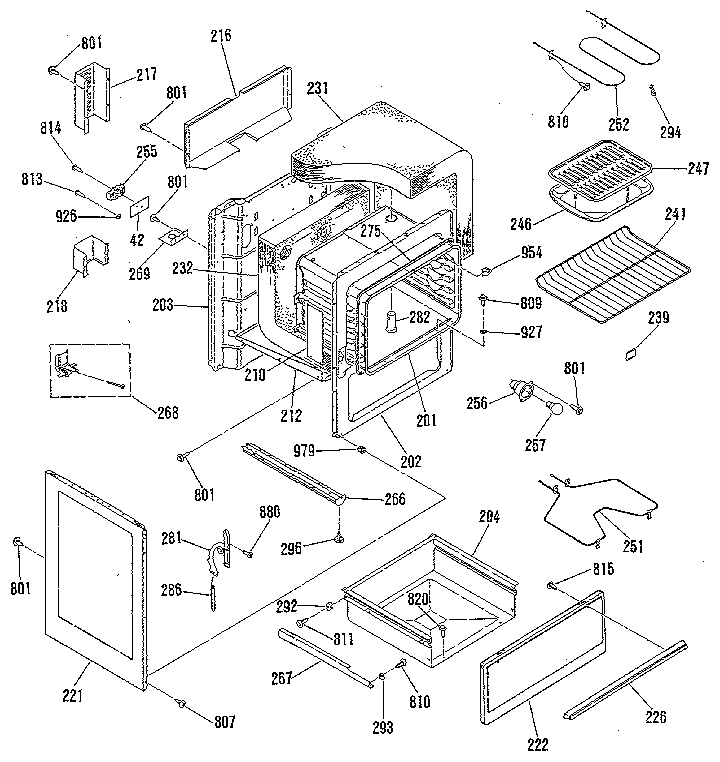

QtyBody section diagram
Screw
Part #313190Replaced by #WB1X1258
Manufacturer substitutionThis part replaces 313190. Substitute parts can look different from the original.In Stock$32.52QtyBody section diagram
Range Bake Element
Part #340521Replaced by #WB44K5012
Manufacturer substitutionThis part replaces 340521. Substitute parts can look different from the original.In Stock$51.0111% OFF Phone Price : $57.01QtyButton Plug
Part #339623Replaced by #WB2X9189
Manufacturer substitutionThis part replaces 339623. Substitute parts can look different from the original.In Stock$9.2710% OFF Phone Price : $10.27QtyBody section diagram
Screw
Part #314124Replaced by #WB01X32746
Manufacturer substitutionThis part replaces 314124. Substitute parts can look different from the original.In Stock$32.52QtyBody section diagram
Screw
Part #69014Replaced by #WB1X1137

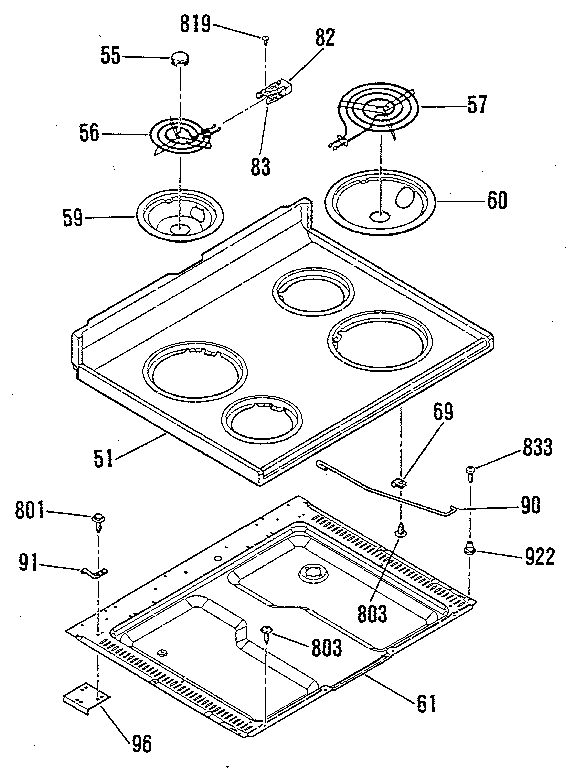

Manufacturer substitutionThis part replaces 69014. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01QtyMain top section diagram
Block Bracket
Part #343494Replaced by #WB17X211
Manufacturer substitutionThis part replaces 343494. Substitute parts can look different from the original.In Stock$11.8414% OFF Phone Price : $13.84QtyOven door section diagram
Door Glass (black)
Part #332067Replaced by #WB56X1902
Manufacturer substitutionThis part replaces 332067. Substitute parts can look different from the original.In Stock$285.71$12.00 OFF Phone Price : $297.71QtyBackguard section diagram
Backguard Body
Part #345575Replaced by #WB37K5035
Manufacturer substitutionThis part replaces 345575. Substitute parts can look different from the original.In Stock$107.96Qty
