Kenmore 9119249182 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119249182 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

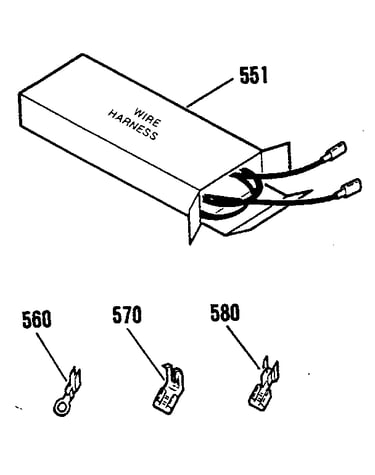

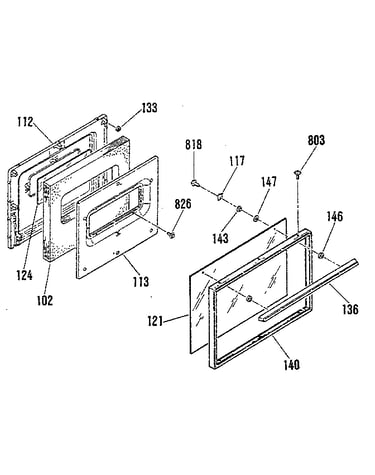

Browse Parts for 9119249182 Ranges

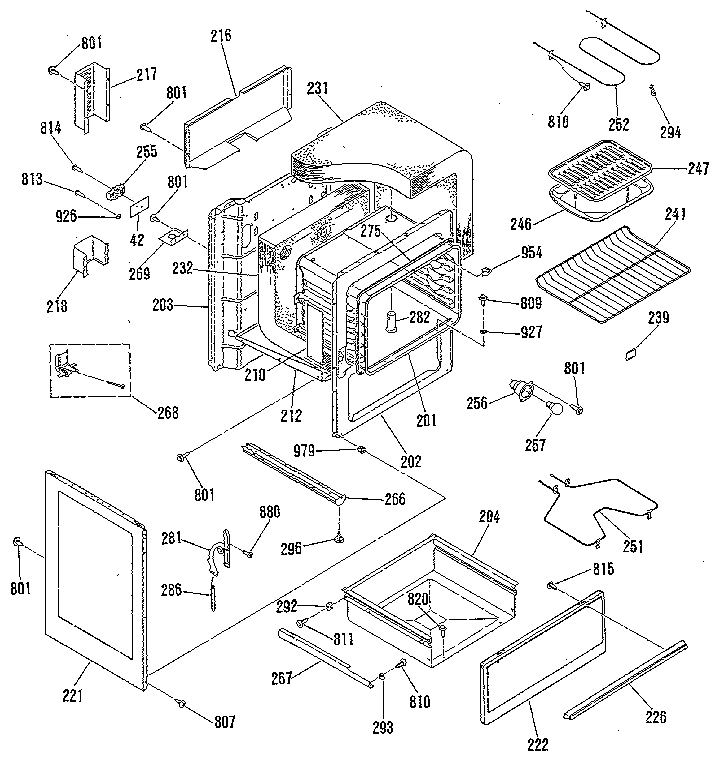

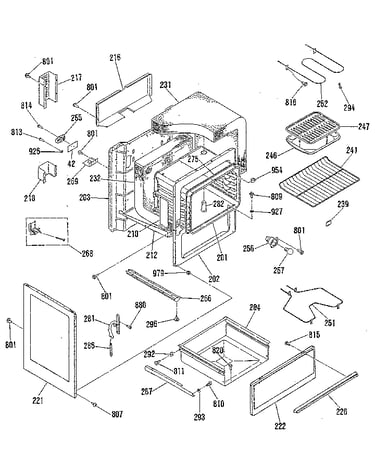

Body section diagram
Support
Part #334565Replaced by #WB2X9719
Manufacturer substitutionThis part replaces 334565. Substitute parts can look different from the original.In Stock$10.8416% OFF Phone Price : $12.84
Qty

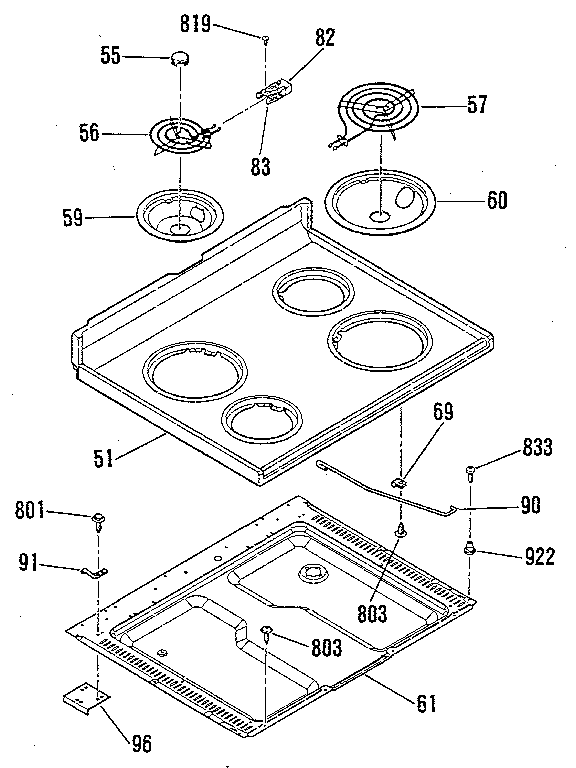

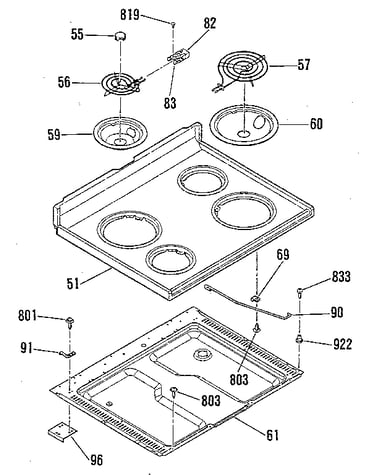

Main top section diagram
8 In Tp Unit
Part #325503Replaced by #WB30X253
Manufacturer substitutionThis part replaces 325503. Substitute parts can look different from the original.In Stock$71.338% OFF Phone Price : $77.33QtyMain top section diagram
Maintop Ad
Part #345002Replaced by #WB31K5025
Manufacturer substitutionThis part replaces 345002. Substitute parts can look different from the original.In Stock$24.0620% OFF Phone Price : $30.06QtyMain top section diagram
Bowl
Part #345807Replaced by #WB31K5024
Manufacturer substitutionThis part replaces 345807. Substitute parts can look different from the original.In Stock$19.479% OFF Phone Price : $21.47QtyMain top section diagram
6 In Tp Unit
Part #325507Replaced by #WB30X254
Manufacturer substitutionThis part replaces 325507. Substitute parts can look different from the original.In Stock$58.379% OFF Phone Price : $64.37QtyMain top section diagram
Brnr Bowl 8"
Part #345808Replaced by #WB31K5025
Manufacturer substitutionThis part replaces 345808. Substitute parts can look different from the original.In Stock$24.0620% OFF Phone Price : $30.06QtyBody section diagram
Door Hinge

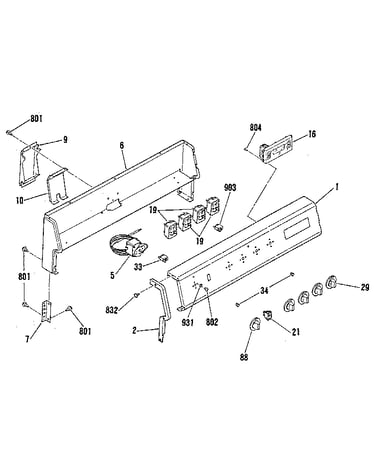

Part #332346Replaced by #WB14X103
Manufacturer substitutionThis part replaces 332346. Substitute parts can look different from the original.In Stock$47.1020% OFF Was : $59.15QtyBackguard section diagram
Light Lens
Part #331705Replaced by #WB25T10042
Manufacturer substitutionThis part replaces 331705. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyScrew
Part #346950Replaced by #WB1M1
Manufacturer substitutionThis part replaces 346950. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1311% OFF Phone Price : $9.13QtyBackguard section diagram
Infinite Switch
Part #344555Replaced by #WB23M24
Manufacturer substitutionThis part replaces 344555. Substitute parts can look different from the original.In Stock$109.7510% OFF Phone Price : $121.75Qty
