Electric Wall Oven

Model # ZET3058SH4SS Official GE electric oven

Here are the diagrams and repair parts for Official GE ZET3058SH4SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

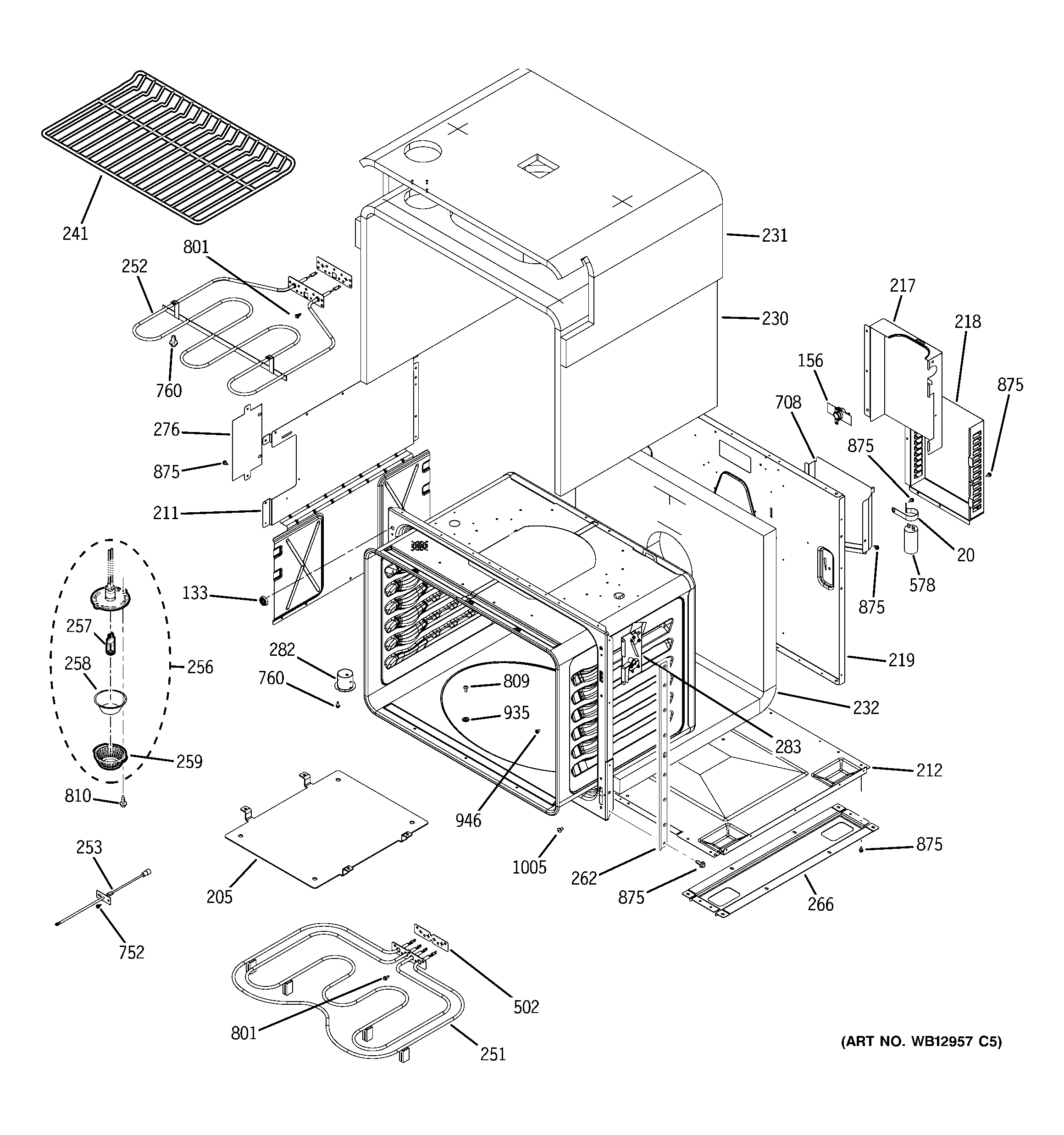

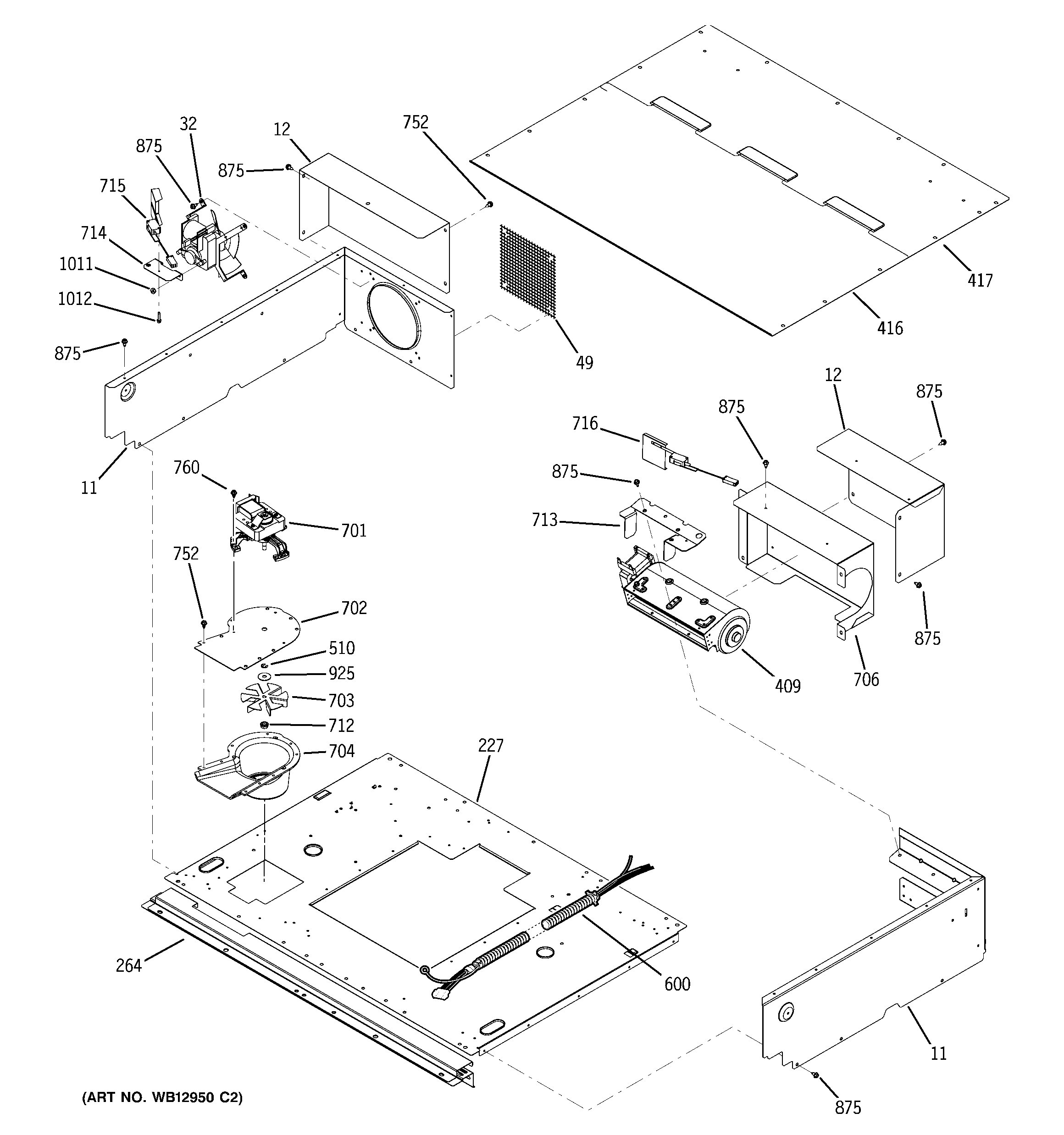

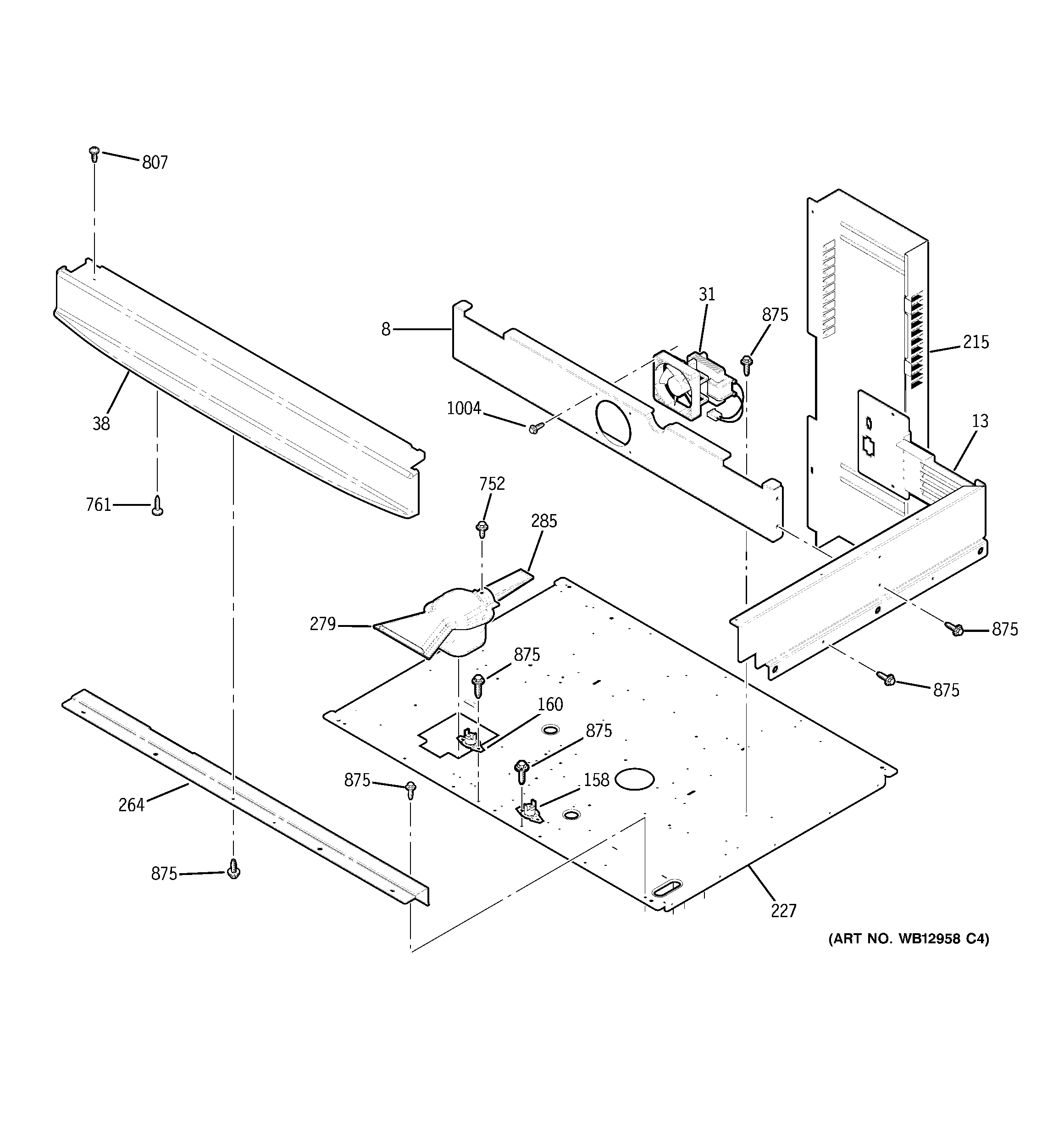

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |

Magnetron WB27T10545
#579

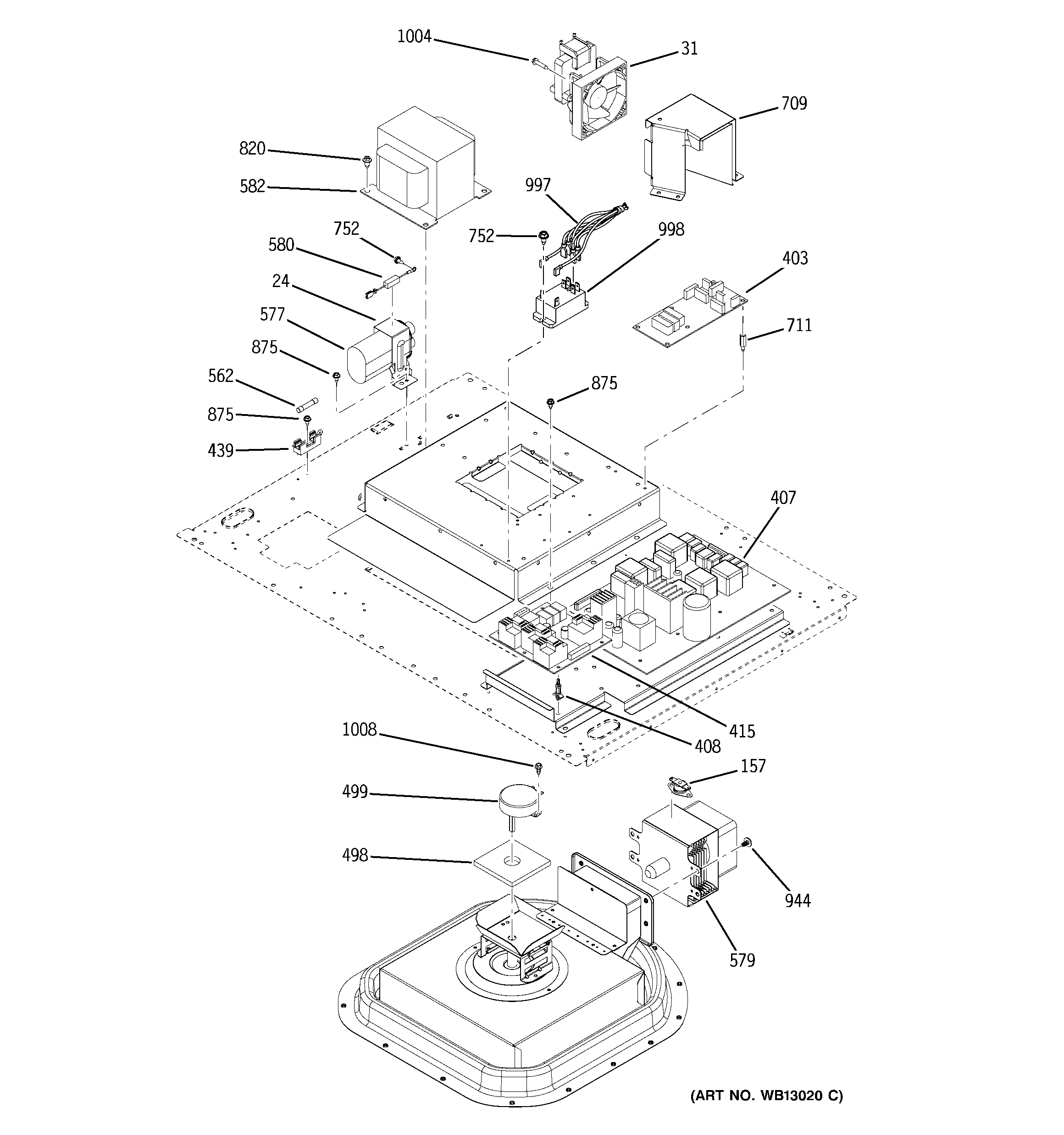

Control section diagram

Magnetron

Part #WB27T10545

The manufacturer no longer makes this part, and there's no substitute part

Diode WB27T10552
#580

Control section diagram

Diode

Part #WB27T10552

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27T10552. Substitute parts can look different from the original.
BEST SELLER
$40.60
13% OFF Phone Price : $46.60
In Stock

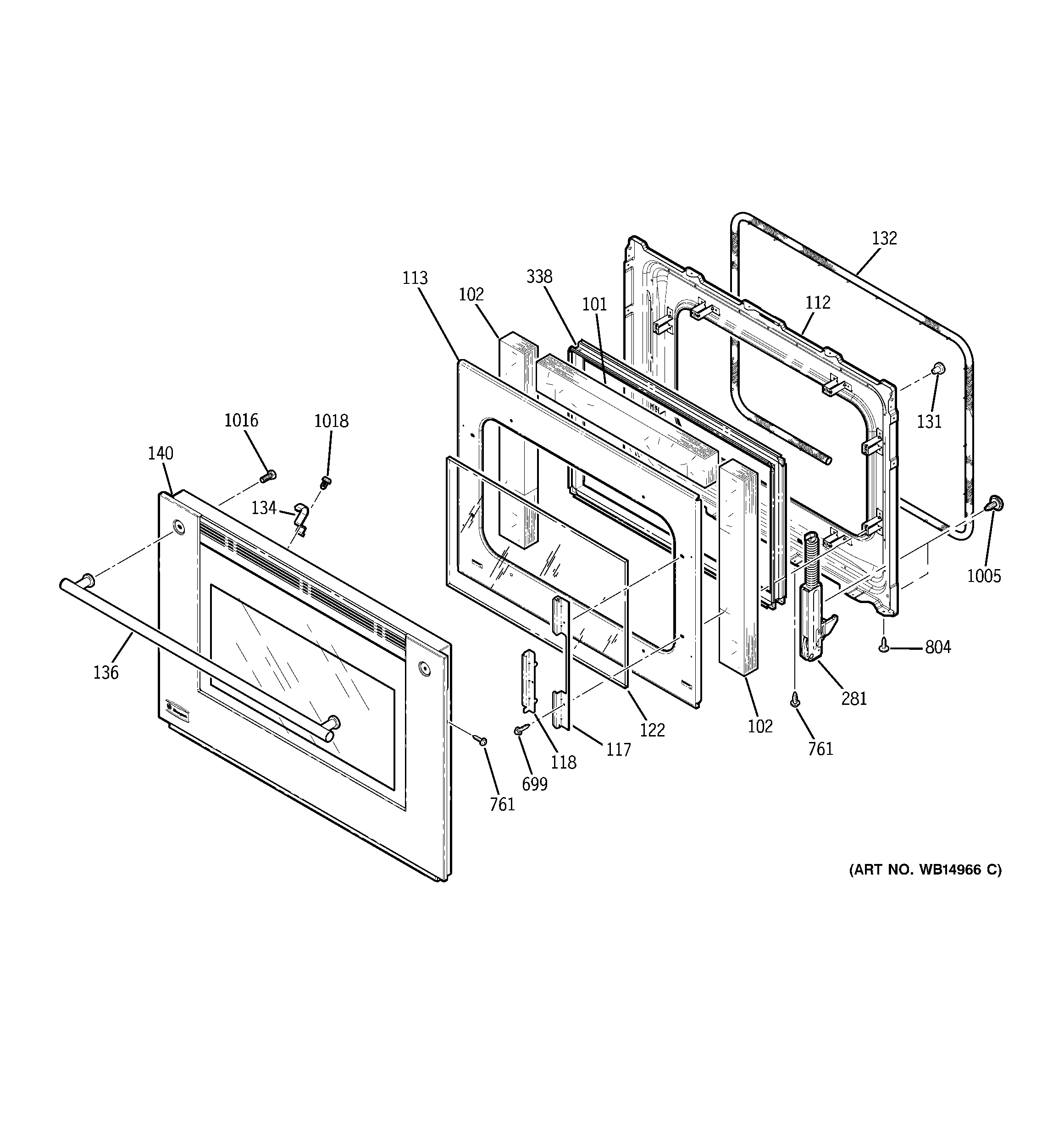

Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$101.93
11% OFF Phone Price : $113.93
In Stock
Light Bulb WB08T10007
Light bulb

Part #WB08T10007

Replaced by #WB08T10023

?
Manufacturer substitution
This part replaces WB08T10007. Substitute parts can look different from the original.
This item is not returnable
$12.78
14% OFF Phone Price : $14.78
In Stock

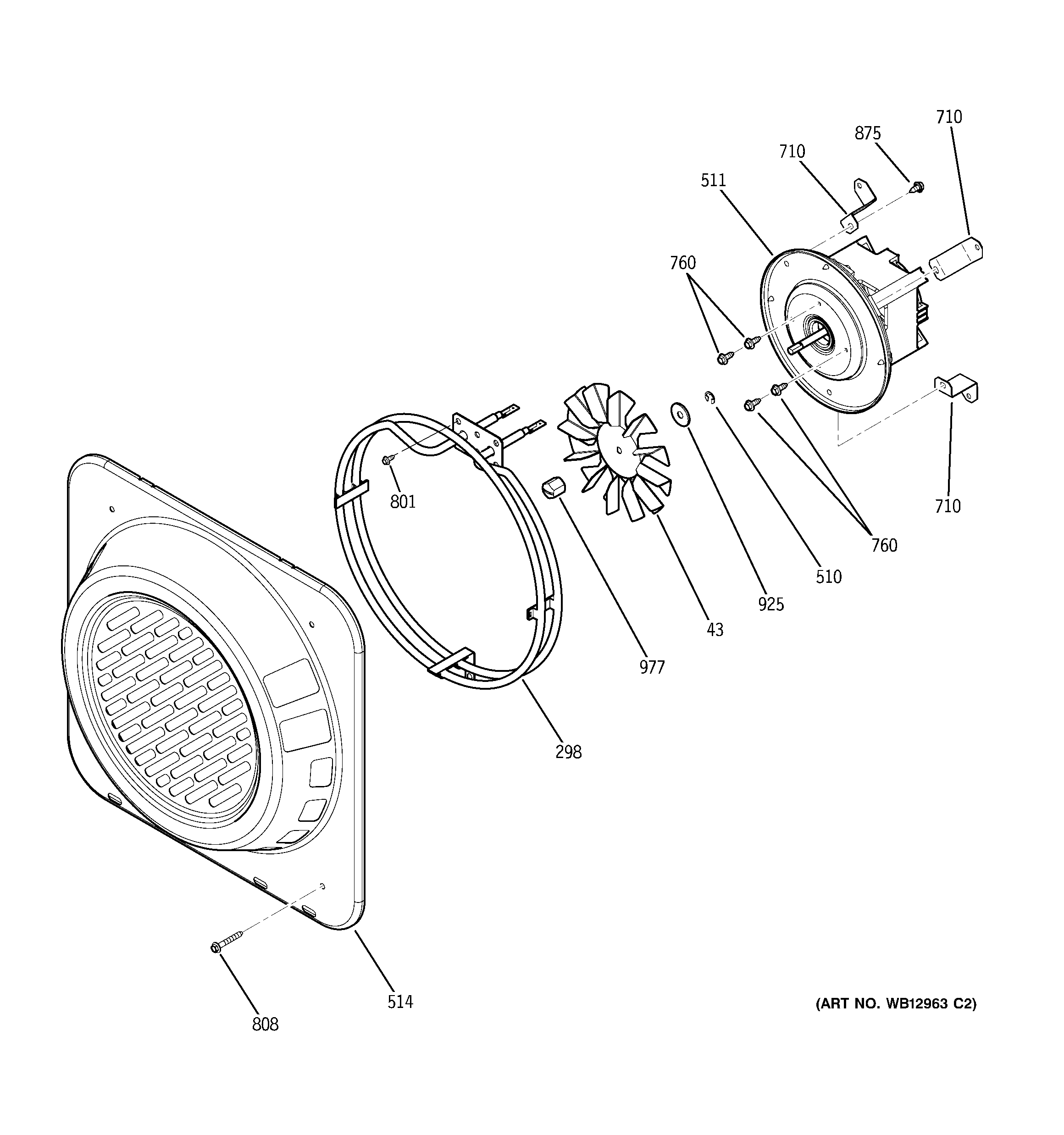

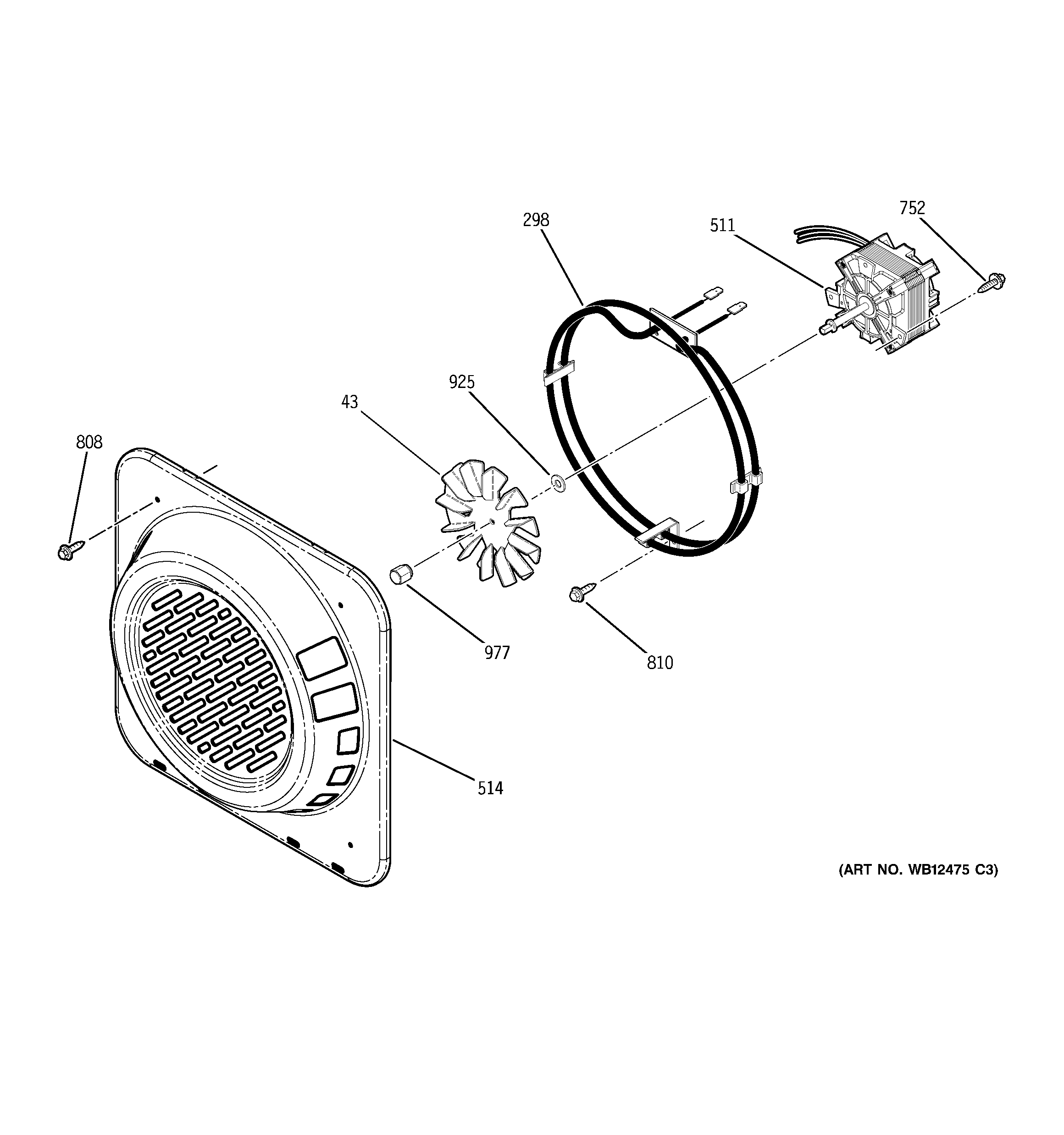

Range Convection Fan Blade WB02T10289
Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock

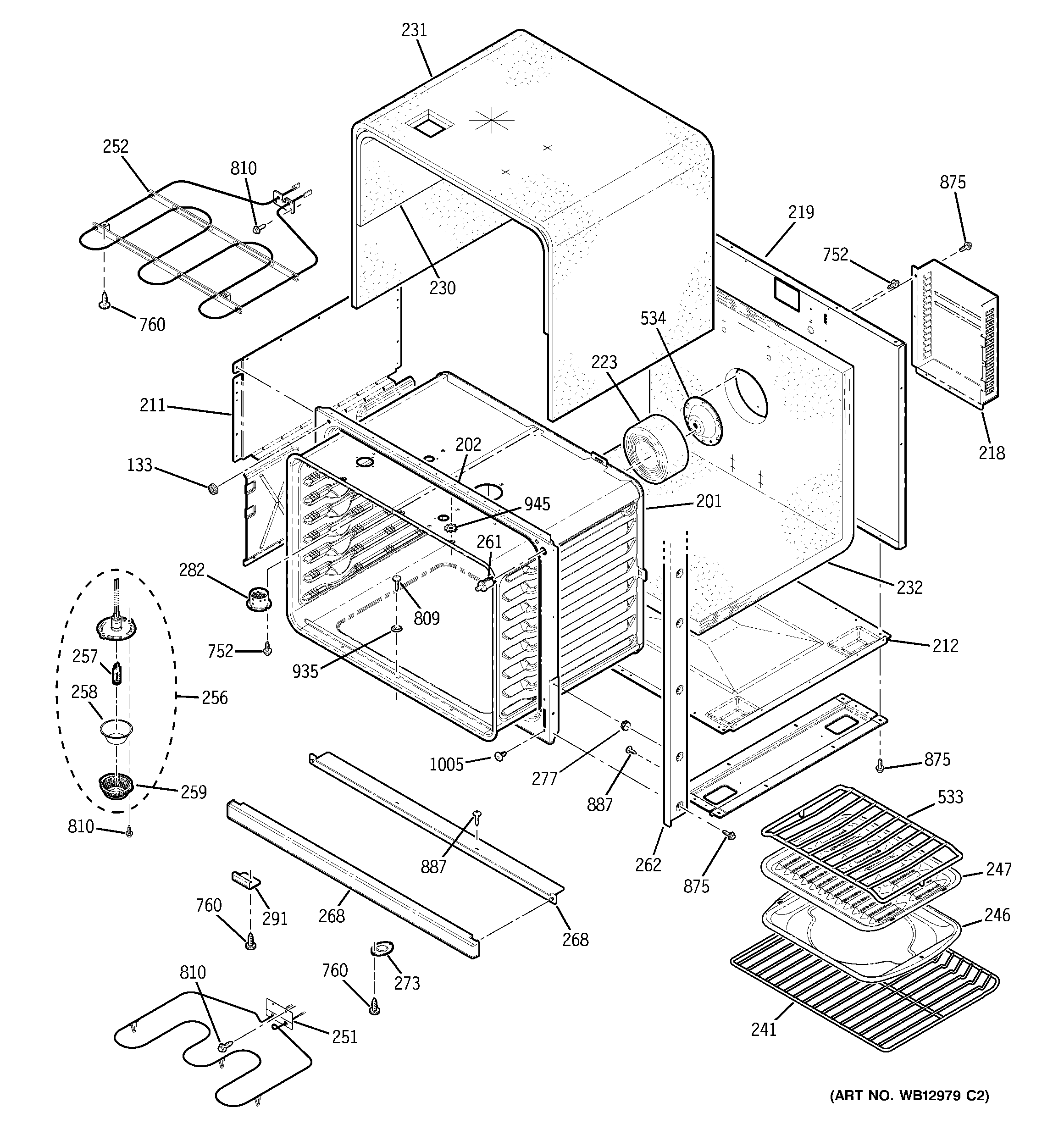

Range Oven Rack WB48T10020
Range oven rack

Part #WB48T10020

$56.01
10% OFF Phone Price : $62.01
In Stock
Screw WB01K5119
#797

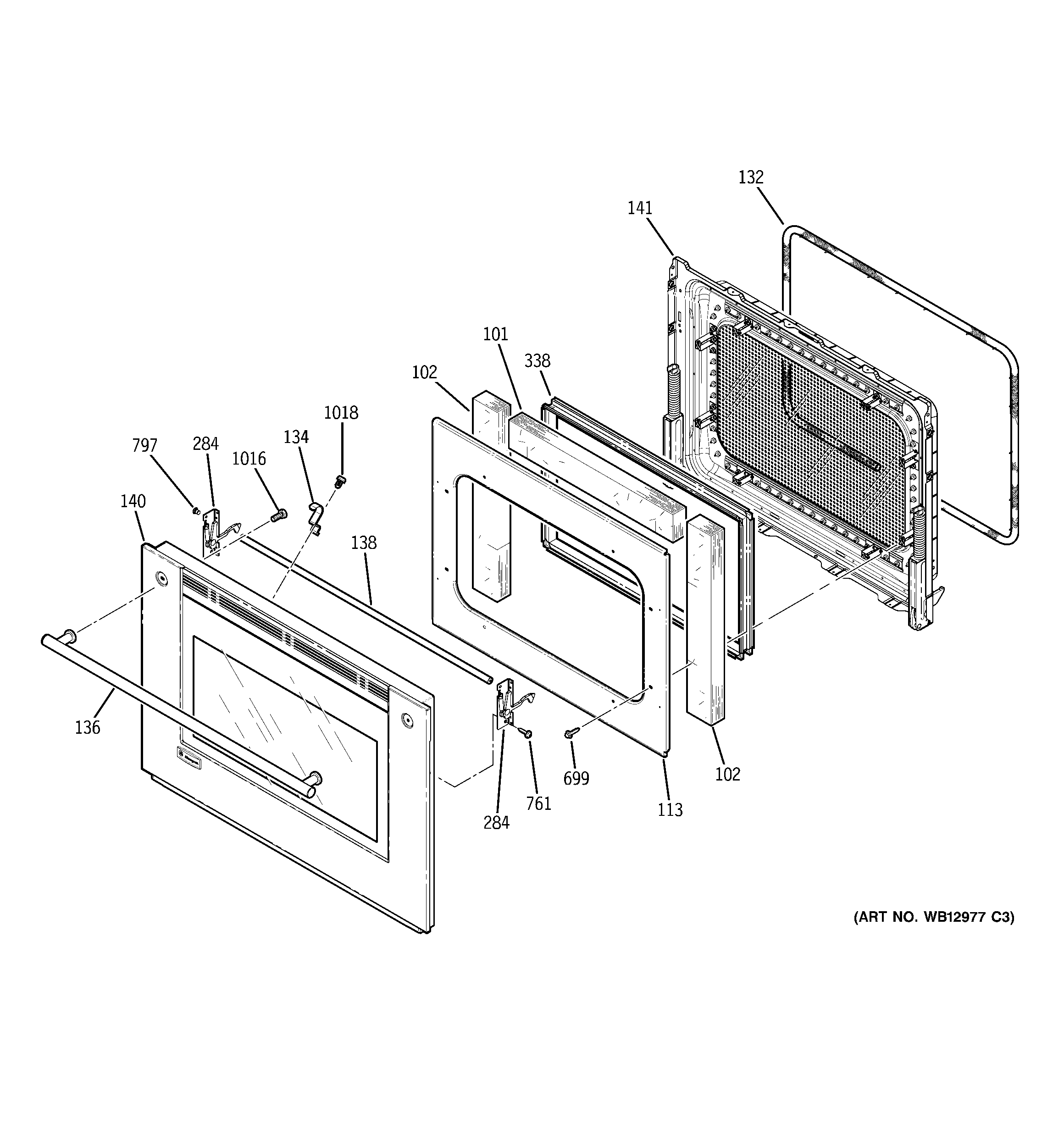

Upper oven door diagram

Screw

Part #WB01K5119

Replaced by #WB1K5119

?
Manufacturer substitution
This part replaces WB01K5119. Substitute parts can look different from the original.
This item is not returnable
$6.31
14% OFF Phone Price : $7.31
In Stock
Range Halogen Light Bulb WB08T10021
Range halogen light bulb

Part #WB08T10021

Replaced by #WB49X29679

?
Manufacturer substitution
This part replaces WB08T10021. Substitute parts can look different from the original.
This item is not returnable
$47.12
11% OFF Phone Price : $53.12
In Stock
Range User Interface Control Board WB27T10549
#405

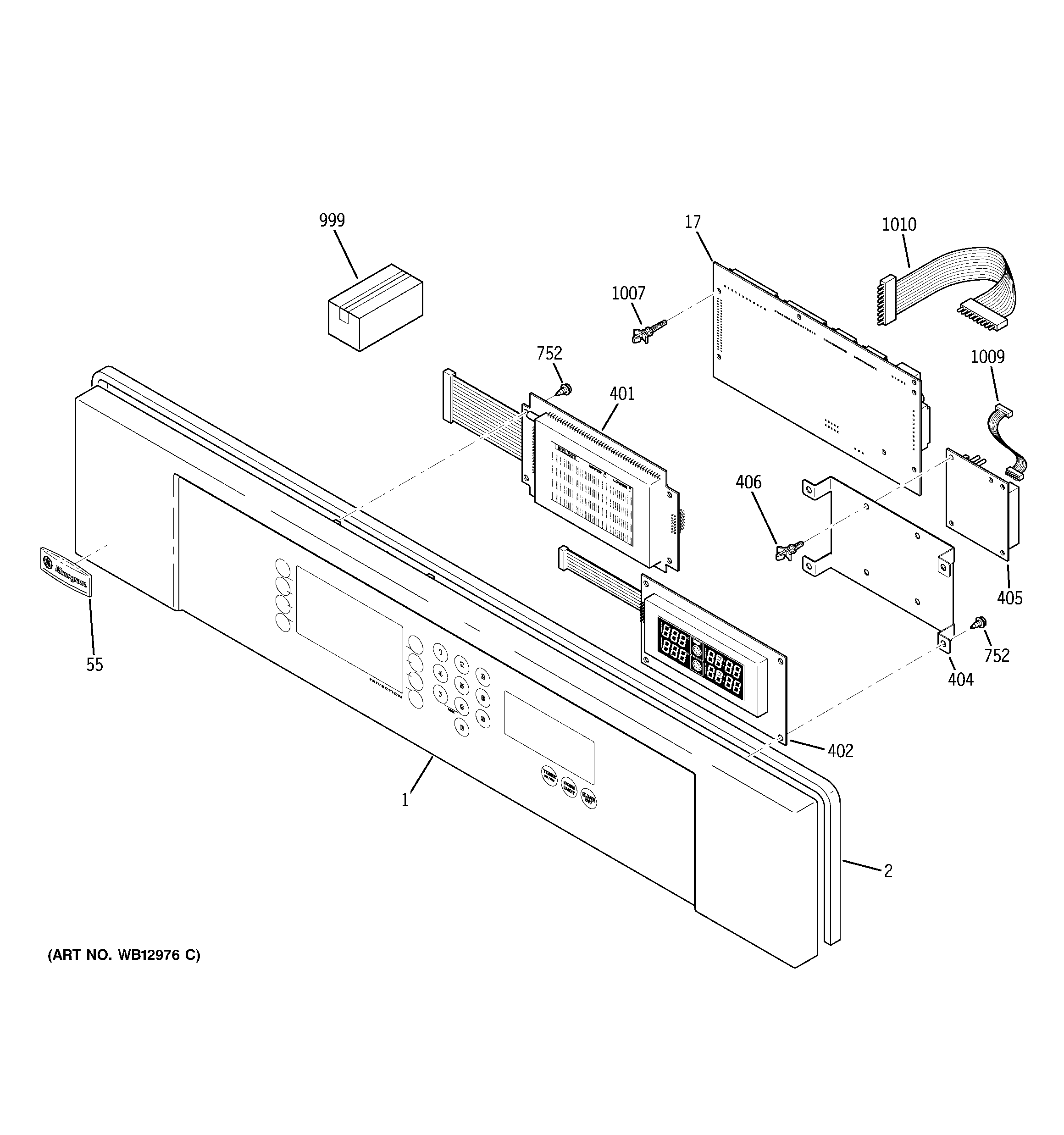

Control panel diagram

Range user interface control board

Part #WB27T10549

$214.30
5% OFF Phone Price : $226.30
In Stock
