Model #WF45R6100AW/US-00 Official Samsung washer

Here are the diagrams and repair parts for Samsung WF45R6100AW-US-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 131 parts

Washer Door Glass#5-1

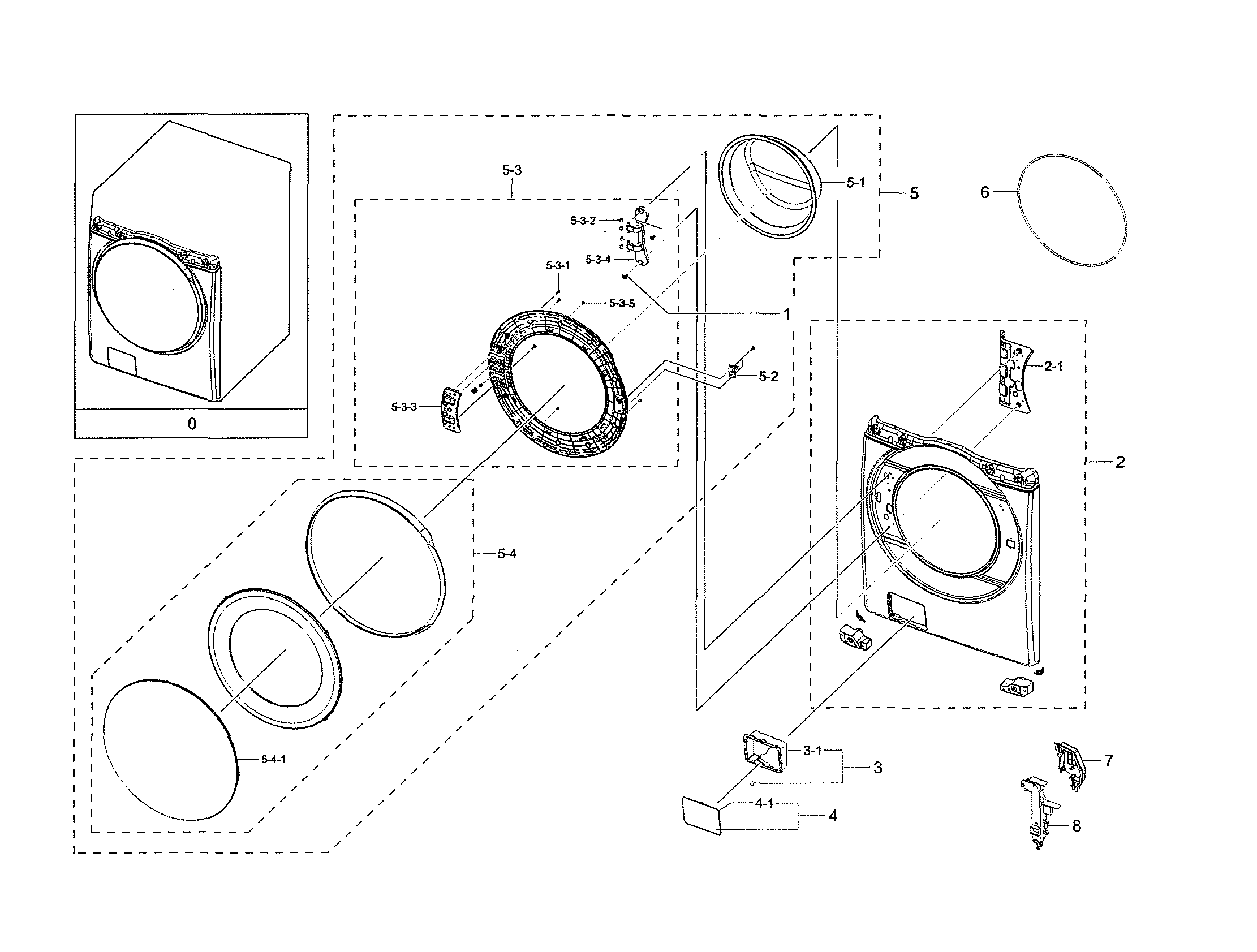

Front assembly Diagram

Washer door glass

Part #DC64-00504C
BEST SELLER
In Stock
$140.79 |
7% OFF
Phone Price: $150.79
Washer Bolt#4-1-1

Tub & drum Diagram

Washer bolt

Part #DC60-40137A
BEST SELLER
In Stock
$7.55 |
12% OFF
Phone Price: $8.55
Washer Drain Pump Check Valve#9-2

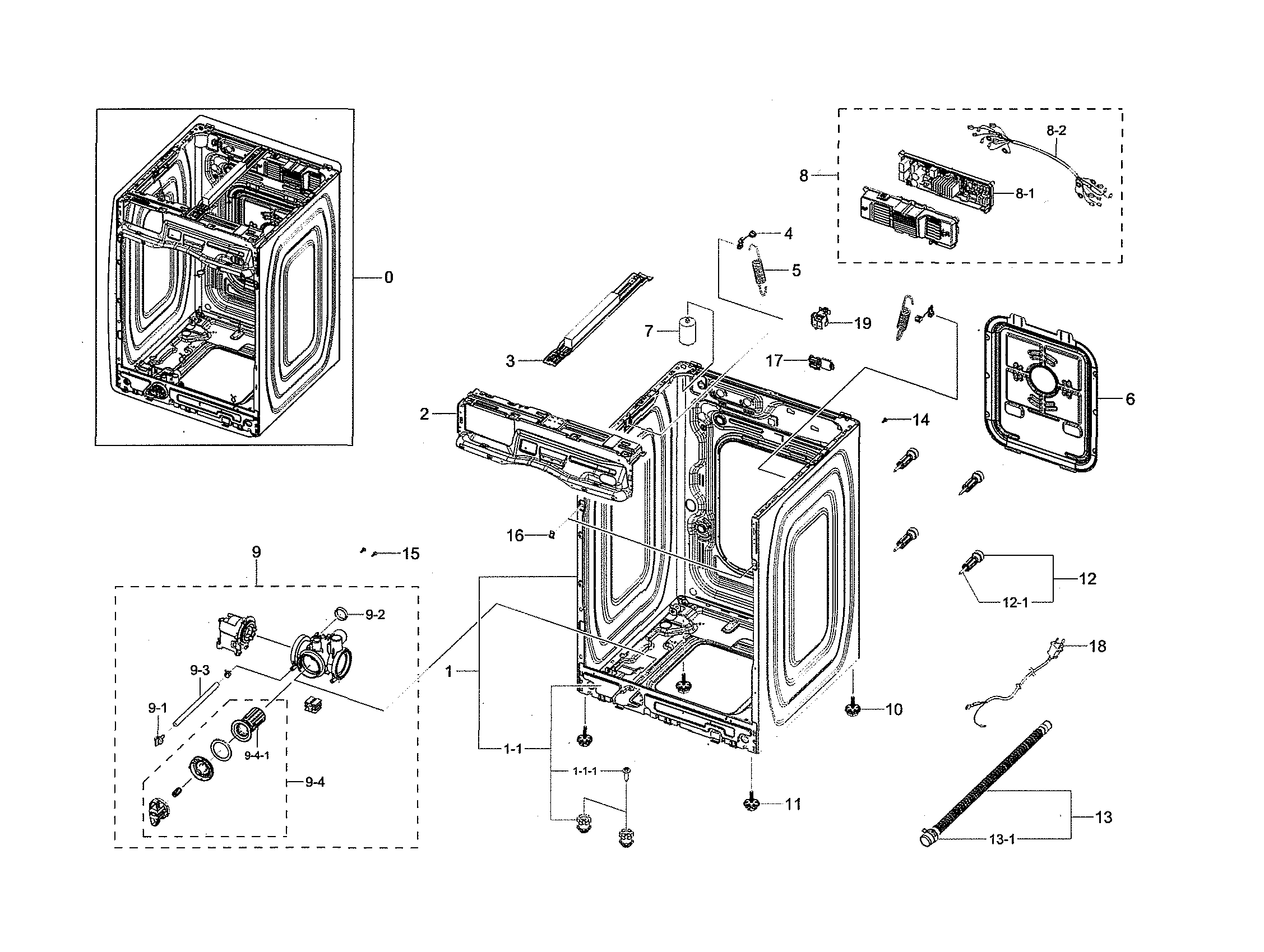

Frame & cover Diagram

Washer drain pump check valve

Part #DC62-00299A
BEST SELLER
This item is not returnable
In Stock
$3.79 |
21% OFF
Phone Price: $4.79
Laundry Appliance Hex Screw#1

Front assembly Diagram

Laundry appliance hex screw

Part #6009-001522
BEST SELLER
This item is not returnable
In Stock
$2.49 |
29% OFF
Phone Price: $3.49
Washer Drain Pump Assembly#9

Frame & cover Diagram

Washer drain pump assembly

Part #DC97-20621A
BEST SELLER
In Stock
$130.91 |
7% OFF
Phone Price: $140.91
Washer Shock Absorber

See All Related Diagrams

Washer shock absorber

Part #DC66-00470D
BEST SELLER
In Stock
$32.66 |
13% OFF
Phone Price: $37.66
Washer Door Lock Strike#5-2

Front assembly Diagram

Door latch

Part #DC66-00375A
Replaced by #DC66-00326A
?
Manufacturer substitution
This part replaces DC66-00375A. Substitute parts can look different from the original.
BEST SELLER
In Stock
$12.05 |
14% OFF
Phone Price: $14.05
Washer Noise Filter#7

Frame & cover Diagram

Washer noise filter

Part #DC29-00015G
BEST SELLER
In Stock
$94.49 |
5% OFF
Phone Price: $99.49
Refrigerator Screw#1

Control panel Diagram

Refrigerator screw

Part #6002-000213
BEST SELLER
This item is not returnable
In Stock
$2.26
Washer Drain Pump Filter#9-4

Frame & cover Diagram

Washer drain pump filter

Part #DC97-16991B
BEST SELLER
In Stock
$26.45 |
16% OFF
Phone Price: $31.45
